DESCRIPTION

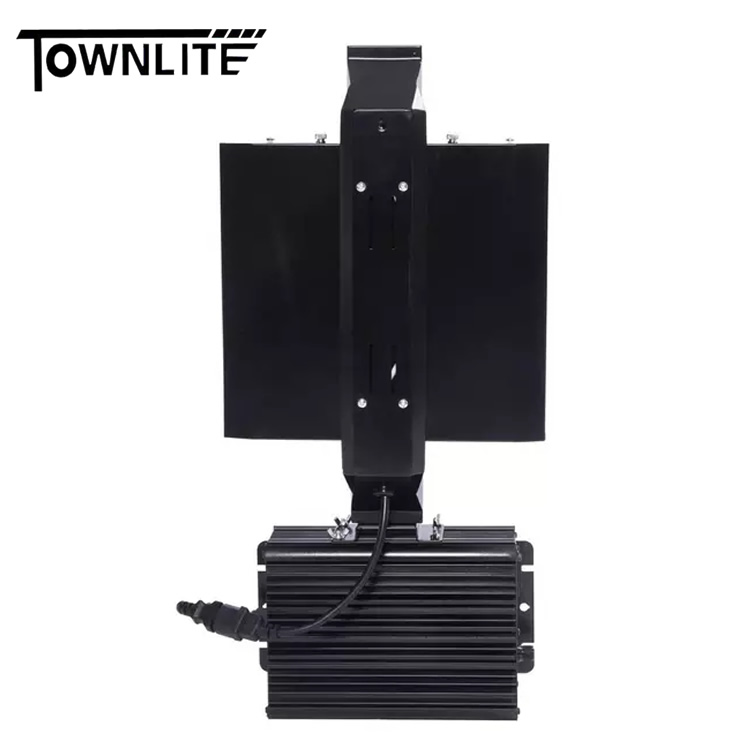

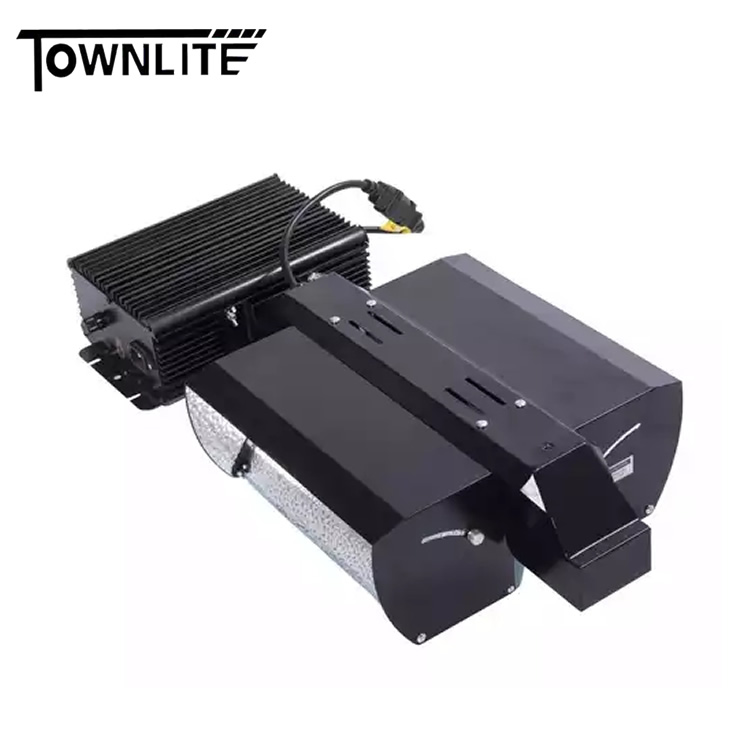

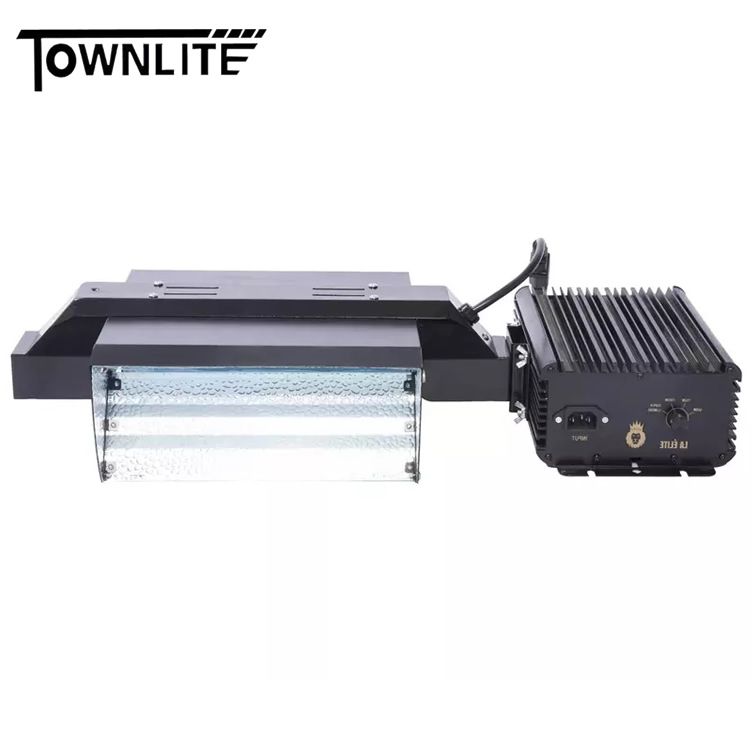

DE 1000W Horticultural Digital Ballast is equipped with DE Technology and to be used with double ended lamps. Designed for medical, industrial or hobby horticulturalist.

It can be easily integrated into your existing grow room; simply replace your ballast & lamp with our products and you will instantly achieve more useable grow light! More light = more yield!

The1000W DE ballast has been designed in Germany to enable 400V DE Technology. This ballast is ONLY to be used with 400V lamps. However, we recommend to use 400V double ended lamps. which are superior to the 240V lamps traditionally used because of the increased efficiency and PAR spectrum output. Photosynthesis Active Radiation (PAR) refers to a specific part of the light spectrum that a plant uses photosynthesize light energy into growth energy.

FEATURES

●Extremely high frequency, works perfectly with Double-Ended lamps

●Has "soft start" program to allow multiple ballasts to start at the same time

●Dimming Options: 600W, 750W, 825W, 1000W, 1150W,500W-1150W Double Ended HPS Lamps.

●0-10V Linear dimming

●Runs on 220 to 240 V power, 50 Hz or 60 Hz

●Works with both metal halide (MH) and high pressure sodium (HPS) lamps

●External breaker system protects against power surges

●Reflector with premium European (VEGA) aluminum, 95% reflectivity!

●Comes with a 10 ft power cord

●maximum distance ballast to lamp: 0.5 meter

●High quality, 3-year factory warranty

●UL Listed for safety.

Self-Protection

Input Protection:

High/Low Voltage; Lightening strike/inrush current; over current; brownout;

Output Protection:

Open circuit; low voltage; end of lamp life; failure ignition; over voltage; rectifying effect protection.

Overheat Soft-start:

In operation, inner heats will dissipate through case. When case temperature rises up to 70°C, ballast will gradually reduce power to 75%; when case temperature reach to 75°C, ballast will stop working until cool down to 60°C, then returns to full power status.

Dimmable:

600W, 750W,825W,1000W, 1150W, 500W-1150W

PERFORMANCE

Max Input Power: 1200W

Input Voltage: 220V or 240V ,50/60Hz

Max Input Current:5.45A/220V; 5A/240V;

Input Voltage Range: 180-270V

THD: <10%

Lamp CCF: <1.7

Power Factor: >0.99@220@100%

Operating Frequency: >100kHz

Environment IP Require: >IP23

Input current protection: Internal Fuse

Enclosure Temperature Rise: 35°C (95°F)

Ambient Temperature: -20 to 40°C (-13 to 104°F)

Ignition Voltage: Vpk<3.2KV

Open circuit Voltage: <430V

Lamp Flicker/Acoustic Resonance: No

RF Interference: No

0-10V Dimming accuracy：±5%

O-10V Control dimming range：

ERROR

ON

CONTROL RANGE

UINTS

Input (V)

0.0-3.0

3.1-5.0

5.0-11.5

V DC

1000W

0%

50%

50%-115%

% OF RATING
