About this product
- Materials: steel, aluminum and iron
- Size: 18000*3400*2100mm
- Color: Zhouxiang standard blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
About this product
- Materials: steel, aluminum and iron
- Size: 18000*3400*2100mm
- Color: Zhouxiang standard blue
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
Product details
| Materials | steel, aluminum and iron |
|---|---|
| Size | 18000*3400*2100mm |
| Color | Zhouxiang standard blue |
Product details
| Materials | steel, aluminum and iron |
|---|---|
| Size | 18000*3400*2100mm |
| Color | Zhouxiang standard blue |
From the supplier

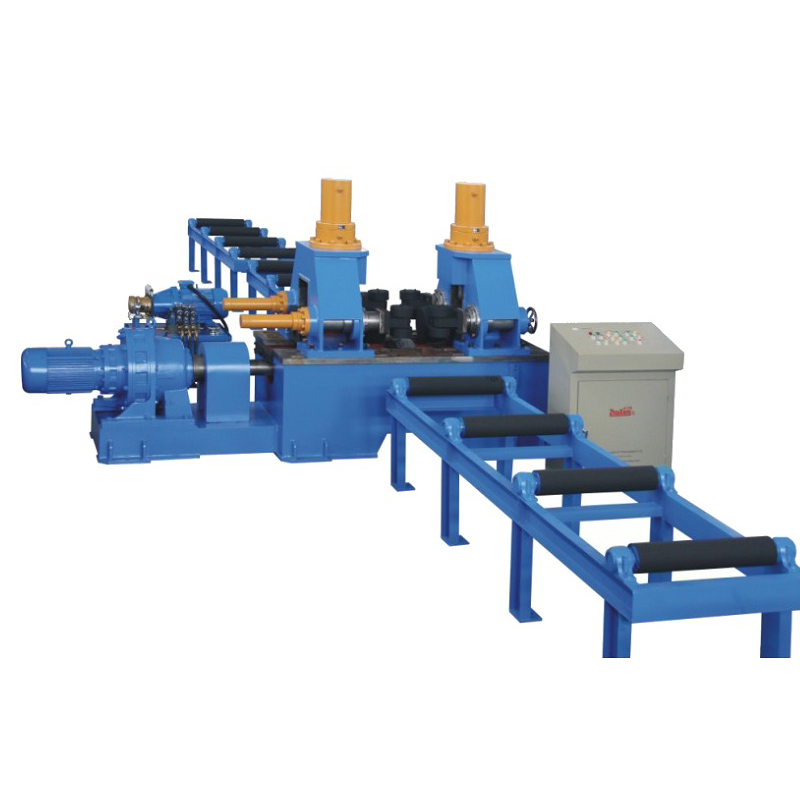

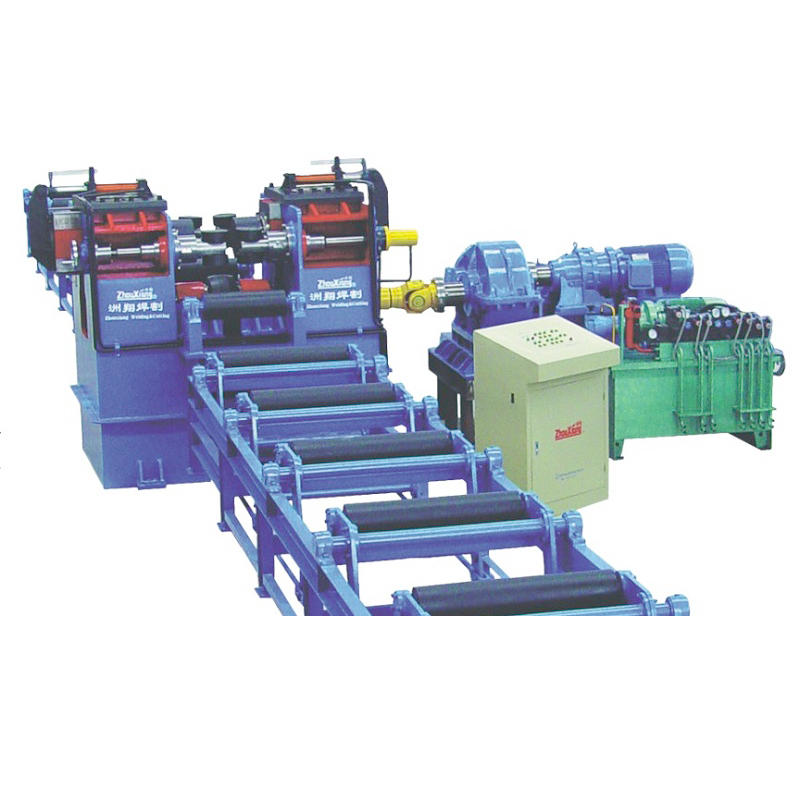

Hydraulic straightening machine, full name is H-beam flange hydraulic straightening machine, is mainly used for rectifying the deformed flange.
Straightening principle: The two upper straightening wheels press the two sides of flange, one of the down straightening wheel bear against the middle of flange; Pinch oil cylinder drives the two upper straightening wheel and press down the two sides of flange to realize rectifying the deformation.
This equipment includes cycloid reducer, column gear reducer, universal coupling, rack, down straightening roll device, upper straightening roll device, web plate fastening device, conveying roller, hydraulic system and electrical control system.
Technical parameter
- Plate thickness： 6-60 ㎜
- Width of flange： 200-1000 ㎜
- Height of web： ≥350 mm
- Material： Q345（16Mn ）
- Straightening speed： 6.15 m/min
- Main transmission motor： 22 kW
- Motor of hydraulic station： 5.5 kW
- Working pressure： 25 MPa
- Thickness and width relations of flange plate (Q345)
S thickness of flange
20～30
30～40
40～50
50～60
B width of flange
200～1000
400～1000
600～1000
800～1000
From the supplier
Hydraulic straightening machine, full name is H-beam flange hydraulic straightening machine, is mainly used for rectifying the deformed flange.
Straightening principle: The two upper straightening wheels press the two sides of flange, one of the down straightening wheel bear against the middle of flange; Pinch oil cylinder drives the two upper straightening wheel and press down the two sides of flange to realize rectifying the deformation.
This equipment includes cycloid reducer, column gear reducer, universal coupling, rack, down straightening roll device, upper straightening roll device, web plate fastening device, conveying roller, hydraulic system and electrical control system.
Technical parameter
- Plate thickness： 6-60 ㎜
- Width of flange： 200-1000 ㎜
- Height of web： ≥350 mm
- Material： Q345（16Mn ）
- Straightening speed： 6.15 m/min
- Main transmission motor： 22 kW
- Motor of hydraulic station： 5.5 kW
- Working pressure： 25 MPa
- Thickness and width relations of flange plate (Q345)
S thickness of flange
20～30
30～40
40～50
50～60
B width of flange
200～1000
400～1000
600～1000
800～1000
