Product details
| Materials | HZ-95 |
|---|
From the supplier
Product descriptions
Uncoiler: 3 Tons
One-piece frame
Embedded hydraulic station: 4KW, 220/380V, 50/60 HZ

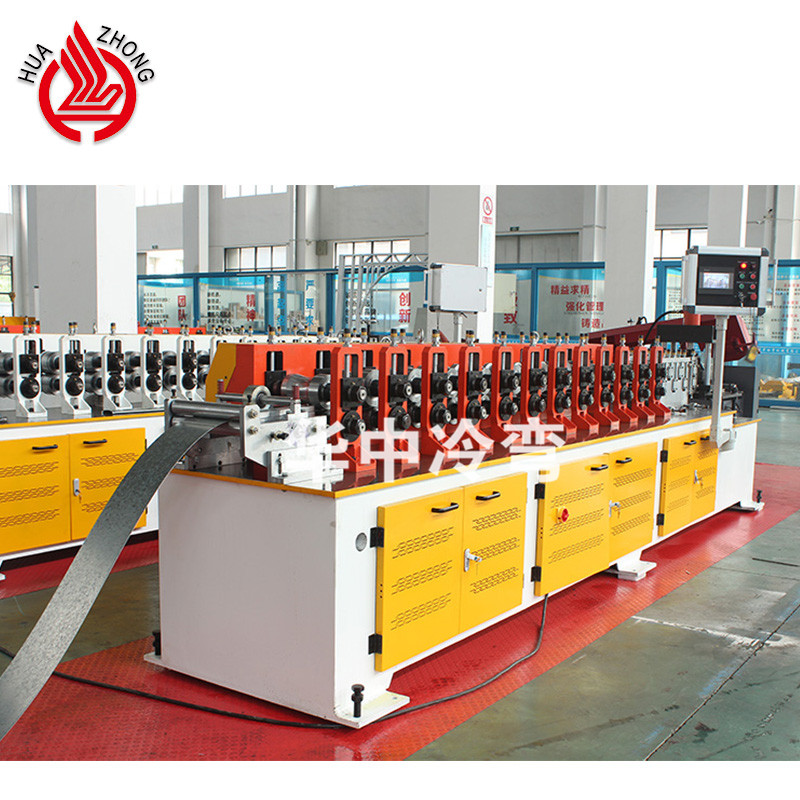

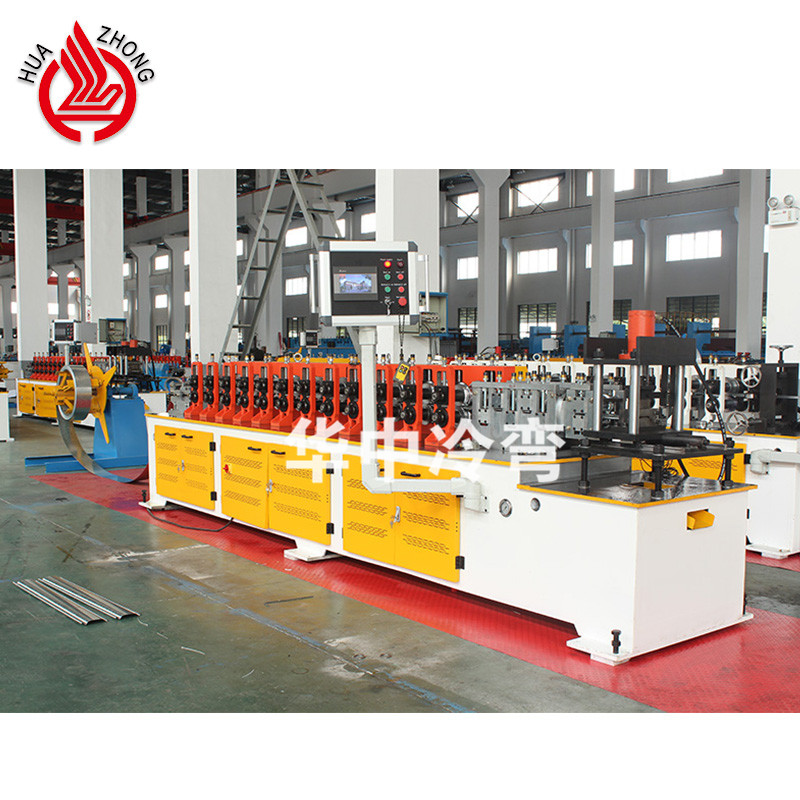

Cantilever console: Siemens touch screen
Motion controller system
Thickness: 0.8-1.2mm
Width: 125mm

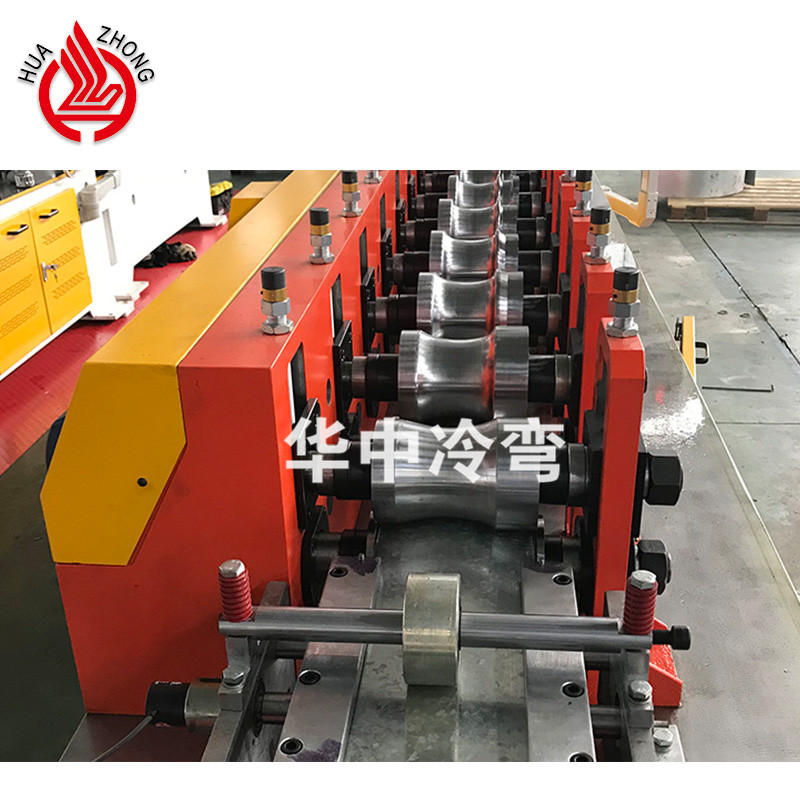

Forming stations: 12
Main motor power: 5.5KW, 220/380V, 50/60 HZ, 3 Phase

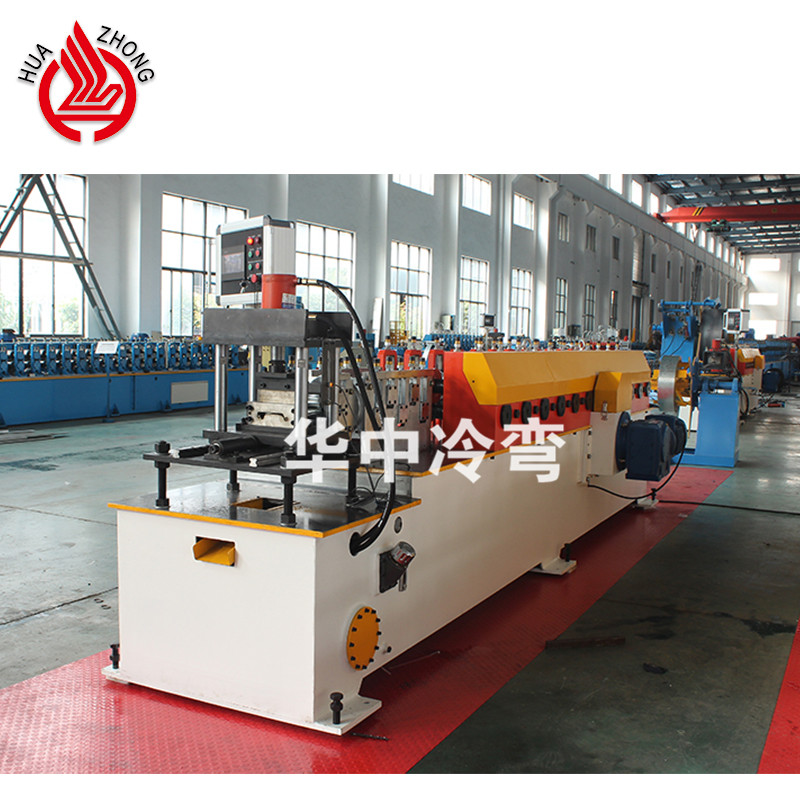

Cutting type: hydraulic cutting with servo motor
Forming speed: 12-15m/min
Forming speed (including punching): 8-10m/min
Drive type: gear transmission system
Lubricating cooling system
Technical process

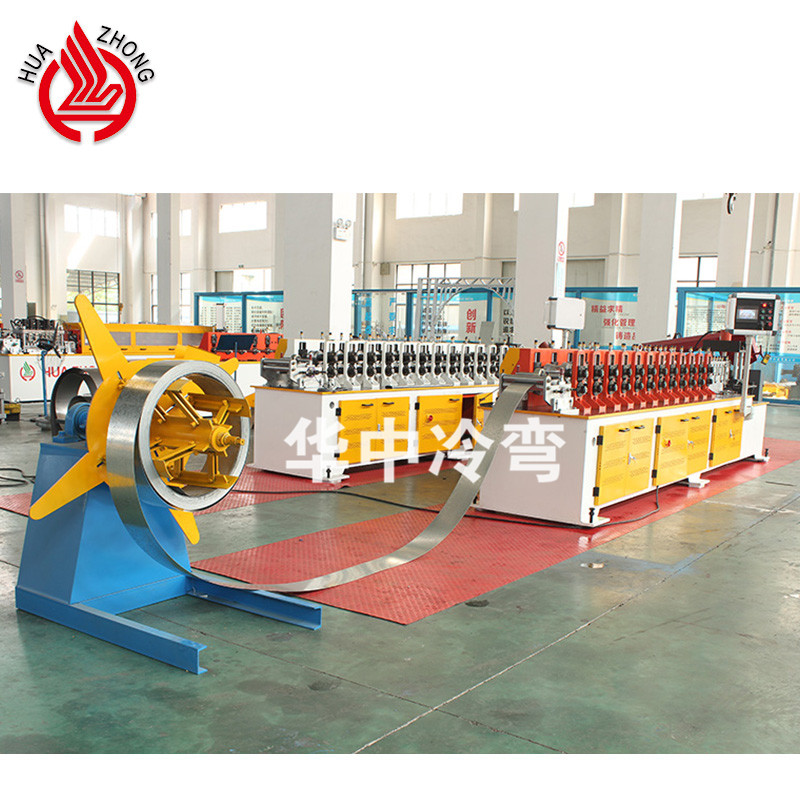

Uncoiler---Feeding guide---Roll forming---Hydraulic cutting---Run out table
