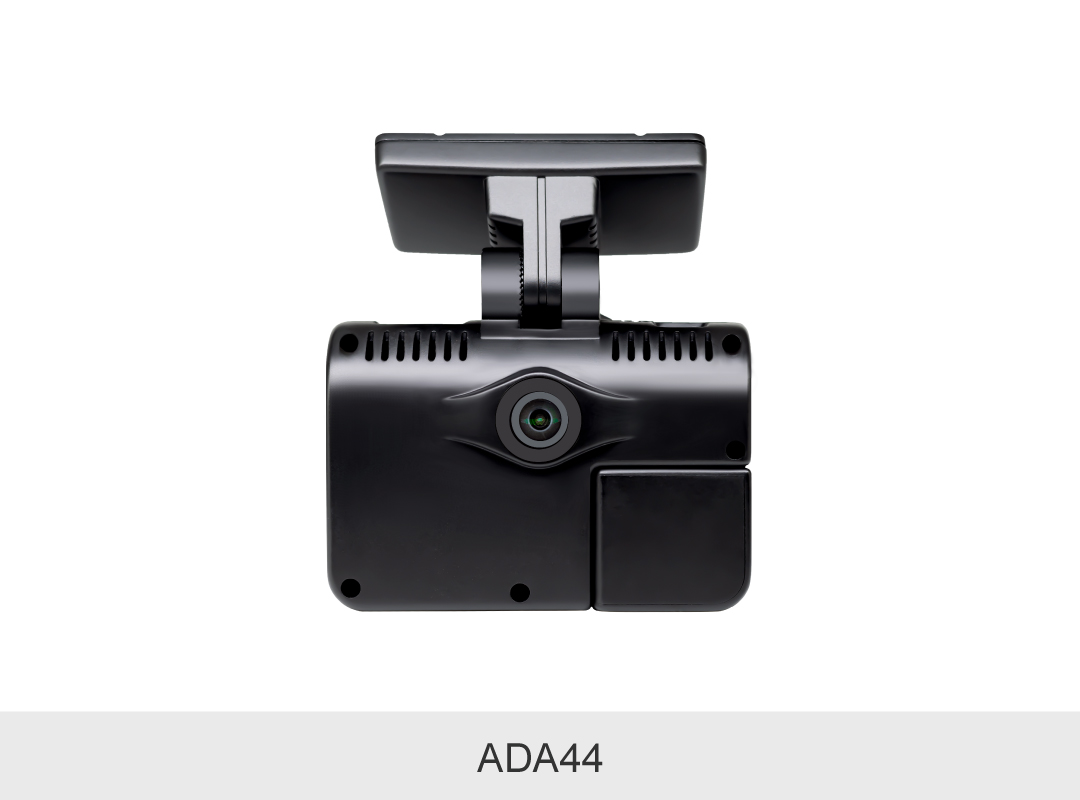

STONKAM DMS & ADAS AI Dashcam adopts all-in-one design, with built-in 4G/WiFi/GPS antenna, front view/DMS camera. It is a standalone device, no need for complicated attachments. The built-in 2K front view camera monitors the vehicle driving condition in real time externally and provides ADAS functions such as lane departure warning and forward collision warning. The cabin monitors the driver's status and will issue audible and visual alerts when the driver shows any abnormal driving behavior. It is compact and beautiful, easy to install. It can provide functions of remote monitoring and alarming, to achieve efficient fleet management.

【All-in-one Design】With built-in 4G/WiFi/GPS antenna, front view/DMS camera. Fully function; One-step sticking, easy installation
【AI Algorithm】Built-in AI algorithm, support ADAS & DMS function, advance warning driver's attention to potential danger, will trigger sound and visual alert when driver has any abnormal driving behaviors
【2K Front View Camera】Built-in 2K front view camera to minitor front driving images; Support WDR, excellent day and night effect
【Fleet Management】Built-in GPS/ 4G, remote real-time monitoring and alarming, convenient for remote command and dispatch, one-button alarm for driver if there's emergent events ; built-in intercom function, support remote command & dispatch; Built-in G-Force，analyze driver's behaviors and carry out training courses; support multiple alarm recording, loop recording
【Hardware Advantage】Advanced heat dissipation, compact and beautiful; Multiple interfaces, available for various sensors; Support 2-4 channel additional camera, no need for an extra control box; OBD(CANBUS) vehicle information collection
【Mobile App Wireless Direct Connection】This APP supports hotspot, iOS/Android Wi-Fi Direct. Users can use set parameters to check the recordings and other functions

Specification
System Operating system Linux Operating interface Mobile APP/WebUI Video permission Administrator & user setting Video Video input Built-in 2K+Built-in 1080P+External 2*1080P Video output PAL: 25 fps, NTSC: 30 fps Compression H.264/H.265 Audio Audio input Built-in mic Audio output Built-in speaker Record format Synchronized video & audio recording Audio compression ADPCM Digital processing Video resolution 2K/1080P/720P/D1 Storage Video bit rate 64kbps~10Mbps/channel Audio bit rate 32kbps Storage consumption 56~2700MB/（channel*hour） Disk Media Micro SD card x 2, max 512GB*2 Alarm Alarm input 6 CH Alarm output 2 CH Interface for communication RS232 1 CH RS485 1 CH CAN 2 CH RJ45 1 CH USB 1 CH Wireless 2G/3G/4G Optional WIFI 2.4g WIFI hotspot Optional GPS Optional G-Force Six-axis sensors Optional Software Windows client Optional iOS client Optional WebClient Optional Power Input 10~32V Output 12V@4A Power Supply less than 8W Standby Power Consumption Not Optional Electrical specifications Operating temp. & humidity -20～70 ℃, RH 80%MAX Super Capacitor Optional All-in-one design, fully function With built-in 4G/WiFi/GPS antenna, ADAS/DMS camera，all-in-one fully function. Built-in AI algorithm, support ADAS & DMS algorithm Support forward collision warning (FCW), lane departure warning (LDW), pedestrian detection (PD), front vehicle start warning, and distance monitoring warning. DMS algorithm supports to detect fatigue, distraction, smoking, making phone calls, no mask, no driver, FACEID face identification, not wearing seat belts, camera blocking, etc. ) Support multi-language voice alerts, and support custom-made AI Algorithm. Built-in 2K front view camera, support WDR for best image effects 2K front view camera, support ultra-high definition video recording during vehicle driving, record fully details. Support WDR, excellent day and night effect. Fleet Management Advanced hardware design Large area metal lines and multi-sided heat sinks make effective heat dissipation effect; The body is compact and beautiful, reducing the user's line of sight interference; Multiple interfaces, available for various sensors: Tire Pressure Sensor, Temperature Sensor, Weighing Sensor, Liquid level Sensor, Audible and visual Alarms, Open/close door Sensor, Seat Vibrator(for DMS fatigue warnings) and so on; Support 2-4 channel additional cameras, available for left, right and rear view monitoring, no need for an extra control box, externally connectable AI camera for BSD pedestrian and vehicle recognition; Support multi-channel ultrasonic radars which give warning in close range, millimeter-wave radars which give large range warnings; OBD(CANBUS) vehicle information collection. Connecting with third-party devices or vehicle master control, this function integrates the information: collecting core information of the vehicle like fuel consumption, rotation speed, vehicle speed etc. Then these information would be uploaded to the platform, making it convenient for fleet managers to count idle work, count driving violations, and evaluate drivers Support iOS/Android phone connection, humanized APP/WebUI control This APP supports hotspot, iOS/Android Wi-Fi Direct, no need for an extra monitor, video pre-recording, parameter matching and video playback, etc. Applications STONKAM DMS & ADAS AI Dashcam adopts all-in-one design, fully function. Built-in AI algorithm, support ADAS & DMS function. It is compact and beautiful, easy to install. It can provide functions of remote monitoring and alarming, to achieve efficient fleet management. It is widely used in government supervision, transportation companies, logistics and distribution and passenger transportation industries, providing intelligent in- and out-vehicle monitoring solutions for trucks, dangerous chemical transport vehicles, buses, buses, cabs, online vehicles, ambulances, etc.
