Product Description

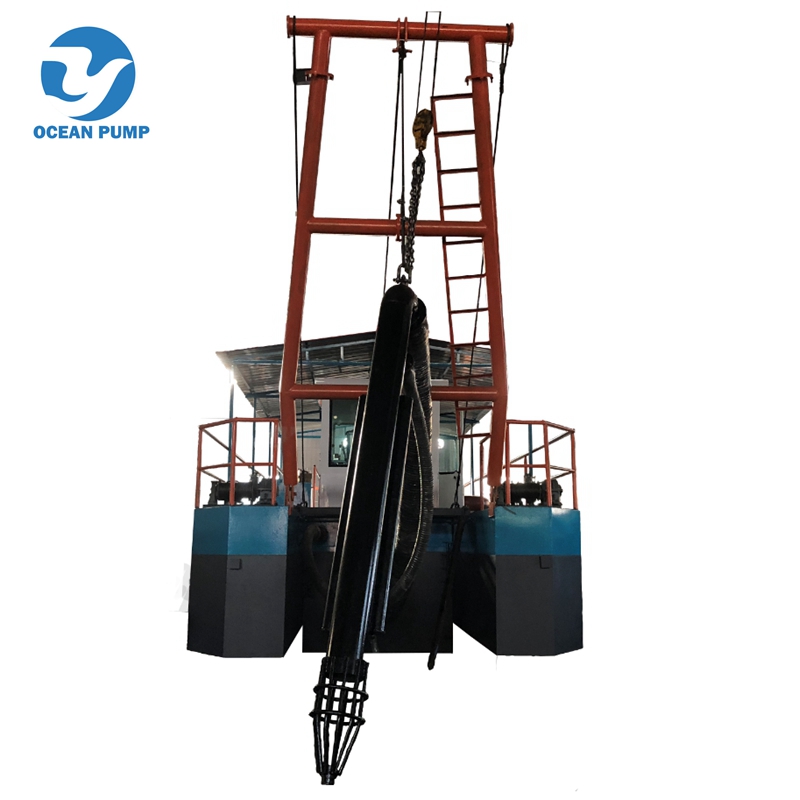

New Small Sand Dredger is widely used to recover underwater materials from great depths and can also extract sand from below a clay overburden. New Small Sand Dredger is also called jet suction dredger. New Small Sand Dredger is equipped with high pressure water pump and powerful sand suction pump. The water pump can produce high pressure high speed water jet to impact the bottom of sand layer and splashing the mixed sand around the suction head, and the sand suction pump conveys the sand to the destination through the discharge pipe.

OCEAN Pump brand new small sand dredger consists of dredger body, high efficiency wear resistant marine sand pump, high pressure water pump, famous brand diesel engine and discharge system. Our new small sand dredger feature integrated design, high efficiency, good wear resistance, flexible operation, energy saving in the delivery of solid particles. Our new small sand dredger is the most economic sand dredging equipment for loose fine sand in the water bottom. We can customize various small and medium new small sand dredgers for your demands.

SpecificationNO.Item JSD200JSD250JSD300JSD350JSD4001Dredger performanceSand capacity(m³/hr)80-110130-260300-360360-390440-520Max.discharge distance(m)200-600200-1000200-1500200-1800200-2000Max.gravel diameter passing through(mm)50-6060-7060-7060-7060-80Max.dredging depth(m)15151520202Dredger bodySize(L*W*H)

8*1*1.5,2PC

6*2.25*1.5,

1PC

8*1*1.5,2PC

6*2.25*1.5,

1PC

11.8*1.1*1.5,2PC

8*2.25*1.8,1PC

18*1.1*1.5,

2PC

18*1.1*1.5,

2PC

3Sand suction systemPump size(inch)8/610/812/1014/1216/14Pump flow(m³/hr)410-540620-14501650-18001800-19502200-2600Pump head(m)28-4821-3524-3524-3530-50Pump speed(rpm)730-980730730730550-700Main engine power(kw)132-156180-250250-300300-410410-460GearboxYesYesYesYesYesConnect metal baseIncludeIncludeIncludeIncludeIncludeHigh pressure water pumpJetting sand upJetting sand upJetting sand upJetting sand upJetting sand up

The information in the table is not complete. Please click here to get more detailed data.

Features

• Novel design, High efficient, large output, long discharge distance.
• High quality wear resistance and long serve life sand pump.
• Pumping depth reaches up to 20-30m underwater.
• Dredge hull consists of multiple pontoons connected by proven coupling system.
• Highly efficient fuel consumption and minimum overall operational costs.
• Control box and instrument are mounted in ergonomic dash board.
• Low investment and good operating performance.
• Simple and fast assembly and disassembly, easy to operate.
• OEM, ODM, customization are available.

Application

OCEAN Pump had been dedicated in designing and manufacturing sand pump, slurry pump, gravel pump and sand dredgers for over 20 years. Our sand pump and sand dredge products had been exported to over 60 countries.

Our high efficiency new small sand dredger series are widely used for sand dredging in rivers, delisting lakes and ponds, reclaiming land, cleaning ports and pumping sand, it is also suitable for exploiting seashore, clearing port and pier, etc.



Successful cases

Our Ghana customer wanted to order the new small sand dredger sucking and pumping the fine sand in Ghana, Africa. The local demand for sand is very large.The customer required new small sand dredger 100 m³ per hour and the delivery distance 500-800 meters. They also needed the product’ good abrasion resistance, long service life, easy maintenance, simple operation, power selection matching diesel engine.

We discussed about customer’s requirements. Then our technician recommend to choose the new small sand dredger of 200PNS-30.
New Small Sand Dredger technical details

Flow540m³/hSpeed980rpmPowerYuchai, 162kw, 1800rpmGearboxType 135, 1.5:1Inlet diameter200mmOutlet diameter150mmHead48m

Our customer had investigated similar domestic manufacturers. They also visited our company to communicate, finally they were very pleased to place the order to us. And the customer also needed the simple sand pumping machine platform together. They planed to install the floating pontoon on both sides. When the product arrived Ghana, we also provided drawings of new small sand dredger. The local workers communicate with us via video, finished installation and test for one week. The amount of sand can be stored 700 m³ daily (working 6 hours per day). The customer was very satisfied with the anti- sand pumping machine 200PNS-30. Because of the high sand efficiency, the whole set of  new small sand dredger is also easy to operate.The workers can grasp the various operating elements easily .Our products have won the high evaluation of our customer‘s. We will continue to do better for customers.
