From the supplier

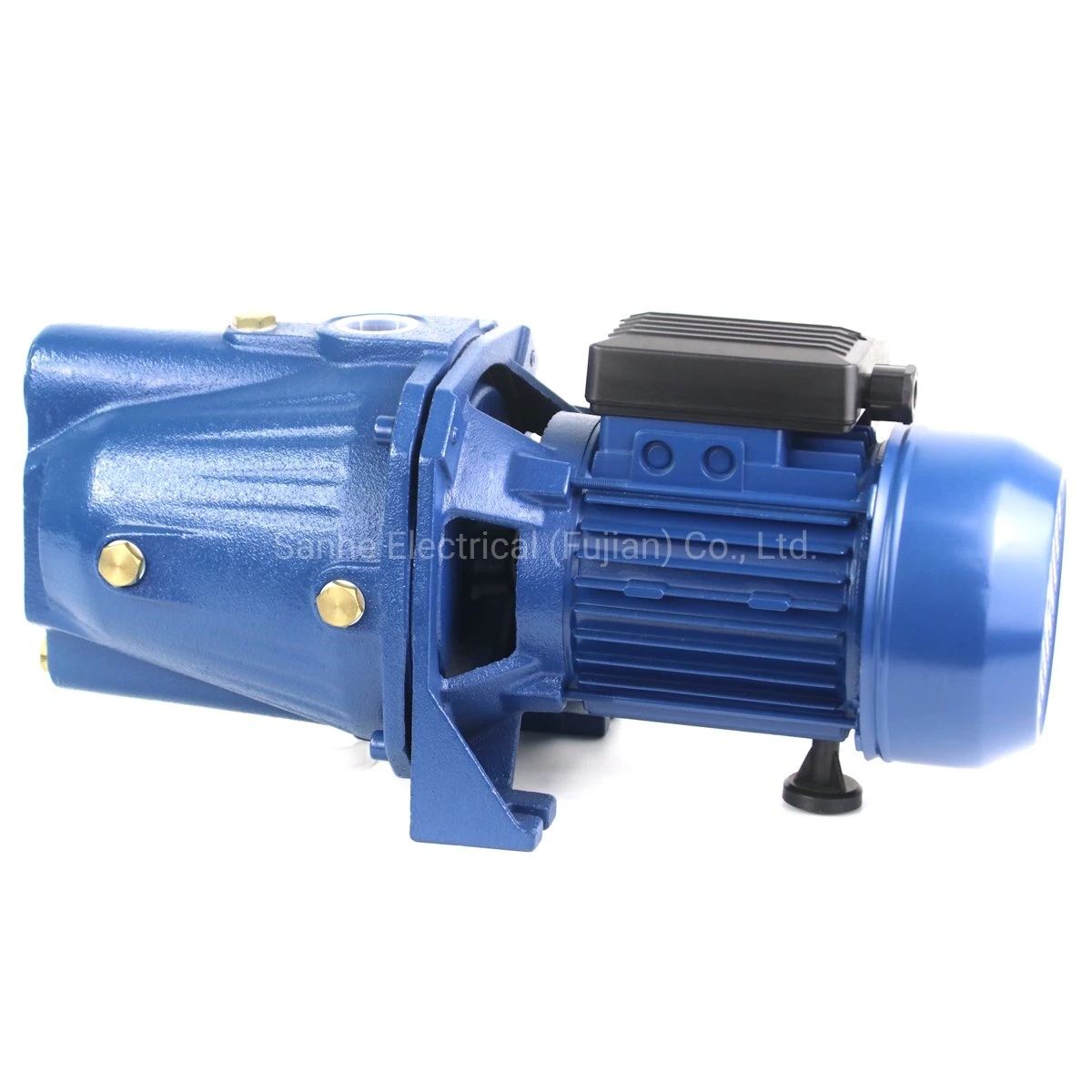

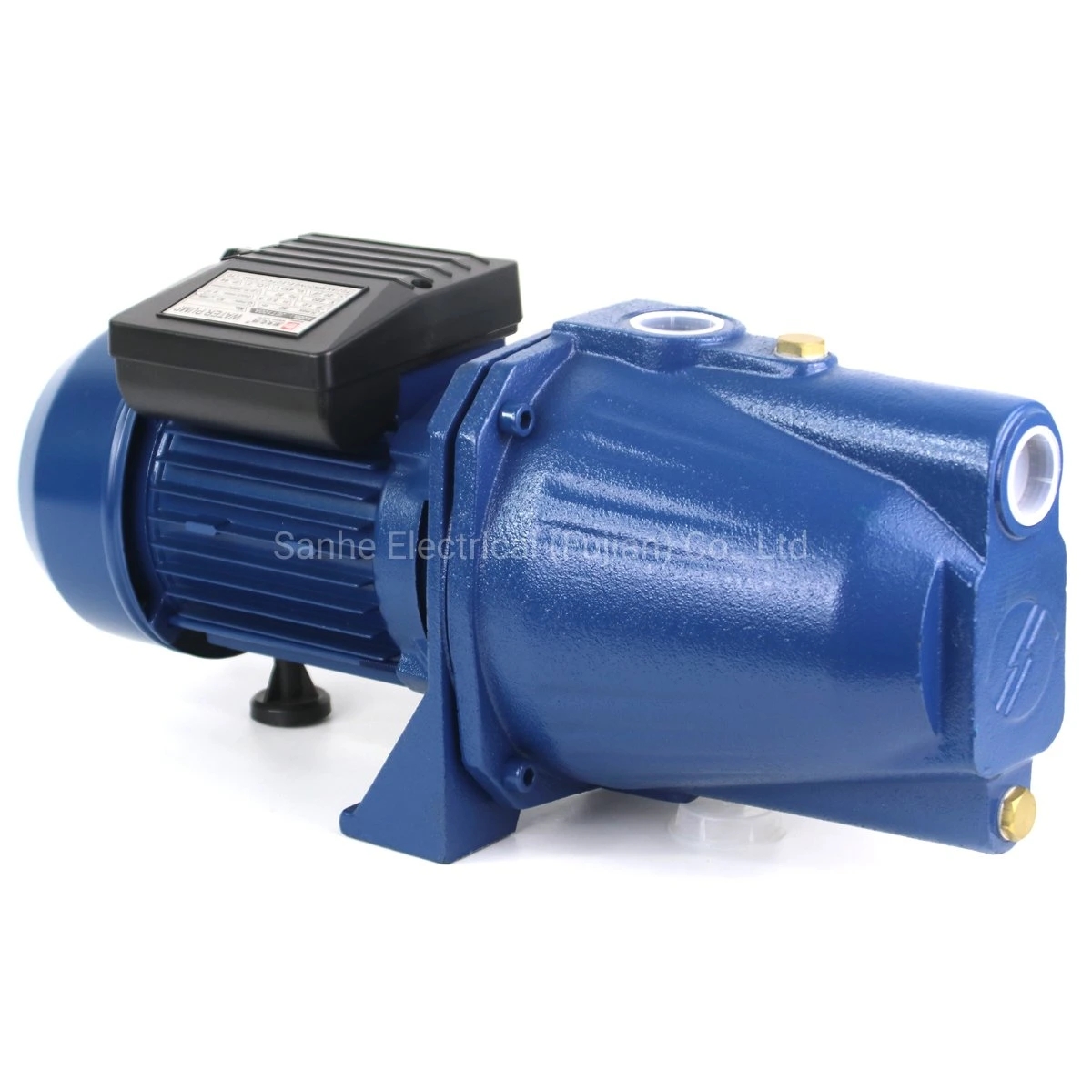

JET SERIES SELF-PRIMING PUMP
APPLICATIONS AND INSTALLATION
The JET series pumps are injection type clean water pumps, which are composed of a centrifugal pump and a nozzle, have the advantages of beautiful design, self-priming in short time, reliable performance, high head and deep suction. They are suitable for pumping clean water and non-aggressive liquid.
OPERATING LIMITATIONS
Max ambient temperature up to 40°C
Max fluid temperature up to 40°C
Max pressure up to 10 bar
TECHNICAL DATA
max Output power Current Q.max H.max Suct max L/min 0 10 15 20 25 30 35 42 45 52 kW kW HP A L/min m m JET40A 0.45 0.37 0.50 2.0 42 28 9 H meter 28 25 23 19 17 15 14 4 JET60A 0.68 0.37 0.50 3.2 42 38 38 29 25 22 18 15 7 4 JET80A 0.85 0.55 0.75 3.8 46 45 45 38 35 31 28 25 23 12 5 JET100A 1 .00 0.75 1.00 5.0 52 52 52 44 40 37 34 32 30 27 12 5
OVERALL AND MOUNTING DIMENSION
Model Dimensions(mm) Package dimension & G.W. Dna Dnm a b c d e f g h A B H KG JET40A 1" 1" 405 230 140 180 137 9 149 190 445 205 225 10.5 JET60A 1" 1" 412 238 150 185 140 9 149 187 430 200 205 12.2 JET80A 1" 1" 435 238 150 185 140 9 149 205 445 205 230 15.5 JET100A 1" 1" 435 238 150 185 140 9 149 205 445 205 230 16.5
EXPLOSIVE VIEW
β
COMPANY INFORMATION
SANHE ELECTRICAL (FUJIAN) CO., LTD. is a professional designer and manufacturer of water pumps and electric motors in Fuan, Fujian, China. It is subsidiary of Mindong Group which was founded in 1958.
Our main products are water pumps, electric motors and alternators, which are 50 series over 1000 varieties export to more than 60 countries and areas.
Years of manufacturing development, we are willing to work with global customers and partners to create a brighter future together.
FAQ
Q: What is your MOQ of this item?
A: 100PCS, first time cooperation, we accept trial order to check quality.
Q: Is it acceptable to make customers'own brand?
A: Sure, we can do OEM.
Q: What are your payment terms?
A: 30%T/T deposit, 70% against documents, or L/C at sight.
Q: How long is your warranty?
A: 14 months.
Q: What is the delivery time?
A: 30 working days after receiving your L/C or TT deposit.
