About this product
- Materials: Aluminum alloy
- Color: same as pictures
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Zhejiang, China
About this product
- Materials: Aluminum alloy
- Color: same as pictures
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Zhejiang, China
Product details
| Materials | Aluminum alloy |
|---|---|
| Color | same as pictures |
From the supplier

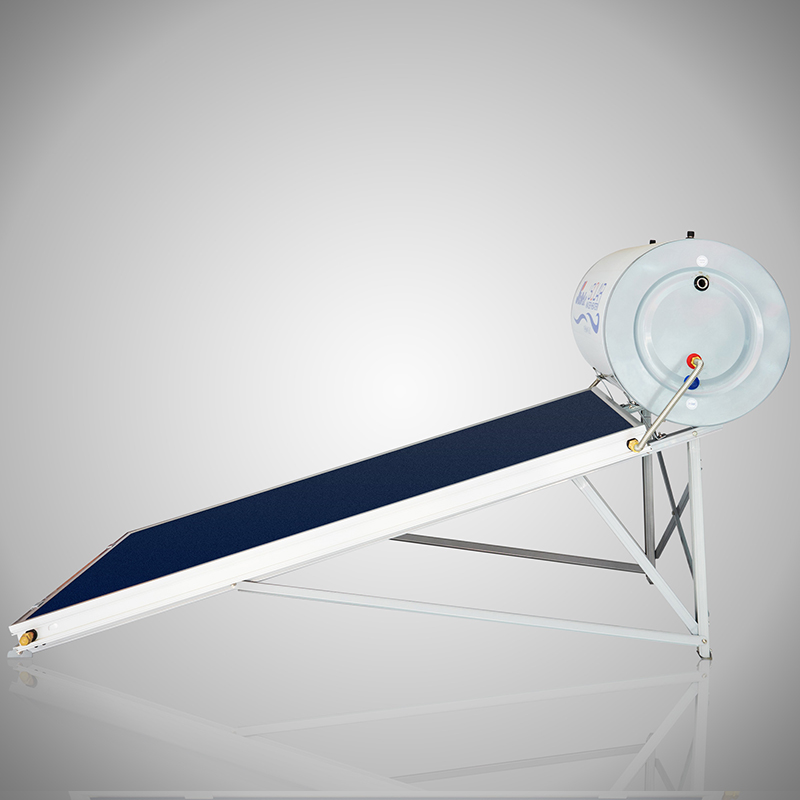

Non-Pressure series compact flat Solar Water Heater
SYSTEM DESCRIPTION:
It is an indirect system. The heat source mainly relies on the solarenergy. The jacket layer of the tank forms a circulation with the core passageway of the flat plate collector. The absorber coating of the collectors will absorb the sunlight, then convert sunlight into heat energy, and transfer the energy to the medium in the core passageway through the absorber plate, While there will be a temperature difference in the medium in the passageway, the density of hot water is smaller than that of the cold water, which will produce a buoyancy lift. In that way, the cold medium flows to the bottom of the heat collector through the down pipe of the jacket layer, while the hot medium comes to the jacket layer through the upper pipe. The jacket layer exchanges heat with the domestic water in the tank
Repeatedly, it heats all the water in the tank. Furthermore, thesystem has an electrical heater that can ensure sufficient hot water when in lack of sunlight due to continuous rainy days .
Key Specification
inner tank
stainless steel SUS304-1.2mm
vacuum tube
QB-AL-N/AL-58-1800
outer tank
Galvanized steel
frame
Aluminum alloy
insulation
Polyurethane
reflector
stainless steel
piping connector size
ø22
circulation type
closed loop
welding
laser welding
Electric element
1.5KW
man working pressure
0.6mpa
Type (one)
Area
(m^2)
Vacuum tube
Volume
(Liters)
Grosswet
(kg)
Volume/set
(Cubic meter)
Length
(mm)
DIA(mm)
Qty(pcs)
JDL-SPFS/150J-1
02
2000
58
15
150
103
JDL-SPFS/200J-1
02.5
2000
58
18
200
150
JDL-SPFS/300J-1
2
2000
58
20
250
195
FEATURES
- Stylish streamline design
- Thermosiphon circulation with less maintenance.
- Reliable auxiliary electric element withtemperature controller and manual overheat protector.
- SUS 304-2B stainless steel inner tankanticorrosion and long service life
- High-efficient solar collector for optimum heatabsorption
- Indirect system and suitable for any weather
Q:What is your delivery time?
A: 15 working days after receipt of signed PI and down payment.
Q:Which payment methods can you support?
BY T/T: 30% as down payment, balance to be paid against the copy of Bill of Lading.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q:What is your package ways?
A:Generally, standard products with standard package. Extra charge may be required for other custom requirements such as package logo printing.
