About this product
- Materials: stainless steel
- Color: same as pictures
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Zhejiang, China
About this product
- Materials: stainless steel
- Color: same as pictures
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Zhejiang, China
Product details
| Materials | stainless steel |
|---|---|
| Color | same as pictures |
From the supplier

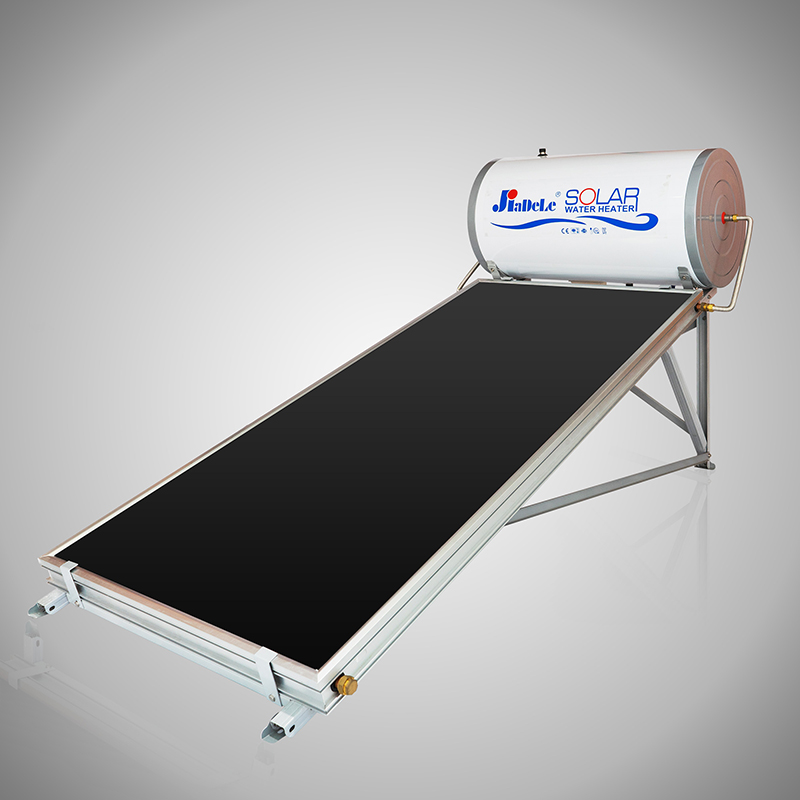

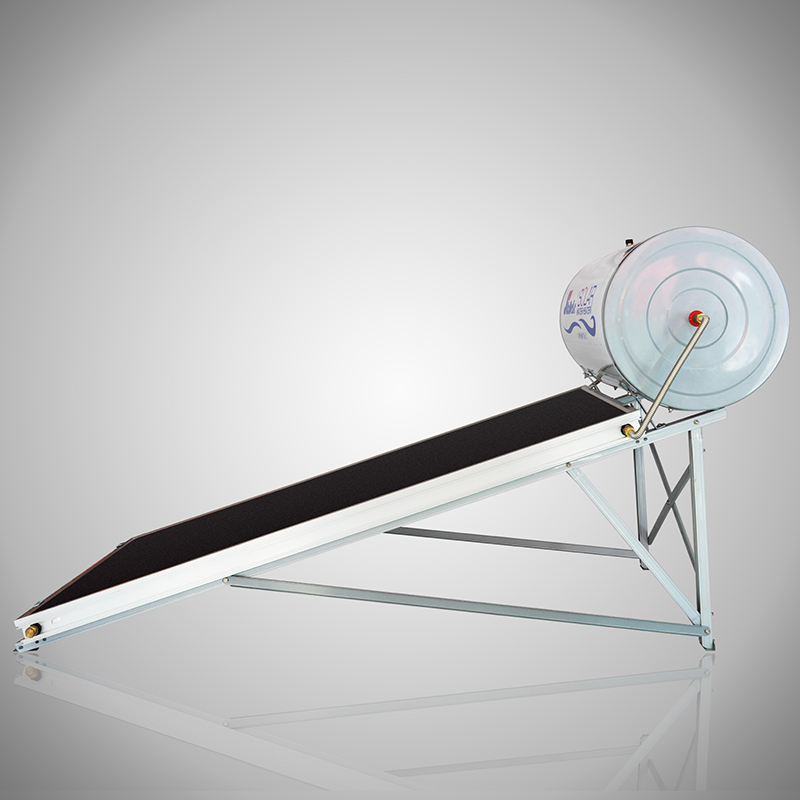

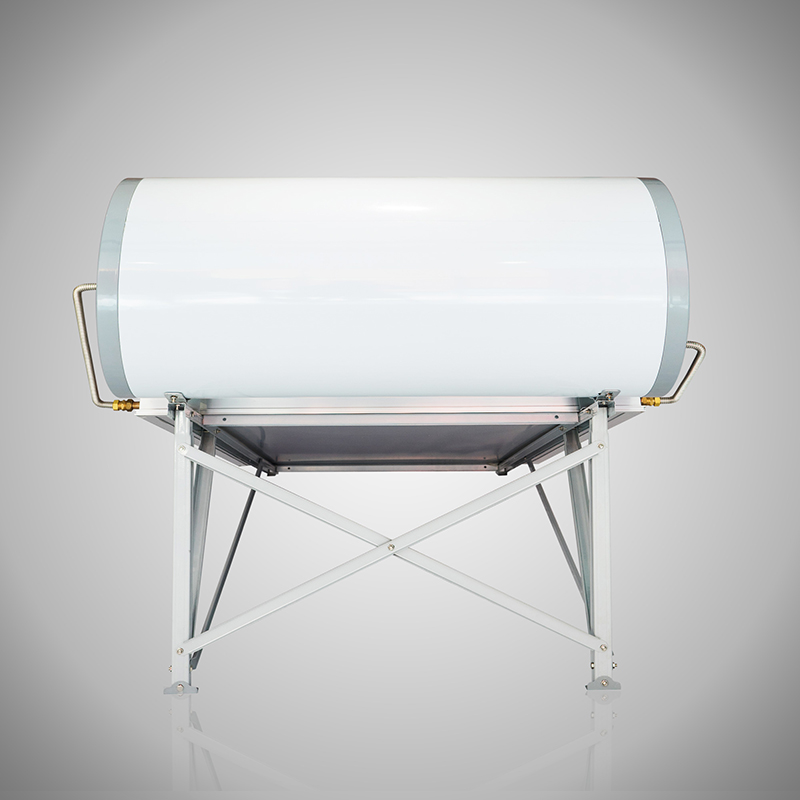

Non-Pressure series Solar Water Heater
SYSTEM DESCRIPTION:
It is a direct system. The heat source mainly relies on the solar energy
Domestic water in the tank forms a direct circulation with the mediumin the core passageway of the flat plate collector.
The absorber coating of the collectors will absorb the sunlight, then convert sunlight into heat energy, and transfer the energy to the medium(water) in the core assageway through the absorber plate, While there will be temperature difference in the medium(water) in the passageway, the density of hot water is smaller than that of the cold water, which will produce a buoyancy lift.
In that way, the cold medium(water) flows to the bottom of the heat collector through the down pipe, while the hot medium(water) comes to the inner water tank through the upper pipe
Repeatedly, it heats all the water in the tank. Furthermore, the systemhas an electrical heater that can ensure sufficient hot water when in lack of sunlight due to continuous rainy days
Key Specification
inner tank
stainless steel SUS304-1.2mm
vacuum tube
QB-AL-N/AL-58-1800
outer tank
Galvanized steel
frame
Aluminum alloy
insulation
Polyurethane
reflector
stainless steel
piping connector size
ø22
circulation type
closed loop
welding
laser welding
Electric element
1.5KW
man working pressure
0.6mpa
Type (one)
Area
(m^2)
Vacuum tube
Volume
(Liters)
Grosswet
(kg)
Volume/set
(Cubic meter)
Length
(mm)
DIA(mm)
Qty(pcs)
JDL-SPFS/N150
02
2000
58
15
150
76
JDL-SPFS/N200
02.5
2000
58
18
200
110
JDL-SPFS/N300
2
2000
58
20
250
139
Feature
Stylish streamline design
Thermosiphon circulation with lessmaintenance
Reliable auxiliary electric element with temperature controller and manual overheat protector
SUS 304-2B stainless steel inner tank anticorrosion and long service life
High-efficient solar collector for optimumheat absorption
Direct system exchange, only suitable for no freeze area
Q:What is your delivery time?
A: 15 working days after receipt of signed PI and down payment.
Q:Which payment methods can you support?
BY T/T: 30% as down payment, balance to be paid against the copy of Bill of Lading.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q:What is your package ways?
A:Generally, standard products with standard package. Extra charge may be required for other custom requirements such as package logo printing.
