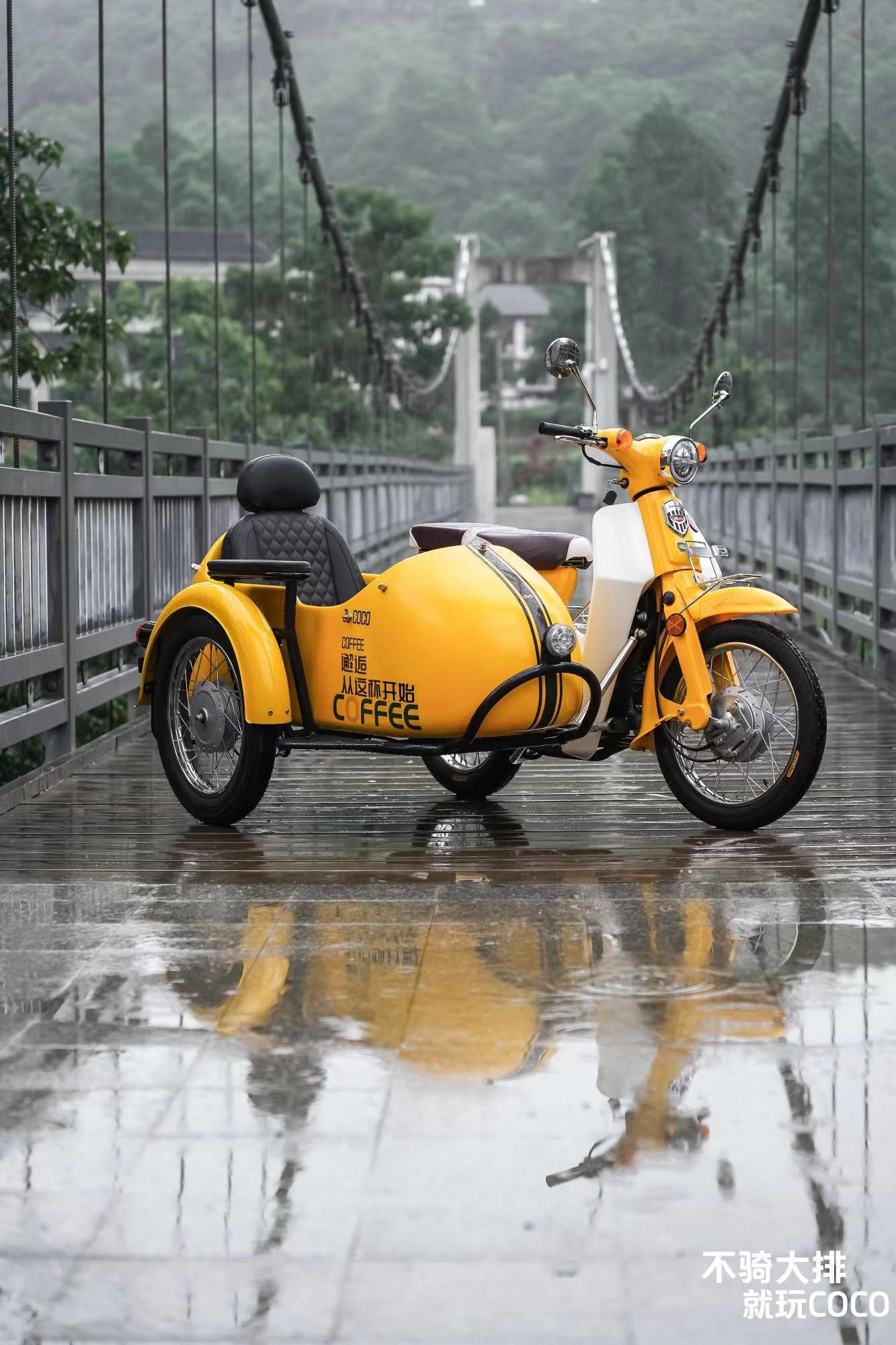

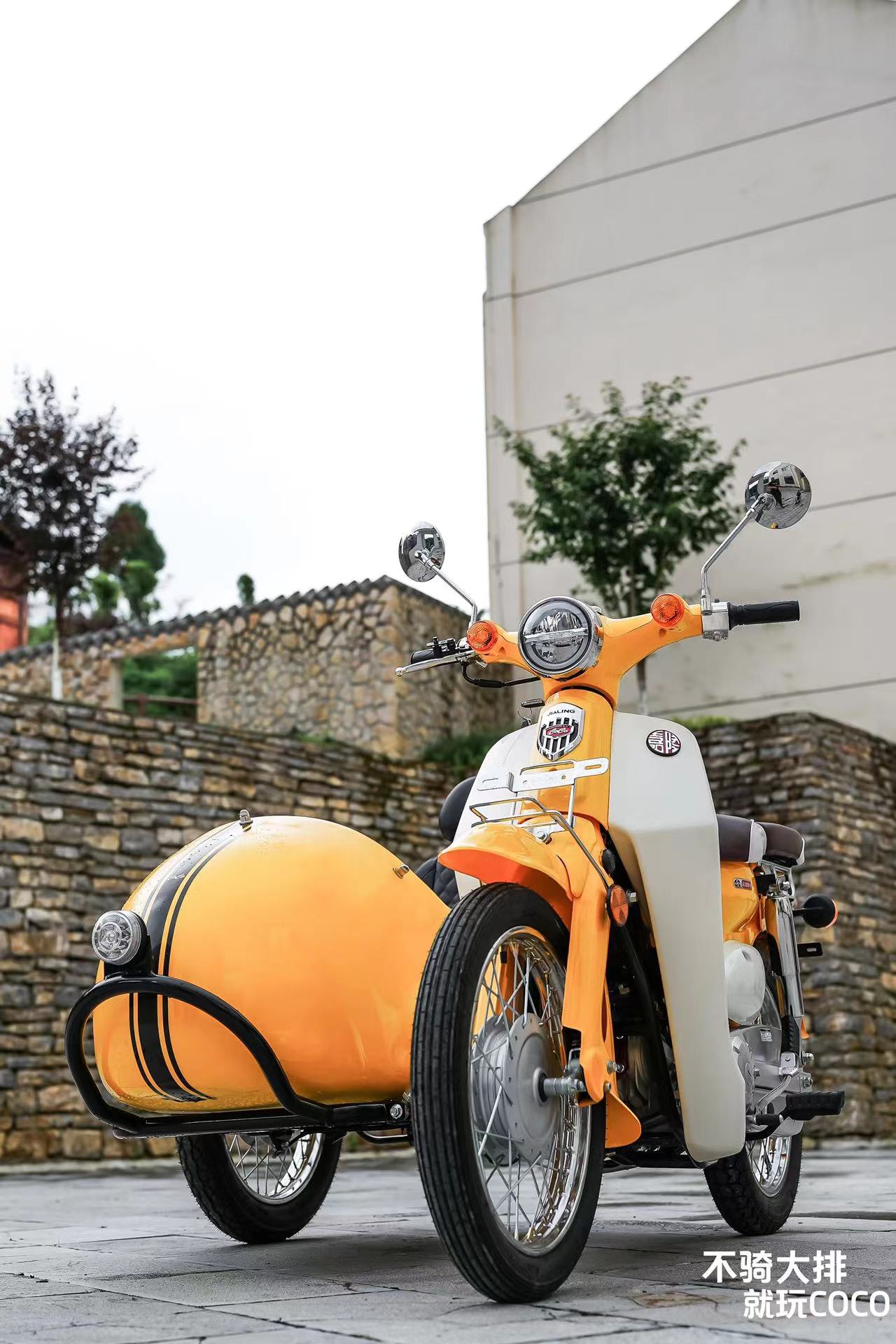

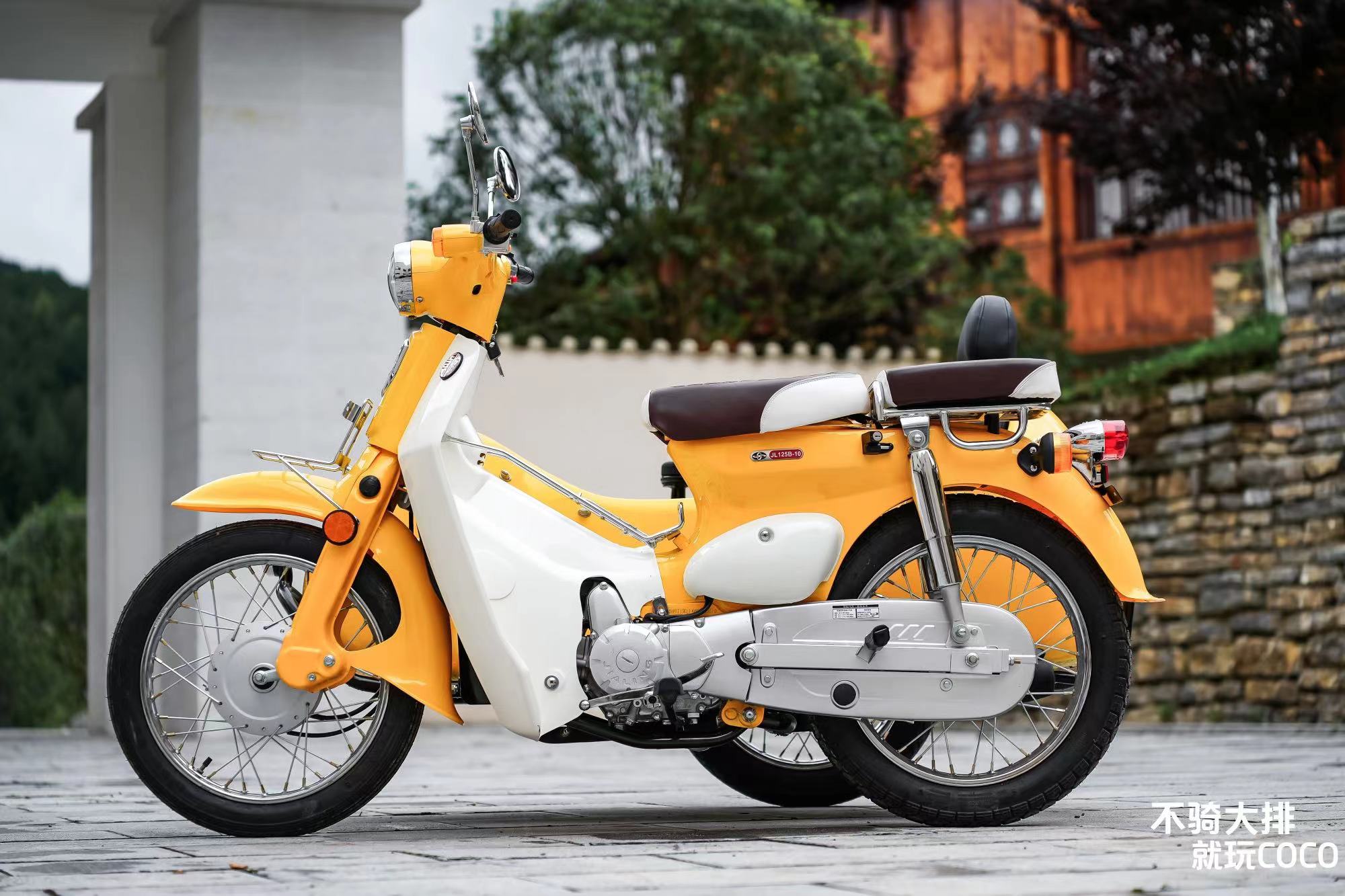

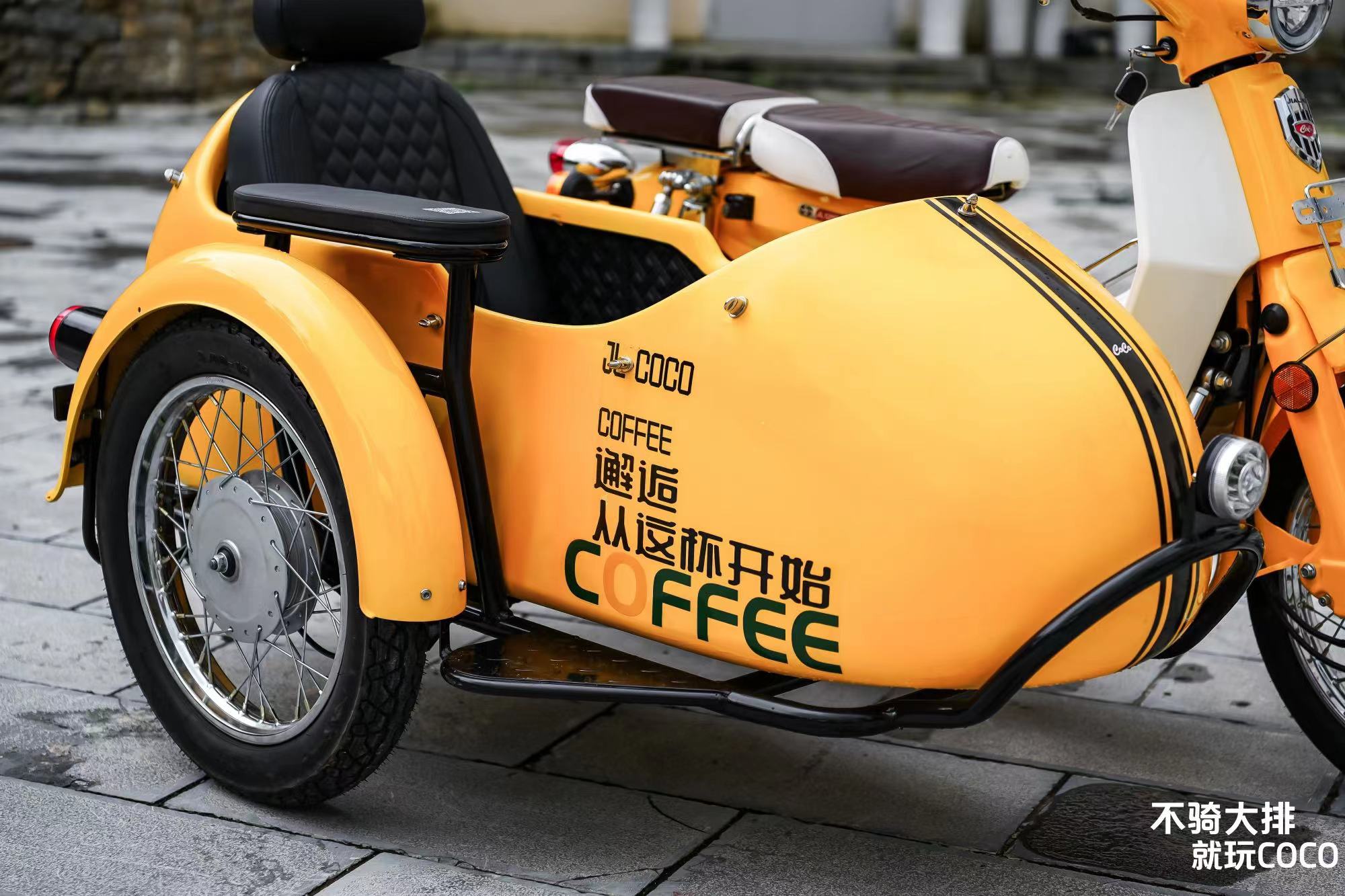

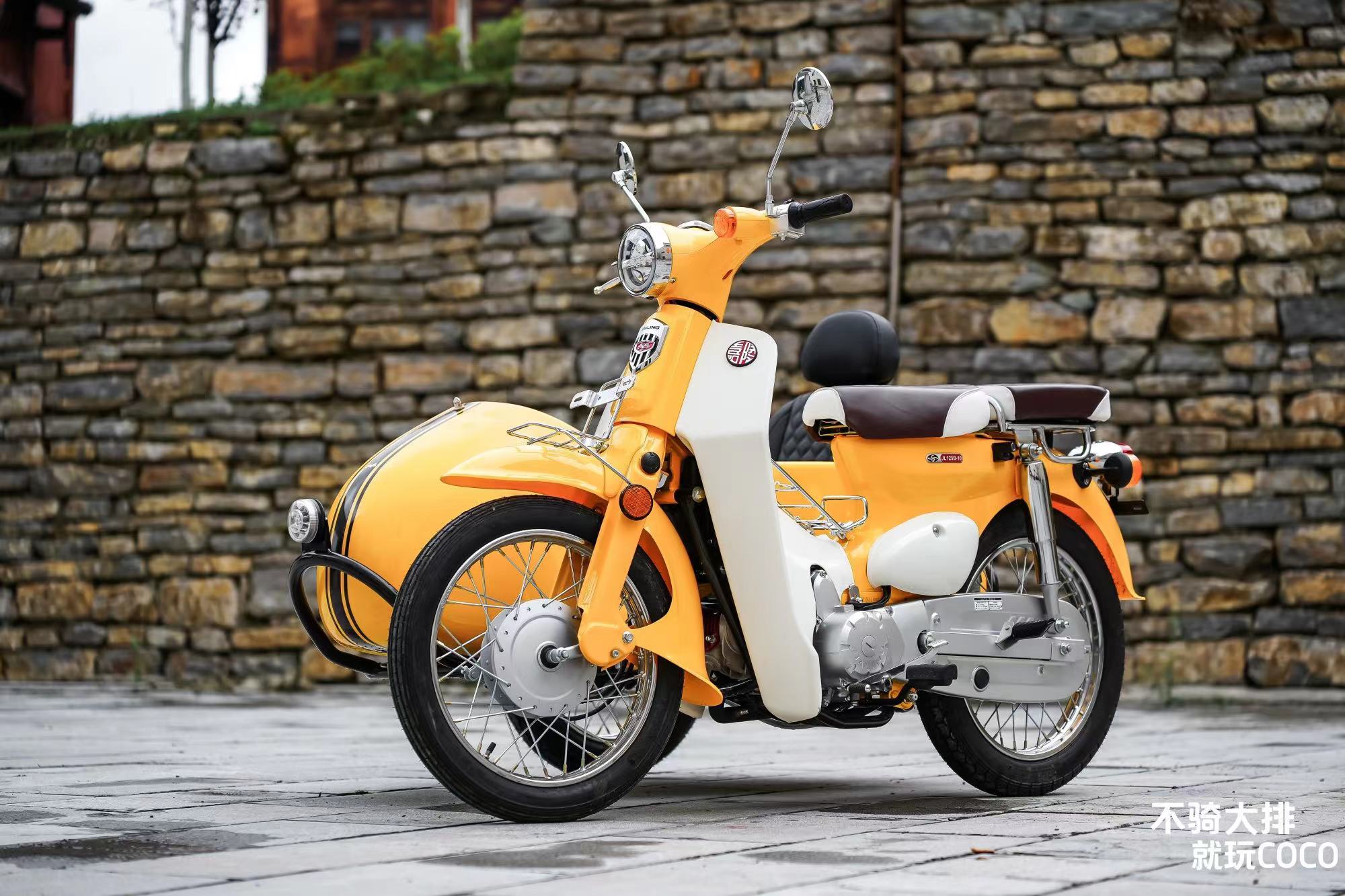

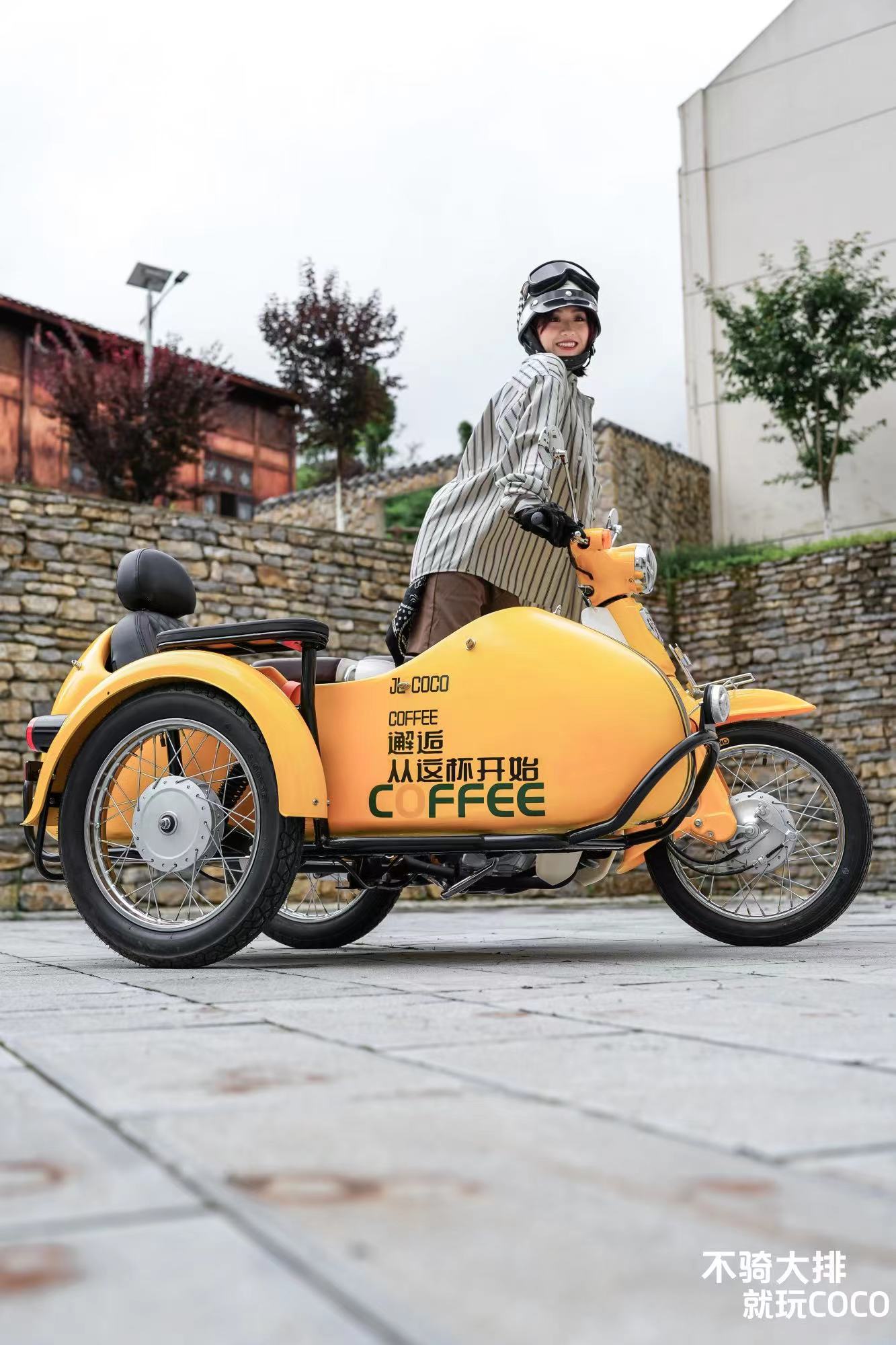

Jialing Coco Three Wheels Motorcycle
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Jialing Coco Three Wheels Motorcycle
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: IRON PLASTIC RUBBER
- Size: 1810*1340*1010
- Color: customize
- Driving type: Motorized
- Voltage: 48V
- Power: Other Powers
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia
- Made in: Chongqing, China
About this product
- Materials: IRON PLASTIC RUBBER
- Size: 1810*1340*1010
- Color: customize
- Driving type: Motorized
- Voltage: 48V
- Power: Other Powers
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia
- Made in: Chongqing, China
Product details
| Materials | IRON PLASTIC RUBBER |
|---|---|
| Size | 1810*1340*1010 |
| Color | customize |
| Driving type | Motorized |
| Voltage | 48V |
| Power | Other Powers |
| Certification | CE |
| Displacement | 111 - 150cc |
| Body type | Open |
| Use for | Passenger |
From the supplier
ENGINE
- Engine Type 4 stroke, Single Cylinder, Air-cooled
Number of cylinder Double
Bore X Stroke 50x55.5mm
Cylinder Volume 108ml
Compression Ratio 9.1:1
Max. Power 6.2kw/7500rpm
Max. Torque 9.2N.m/5500rpm
Starter System Kick/Starter
DIMENSION & WEIGHT
Overall Length 1810mm
Overall High 1340mm
Overall Width 1010mm
Wheel base 1180mm
Vehicle Weight 146kg
Ground Clearance 124mm
TRANSMISSION
Clutch Semi-Automatic Clutch System
Transmission 4 Acceleration
Rotary System Downward 0-1-2-3-4
FRAME
Front Brake Drum
Rear Brake Mechanical/Drum
Front Wheel Dimension 2.50x16
Rear Wheel Dimension 3.00-16
Side Wheel Dimension 3.00-16
Front Suspension Telescopic
Rear Suspension Dual Shock absorber
Climbing ability ≥25°
ELECTRICITY
Ignition Specification Digital Ignition/CDI, Single Spark
Electrical System 12V, AC, Magneto
Headlamp 12V, 35W
Position light 12V, 2.4W
Taillamp 12V, 21W
Fr. Winkers 12V, 0.48W
Rr. Winkers 12V, 5W
Battery 12V5A.h
CAPACITY
Fuel Tank Volume 3.5Lt
System Electric injection
