About this product
- Materials: casting
- Size: 4085x1929x2568
- Color: Red
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
About this product
- Materials: casting
- Size: 4085x1929x2568
- Color: Red
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
Product details
| Materials | casting |
|---|---|
| Size | 4085x1929x2568 |
| Color | Red |
From the supplier
JINMA TRACTOR
Cultivate Your Dream
Product Description

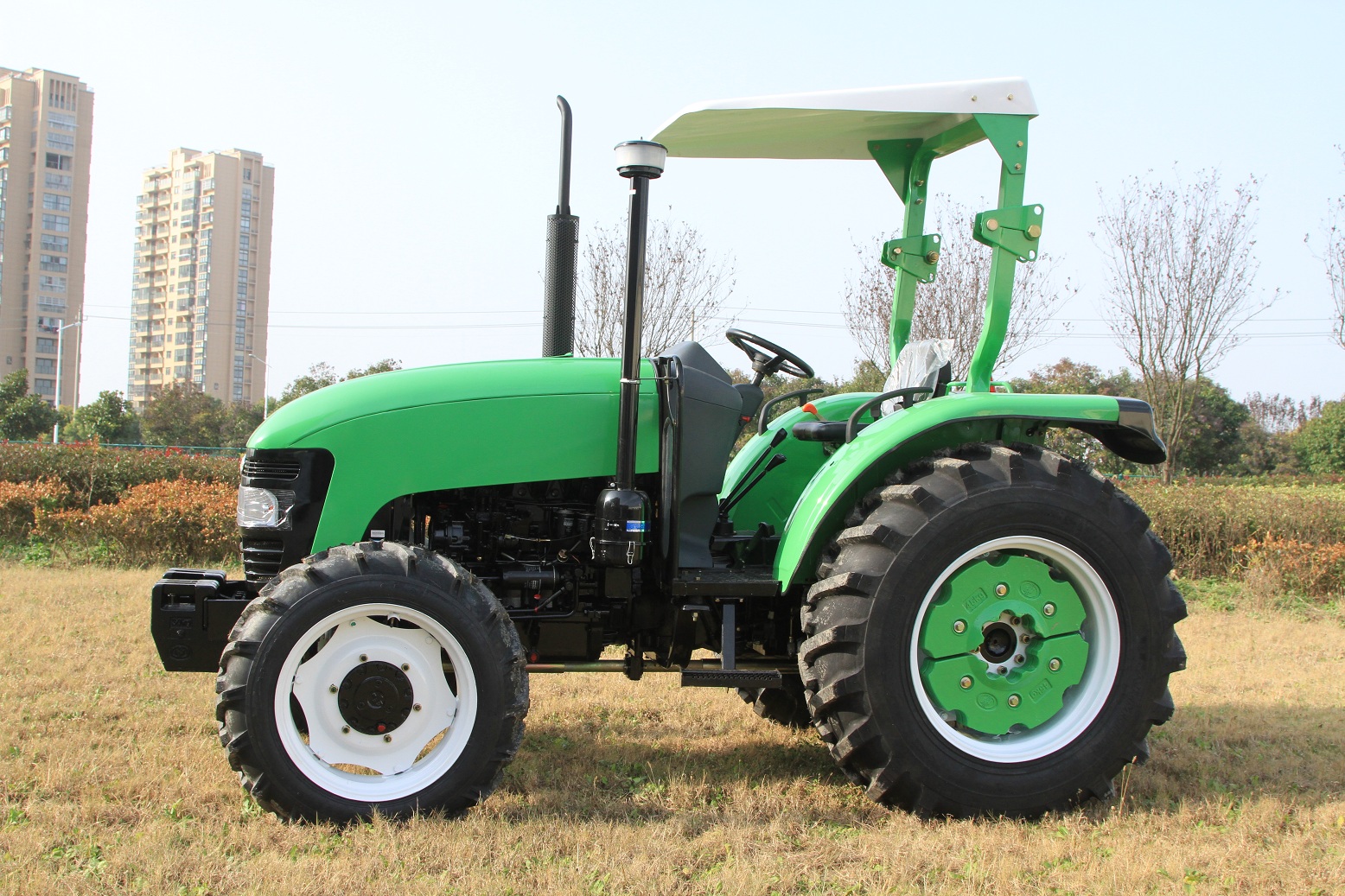

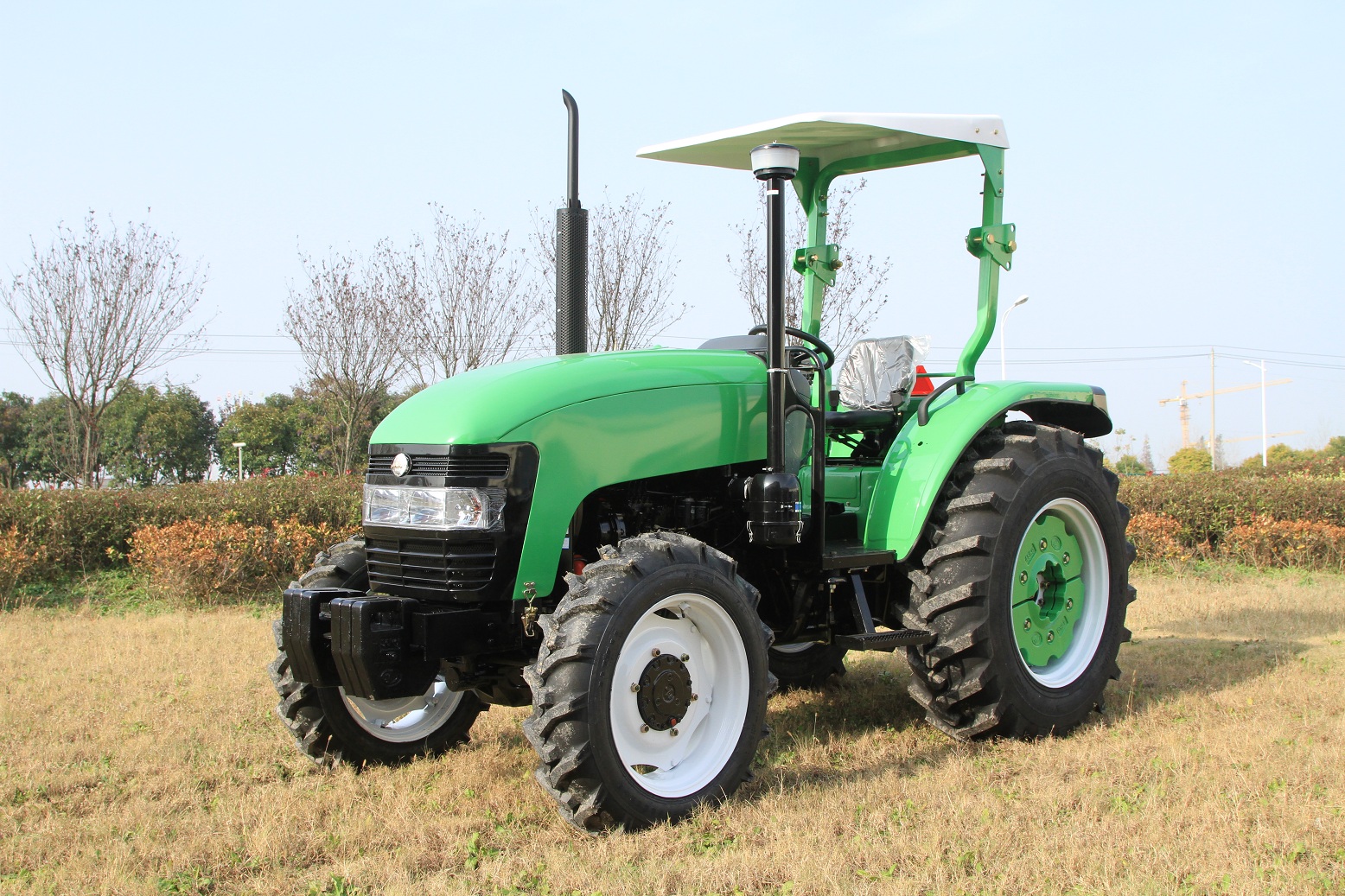

Jinma 70-80 serial tractors are a new serial wheel tractors developed according to the new situation of home and oversea agricultural-machinery markets and increasing demands of customers.
Jinma 70-80 serial tractors are new models using kinds of new techniques and technologies on the base of years’ production experiences of HHJM—16-65 serial tractors to make them have more reasonable structures and more completed performances. The advantages include larger power, less fuel consumption, high efficiency & nice look, easy operation, easy maintenance, convenient repair, economical cost and good complex use. So the model is sure to get satisfying economic profits.
Jinma 70-80 serial tractors take upright and energy-saving diesel engines as power devices. Direct driving is adopted between engines and drive unit, supported with 8-gear gearbox for the operations of rotary tillage, ploughing, reaping and transportation, hydraulic suspending system with completed performances, low-pressure and wide-coverage drive tires with good adhesion, and reliable air cushion brakes. The serial wheel tractors are equipped with dual clutch, full hydraulic steering. Both two-wheel driving and four-wheel driving are available.
Product Characteristics
- The engine is Direct drive
- four wheel drive
- 12 gear transmission
- Perfect in performance of Hydraulic suspension system
- Single - side braking system and standard single/double speed power output
- There are both Mechanical or hydraulic steering system
Specifications
Tractor
Parameters
Model
JM-704
Drive Type
4WD
Overall Dimensions L×W×H(mm):
4085×1929×2568
Wheel Track (mm)
Front
1450
Rear
1370～1790
Wheel Bass(mm)
2236
Ground Clearance (mm)
340
Rated Traction Force(N)
14500
Construction Mass(kg)
3190
Min.Turning Radius(m)
4.3
Theoretical Speed (km/h)
Forward
2.27,4.01,6.45,8.09,9.06,16.05,25.82,32.25
Reverse
3.15,12.61
Theoretical Speed
(With creeper) km/h)
Forward
——
Reverse
——
Engine
Specifications
Model
LR4B3-22
Type
4-cylinder
Vertical, water cooled,
4 stroke cycle
Rated Power(kw/hp)
51.5(70)
Rated Speed (rpm)
2200
Bore×Stroke (mm)
108×125
Total Displacement(L)
4.58
Drive
System
Clutch
Dual stage
Gear Box
(4+1)×2 Sleeve gear shift
Main Drive
Onepair of spiral bevel gearing
Differential
Bevel gear
Differential Lock
Sliding pin,foot operated
Final Transmission
Planeatry reduction gear
Traveling
Mechanism
Tyre
Front
8.3-24
Rear
14.9-30
Steering Gear
Hydraulic steering
Brake
Disc type
Working
Device
Hydraulic System
Lifting Capacity at 610mm Behind Lift Point (N)
11600

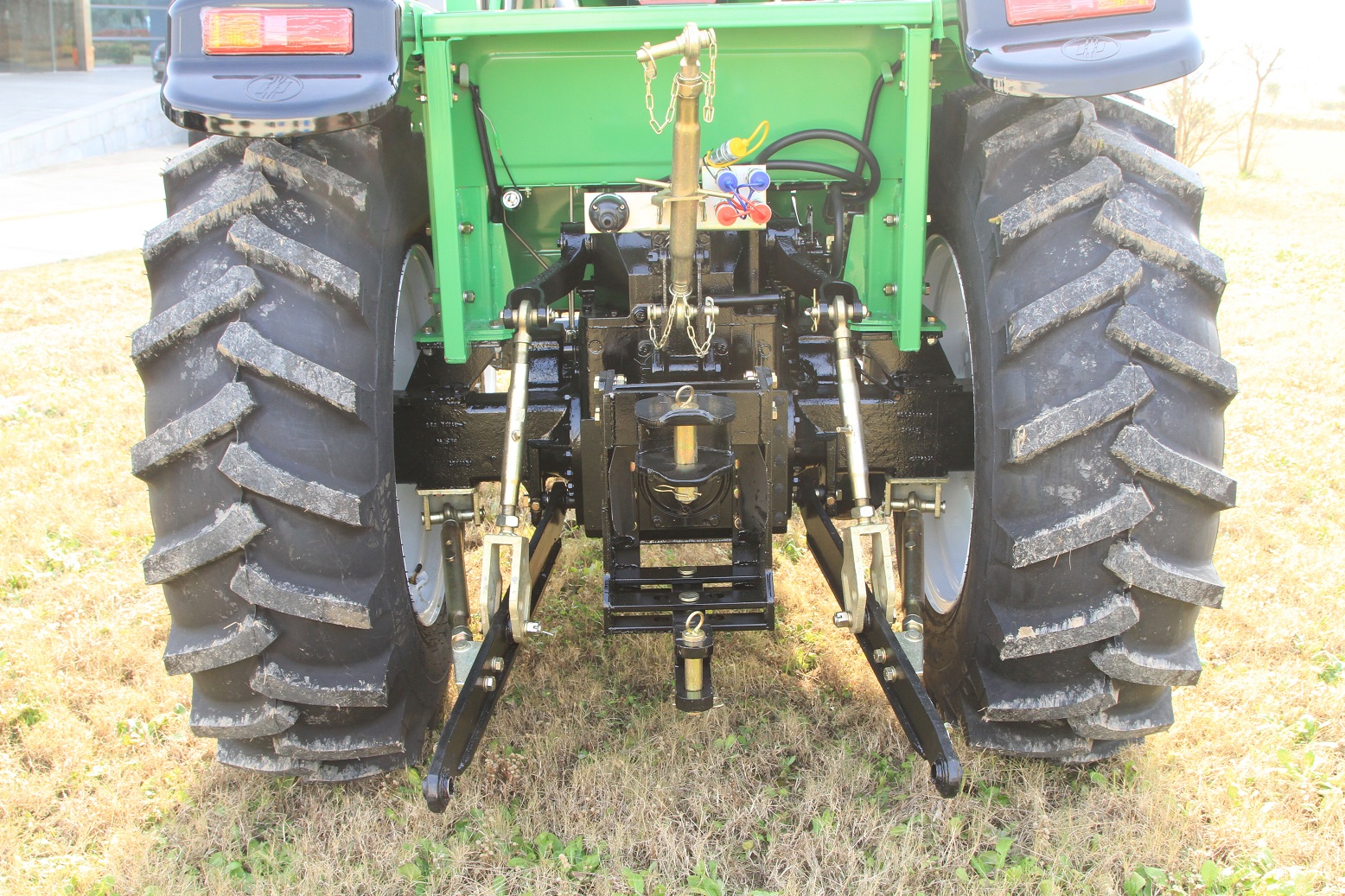

3-Point Suspension
Category:II
P.T.O Shaft
Rotating
Speed (rpm)
720 or 540/1000
Spline Size
6-Φ35Rectangular Spline
About US
- Started in 1959
- A national backbone tractor manufacturer
- Business of tractor manufacturing was started in 1969 (a history of nearly 60 years)
- Under Jiangsu Yueda Group Co., Ltd.
- A state-holding enterprise
- Main of the tractor production enterprises
- Product export to North America, Europe, South America, Africa, southeast Asia and the Middle East area about hundred countries and area, The export number is top one of same industry in china.
- The tractor Was voted as main cultivating international famous brands by Jiangsu department of commerce
PACKING
Warranty Regulation of Product Quality
If Dealer sell the tractor with JINMA brand, The company will provide 24 months warranty period to main parts; sell with OEM form 12 months warranty period. The starting date depends on service policy.
