About this product
- Materials: casting
- Size: 3080x1440x1930
- Color: Red
- Exports to: USA and Canada
- Made in: Jiangsu, China
About this product
- Materials: casting
- Size: 3080x1440x1930
- Color: Red
- Exports to: USA and Canada
- Made in: Jiangsu, China
Product details
| Materials | casting |
|---|---|
| Size | 3080x1440x1930 |
| Color | Red |
From the supplier
JINMA TRACTOR
Cultivate Your Dream
Product Description
Jinma 254EPA tractor is new type four wheel tractor design for USA market special require. It is energy-saving, efficient, multi-purpose, beautiful for the specialty, can make you obtain satisfactory economic benefit. It has the advantages of suitable power, large traction, compact structure, high transmission efficiency, easy to operate, easy to maintain, convenient to match, economical to use and good comprehensive utilization performance.
Product Characteristics
- The engine is Direct drive
- Single/double clutch four wheel drive
- 8 gear transmission
- Perfect in performance of Hydraulic suspension system
- Low pressure wide drive tires with good adhesion
There are both Mechanical or hydraulic steering system
Specifications
Tractor Parameters
Model
JINMA-254 with EPA
Drive Type
4WD
Overall Dimensions L×W×H(mm):
3080x1440x1930
Wheel Track(mm)
Front
1100
Rear
1040-1200
Wheel Base(mm)
1833
Ground Clearance (mm)
295
Rated Traction Force(N)
5980
Construction Mass(kg)
1140
Min. Turning Radius(m)
2.8
Speed range (km/h) (Without creeper)
Forward
1.55,2.36,3.70,5.1,7.16,10.91,17.11,23.59
Reverse
2.04,9.85
Speed range (km/h) (With creeper)
Forward
0.29,0.44,0.69,0.95,1.34,2.03,3.19,4.40
Reverse
0.38,1.84

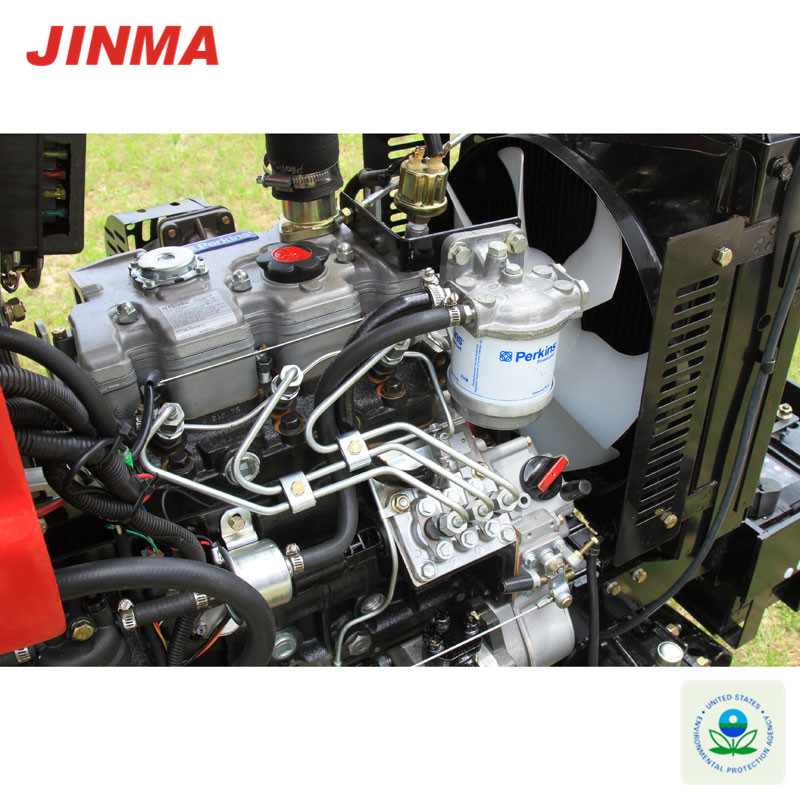

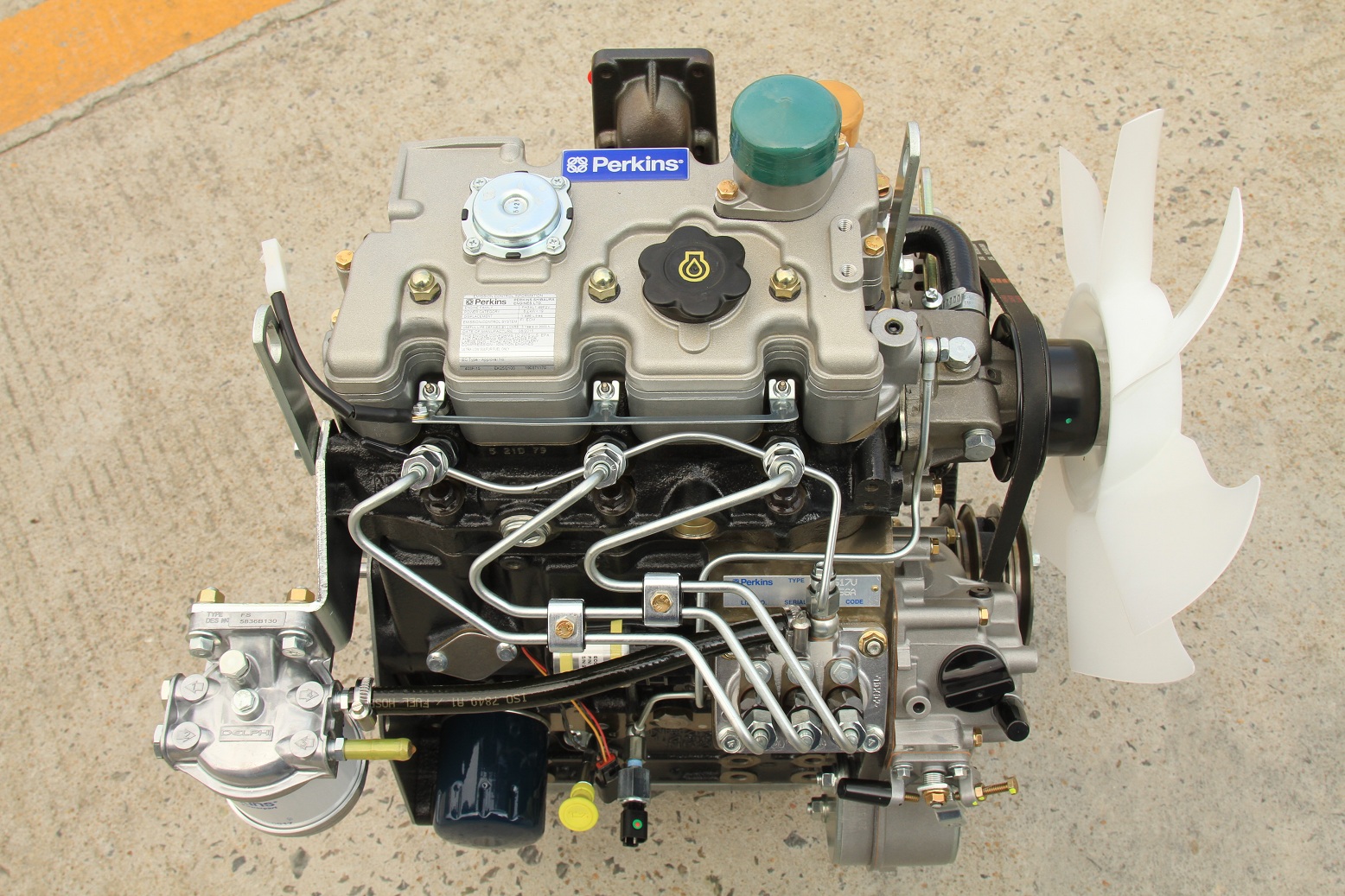

Engine Specifications
Model
Perkins 403F-15
Type
3-Cylinder, Vertical, Water cooled, 4-Stroke cycle,
Electric controlled injection pump
Rated Power(kW/hp)
18.4/25
Fuel consumption (g/kW/h)
≤240
Rated Speed(rpm)
2200
Bore ×Stroke(mm)
84×90
Total Displacement(L)
1.5
Drive System
Clutch
Dual-Stage
Gear Box
(4+1)×2
Main Drive
One Pair of Spiral Bevel Gearing
Differential
Bevel Gear
Differential Lock
Jaw Lock
Final Transmissions
Spur Gear, External ,Gearing
Traveling Mechanism
Tire
Front
6.00-16
Rear
9.5-24
Steering Gear
hydraulic steering
Brake
Disc type
Hydraulic
Lifting Capacity at 610 mm Behind Lift Point(N)
4200

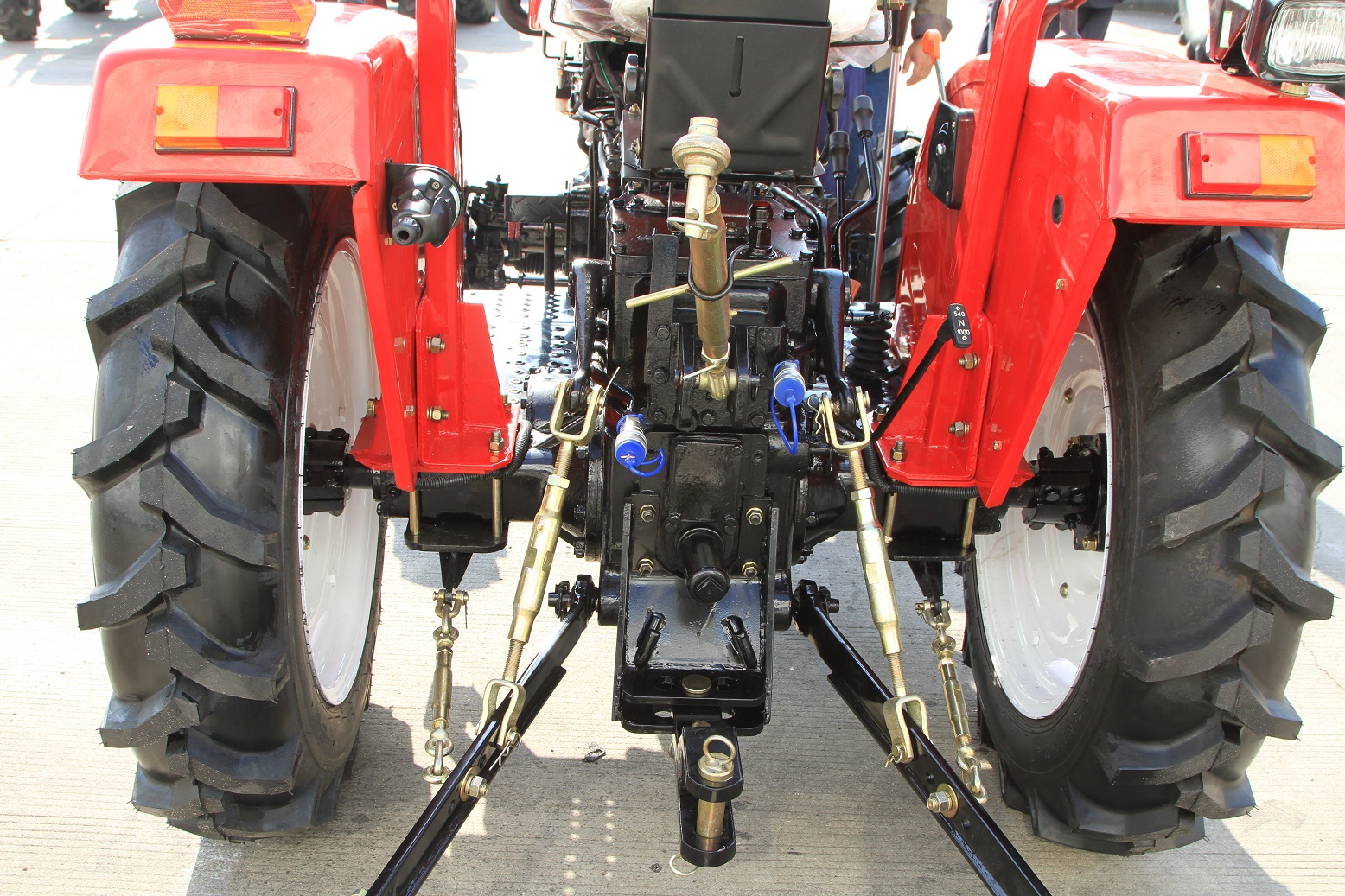

System
3-Point Suspension
Category :I
P.T.O. Shaft
Rotating Speed(rpm)
540/1000
Spline Size
6-ф35 Rectangular Spline
Options
SHUTTLE DUAL STAGE CLUTCH,TURE TYRE
About US
- Started in 1959
- A national backbone tractor manufacturer
- Business of tractor manufacturing was started in 1969 (a history of nearly 60 years)
- Under Jiangsu Yueda Group Co., Ltd.
- A state-holding enterprise
- Main of the tractor production enterprises
- Product export to North America, Europe, South America, Africa, southeast Asia and the Middle East area about hundred countries and area, The export number is top one of same industry in china.
- The tractor Was voted as main cultivating international famous brands by Jiangsu department of commerce
PACKING
Warranty Regulation of Product Quality
If Dealer sell the tractor with JINMA brand, The company will provide 24 months warranty period to main parts; sell with OEM form 12 months warranty period. The starting date depends on service policy.
