The flow chart is as follows:

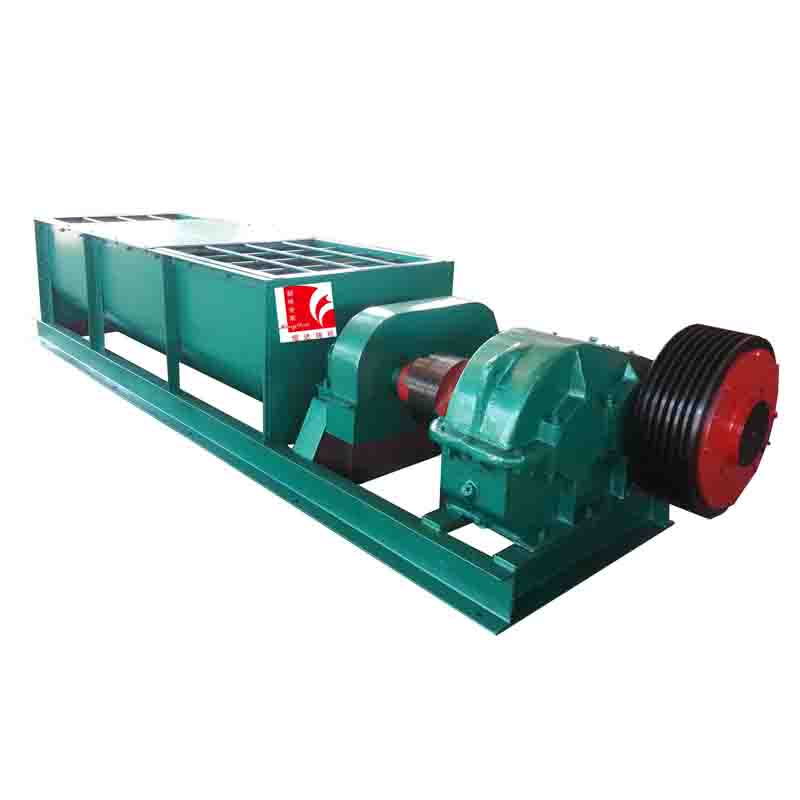

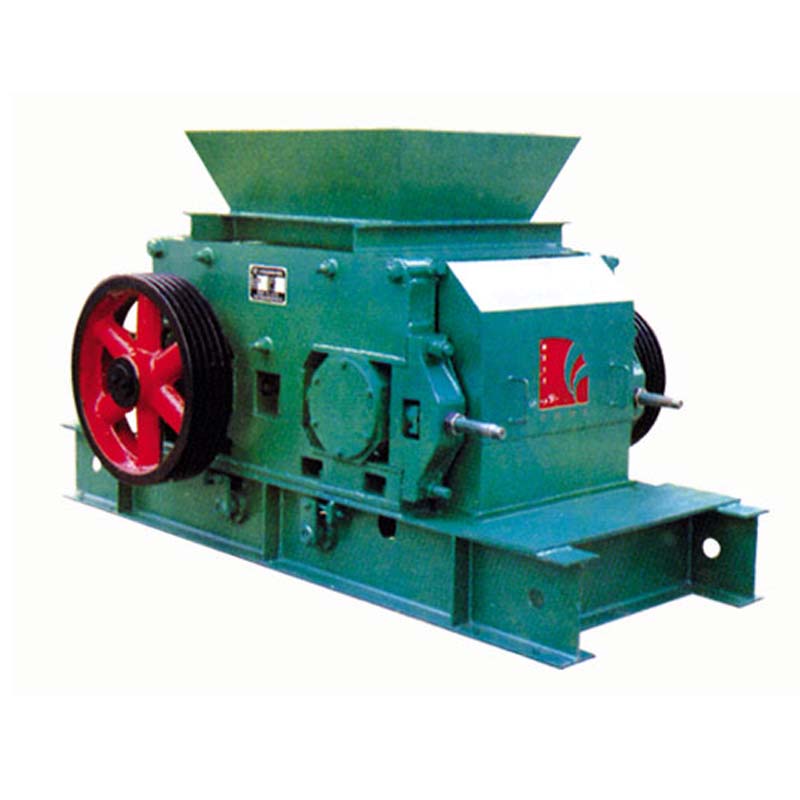

 Clay → Box Feeder → Belt Conveyor → Double Roller Crusher → Double Shaft Mixer → Belt Conveyor → JKR40 / 40-20 Vacuum Extruder → LOGO Machine → Automatic Brick Cutting Machine → Mark Embossing Machine → Auto Brick unloader

 Product Details

 1.JKR40 / 40-20 Vacuum machine  are suitable for producing solid bricks, hollow bricks, etc. By changing the mold, bricks of different sizes can be produced, and the raw material is clay.

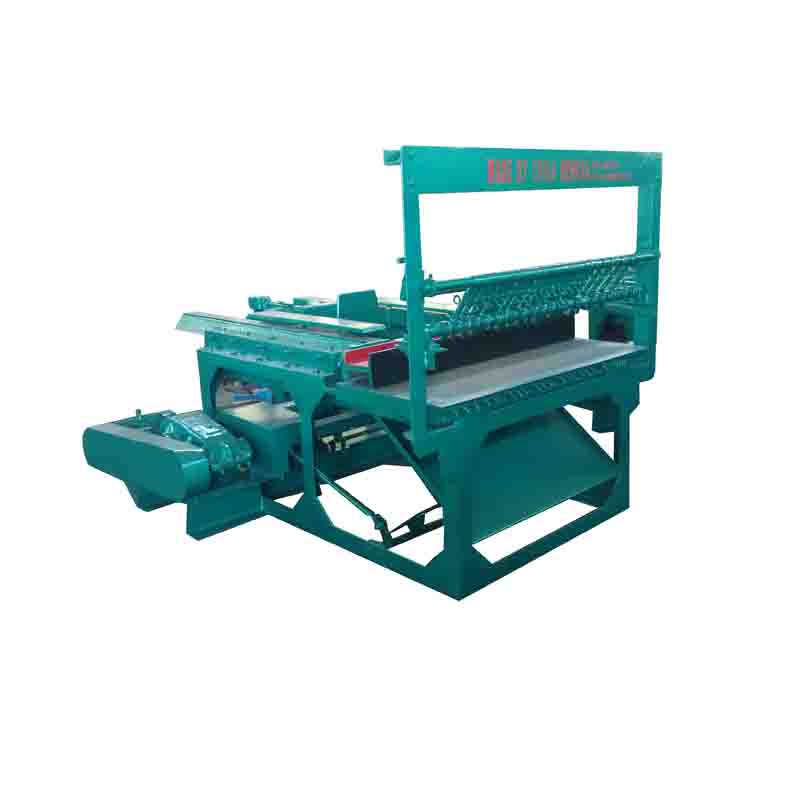

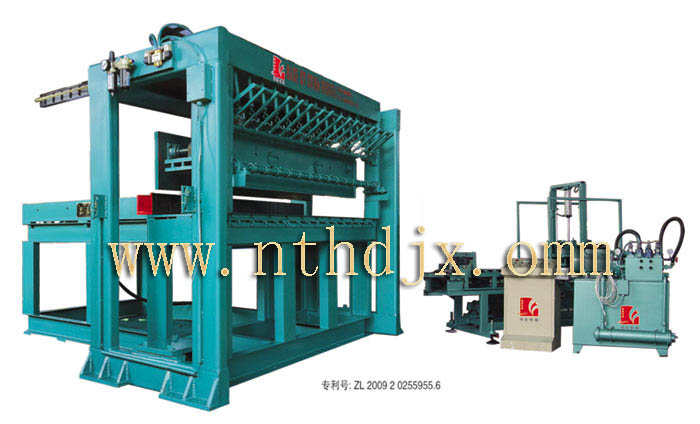

 2. The brick machine part includes a strip cutting machine, a blank cutting machine, a hydraulic station and a PLC control cabinet, which has good stability, low energy consumption, high efficiency, convenient maintenance and high degree of automation.

The technical parameters of the host vacuum extruder are as follows

Item Unit of measurement JKR40 / 40-20 vacuum machine

Production capacity LOGO brick / hour 5000 pieces / hour

Maximum extrusion pressure MPa 1.5-2.5

Vacuum MPa ≥0.092

Power kW 110

Weight tons 10.5

Overall dimensions mm 4200 × 1380 × 1260

1. Payment method: 30% T / T, 70% of the final payment should be paid before delivery, or 100% spot irrevocable letter of credit.

 2 Delivery time: 30 days after receiving 305 deposit.

 3. We take pictures and videos of the finished product and test all the machines before delivery.

4. Every small part of the machine will be well packed, we will also arrange engineers to check each machine part before delivery, so that we can ensure that the buyer can get the complete clay brick machine parts. .

5. Before loading into the container, some parts will be soft-protected to ensure that all machines are new when they reach the customer.

 6. We have conducted long-term cooperation with many famous freight forwarding companies, and we can also arrange transportation according to your needs.

7. After the ship is opened, we will mail the bill of landing, packing list, commercial invoice, certificate of origin, etc. to you. For customs clearance.
