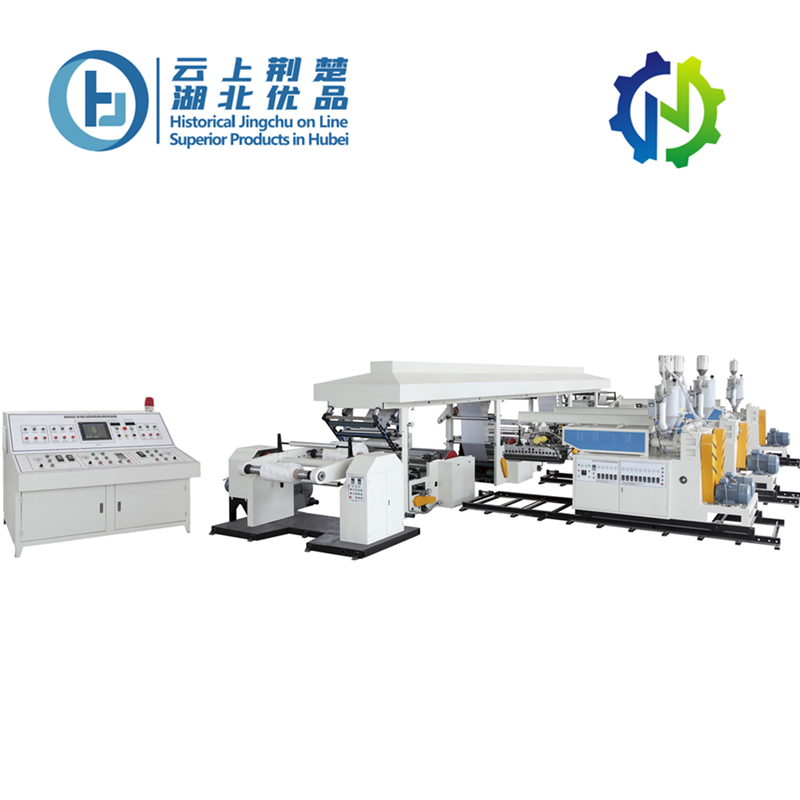

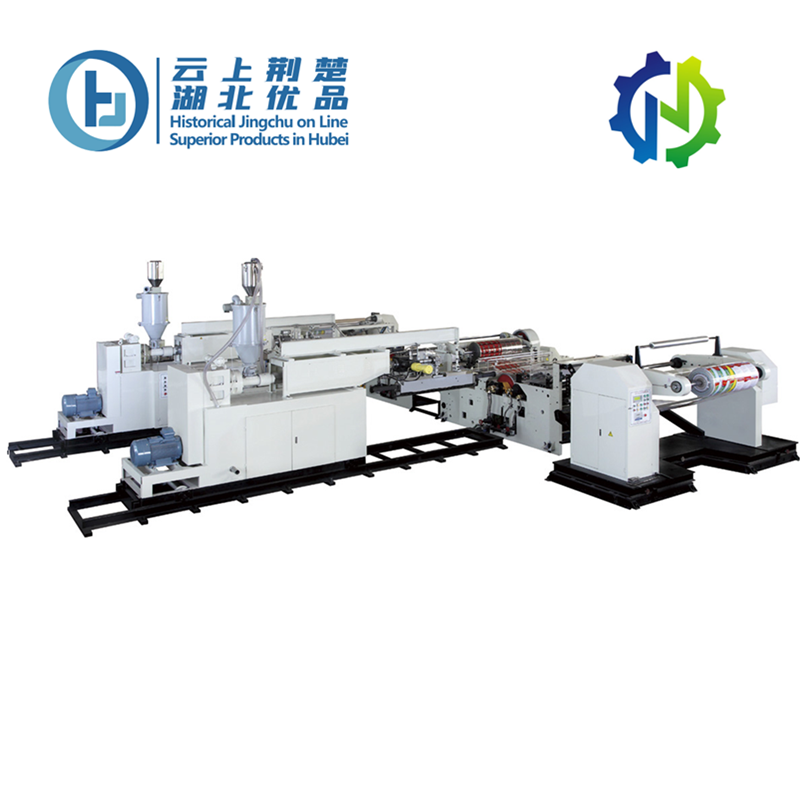

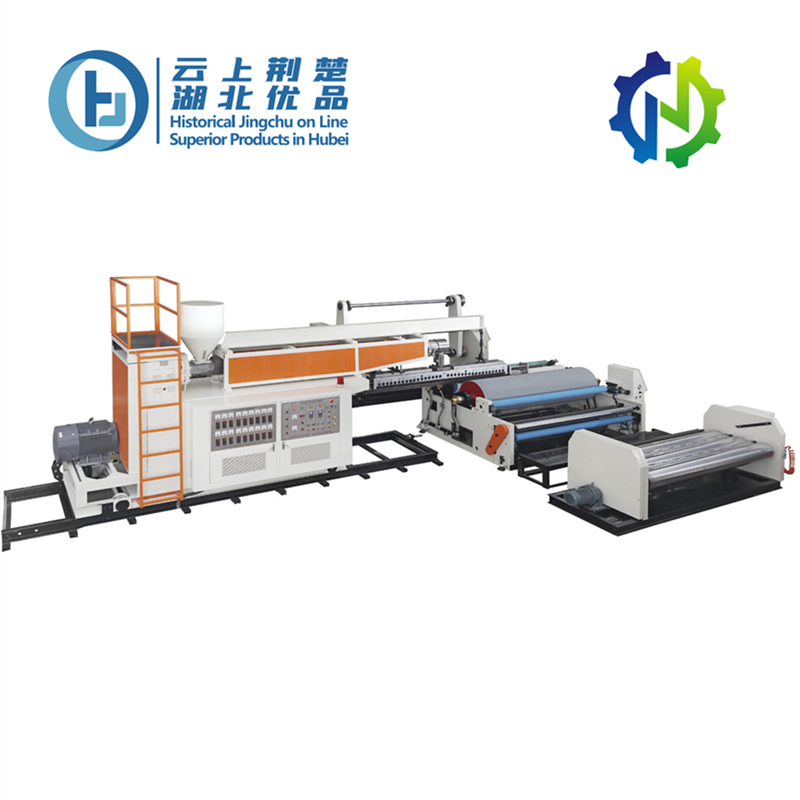

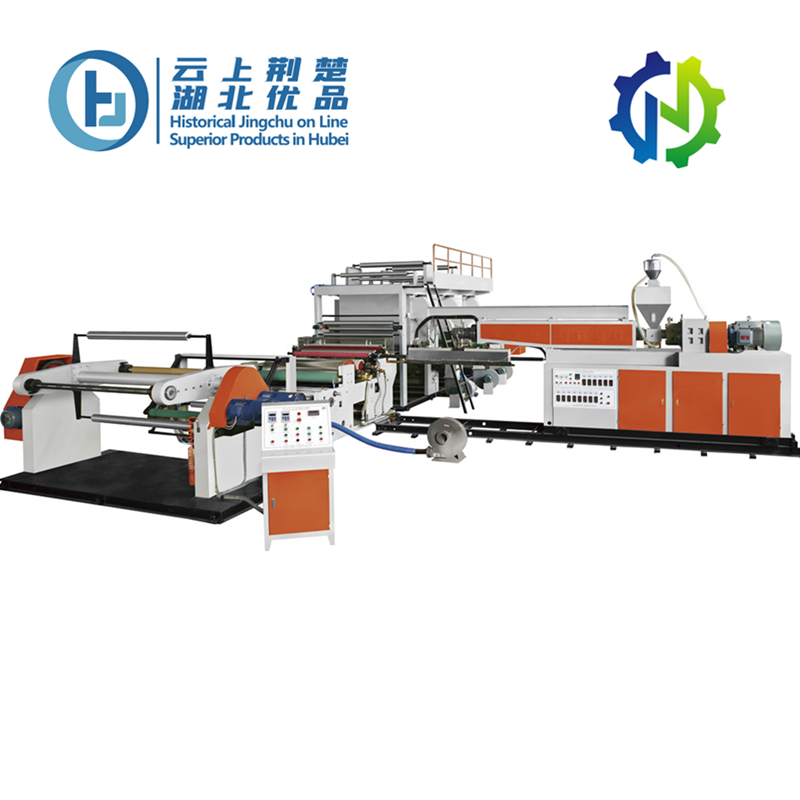

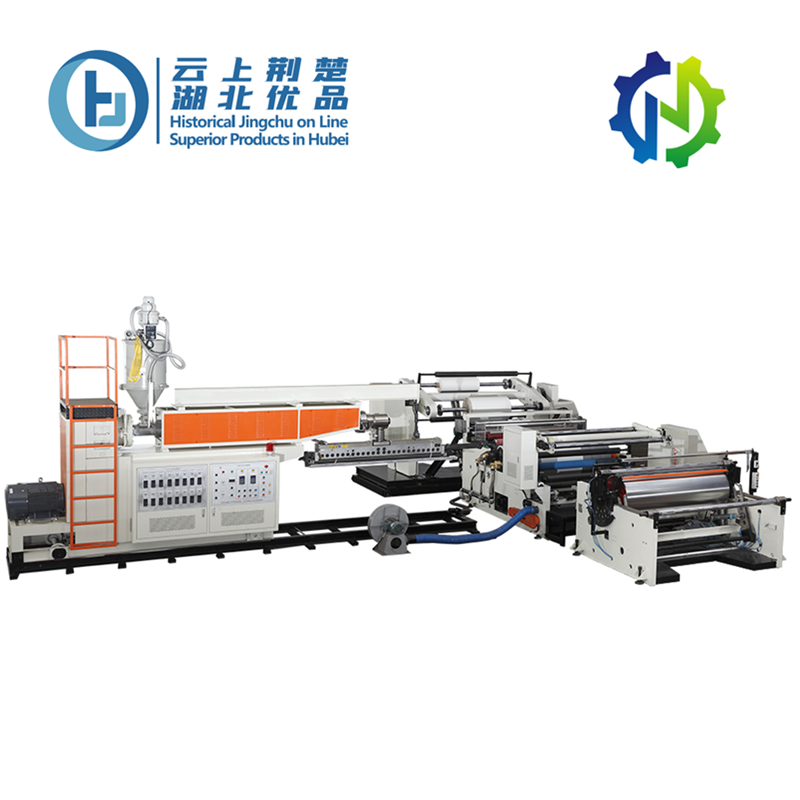

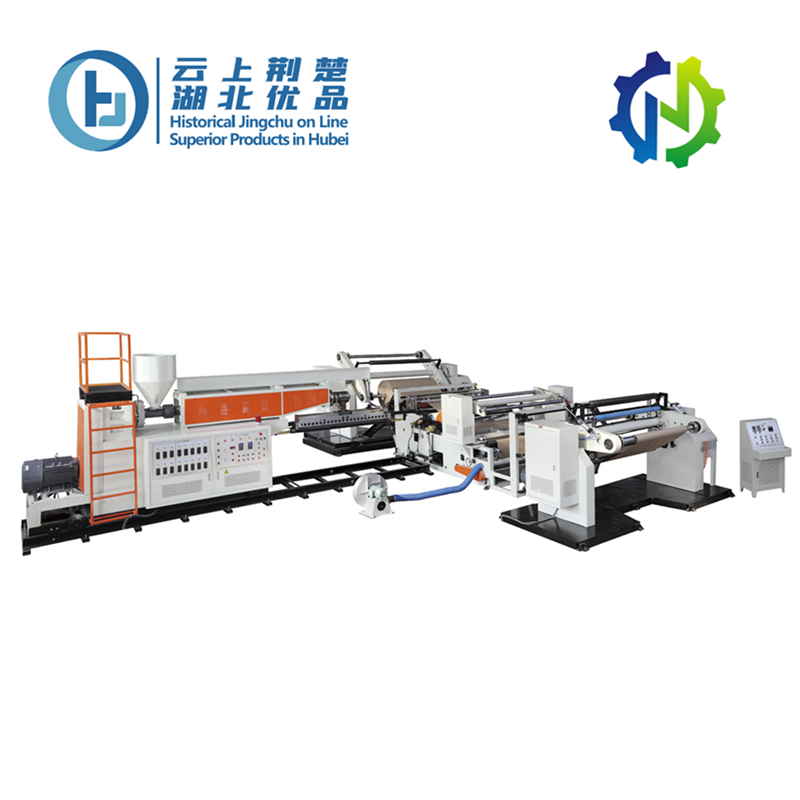

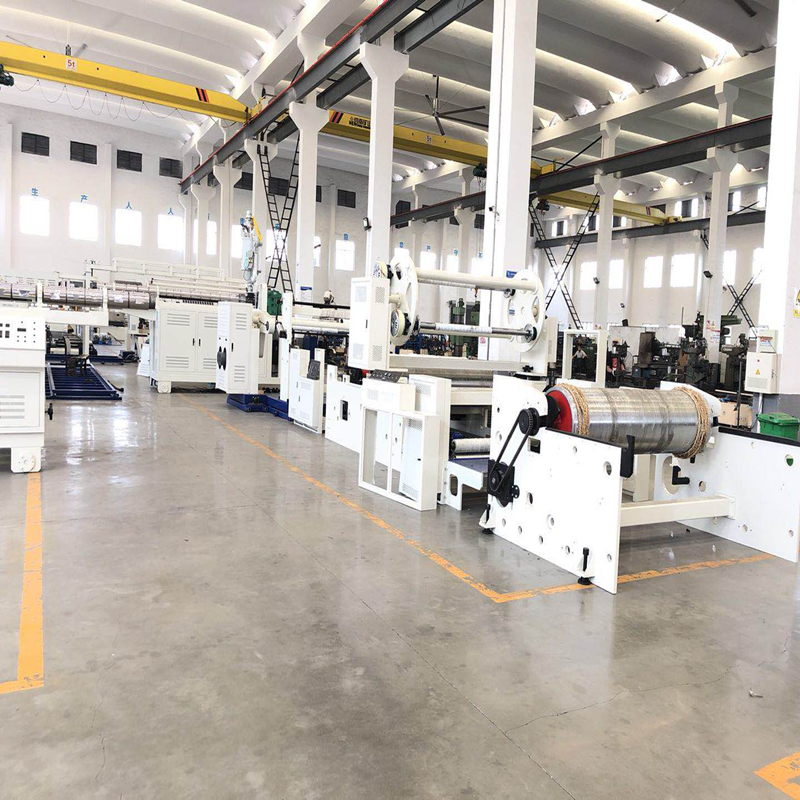

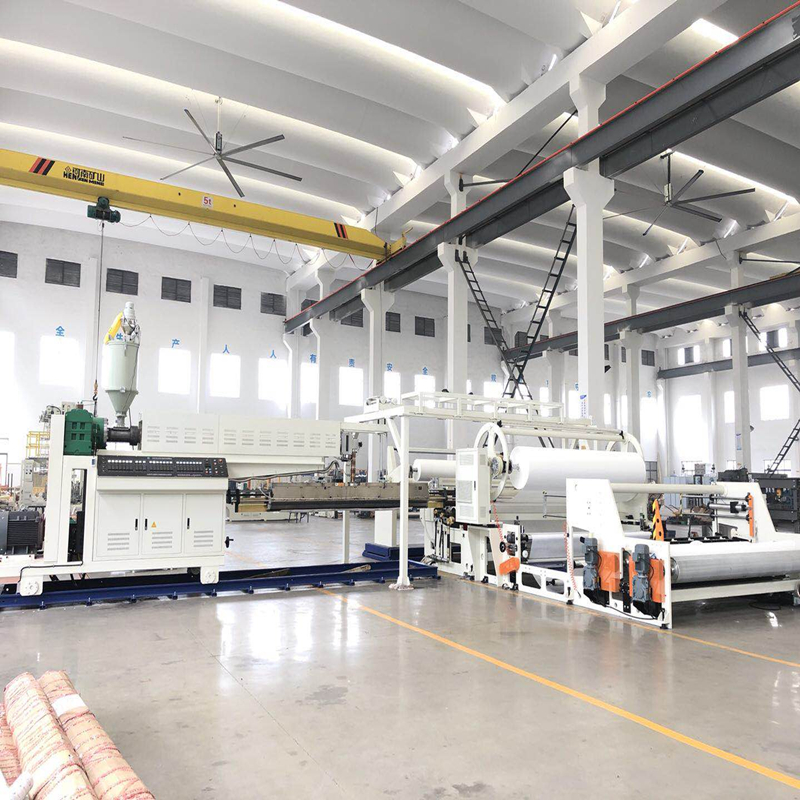

JLM-90-1350 Type coating and laminating machine

Company profile:

Jiangyin City Jiangnan Light Industry Machinery Co.,Ltd.

Our factory founded in 1984. With 30 years experience , we are the professional manufacture in the field of the soft paper & plastic packing machine.

In 2000, we’ve got more than 30 items’ national invention patent and prsctical New-style patent.

We are keeping moveing want to be better.

Our aim is :’’ Recruitment world passenger and reputation come from the letter, sincerely customize every type of paper and plastic packing machinery for our client and making us obtain progress.

Specifications：

One .The equipment overview

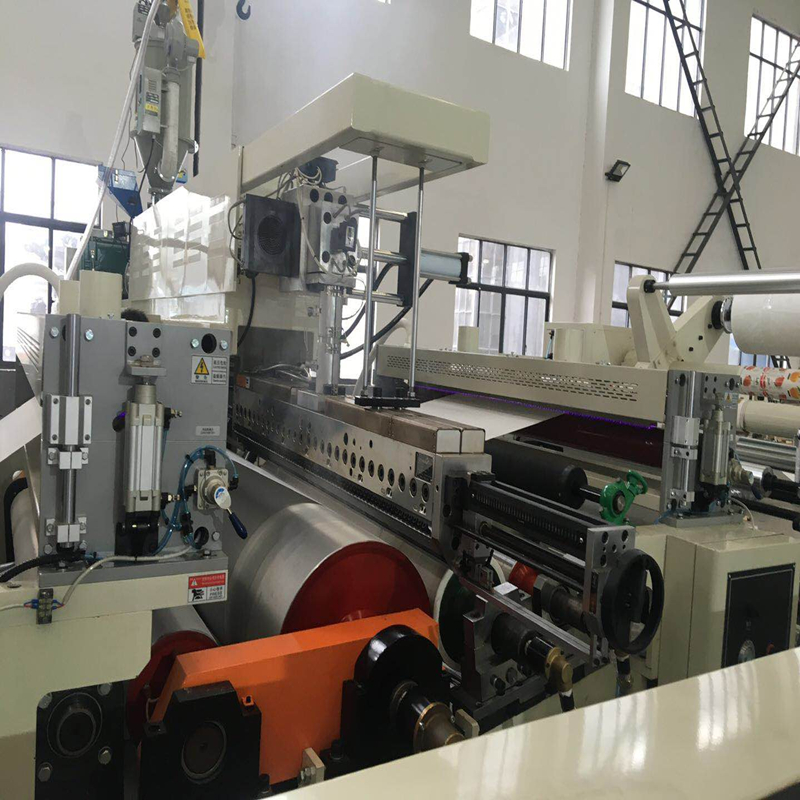

JLM90-1350 laminating machine consists of four major systems: electric, pneumatic, electronic and mechanical. It mainly consists of an extrusion unit, a set of molds, a set of forming systems, a set of unwinding systems, and a set of winding systems. The unwinding tension system is controlled by the most advanced vector frequency conversion technology. The robot does not decelerate and automatically cut the volume. It adopts Japanese Mitsubishi PLC programmable controller, unwinding, winding, extrusion, traction (forming), line speed, meter The meters are all displayed by digits.

Two.The main technical parameters

1. Material barrel : φ90mm, L/D ratio: 33:1, material: 38CrMoAl, quenching and tempering, surface nitriding, reinforced double-mixing structure, good mixing effect, large discharge amount, hydraulic screen changing device;

2, T-type elastic mold: fine jump mold;

3. The extruder reducer adopts high-strength hard-tooth surface reduction box with tightness and reliability;

4. Digital intelligent temperature control system;

5, unwinding substrate requirements: kraft paper and other coils;

6. Laminating raw materials: laminating grade PE, PP, filler and other resins;

7, the effective width of the coating: 800 ~ 1300mm;

8, the thickness of the coating: 0.010 ~ 0.12mm (single layer);

9, uniformity of the coating layer: ± 5%;

10, peel strength: 3 ~ 5N / 30mm (according to the actual coating substrate);

11, the maximum amount of extrusion: 180kg / h;

12, mechanical design speed: 0 ~ 150m / min;

13. The unwinding adopts the double-axis double-station roll-to-roll format, the roll-changing does not decelerate and automatically cuts, the tension adopts the vector variable-frequency motor automatic control (PLC module control), the correcting system adopts the photoelectric automatic correcting device, the correcting stroke: ±100mm, correcting deviation Accuracy ±0.5mm;

14. The winding adopts the friction type surface winding form, the roll change deceleration is manually changed, and the winding tension is controlled by frequency conversion and the host;

15. The maximum diameter of the unwinding is 1000mm, and the maximum diameter of the winding is 1300mm;

16, the automatic counting of the volume, metering alarm, prompt replacement;

17. The base of the extruder adopts a light rail type base, which can move back and forth. The base is stable, reliable and durable, and has a positioning device;

18, gas-type receiving and discharging shaft: 3 inches (φ76mm);

19, Japan's Mitsubishi PLC module controlled release roll winding tension;

20, the material barrel heating uses ceramic heating coil: a full set (Note: each zone is equipped with ammeter and leakage overload protection short circuiter);

21, mold heating using stainless steel internal heating: a full set (Note: each zone is equipped with ammeter and leakage overload protection short circuit);

22, the total installed capacity: about 120kw (Note: the actual power consumption during normal production is 50 degrees / hour);

23, equipment dimensions (length × width × height): 8800mm × 8500mm × 3200mm;

24, the total weight of the equipment: about 18000kg;

25, equipment color: ivory white.

Three.Main configuration list

(1) Automatic unwinding system (maximum unwinding diameter φ1000mm)

NO

Spares

Quantity

1

Self-locking electric flip type double station 360° unwinding frame

One set

2

Electromagnetic brake motor

One set

3

Turnover device

One set

4

Unwinding variable frequency motor

Two set

5

Vector inverter

Two set

6

Encoder

Two set

7

Tension feedback control mechanism

One set

8

Sampling sensor

One set

9

Pneumatic cutting switch roll manipulator landing gear

One set

10

Cutter arm landing cylinder supporting control part

One set

11

Cutter receiving pressure roller cylinder supporting control part

One set

12

Cutter active cylinder supporting control part

One set

13

Motor photoelectric automatic correcting device

One set

14

Carbide conveying guide roller

Whole set

15

Air rising type discharge shaft

Two set

16

Emergency stop reset function

One set

17

PLC control module

One set

（2）、Extruder system

No

Spares

Quantity

1

Extrusion main frame

One set

2

Bar material rod    diameter: φ90, length to diameter ratio 33:1, mixing, Zhejiang Jinli brand)

One set

3

Elastic Laminating Mould

One set

4

High-strength hardened gearbox

One set

5

Extruder main motor

One set

6

Inverter

One set

7

Intelligent temperature control system

Whole set

8

The heating of the barrel is made of ceramic heating coil

Whole set

9

The laminating mold is heated by a stainless steel internal heating device

Whole set

10

The extruder advances and retracts sliding and adopts electric mode with fine adjustment function

One set

11

Emergency stop reset device                                　　　　　　　　　　　　　　　　　　　

One set

12

Automatic feeding system

One set

13

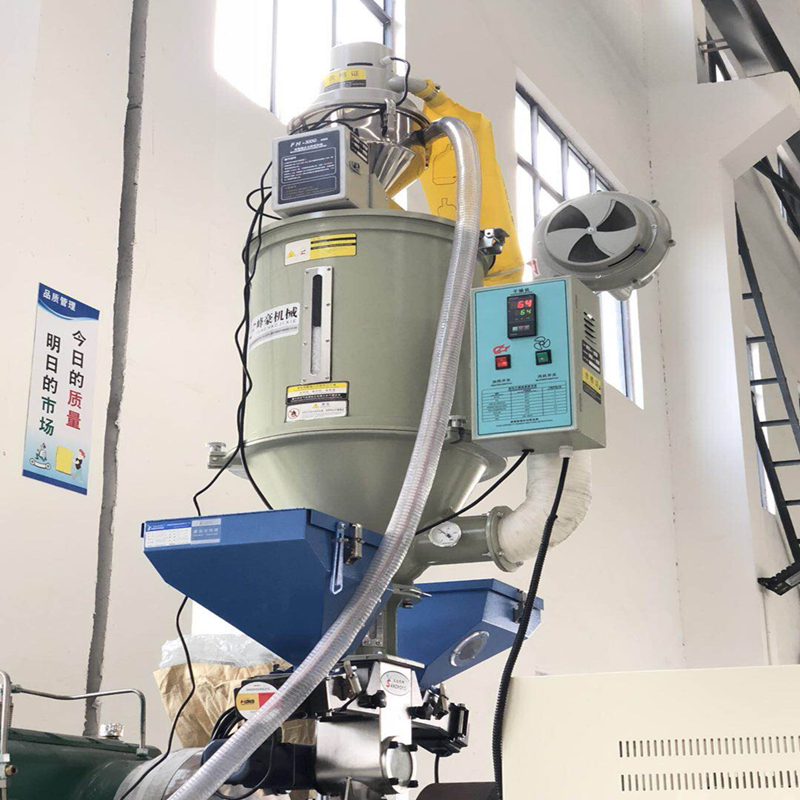

Drying system

One set

(3) Forming (traction) system

NO

Spares

Quantity

1

Molding main frame

One set

2

Composite silicone roller

One set

3

Matte surface roller

One set

4

Auxiliary cooling roller

One set

5

Peeling roller

One set

6

Main traction motor

One set

7

Main traction control inverter

One set

8

Expand the bending roll

One root

9

Compound pressure roller main thrust cylinder

Whole set

10

Auxiliary cooling roller thrust cylinder

Whole set

11

Rotating joint with high-pressure metal hose

Whole set

12

Auxiliary traction drive

One set

13

Auxiliary traction drive roller

One set

14

Auxiliary traction passive roller

One set

15

Auxiliary traction roller clutch cylinder supporting controller (SCφ63×50, Taiwan AirTAC)

One set

16

Online adjustment trimming device

Whole set

17

Online cutter motor

Two set

18

Cutter online frequency control can be adjusted

One set

19

Trimming fan

One set

19

Carbide conveying guide roller

Whole set

20

Operating platform

Whole set

(4) Friction type winding system (maximum winding diameter 1300mm)

NO

Spares

Quantity

1

Winding main frame

One set

2

Winding main motor

One set

3

Winding main inverter

One set

4

Gearbox

One set

5

Roll changing device

One set

6

Winding steel roll

One piece

7

Winding and compacting pneumatic device

One set

8

Pressure regulator

Whole set

9

Air rising type receiving shaft

Two root

10

Carbide conveying guide roller

Whole set

11

Emergency stop reset system

One group

12

Automatic metering device

One group

Four:Equipment installation and commissioning and training

1. The supplier is responsible for the installation and commissioning of the equipment. The buyer shall assign three operators to cooperate with the installation and commissioning until the equipment is smoothly driven and normal production. The commissioning personnel is one person, responsible for equipment installation, mechanical debugging, electrical automation debugging and laminating production process debugging; the return ticket and accommodation of the supplier technician are paid by the demander, and each person pays a subsidy of USD 100 per day.

2. The raw materials (including materials such as substrate and PE) required during commissioning are provided by the purchaser;

3. The supplier is responsible for the training of the operator of the demand side. The supplier is responsible for training the operators. The training instructors are 1-2 people, the operating and learning personnel are 3-5 people, and the operating and learning personnel are unified to participate in the training. The training time is 7-10 days. The training content includes mechanical operation and PLC operation. Temperature control, replacement of volume operation procedures, etc. After the machine is accepted, the supplier will leave 1-2 technicians to carry out 7-10 days of tracking technical service training to the demanding operators, and make the operators skilled in using the equipment.

The supplier provides after-sales technical support to the demand side to help the demand side solve various technical problems encountered in production and development consultation of various extruded composite new products, and the supplier tries its best to provide assistance.
