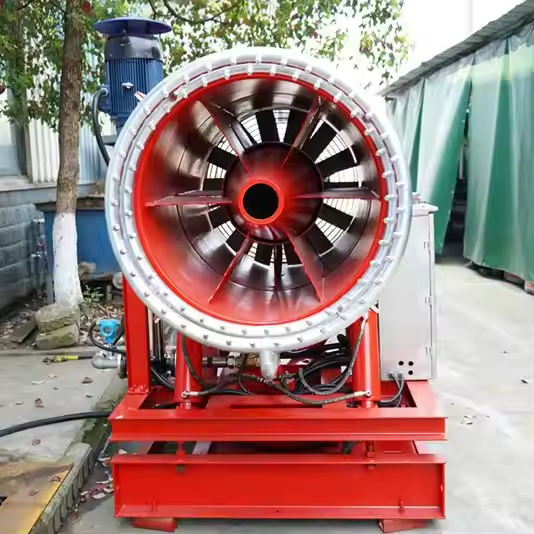

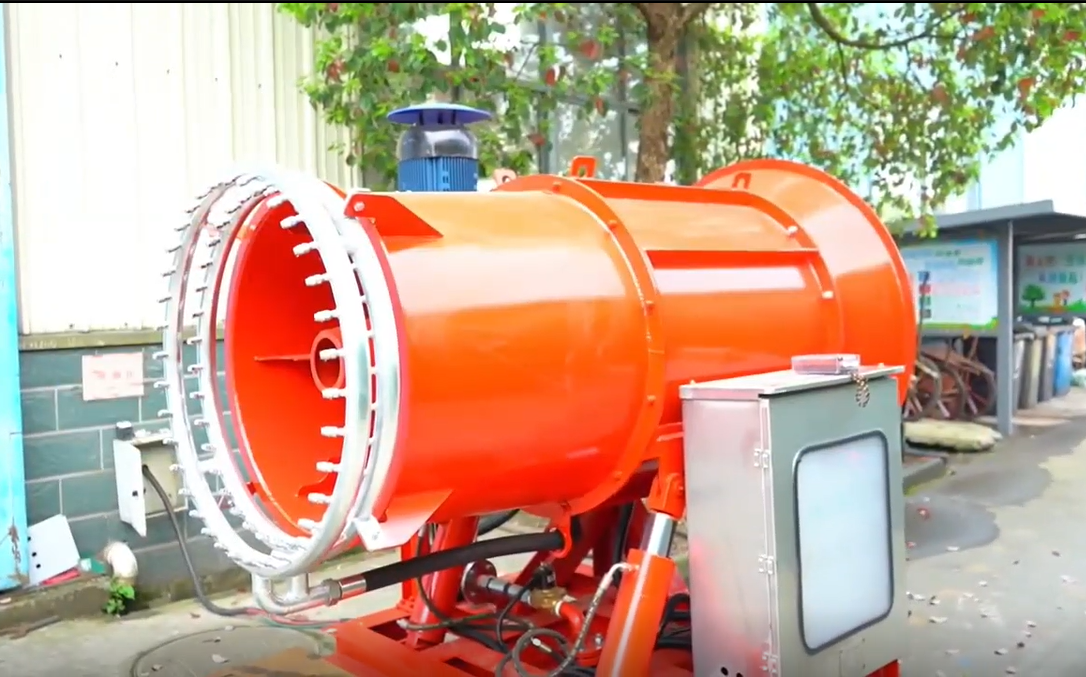

Kainuo Close & remote range control and remote control fog cannon dust suppression
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Kainuo Close & remote range control and remote control fog cannon dust suppression
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Size: ·
- Color: ·
- Installation: AssembledJack-upOverall Rapid DisassemblyOther
- Main girder form: Single GirderDouble GirderOther
- Customized: Non-CustomizedCustomized
- Application: Mineral Area UsageContainer UsageConstruction UsageOtherWorkshop Usage
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Size: ·
- Color: ·
- Installation: AssembledJack-upOverall Rapid DisassemblyOther
- Main girder form: Single GirderDouble GirderOther
- Customized: Non-CustomizedCustomized
- Application: Mineral Area UsageContainer UsageConstruction UsageOtherWorkshop Usage
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Size | · |
|---|---|
| Color | · |
| Installation | AssembledJack-upOverall Rapid DisassemblyOther |
| Main girder form | Single GirderDouble GirderOther |
| Customized | Non-CustomizedCustomized |
| Application | Mineral Area UsageContainer UsageConstruction UsageOtherWorkshop Usage |
| Moving method | OrbitalWheelCar TypeOtherCrawler |
| Structure | Balanced CraneWall Mounted CranePillar CraneOther |
| Power supply | LeverHand ChainOther |
Product details
| Size | · |
|---|---|
| Color | · |
| Installation | AssembledJack-upOverall Rapid DisassemblyOther |
| Main girder form | Single GirderDouble GirderOther |
| Customized | Non-CustomizedCustomized |
| Application | Mineral Area UsageContainer UsageConstruction UsageOtherWorkshop Usage |
| Moving method | OrbitalWheelCar TypeOtherCrawler |
| Structure | Balanced CraneWall Mounted CranePillar CraneOther |
| Power supply | LeverHand ChainOther |
From the supplier
No.
Parameter items
Parameter indicators
1
modelKD-SWP40A
KD-SWP60A
KD-SWP80A
KD-SWP100A
KD-SWP120A
2
Effective Range (m)40
60
80
100
120
3
Maximum coverage area(m2)
4500
10000
17500
22500
40000
4
Power supply (V/Hz)380/50
380/50
380/50
380/50
380/50
5
Total power (KW)22
30
37
55
90
6
Number of nozzles36/Single ring
72/Double Ring
80/Double Ring
100/Double Ring
175/Three ring+bullet
7
Water consumption (m3/h)3±0.5
4±0.5
4.5±0.5
6±0.5
15±1
8
Horizontal rotation angle (degrees)±160
±160
±160
±160
±160
9
Up-down pitch angle (°)-10～+45
-10～+45
-10～+45
-10～+45
-10～+45
10
Attraction noise reduction (dB)≤85
≤85
≤85
≤85
≤85
11
External dimensions L * B * H (mm)1600*1300*1880
1910*1600*2000
2100*1600*2000
2500*1750*2100
2930*1970*3000
12
Total weight of the machine (kg)1100
1200
1400
1800
3550
13
Water mist particle diameter (μ m)≤150
14
control modeClose & remote range control and remote control
15
Protection levelIP55
16
Operating ambient temperature (℃)
Standard type: 0~+50
17
Anti freezing type: -30~+50
18
Water supply source
Suspended solids in water ≤ 50ppm
19
6 ≤ pH value ≤ 8
20
Total hardness ≤ 450mg/L
21
Chlorides ≤ 250mg/L
22
0.1Mpa ≤ water supply pressure ≤ 1Mpa
Optional items and parameters (for reference only)
No.
Parameter itemsParameter indicators
1
Intelligent control of the Internet of ThingsThe intelligent spray system is composed of computers, monitors or sensors to realize intelligent automatic
operation.
2
Diesel generator power supplyUsing a silent diesel generator set to power the fog cannon, achieving diversified power equipment and adapting
to various working environments.
3
Diversified fixed stylesIt can be installed on fixed concrete, steel structures, or columns, or on mobile trailers.
4
Water tank buffer water supplySelect buffer water tanks of various capacities, such as 2m³,4m³, 8m³ etc., based on the actual situation
on site and customer needs.
MC type single machine pulse
