Kaisef brass intelligent manifolds
GMICOU Thermal Technology (Huai'an) Co., Ltd
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Kaisef brass intelligent manifolds
GMICOU Thermal Technology (Huai'an) Co., LtdThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: Brass
- Size: DN25
- Color: Nature Brass/ Nickel Plating/ Chrome Plating
- Exports to: Mainland China, Central Asia, Russia, EU, Other European Countries, Others
- Made in: Zhejiang, China
About this product
- Materials: Brass
- Size: DN25
- Color: Nature Brass/ Nickel Plating/ Chrome Plating
- Exports to: Mainland China, Central Asia, Russia, EU, Other European Countries, Others
- Made in: Zhejiang, China
Product details
| Materials | Brass |
|---|---|
| Size | DN25 |
| Color | Nature Brass/ Nickel Plating/ Chrome Plating |
Product details
| Materials | Brass |
|---|---|
| Size | DN25 |
| Color | Nature Brass/ Nickel Plating/ Chrome Plating |
From the supplier
Kaisef Brass intelligent manifolds

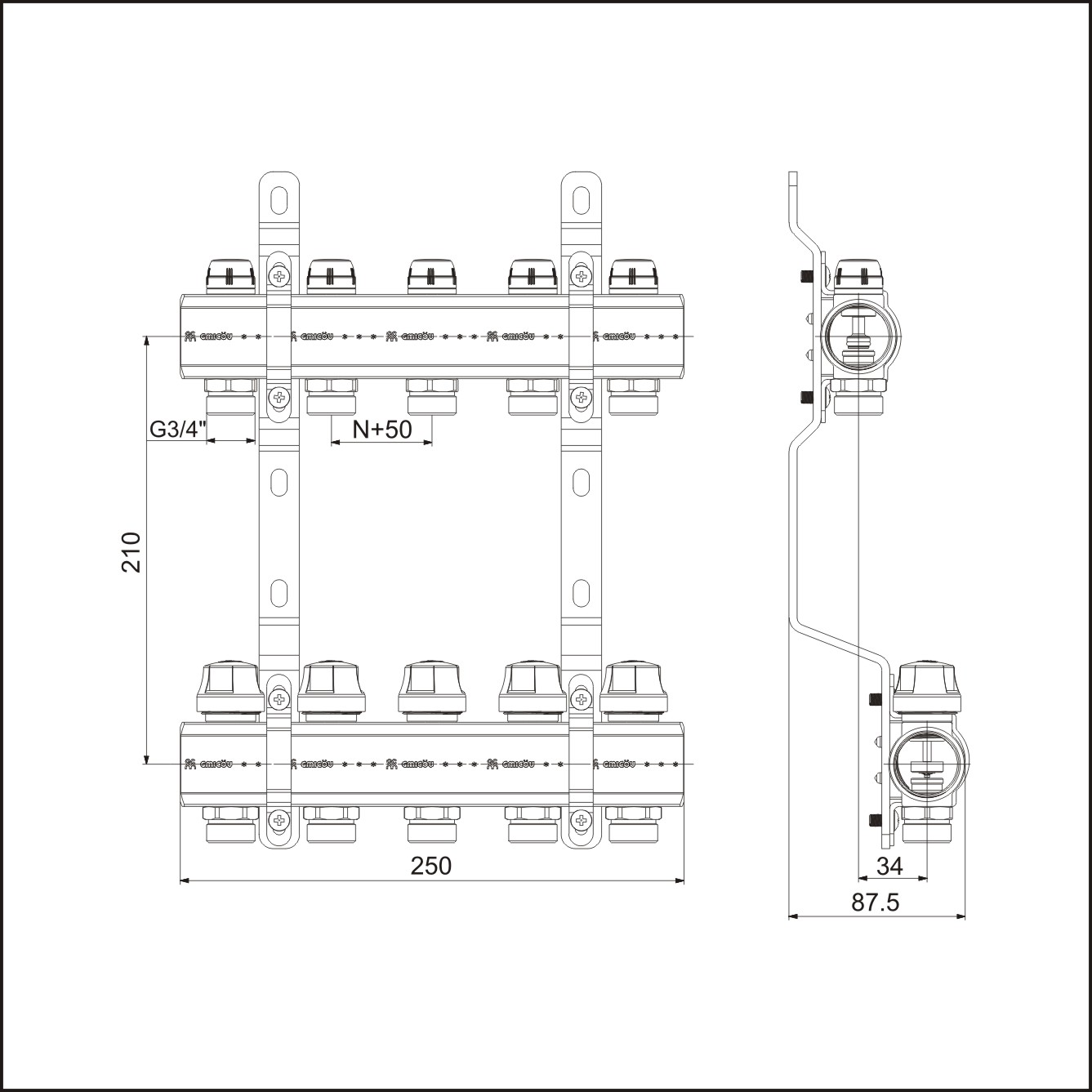

Technical parameter
Number of routes: 2-8
Main pipe diameter: 1 inch
Material: Brass h62-3
Branch pipe diameter: 16 / 20
Center distance of branch: 50mm
Surface treatment: copper natural color, nickel plating, chrome plating
Medium temperature: 0-110 ℃
Nominal pressure: 1.0Mpa

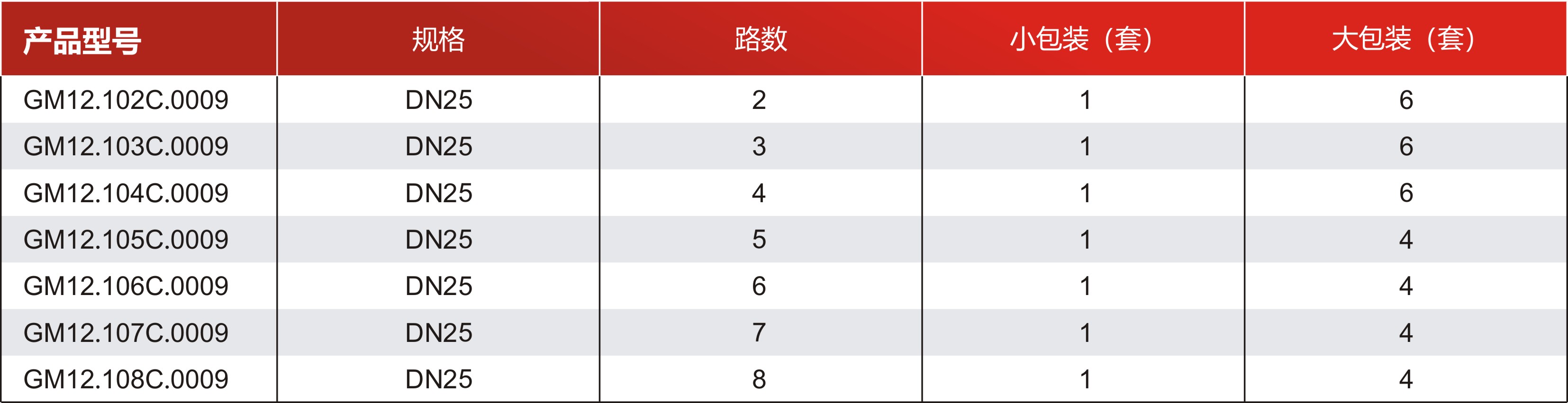

Code and Spec：
Product features：
1. Water inlet distributor with built-in adjustable balance valve
The water inlet distributor has a built-in locking valve to adjust the flow and memory function of each circuit, so as to facilitate the positioning of the opening position of the locking valve. The adjustment tool can be used with a grape "one" screwdriver. The sealing surface is higher than the bottom of the main pipeline, which can effectively prevent sediment from entering the ground heating pipeline and reduce the scaling of the ground heating pipeline.
2. Return water collector with temperature control valve core
The return water collector with electric actuator can be equipped. Each circuit of the return water collector is equipped with temperature control valve core. The normally closed electric actuator can be equipped to automatically control the temperature of each room.
From the supplier
Kaisef Brass intelligent manifolds
Technical parameter
Number of routes: 2-8
Main pipe diameter: 1 inch
Material: Brass h62-3
Branch pipe diameter: 16 / 20
Center distance of branch: 50mm
Surface treatment: copper natural color, nickel plating, chrome plating
Medium temperature: 0-110 ℃
Nominal pressure: 1.0Mpa
Code and Spec：
Product features：
1. Water inlet distributor with built-in adjustable balance valve
The water inlet distributor has a built-in locking valve to adjust the flow and memory function of each circuit, so as to facilitate the positioning of the opening position of the locking valve. The adjustment tool can be used with a grape "one" screwdriver. The sealing surface is higher than the bottom of the main pipeline, which can effectively prevent sediment from entering the ground heating pipeline and reduce the scaling of the ground heating pipeline.
2. Return water collector with temperature control valve core
The return water collector with electric actuator can be equipped. Each circuit of the return water collector is equipped with temperature control valve core. The normally closed electric actuator can be equipped to automatically control the temperature of each room.
