简介 INTRODUCTION:

KE系列铸铁高效电机是我公司在2010年推出的新款电动机, 功率等级, 安装尺寸与YX3系列完全相同, 其测试方法符合IEC60034-2-1:2007的相关规定, 效率值达到IEC60034-30:2008中的IE2效率等级, 且具有独特的外形设计, 更接近欧洲市场的风格, 其端盖带有散热筋, 使其外形美观, 同时増加了散热效果; 顶置接线盒可四周旋转(也可按要求做成左置或右置出线盒), 方便了用户的不同接线需求; 同时因釆用特殊的风扇及风路设计, 使其具有低振动低噪声的特点. 在电磁方面, 绝缘材料及绝缘工艺较以前也有了较大的改进, 无溶剂绝缘漆以及真空浸渍工艺, 使电机具有更优越的绝缘性能, 更长的使用寿命.

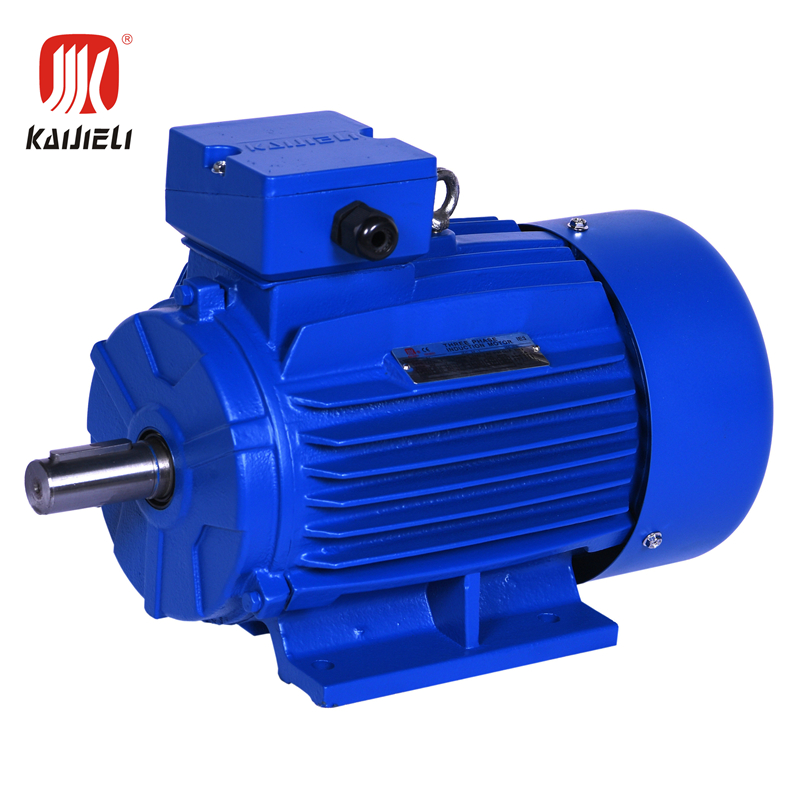

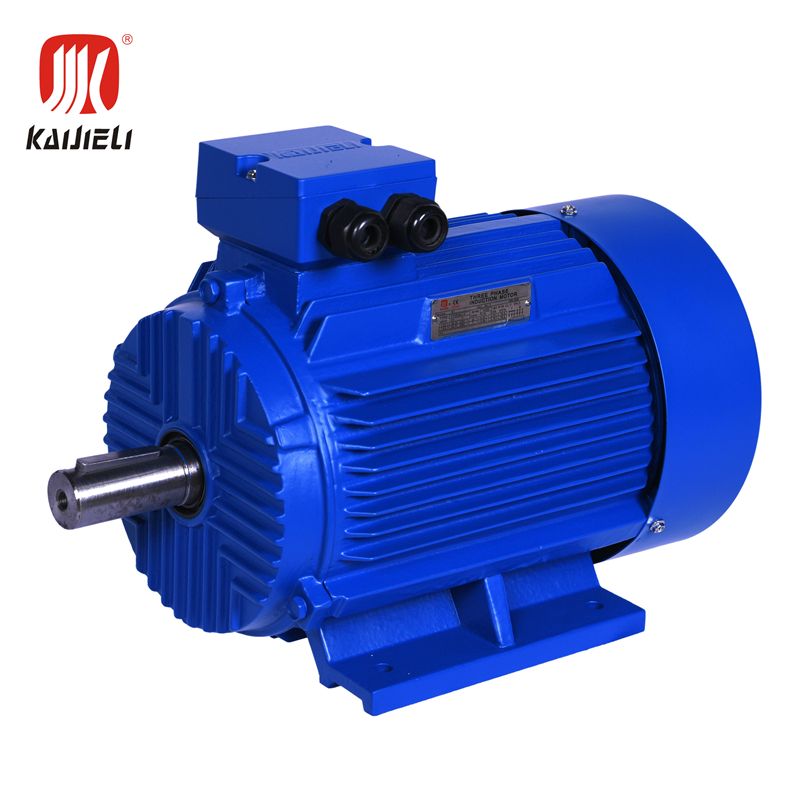

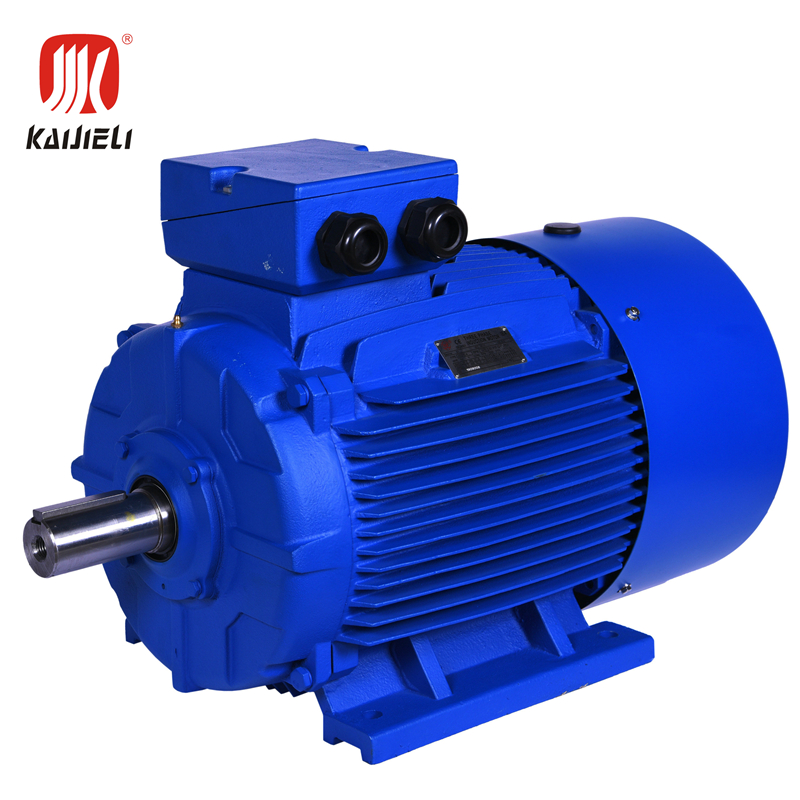

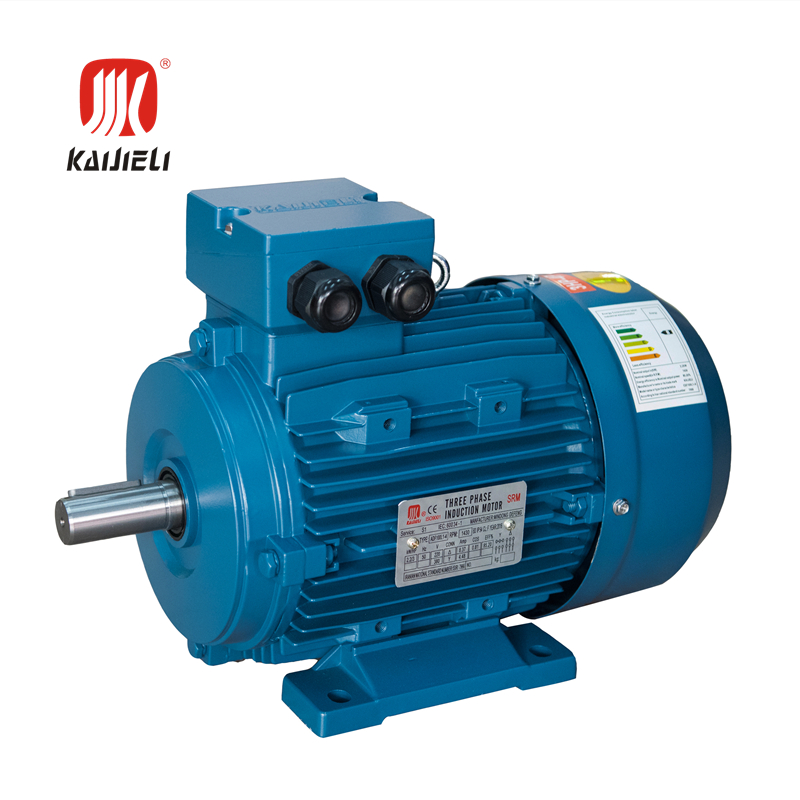

KE Series cast iron housing high-efficiency electric motor is with update design, the power and dimension are in accordance with YX3 series high efficiency motor, the test method is in term of IEC60034-2-1 standard in 2007, and efficiency meet IE2 standard by IEC60034-30 standard in 2008. It has unique configuration design more close to European market style. The end shield with radiating ribs make the motor appearance look good and improve the function of heat dissipation. The top terminal box could rotate all round. T.B could also be left or right mounted as option to meet different requirements from customers. At the same time, the special fan and wind path designed make low vibration and low noise. In electric magnetic aspect, the insulating material and insulating process are improved greatly, solvent free insulating paint and VPI impregnation technology make the motor more insulating property and long working life.

TECHNICAL DATAHousing metrial:  Cast IronOutput range:0.55KW~315KWPole:2/4/6Terminal Box:Top/Side MountedProtection Class:IP55Insulation Class:FBearing:SKF/NSK/ChineseFrequency:50/60HZEfficiency Standard:IEC60034-30 IE2
Operating ConditionsAmbient temperature:-15º C~40º CAltitude:not exceed 1000mRated voltage:380V(at buyer' s option)Rated frequency:50HZ 60HZ(at buyer' s option)Cooling method:IC 411Duty:S1

FEATURES OF KE3 SERIES:

1)Available in 2,4,6 pole variants with efficiency grade 1 according to GB60034-30 and efficiency class IE2 according to IEC60034-30

2)Optimized compact style construction

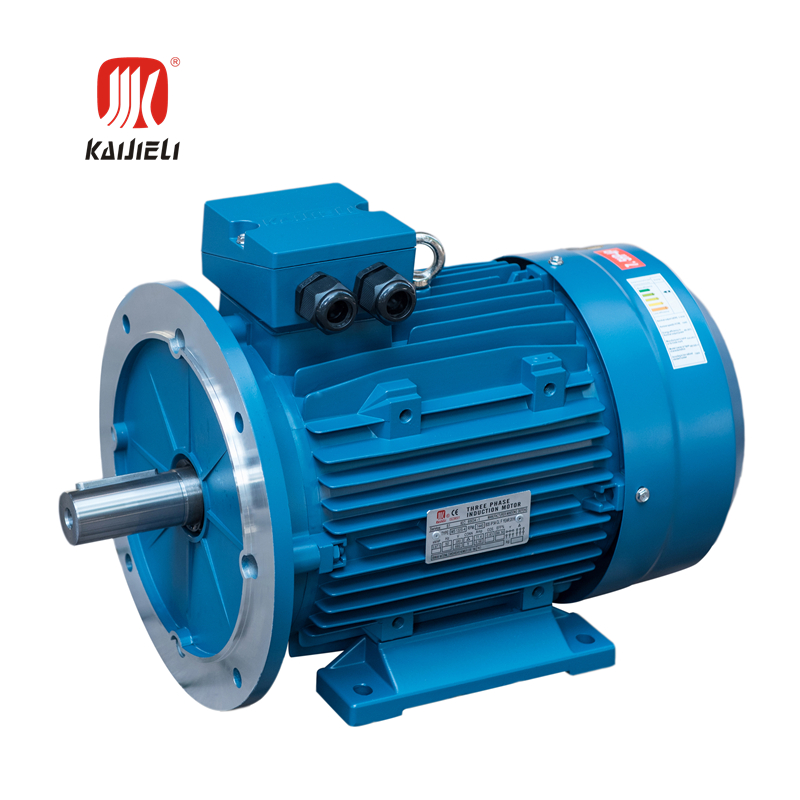

3)Standard mounting construction according to IEC60034-7; IMB3, IMB5, IMB35, IMB14, IMB34, IMV1, IMV3 and etc

4)AII motors are designed to IP55  degree of protection(IEC60034-5)

5)Winding protections with PTC, PT100 and KTY84-130 as option

6)Insulation system is designed for temperature class 155°C(F). At rated output with line-fed operation, the motors can be used in temperature class 130°C(B)

Company Overview:

Certifications:

Process:

1. Stamping of lamination;

2. Rotor die-casting;

3. Winding and inserting - both manual and semi-automatically;

4. Vacuum varnishing;

5. Machining shaft, housing, end shields, etc;

6. Rotor balancing;

7. Painting - both wet paint and powder coating;

8. Assembly;

9. Packing;

10. Inspecting spare parts every processing;

11. 100% test after each process and final test before packing.

About Us:

KAIGONG ELECTRIC (SUZHOU) CO.,LTD is located in New District, Suzhou City. Our factory center is in Fuan City, Fujian Province.
We always adhere to the policy of high standard, high quality and high efficiency and devoted ourselves to
the research and sales of the qenerators, machine tools and other spare parts. It is a creative
technology company comprising the manufacture, sales and research of electric motors and
generators.We have 2 national invention patents. Our products in"KAIJIELI" brand are exported to
more than 50 countries and districts in Europe, South America, Middle East, South Asia, Southeast Asia
etc. We have steady sales channels and more than 50 agencies both at home and abroad.It is the
leading company in the industry and the total annual sales is Keeping growing.

RAQ:
Delivery time:Within 35 days working day since we receive the deposit.
MOQ: 1 set is acceptable.
Payment term: 30% T/T deposite,70%T/T balance before shipment; Or L/C 100% At Sight;
Packaging: Standard export package (Wrapping film and bubble pad or plywood case);
Frequency and voltage: 50HZ/60HZ; 110V / 220V,230V/ 400V, 220V/380V-440V ect;
Manufacturing standard: ISO9001:2008, CE, CCC, TUV, SGS.
