Kitsen Fastform System
- FOB goods (100)
- $8,958
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $314
- Section 301 tariff (25.0%)
- $2,239
- Customs fees (MPF/HMF)
- $44
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Kitsen Fastform System
- FOB goods (100)
- $8,958
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $314
- Section 301 tariff (25.0%)
- $2,239
- Customs fees (MPF/HMF)
- $44
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: aluminum 6061-T6& birch plywood
- Size: 1800x1200
- Color: yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Guangdong, China
About this product
- Materials: aluminum 6061-T6& birch plywood
- Size: 1800x1200
- Color: yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Guangdong, China
Product details
| Materials | aluminum 6061-T6& birch plywood |
|---|---|
| Size | 1800x1200 |
| Color | yellow |
From the supplier
Product Description

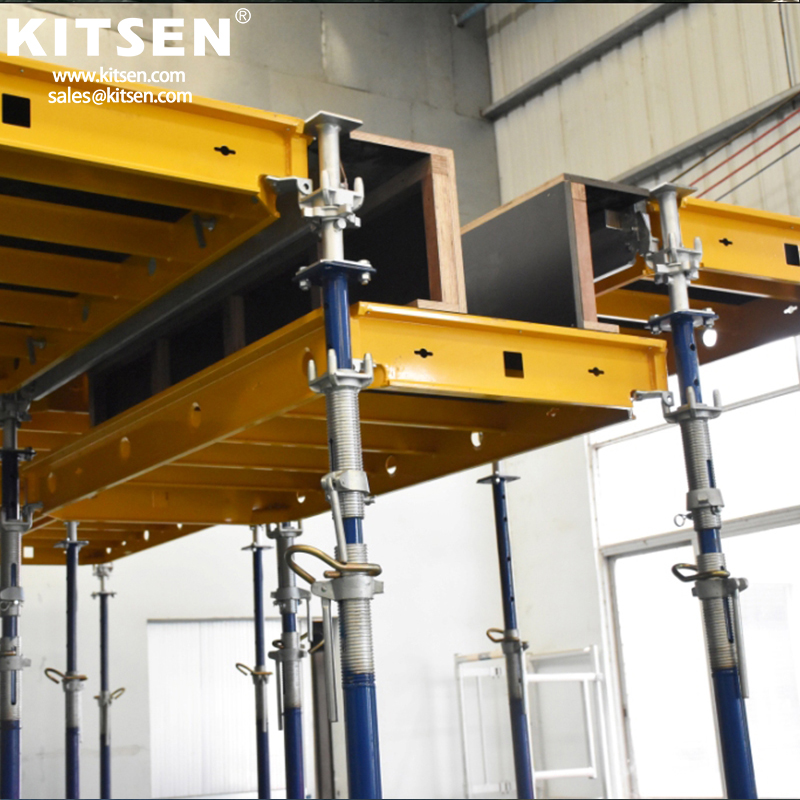

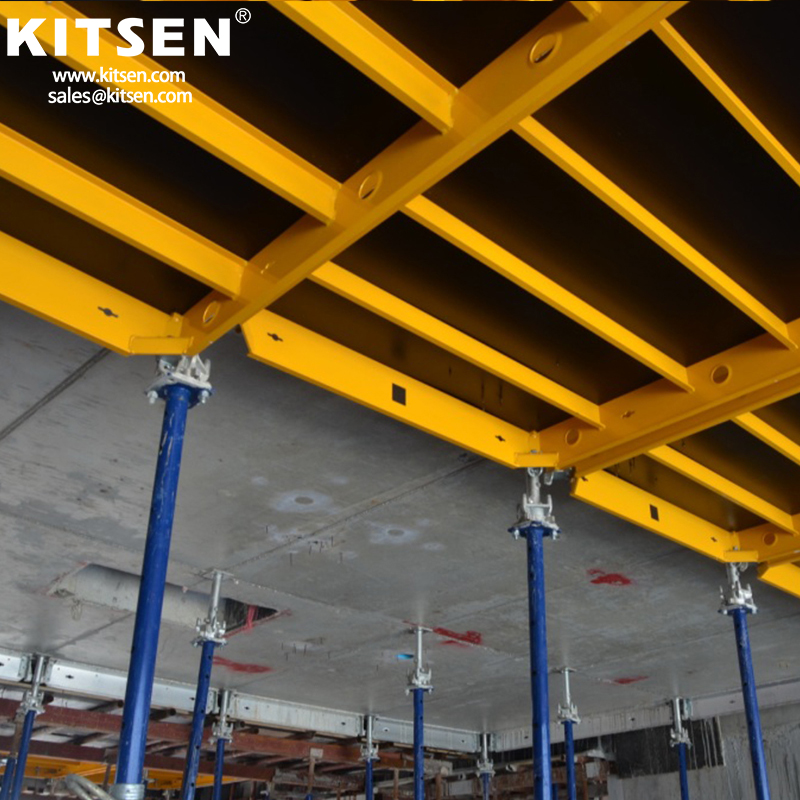

KITSEN Fastform is an advanced aluminum panel-prop-formwork system which allows early stripping operation.
Product Parameters
Material: Aluminum Alloy 6061-T6, Birch Plywood
Specification(mm) of Panel: 1800×1200mm (various size for selecting)
Specification(mm) of Filler Beam: 1800/1200/900/600mm (various size for selecting)
Specification(mm) of Truss: 1800×600mm (various size for selecting)
Basic Components: Panel, Filler Beam, Crown, prop, Lock Pin, Truss, Guardrail Post, Cantilever Support Brace,
Fastform Formwork Height: No Restriction, Can be adjusted by Changing the Prop
Advantages
1. Fast &Efficient
Modular components, beam and panel are made of aluminum which is light enough to erect, strip and disassemble.
One worker can assemble 27m2 per hour, and dismantle 54 m2 per hour. (One worker can install 100γ‘-140γ‘per day.)
Allowable concrete thickness ≤300mm.
Birch plywood thickness:10mm.
2. Safe & Reliable
Stable system with 6-direction locking restrictions
3. Simple
Only three basic components: panel, crown, prop
About the supplier
Main products: Landing stage of scaffold,Other staircases and parts
- βExhibited at 10 of the last 10 Canton Fairs
- βIndustry and Trade Company
- βFounded 2009
- βCanton Fair Premium Supplier
- βBrand exhibitor
- βNational high-tech enterprise
- Exhibited at 10 of the last 10 Canton Fairs
- Industry and Trade Company
- Founded 2009
- Canton Fair Premium Supplier
