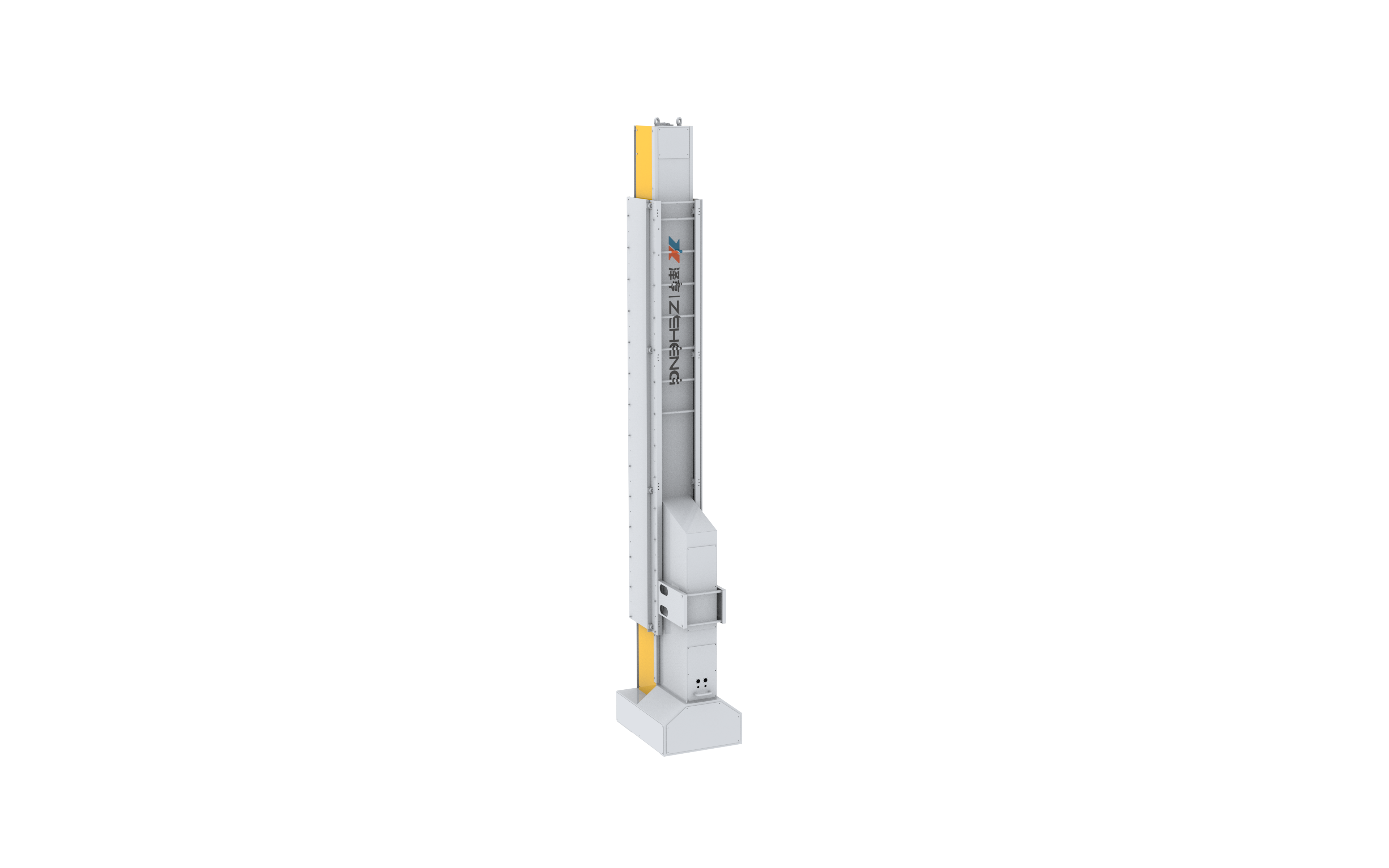

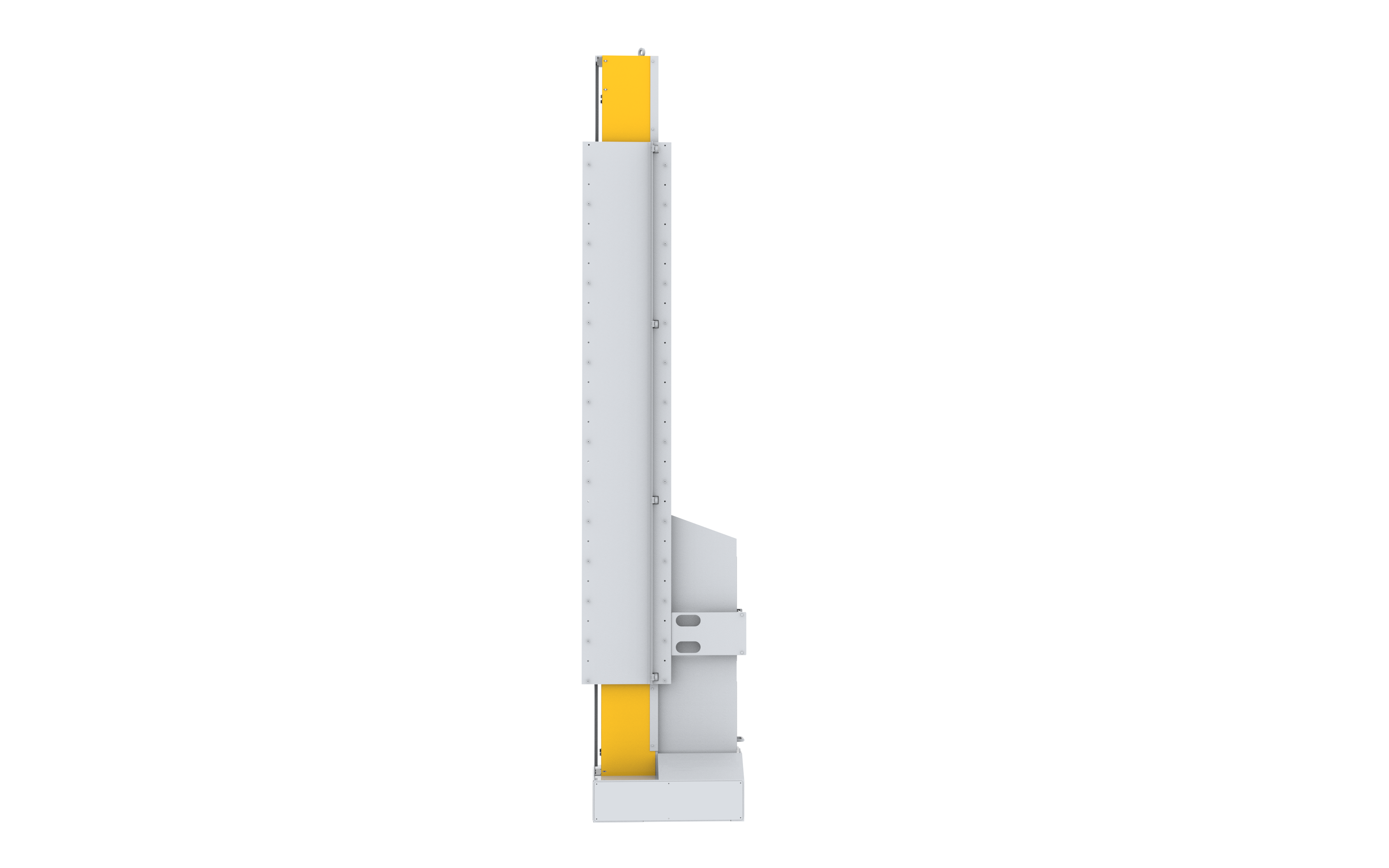

KS Reciprocators-KSZA13
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
KS Reciprocators-KSZA13
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: Alloy steel
- Size: 650*900*4700；650*900*3877mm
- Color: Wrinkle gray, Zeheng yellow
- Standard: GB
- Material: AlloySteelOther
- Structure: Vertical
- Exports to: Mainland China, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, EU, Other European Countries
About this product
- Materials: Alloy steel
- Size: 650*900*4700；650*900*3877mm
- Color: Wrinkle gray, Zeheng yellow
- Standard: GB
- Material: AlloySteelOther
- Structure: Vertical
- Exports to: Mainland China, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, EU, Other European Countries
Product details
| Materials | Alloy steel |
|---|---|
| Size | 650*900*4700；650*900*3877mm |
| Color | Wrinkle gray, Zeheng yellow |
| Standard | GB |
| Material | AlloySteelOther |
| Structure | Vertical |
From the supplier
Load: 150kg (KSZA13-3280); 120kg（KSZA13-2000）
Journey: 1000
Mount surface height: 3280 (KSZA13-3280), 2000 (KSZA13-2000)
Speed: 0.01-0.4m/s
Acceleration: 0.1-1.5m/s ^ 2;
Accuracy: Repetitive positioning accuracy ± 0.1mm
Position detection: using an absolute value encoder
Communication method: Canopen/EtherCaT communication protocol
Drive parameters: 3kw (KSZA13-3280), 2kw (KSZA13-2000)
Land occupation specification: 650 * 900 * 4700; 650*900*3877
Imitation spraying requires the installation of multiple U-axes, and the load exceeds the load range of the light-duty version of the Z-axis reciprocating machine, requiring a heavy-duty version of the Z-axis reciprocating machine
The servo motor is connected to the reducer and driven by a synchronous wheel. The synchronous belt lifts the slider, and the load is mounted on the slider and moves up and down accordingly.
