Surelink 20years Factory of Coaxial Cable Rg59 Kx6 CCTV Siamese Cable Rg59

Product Specifications

1. Product Structure

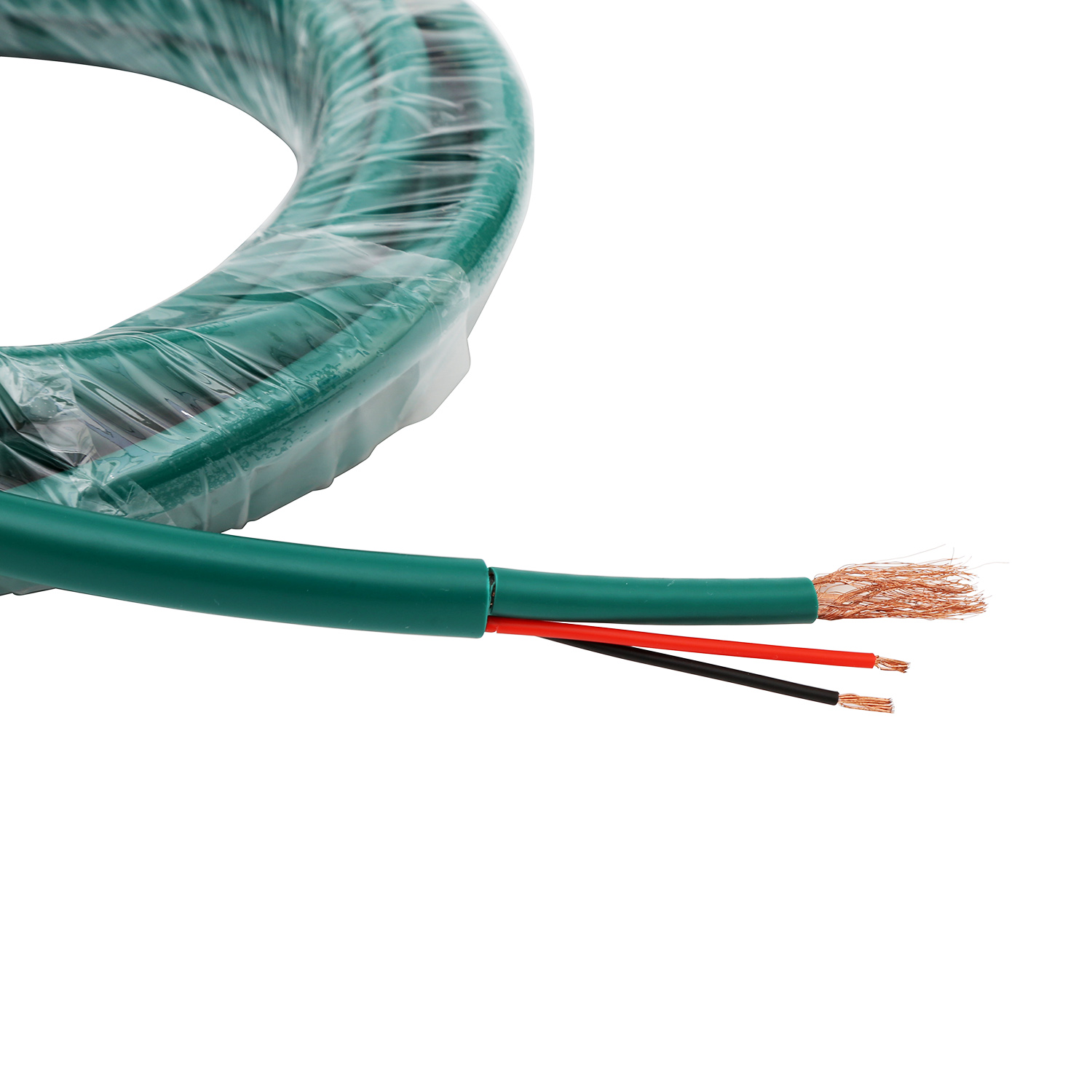

RG59 with power cable
0.64Cu/CCS+3.66SPE+90%Braiding Coverage+6.0PVC+0.5mm2 power/0.75mm2 power
0.81Cu/CCS+3.66FPE+Bonded foil+90% Braiding Coverage+6.0PVC+0.5mm2 power/0.75mm2 power

Description for RG59 with power cable
Mainly used for the distribution and access of electronic communication equipment, RF transmitter unit of
communication system, building cabling and CATV; the most striking features are broadband and high
speed; currently, also widely used in the multimedia transmission field; conforms to RG59.

2. Technical Specification

Specificaitons Physical dimensions component Standard-shield Tri-shield Quad-shield inchs mm inchs mm inchs mm Nominal center conductor diameter 0.032 0.81 0.032 0.81 0.032 0.81 Nominal diameter over dielectric 0.144 3.66 0.144 3.66 0.14 3.66 Nominal diameter over first shield 0.151 3.84 0.151 3.84 0.151 3.84 Nominal diameter over jacket 0.24 6.1 0.24 6.1 0.265 6.73 Nominal jacket wall thickness 0.03 0.76 0.032 0.81 0.034 0.86 Nominal diameter of 0.051(single) 1.3 0.051(single) 1.3 0.051(single) 1.3 steel messenger 0.072(dual) 1.83 0.072(dual) 1.83 0.072(dual) 1.83 Electrial Characteristics Nominal impedance 75ohms Nominal Velocity of propagation 0.85 Attenuation(20ºC) Frequency(MHz) Maximum(dB/100ft) Maximum(dB/100m) 55 2.05 6.73 211 3.8 12.47 350 4.8 15.75 450 5.4 17.72 550 5.95 19.52 750 6.97 22.87 865 7.52 24.67 1000 8.12 26.64
