Ladder Beam
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Ladder Beam
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: Q235
- Size: 48.3mm
- Color: Hot dipped galvanized
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia
- Made in: Tianjin, China
About this product
- Materials: Q235
- Size: 48.3mm
- Color: Hot dipped galvanized
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia
- Made in: Tianjin, China
Product details
| Materials | Q235 |
|---|---|
| Size | 48.3mm |
| Color | Hot dipped galvanized |
Product details
| Materials | Q235 |
|---|---|
| Size | 48.3mm |
| Color | Hot dipped galvanized |
From the supplier
ADTO LADDER BEAM
To provide a clear span between scaffolds. 300mm deep and 300mm center to center rungs. Constructed from 48.3mm O/D x 3.2mm high tensile steel and saddle welded at every joint, they fully integrate with existing fittings.
1. Material: Q235, Q345
2. Advantage: antirust, skid proof
3. Surface treatment: painted or galvanized
4.Length: 1M,2M,3M,4M,6M available
(Other lengths can be supplied to order).
5.Ladder Beam - safe load table
Span (m)
UDL on top chord
Centre point load
3
29.9kN
1 8.9kN
4
24.2kN
1 5.2kN
6
17.6kN
10.4kN
6.OEM service
7.EN74, BS1139, ISO9001:2000
8.quick to install, save time and labour
9.we can produce as per customer`s need.

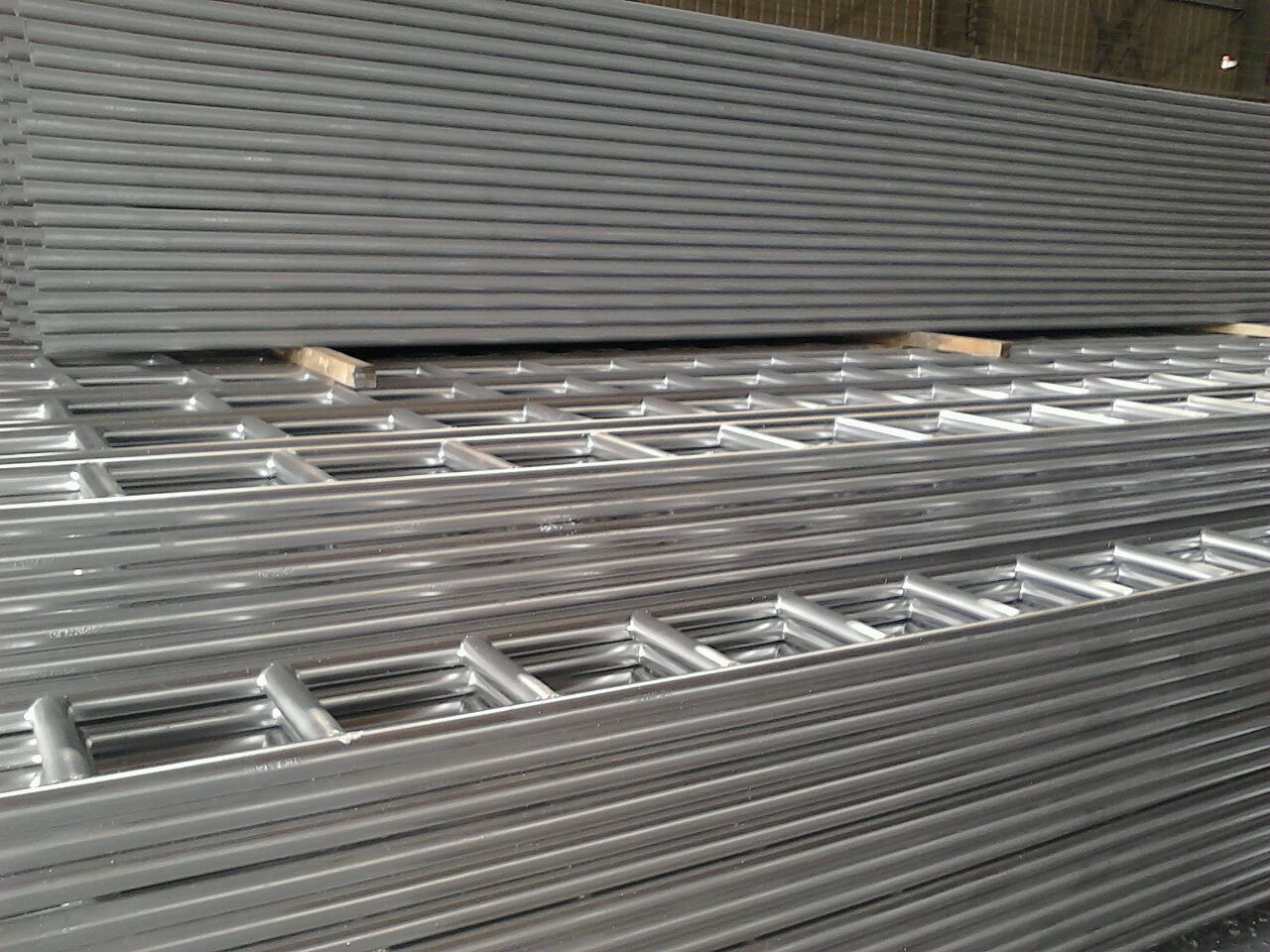

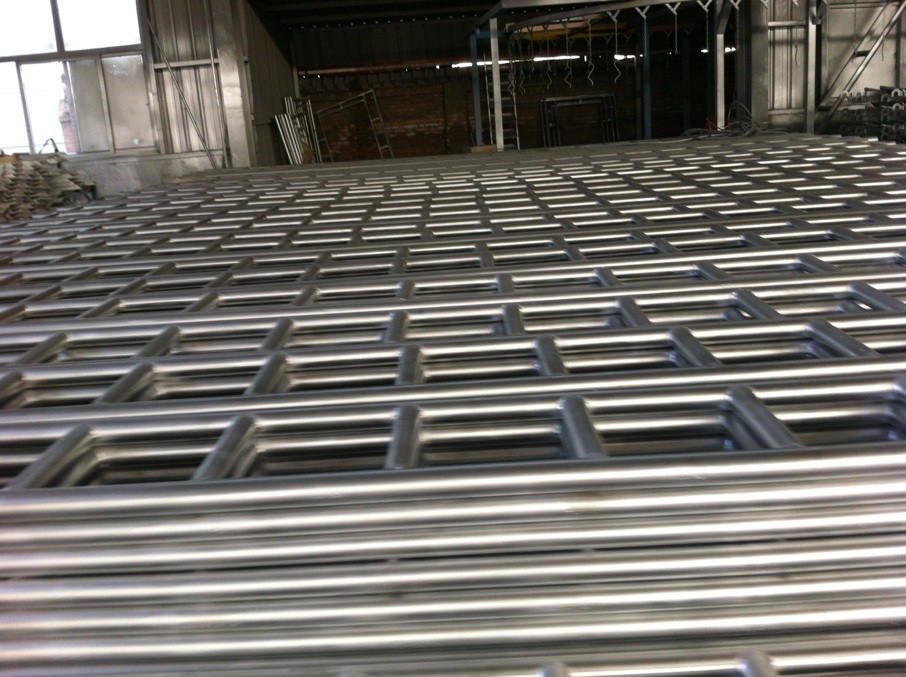

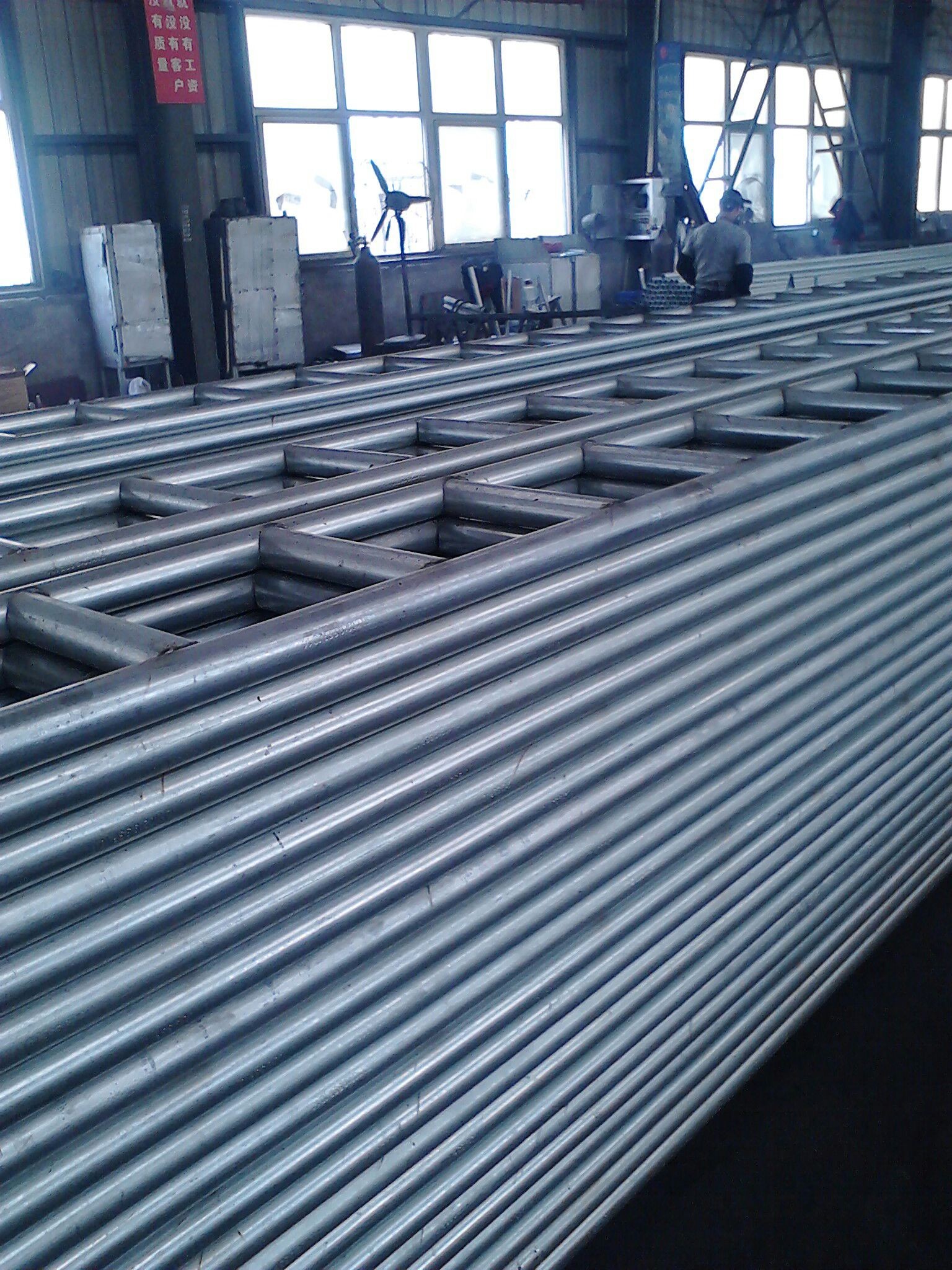

Products photoes:
Loading photoes:
Application:
Testing
photoes:
From the supplier
ADTO LADDER BEAM
To provide a clear span between scaffolds. 300mm deep and 300mm center to center rungs. Constructed from 48.3mm O/D x 3.2mm high tensile steel and saddle welded at every joint, they fully integrate with existing fittings.
1. Material: Q235, Q345
2. Advantage: antirust, skid proof
3. Surface treatment: painted or galvanized
4.Length: 1M,2M,3M,4M,6M available
(Other lengths can be supplied to order).
5.Ladder Beam - safe load table
Span (m)
UDL on top chord
Centre point load
3
29.9kN
1 8.9kN
4
24.2kN
1 5.2kN
6
17.6kN
10.4kN
6.OEM service
7.EN74, BS1139, ISO9001:2000
8.quick to install, save time and labour
9.we can produce as per customer`s need.
Products photoes:
Loading photoes:
Application:
Testing
photoes:
