LF35(AFS） Air Differential Pressure Switches
ZHEJIANG LEFOO CONTROLS CO., LTD.
See what’s includedHide breakdown
- FOB goods (100)
- $1,736
- Ocean freight + handling (0.30 CBM)
- $820
- US duty (2.7%)
- $47
- Section 301 tariff (25.0%)
- $434
- Customs fees (MPF/HMF)
- $35
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $1,736
- Ocean freight + handling (0.30 CBM)
- $820
- US duty (2.7%)
- $47
- Section 301 tariff (25.0%)
- $434
- Customs fees (MPF/HMF)
- $35
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
LF35(AFS） Air Differential Pressure Switches
ZHEJIANG LEFOO CONTROLS CO., LTD.See what’s includedHide breakdown
- FOB goods (100)
- $1,736
- Ocean freight + handling (0.30 CBM)
- $820
- US duty (2.7%)
- $47
- Section 301 tariff (25.0%)
- $434
- Customs fees (MPF/HMF)
- $35
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $1,736
- Ocean freight + handling (0.30 CBM)
- $820
- US duty (2.7%)
- $47
- Section 301 tariff (25.0%)
- $434
- Customs fees (MPF/HMF)
- $35
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product

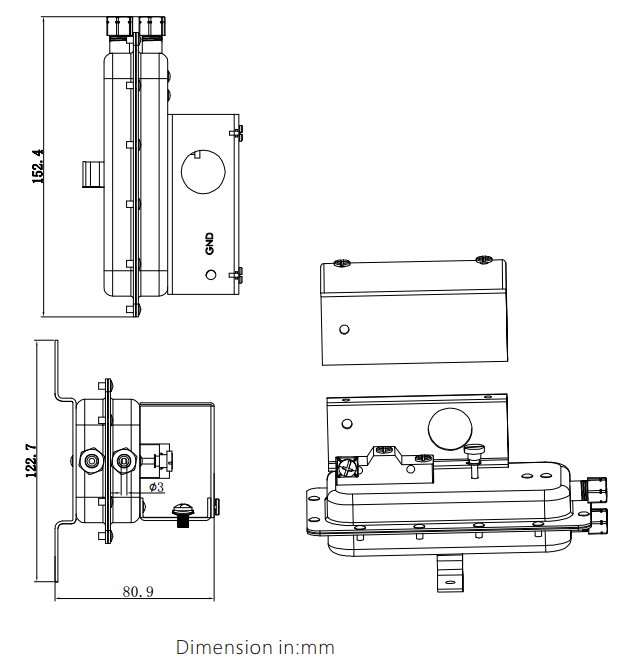

- Size: 152.4*122.7*80.9
- Color: white
- Size: Miniature
- Material: Other
- Feature: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Size: 152.4*122.7*80.9
- Color: white
- Size: Miniature
- Material: Other
- Feature: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Size | 152.4*122.7*80.9 |
|---|---|
| Color | white |
| Size | Miniature |
| Material | Other |
| Feature | Other |
Product details
| Size | 152.4*122.7*80.9 |
|---|---|
| Color | white |
| Size | Miniature |
| Material | Other |
| Feature | Other |
From the supplier
The AFS is general-purpose airflow proving switches designed for HVAC, detection of blocked filters and fans suction, airflow monitoring in ducts, pipes, tunnels, and other energy management applications. It may be used to sense positive, negative or differential air pressure.

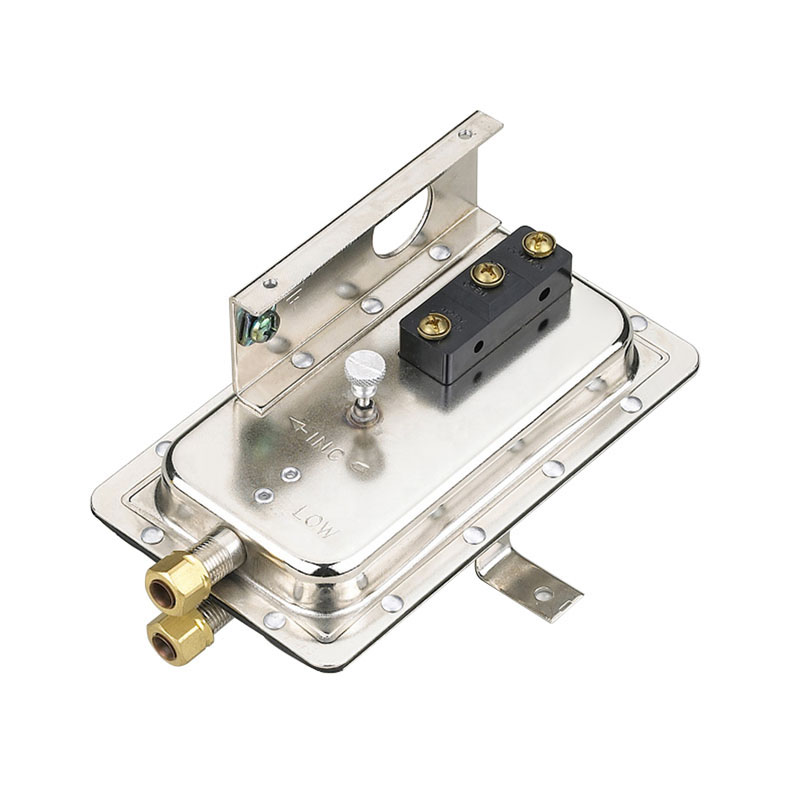

The plated housing contains a diaphragm, a calibration spring, and a snap-acting switch. The sample connections located on each side of the diaphragm accept a 0.25" OD tubing via the integral compression and nut. An enclosure cover guards against accidental contact with the live switch terminal screws and the set point adjusting screw. The enclosure cover will accept a 0.5" conduit connection. The AFS-460 has a reset button located on the top surface of the enclosure cover.
Model
AFS-222(LF35-1)
AFS-262(LF35-2)
Medium
Air
Air
Mounting Position
The diaphragm in any vertical plane
The diaphragm in any vertical plane
Field Adjustable Range
0.05±0.02" W.C. to 12.0" W.C.
0.05±0.02" W.C. to 2.0" W.C.
Switch Differential
Progressive, increasing from approximately 0.02" W.C at minimum set point to approximately 0.8" W.C. at maximum set point.
Progressive, increasing from approximately 0.02" W.C at minimum set point to approximately 0.1" W.C. at maximum set point.
Maximum Pressure
0.5psi (0.03bar)
0.5psi (0.03bar)
Operating Temperature Range
-40?-82?
-40?-82?
Electrical Rating
300 VA pilot duty at 115-277VAC, 10amp, non-inductive, 277VAC, 60Hz.
300 VA pilot duty at 115-277VAC, 10amp, non-inductive, 277VAC, 60Hz.
Electrical Connections
Screw top terminals with cup washers
Screw top terminals with cup washers
Sample Line Connections
Ferrule and nut compression type connectors that accept 0.25" OD rigid tubing.
Ferrule and nut compression type connectors that accept 0.25" OD rigid tubing.
Contact Arrangement
SPDT
SPDT
Conversion: 1mbar=100Pa 1"W.C.=249Pa
From the supplier
The AFS is general-purpose airflow proving switches designed for HVAC, detection of blocked filters and fans suction, airflow monitoring in ducts, pipes, tunnels, and other energy management applications. It may be used to sense positive, negative or differential air pressure.
The plated housing contains a diaphragm, a calibration spring, and a snap-acting switch. The sample connections located on each side of the diaphragm accept a 0.25" OD tubing via the integral compression and nut. An enclosure cover guards against accidental contact with the live switch terminal screws and the set point adjusting screw. The enclosure cover will accept a 0.5" conduit connection. The AFS-460 has a reset button located on the top surface of the enclosure cover.
Model
AFS-222(LF35-1)
AFS-262(LF35-2)
Medium
Air
Air
Mounting Position
The diaphragm in any vertical plane
The diaphragm in any vertical plane
Field Adjustable Range
0.05±0.02" W.C. to 12.0" W.C.
0.05±0.02" W.C. to 2.0" W.C.
Switch Differential
Progressive, increasing from approximately 0.02" W.C at minimum set point to approximately 0.8" W.C. at maximum set point.
Progressive, increasing from approximately 0.02" W.C at minimum set point to approximately 0.1" W.C. at maximum set point.
Maximum Pressure
0.5psi (0.03bar)
0.5psi (0.03bar)
Operating Temperature Range
-40?-82?
-40?-82?
Electrical Rating
300 VA pilot duty at 115-277VAC, 10amp, non-inductive, 277VAC, 60Hz.
300 VA pilot duty at 115-277VAC, 10amp, non-inductive, 277VAC, 60Hz.
Electrical Connections
Screw top terminals with cup washers
Screw top terminals with cup washers
Sample Line Connections
Ferrule and nut compression type connectors that accept 0.25" OD rigid tubing.
Ferrule and nut compression type connectors that accept 0.25" OD rigid tubing.
Contact Arrangement
SPDT
SPDT
Conversion: 1mbar=100Pa 1"W.C.=249Pa
