About this product
- Size: 84*44.5
- Color: white
- Folded: Unfolded
- Age group: Other
- Suitablefor: Other
- Exercise part: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Size: 84*44.5
- Color: white
- Folded: Unfolded
- Age group: Other
- Suitablefor: Other
- Exercise part: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Size | 84*44.5 |
|---|---|
| Color | white |
| Folded | Unfolded |
| Age group | Other |
| Suitablefor | Other |
| Exercise part | Other |
| Gender | Unisex |
| Location | Other |
| Size | Other |
| Service life | Other |
| Material | Other |
| Certification | Other |
| Customized | Non-CustomizedCustomized |
| Exercise type | Other |
From the supplier

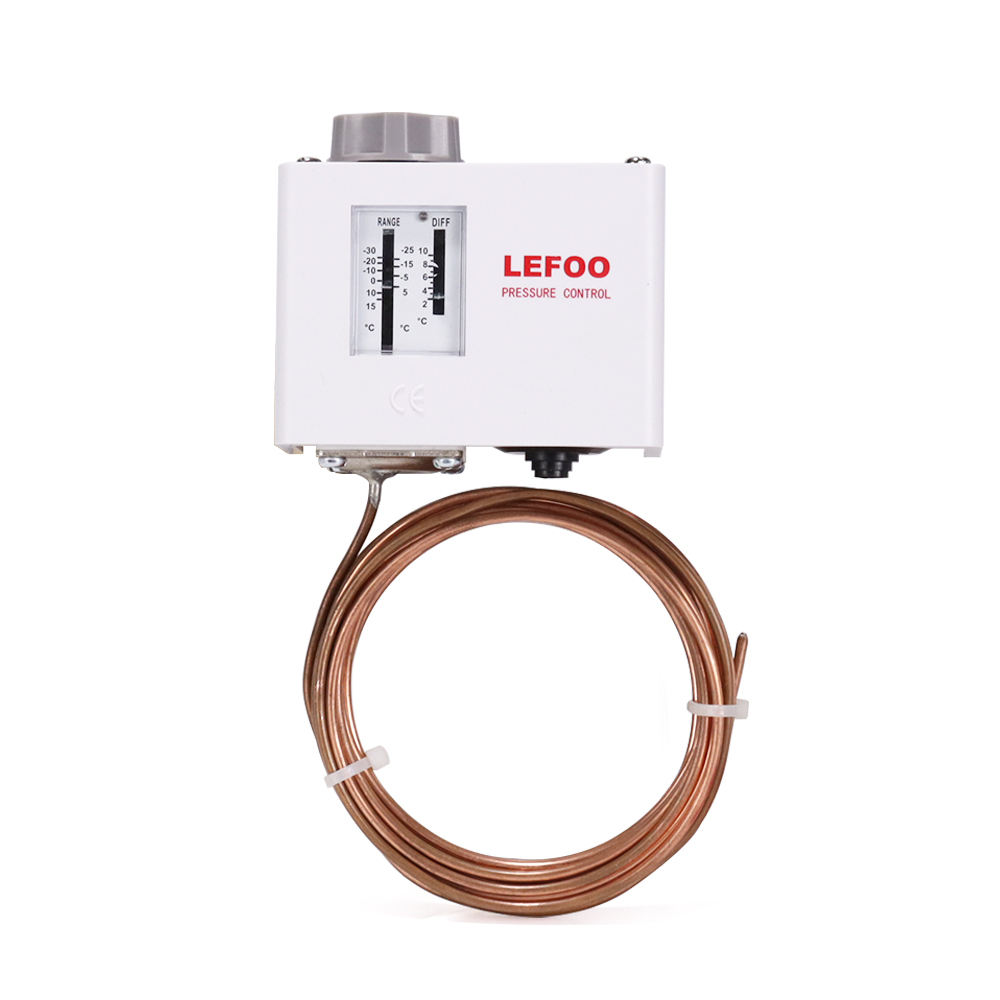

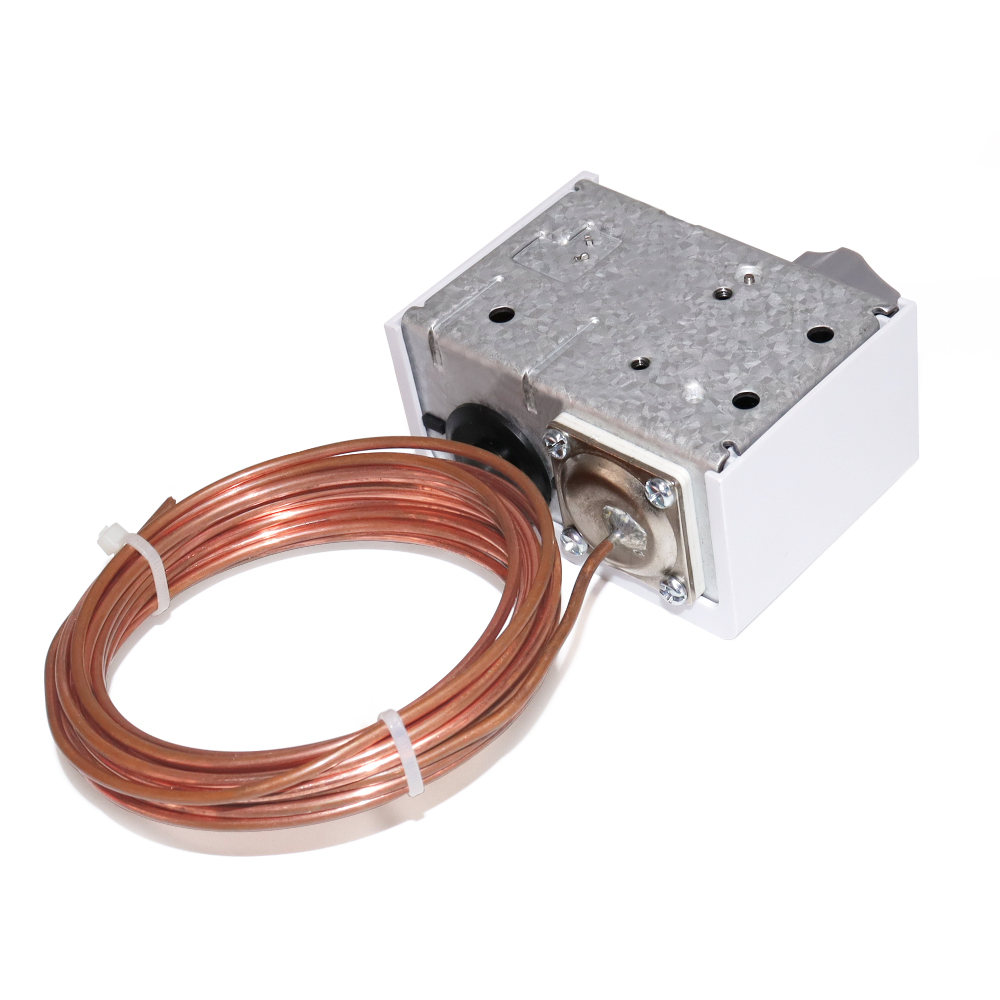

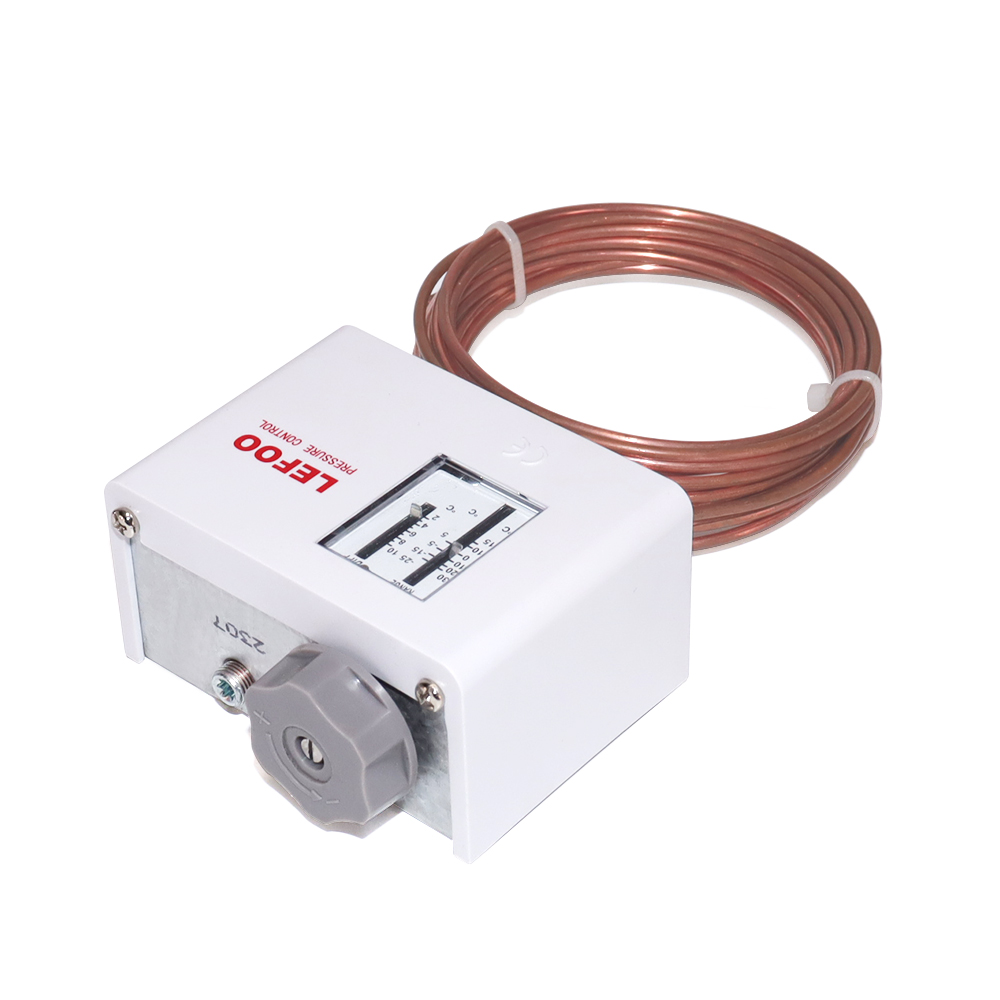

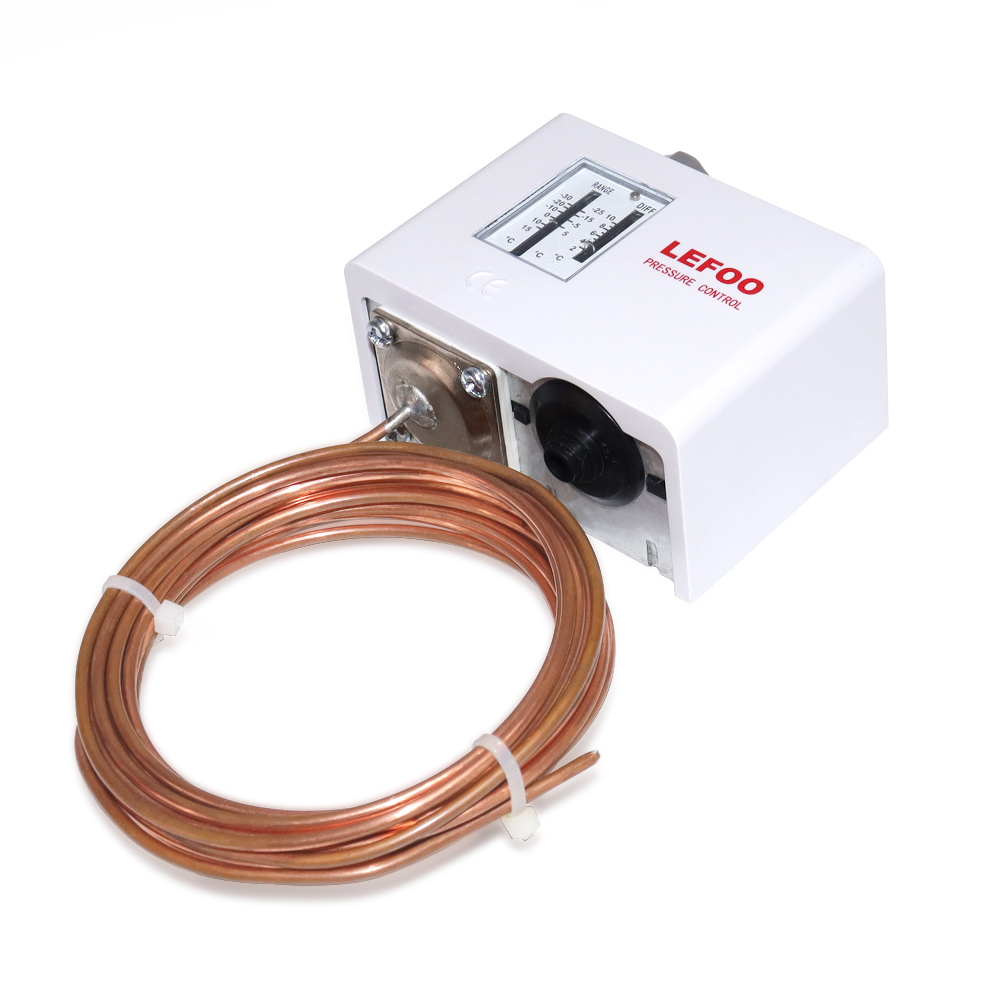

The LF55T Ttemperaturecontrol switch which mainly controls the temperature control of the greenhouse.
LF55T are used for regulation, but can also be seen in safety monitoring systems. They are available with vapour charge or with adsorption charge. With vapour charge the differential is very small. The LF55T Thermostats with adsorption charge are widely used to give frost protection.
Specification
Modle LF55T Contact agreement SPDT Electrical rating AC:A,V, DCW,V, Contact resistance≤mΩ Contact material static contact: fine silver, movable contact:Silver plated Breakdown voltage one min at 2000v no breakdown Protection grade IP30 Environment Temp -25 ~+65°C Media Temp -40 ~+120°C Mechanical lifespan 100k times Electrical lifespan 30k times Max installation torque 2 N/M Capillary Φ2.5, The minimum contacting length of the capillary and environment: 0.43m, Capillary length can be customizedCable connection
Φ6-14 cableAbout the supplier
Main products: Other sensors,Differential pressure transmitter,Switch,Other Pumps,Safety Breaker
