Lft6200 explosion proof digital pressure transmitter
- FOB goods (100)
- $4,861
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $170
- Section 301 tariff (25.0%)
- $1,215
- Customs fees (MPF/HMF)
- $39
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Lft6200 explosion proof digital pressure transmitter
- FOB goods (100)
- $4,861
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $170
- Section 301 tariff (25.0%)
- $1,215
- Customs fees (MPF/HMF)
- $39
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: plastic,alloy,Electronic components,core
- Size: 68*108*114
- Color: green
- Usage: PressureSensitiveSensor
- Brand: Other
- Composition: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: plastic,alloy,Electronic components,core
- Size: 68*108*114
- Color: green
- Usage: PressureSensitiveSensor
- Brand: Other
- Composition: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | plastic,alloy,Electronic components,core |
|---|---|
| Size | 68*108*114 |
| Color | green |
| Usage | PressureSensitiveSensor |
| Brand | Other |
| Composition | Other |
| Output | Other |
| Operation form | PassiveMode |
| Material | Other |
| Measured substance | Other |
| Theory | Other |
| Production process | Other |
From the supplier

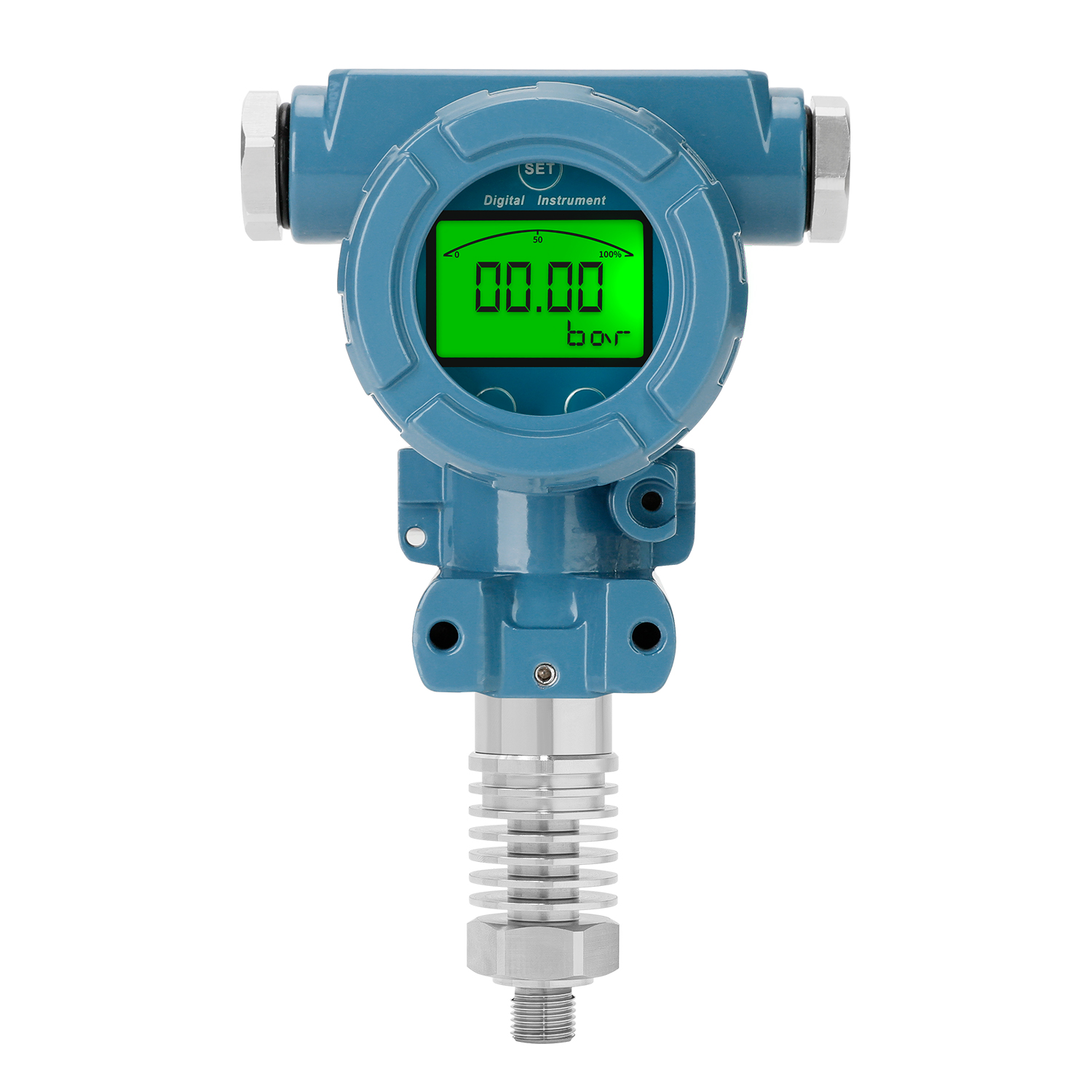

The LFT6200 series pressure transmitter is an isolated explosion-proof product with highly cost-effective. It is widely used for gas and liquid pressure detection, such as water, oil, mildly corrosive liquid and gas. The product adopts a 316L stainless steel pressure head, the pressure core comes from the international famous brand, and the exclusive V/I converter circuit can be easy zero/span calibration. This product has the advantages of low drift, stable performance, reliable quality and optimize structure.
-
0.5%F.S accuracy
-
Anti pressure impact buffer joint
-
Multi pressure range and output signal
-

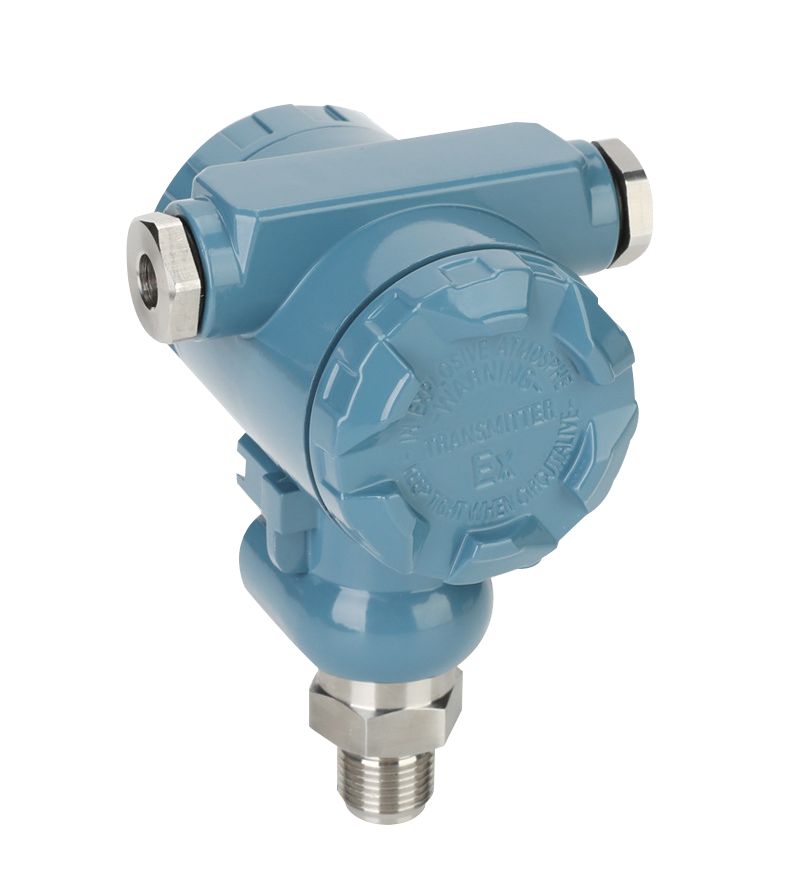

Isolation explosion protection
-

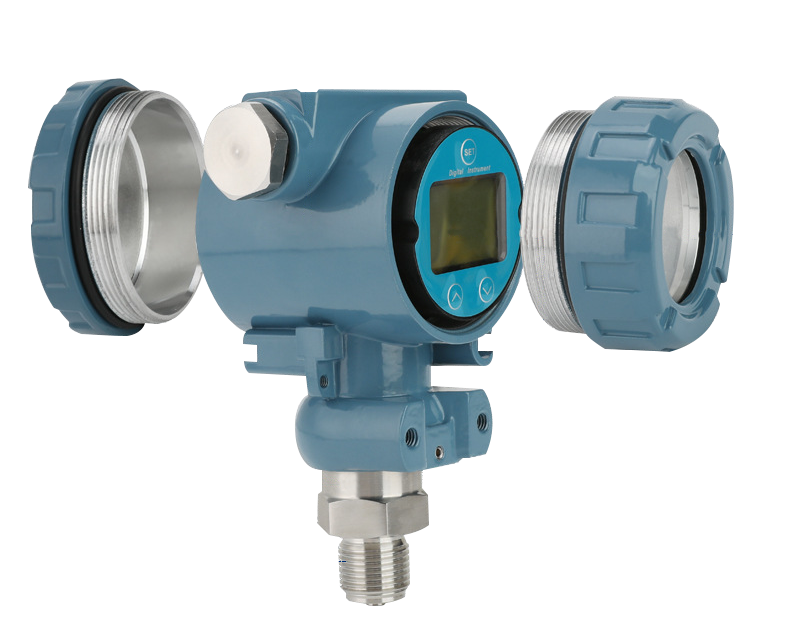

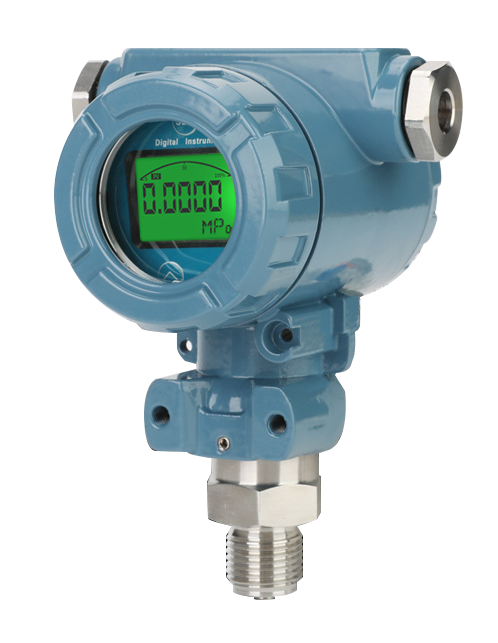

Configurable live display
-

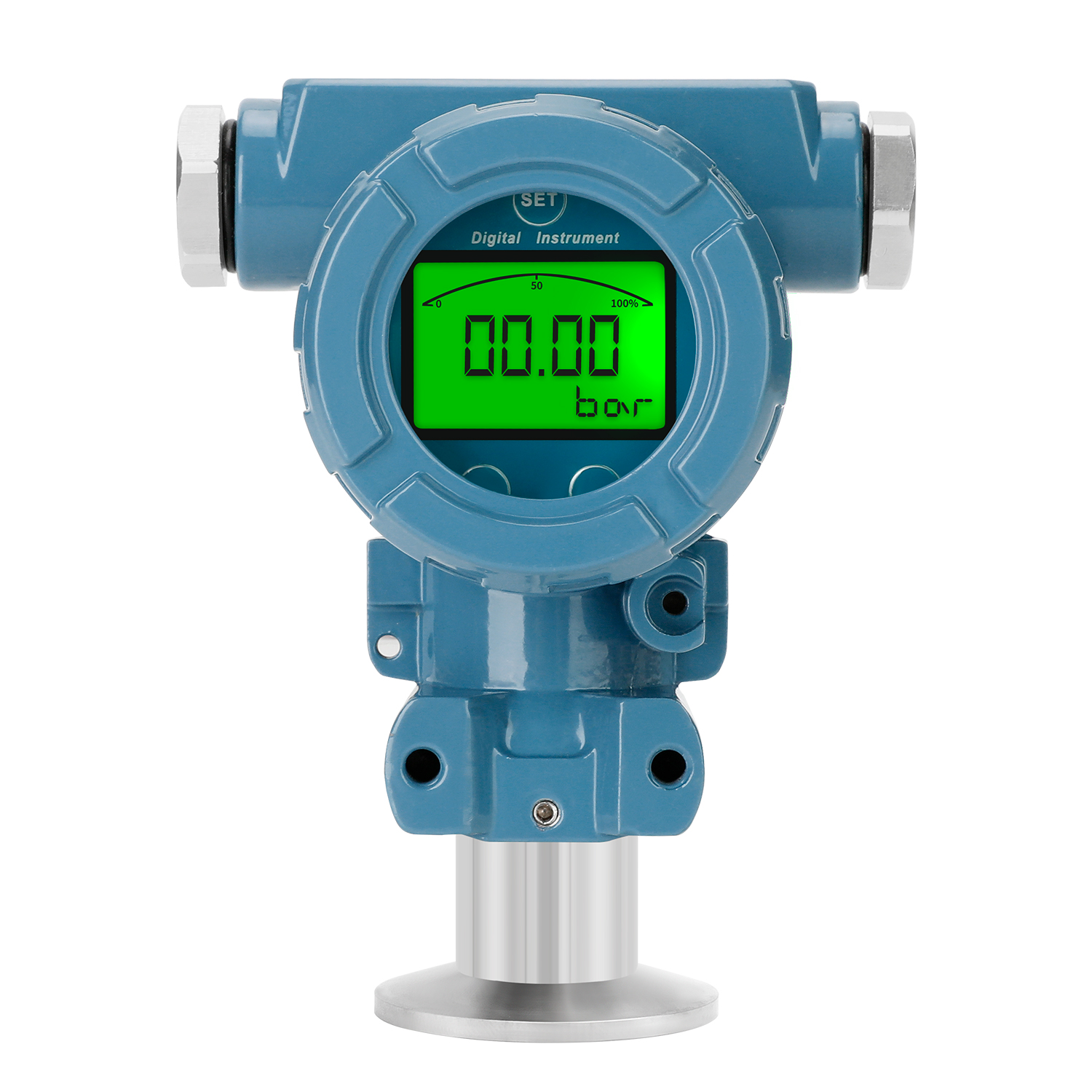

Multiple pressure connection
Robot manipulator arm
Industrial pressure control such as Paint coating machine
Explosion hazard work site such as Petrochemical industry
General Value Measurement Range -100KPa...0~10KPa...60MPa Overload Pressure 2 times of full scales (2X) Breaking pressure 3 times of full scales (3X) Accuracy ±0.5%F.S Stability 0.1%F.S/Year Working Temperature -20~80°C Compensation Temperature -10~70°C Medium Compatibility Gas or liquid compatible with 316L, 1Cr18Ni9Ti, VITON and NBR. Compensation Temperature -10~70°C Output Mode Two-wired Three-wired Four-wired Output Signal 4~20mA 0-10Vdc RS485 Power Supply 10~36Vdc 14~36Vdc 10-36VDC Insulation >100M Ω@500V Electric Strength 500V@60 second Electrical Connection Waterproof outlet Protection Grade IP67 Pressure Connection M20×1.5,G1/2
Electrical Connection
OUT
TEST
Terminal
Pin-out Output Type
1
Red
2
Black
3
Green
4
White
4~20Ma+HART
Vcc“+”
Signal
Function Description
Interface
Descriptions
SAd
Set address:0-15
Remark:when SAd isn’t zero, the output is always 4mA
LAd
Set long address
FSL
Set the lowest full scale
FSH
Set the highest full scale
Unt
Unit, bar, psi, kPa, MPa, mbar
END
Save Settings
