About this product
- Materials: steel
- Size: 8900*2100*2300
- Color: blue
- Made in: Hebei, China
About this product
- Materials: steel
- Size: 8900*2100*2300
- Color: blue
- Made in: Hebei, China
Product details
| Materials | steel |
|---|---|
| Size | 8900*2100*2300 |
| Color | blue |
From the supplier

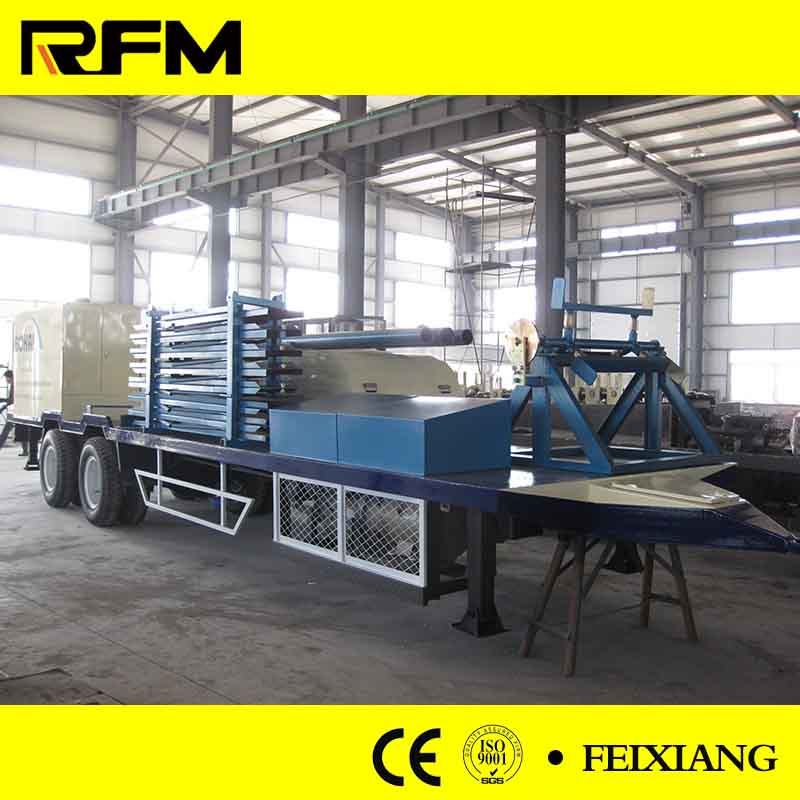

FX320 Long Span Roofing Sheet Roll Forming Machine
Properties of processed material：
Material： galvanized steel or iron sheet
Material thickness：0.6-1.5mm
Yield strength: Below 550mpa

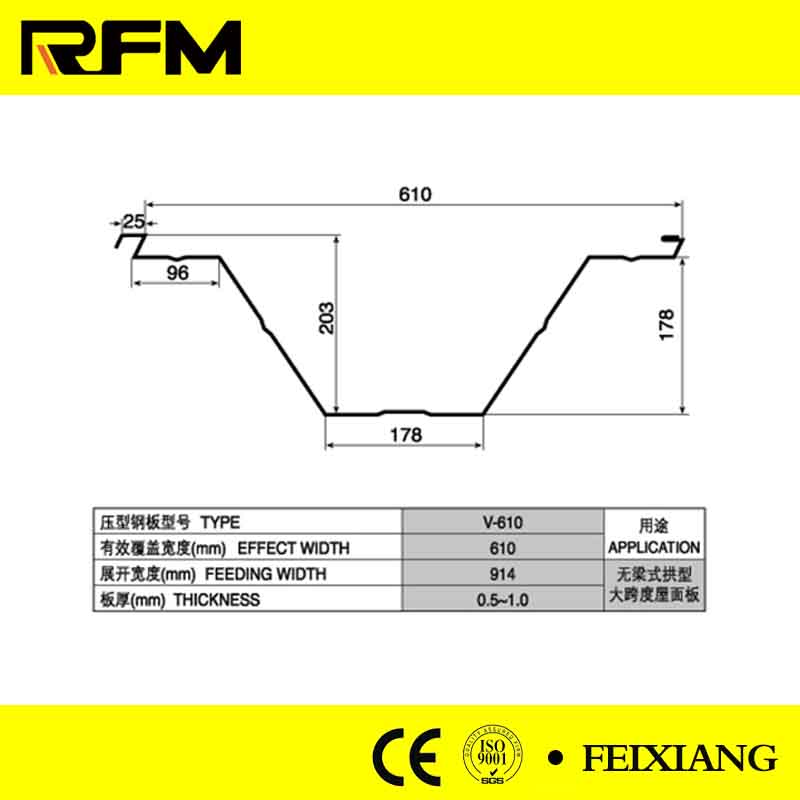

Profile drawing

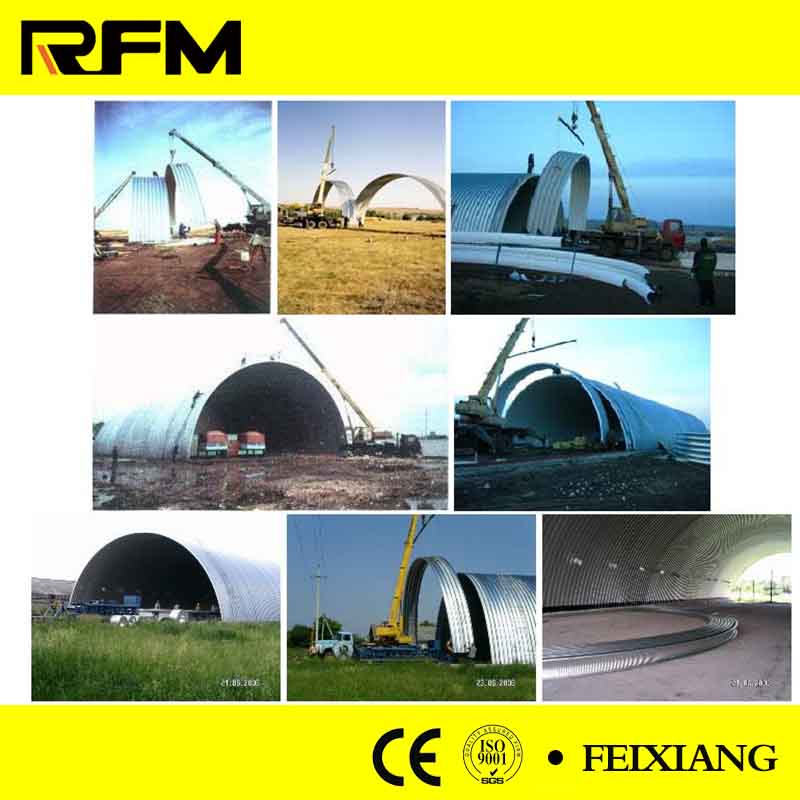

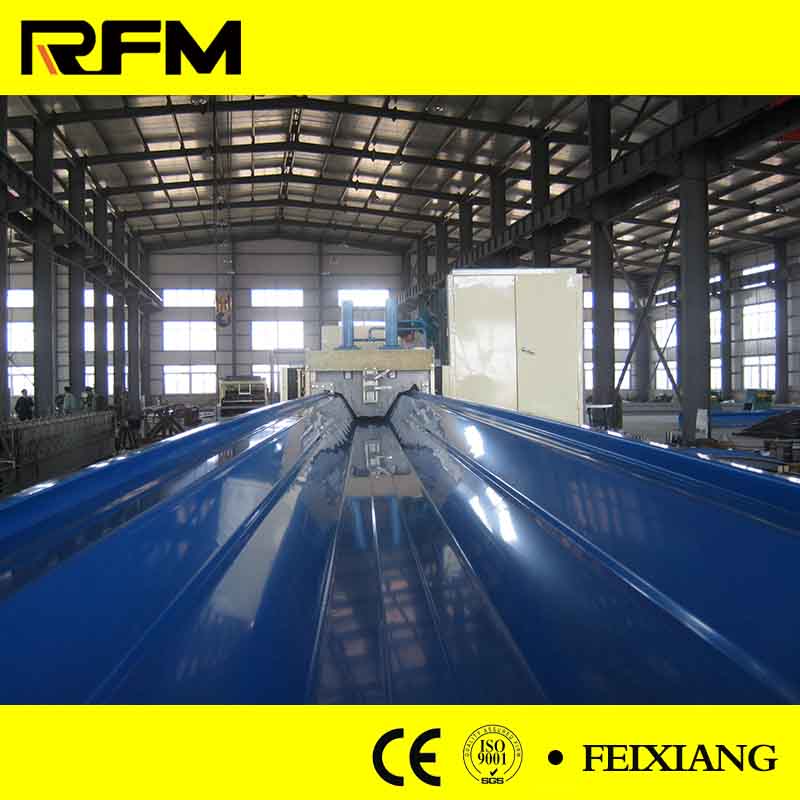

Products after roll forming
Machine details
Brand: Feixiang
Model number: FX320
Machine size: 12*2.2 *2.8m
Weight: 15T
Voltage requirement: 380v50hz3p
Working speed：10-15 m/min
Electric support wires: 10m²
Labor request:2-3 workers
Whole line components
No.
Item
Qty
1.
Deciler
1set
2.
Leveling and sizing device
1set
3.
Punching and cutting device
1pcs
4.
Control panel
1pcs
5.
Car drive device
1pcs
6.
Main forming machine
1pcs
7.
Bending parts
1pcs
8.
Servo motor
1pcs
Technical parameters
Machine base: 400H steel plate welded
Frame: 20mm middle plate
Forming stations: 10steps
Roller: 45# steel with quenching
Shaft: 45#steel,diameter 70mm
Transportation: 1.5 inch chain
Motor: 7.5 kw
Pump: 11kw
Servo motor:4kw
Cutter: Cr12
Edge cutting mold: 2 pcs

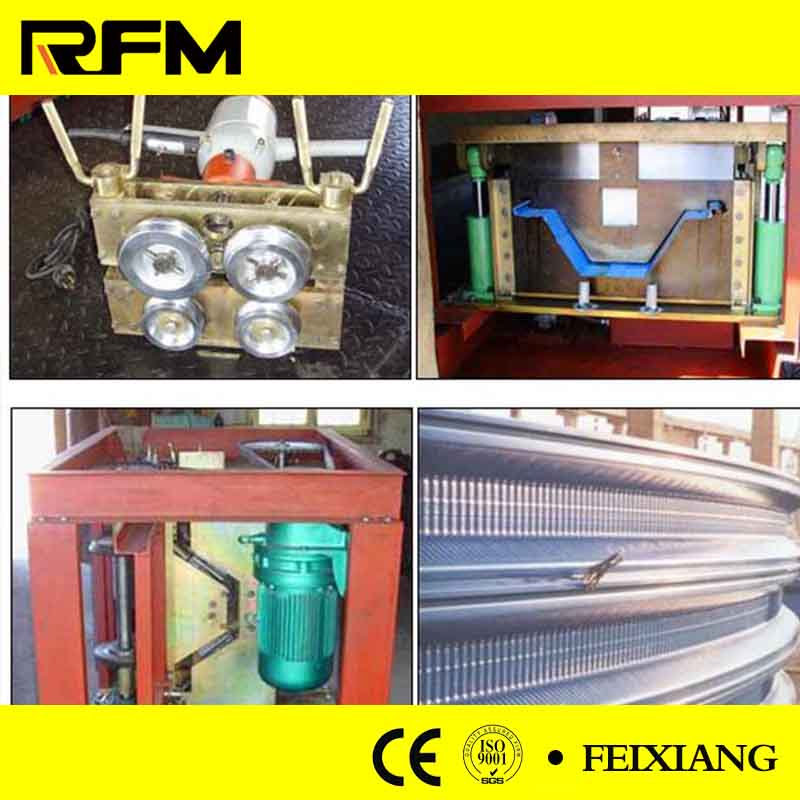

Machine quick view
Decoiler：Loading capacity 8T,material width 1000mm

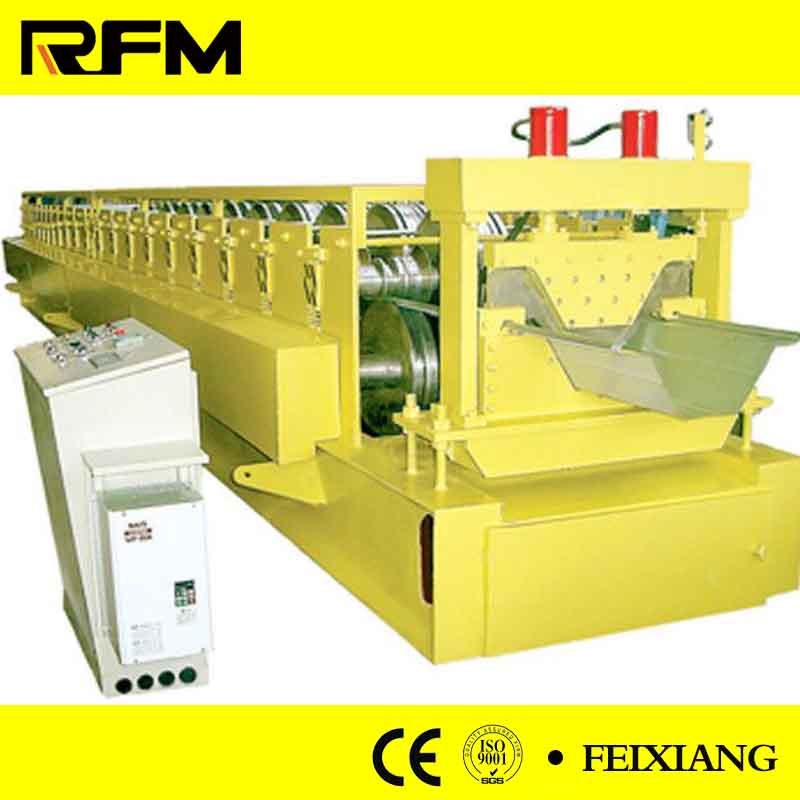

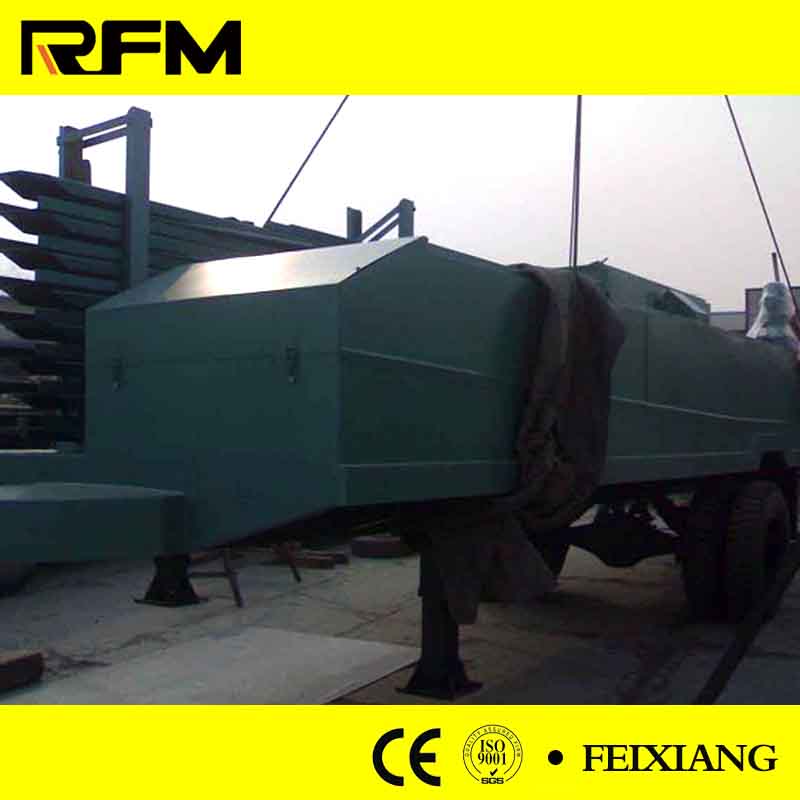

Main forming machine：
Front View，
Left side，
Car drive device：
Hydraulic pump：
CE and Letters patent
Duration and Service
Delivery time : 45 days after the receipt of deposit.
Warranty: 2 years
After-sales service: 24h*7days*1year’s on line and
engineer service overseas
Machine adjusting in customer’s factory
