About this product
- Materials: Steel
- Size: 2770*1225*2175mm
- Color: Yellow
- Load capacity: Other
- Engine capacity: Other
- Power source: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
About this product
- Materials: Steel
- Size: 2770*1225*2175mm
- Color: Yellow
- Load capacity: Other
- Engine capacity: Other
- Power source: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
Product details
| Materials | Steel |
|---|---|
| Size | 2770*1225*2175mm |
| Color | Yellow |
| Load capacity | Other |
| Engine capacity | Other |
| Power source | Other |
| Drive wheel | Other |
| Horsepower | Other |
| Tire certification | Other |
From the supplier

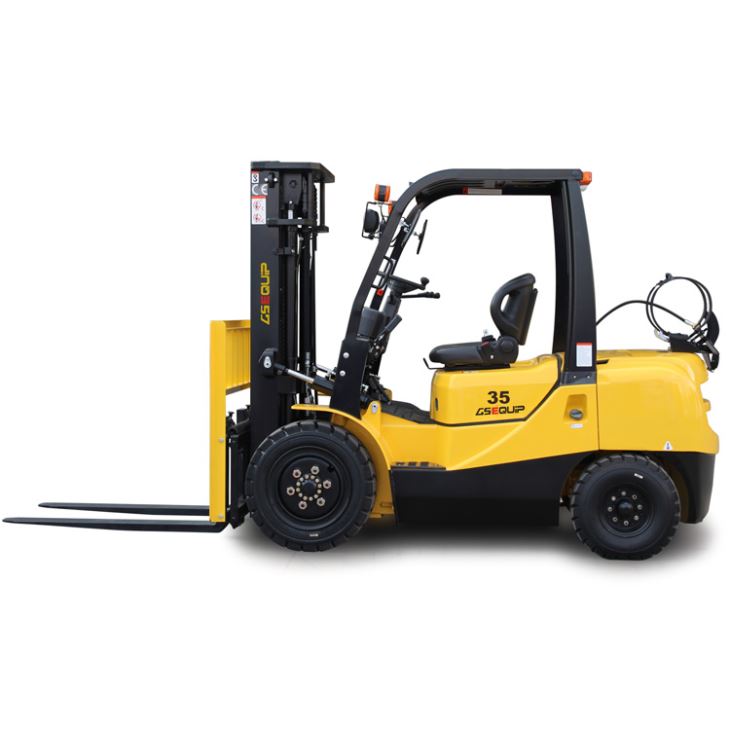

This is the description of 3.5T LPG&Gasoline Forklift
3.5 Ton LPG&Gasoline Forklift , use LPG or both LPG and gasoline as the power. LPG & Gasoline combustion fully, it`s more clean than normal diesel power forklift, and can work longer than Electric Forklift.
Automatic monitor control system could ensure the monitor working stably and safely;
The high strength special-shaped overhead guard is designed to ensure the safety;
Applying the park brake system safety protection device, avoid the hidden danger caused by faulty operation.
Application Area:
1.Warehouse
2.Port
3.Factory
4.Distribution Center
5.Logistics
Wide View Mast Design
Wide view mast design, ensure the driver has an excellent view, which makes loading and unloading operations more secure and efficient.
Swing-down LPG Tank Bracket
With the ergonomics design, the LPG tank bracket is easily installed and swing down to a lower position with minimal effort.
Excellent LPG Convertor
Original imported USA IMPCO brand LPG convertor guarantee the safety of the forklift during operation and economic LPG fuel consumption.
1
Model
FY35
2
Power Type
LPG & GASOLINE
3
Rated Capacity
kg
3500
4
Load Centre
mm
500
Characteristic & Dimension
5
Lift Height
mm
3000
6
Fork Size
L*W*T
mm
1070*125*50
7
Mast Tilt Angle
F/R
Deg
6°/12°
8
Front Overhang(Wheel centre to fork face)
mm
480
9
Overall Dimension
Length to face of fork (without fork)
mm
135
10
Overall Width
mm
2770
11
Mast Lowered Height
mm
1225
12
Overhead Guard Height
mm
2175
13
Turning Radius (outside)
mm
4160
14
Min.insecting aisle
mm
2090
Performance
15
Speed
Travel (Empty load)
km/h
19
16
Lifting (Full load)
mm/s
420
17
Max.Gradeability
%
20
Chassis
18
Tire
Front
28*9-15-12PR
19
Rear
6.50-10-10PR
20
Wheelbase
mm
1700
21
Service weight
kg
4500
22
Battery
Voltage/Capacity
V/Ah
12/80
23
Engine
Model
PSI3.0
24
Manufacture
America
25
Rated output/r.p.m.
kw
52/2700
26
Rated torque/r.p.m.
N·m
202.3/2000
27
No.of Cylinder
4
28
Bore*Stroke
mm
101.6×91.44
29
Displacement
cc
2967
30
Fuel Tank Capacity
L
60
31
Transmission
Type
Hydraulic
32
Stage (FWD/RVS)
1/1
33
Operating Pressure for Attachment
Mpa
17.5
