What is the purpose of mini track skid steer loader?

The biggest characteristic of the mini track skid steer loader is that the overall size of the whole machine is small, and it can turn in place; All kinds of working devices can be replaced or connected randomly and quickly at the operation site. Its main uses are as follows.

(1) Because its minimum turning radius is less than half of the same grade Articulated Loaders, it is especially suitable for narrow sites such as urban infrastructure, roads or construction sites, workshops, warehouses, docks, ship decks and even cabins.

(2) Using all wheel drive, without inter wheel differential, is conducive to work on uneven ground.

(3) It takes only a few minutes to replace or hook up different working devices at the work site. Thus, the operations of shoveling, stacking, lifting, digging, drilling, crushing, grabbing, pushing, scarifying, ditching, road cleaning and road compaction can be carried out respectively.

(4) It is used for logistics support, site cleaning and project finishing of large construction machinery.

(5) It can be used as a mobile pump station to provide power source for hand-held hydraulic pick and other hydraulic tools.

DIMENSIONS

A. Angle of Departure

20°

K. Length with Standard Bucket

102.5 in/2603 mm

B. Carry Position

8.1 in/206 mm

L. Operating Height

104.6 in/2656 mm

C. Dump Angle @ Maximum Height

36°

M. Rollback @ carry Position

23°

D. Dump Height with Standard Bucket

50 in/1271 mm

N. Rollback Fully Raised

99°

E. Dump Reach @ Maximum Height

29.5 in/750 mm

    @ Maximum Height

F. Ground Clearance

5.5 in/140 mm

O. Ground Contact Length

37.6 in/955 mm

G. Ground Clearance-under platform

7.1 in/180 mm

P. Turning Radius with Standard Bucket

63.4 in/1610 mm

H. Height to Bucket Hinge Pin

74 in/1880 mm

Q. Width

41.3 in/1050 mm

I. Height

51.5 in/1309 mm

R. Wheel Tread (over tracks)

33.5 in/850 mm

J. Length without Attachment

76.5 in/1942 mm

S. Width with 36" Bucket

49.2 in/1250 mm

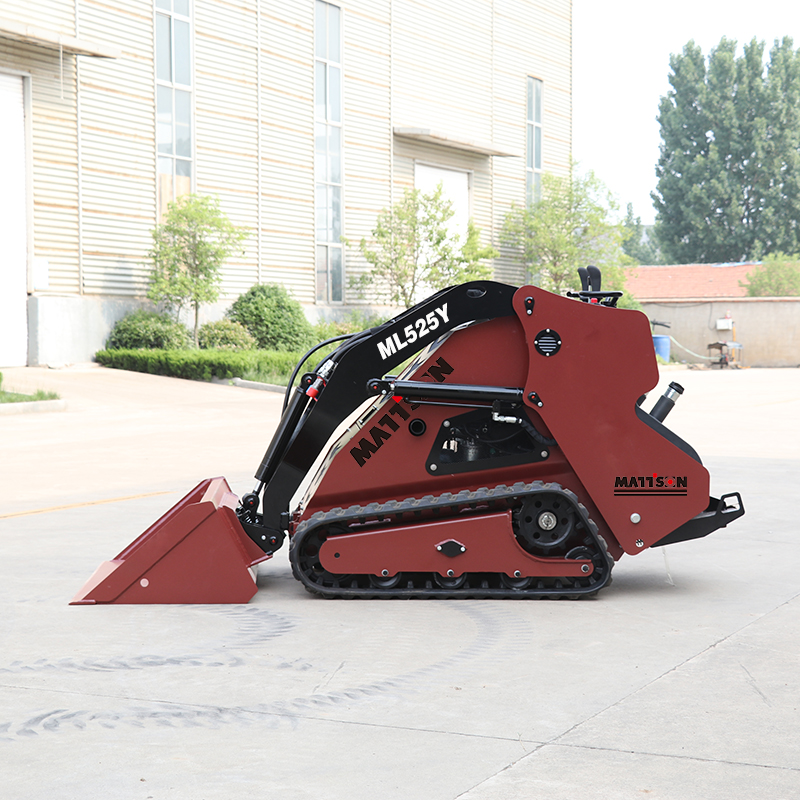

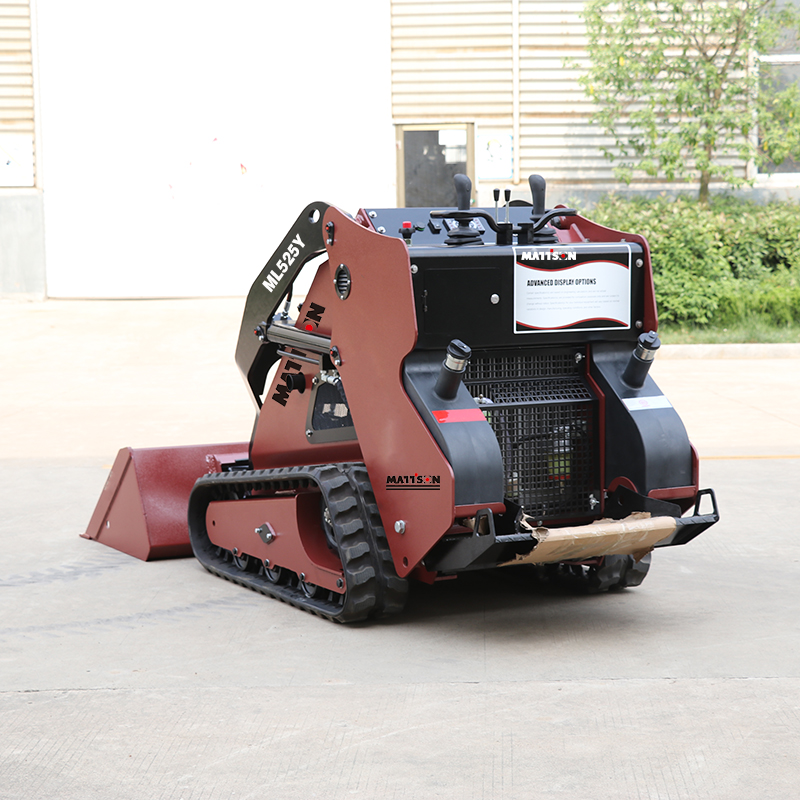

PRODUCT PHOTOGRAPH

DETAILED IMAGES

OUR COMPANY

Linyi Million Heavy Industry Co., Ltd., established in 2011, is located at national Linyi Economic Development Zone, Linyi City, Shandong Province, China.

It is a subsidiary corporation of Shandong Jinzhengyang Group, which covers alloy pipe and seamless steel tube production, Oil and gas transmission equipment R&D and production, urban real estate, municipal construction, mining development, and construction machine industry etc.

With trade mark "MATTSON", Linyi Million Heavy Industry Co., Ltd. specializes in R&D, production of small construction machinery, and related attachments.

Compact utility mini skid steer loader, ML525, ML525L, ML25Y, ML525W, ML526SLR, ML530, ML530Y , ML550 and ML550Y series, with reliable quality, had exported to America, Australia, New Zealand, West and North Europe, and South Africa etc more than 50 countries or regions. New developed transplanter was tested well in domestic provinces.

Mattson Skid Steer loader with dozens of attachments are widely applied on Demolition, Roadwork, Snow and debris removal, Excavating, digging and trenching, Grading and backfilling, Loading, Mowing, Landscaping, Agricultural work, and Material handling.

The self-made Trencher, Pallet Forks, range of bucket, Sweeper, Snow shovel, Auger drive, Hydraulic hammer, Hydraulic drum mixer and other new practical accompanied attachments more 100 types, greatly expand the use range of MATTSON mini skid steer loaders.

Mattson, as a world class manufacturer and supplier, is leading China compact utility mini skid steer loader industry to a new time.

Warmly welcome to visit our factory and Look forwards your cooperation

FAQ

Why us?

1. We are the professional manufacturer of mini skid steers and accessories in China.

2. we have strong technical support , Professional design team, can make special design for you.

3. High Quality & Reasonable Price. The accurate product positioning.

4. we are Responsible and in good faith. Guarantee delivery. Warmly welcome you to visit our factory .

Our Warranty

1.supply parts for free if damage within 1 year warranty time . Engine warranty is 3 years

2. Engineers are available to service machinery overseas

3. Provide technical support for life.

Distributors

Yes, we have distributor for many years In Australia. And We are widely recruit dealers around the world.

If you want to be one of them, please contact us.

Can we accept OEM?

Yes, we can Accept your customization

Lead Time

Within 3-5 days after get the deposit

Payment

30%T/T in advance , pay for the balance before shipping.
