About this product
- Materials: Metal
- Size: 400*300*160
- Color: Grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, EU, Other European Countries, Others
- Made in: Zhejiang, China
About this product
- Materials: Metal
- Size: 400*300*160
- Color: Grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, EU, Other European Countries, Others
- Made in: Zhejiang, China
Product details
| Materials | Metal |
|---|---|
| Size | 400*300*160 |
| Color | Grey |
Product details
| Materials | Metal |
|---|---|
| Size | 400*300*160 |
| Color | Grey |
From the supplier

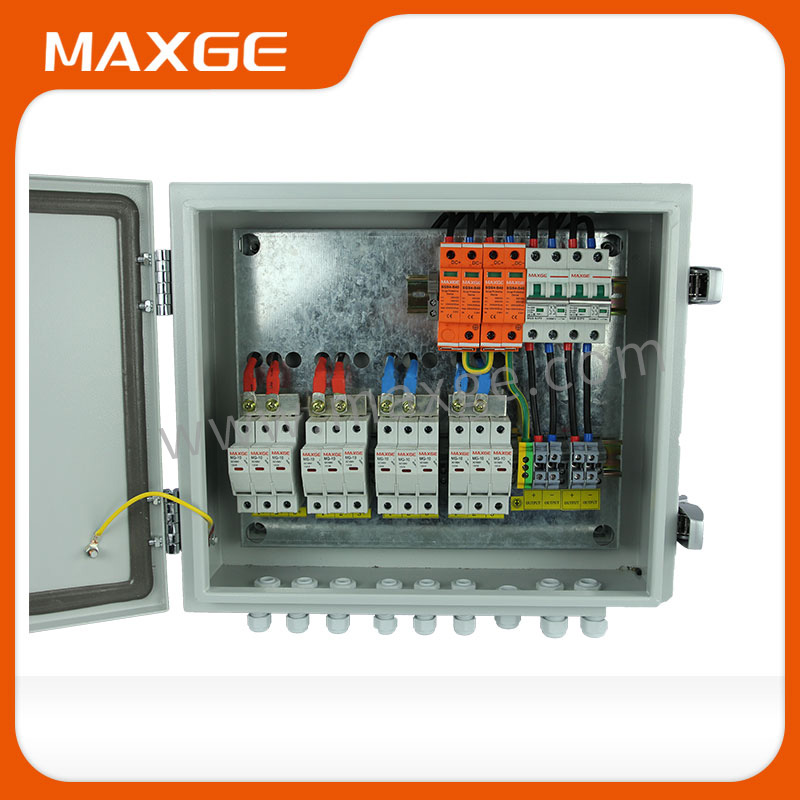

MG-PV 6/2 combiner box bus synthetic DC input of 6 PV components to 2 output. Each channel is with a fuse. Output side is equipped with lightning protection and circuit breaker. It greatly simplify input wiring of DC power distribution cabinet and inverter. Realize lightning protecion, short circuit protection and grounding protection. PV combiner box divided into two types: intrlligent box and non-intelligent box . Intelligent PV combiner box is equipped with monitoring unit, then detect input current of each string, detect inside temperature, detect lightning protection status, detect circuit breaker status and summarize output voltage and so on.
Provide users with a safe, brief, beautiful and applicable photovoltaic system products.

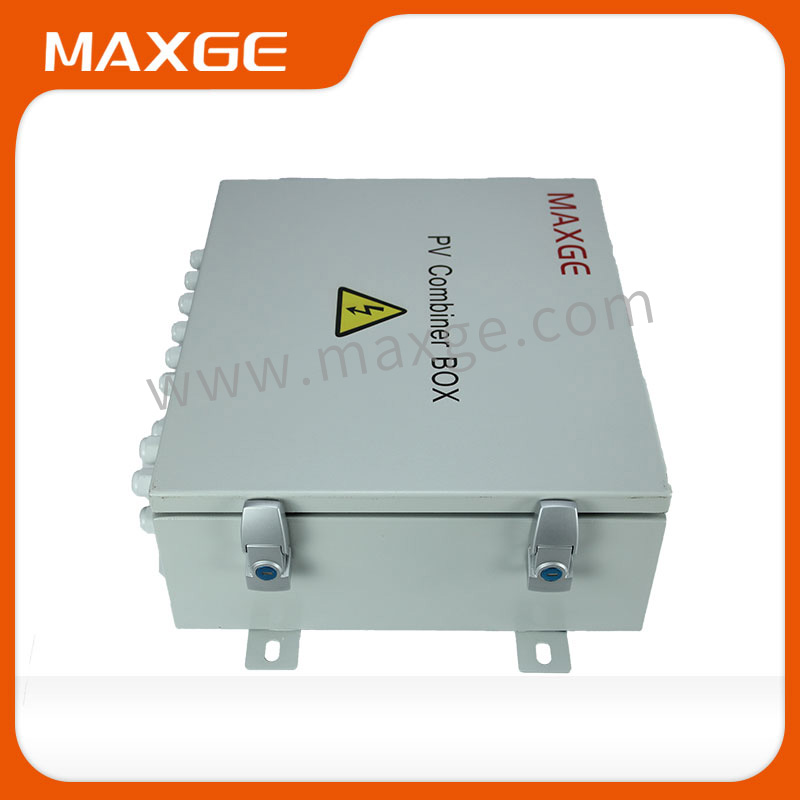

The product adopts outdoor wall mounted type, which adapt to the harsh environment. In addition to the core components, the other can be customized by users requirements.
1000
Protection grade
IP65
Maximum input current for each string
15A
Output switch
DC isolation switch/DC circuit breaker
Maximum input strings
6
SMC4 Waterproof Connectors
Standard
Maximum output switch current
32A/40A
PV de fuse
Standard
Number of inverter MPPT
2
PV surge protector
Standard
Number of Output strings
2Monitoring module
OptionalCategory of test
II grade protection
Preventing diode
Optional
Nominal discharge current
20kA
Box material
PVC
Maximum discharge current
40kA
Installation method
Wall mounting type
Voltage protection level
3.8KV
Operating Temperature
-25°C~+ 55°C
Maximum continuous operating voltage Uc
1050V
EJevatron of temperature
2000M
Poles
3P
Permis ible relative humidity
0-95%,no condensation
Structure characteristic
Plug-push module
Width * High * Depth
400 * 300 * 160
From the supplier
MG-PV 6/2 combiner box bus synthetic DC input of 6 PV components to 2 output. Each channel is with a fuse. Output side is equipped with lightning protection and circuit breaker. It greatly simplify input wiring of DC power distribution cabinet and inverter. Realize lightning protecion, short circuit protection and grounding protection. PV combiner box divided into two types: intrlligent box and non-intelligent box . Intelligent PV combiner box is equipped with monitoring unit, then detect input current of each string, detect inside temperature, detect lightning protection status, detect circuit breaker status and summarize output voltage and so on.
Provide users with a safe, brief, beautiful and applicable photovoltaic system products.
The product adopts outdoor wall mounted type, which adapt to the harsh environment. In addition to the core components, the other can be customized by users requirements.
1000
Protection grade
IP65
Maximum input current for each string
15A
Output switch
DC isolation switch/DC circuit breaker
Maximum input strings
6
SMC4 Waterproof Connectors
Standard
Maximum output switch current
32A/40A
PV de fuse
Standard
Number of inverter MPPT
2
PV surge protector
Standard
Number of Output strings
2Monitoring module
OptionalCategory of test
II grade protection
Preventing diode
Optional
Nominal discharge current
20kA
Box material
PVC
Maximum discharge current
40kA
Installation method
Wall mounting type
Voltage protection level
3.8KV
Operating Temperature
-25°C~+ 55°C
Maximum continuous operating voltage Uc
1050V
EJevatron of temperature
2000M
Poles
3P
Permis ible relative humidity
0-95%,no condensation
Structure characteristic
Plug-push module
Width * High * Depth
400 * 300 * 160
