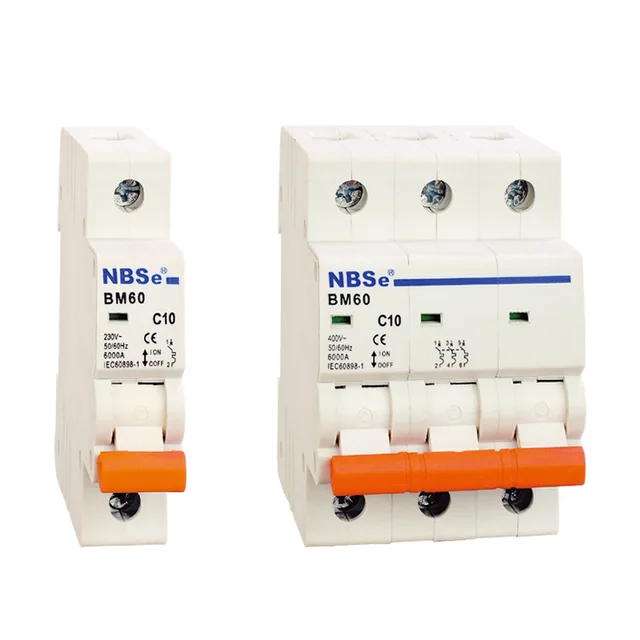

Miniature circuit breaker
WENZHOU NEWBLUESKY ELECTRICAL CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Miniature circuit breaker
WENZHOU NEWBLUESKY ELECTRICAL CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: PA66
- Color: white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: PA66
- Color: white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | PA66 |
|---|---|
| Color | white |
Product details
| Materials | PA66 |
|---|---|
| Color | white |
From the supplier
Standard : IEC60898、GB10963
Tripping characteristic: B.C.D
Current-limiting level: 3
Poles: 1P、2P、3P、4P
Breaking capacity: 3KA 4.5KA
Fiducial temperature: 30°
Operating temperature -15-﹢70°
Rated current of frame class: 1.3.6.10.13.16.20.25.32.40.50.63 70(A)
（AC）Rated voltage : 230/400V
Rated insulating voltage: pollution degree 2 500V
Pollution degree 3 440V
Isolating function yes
Mechanical life 8000Times
Electrical life 4000Times
Up Down into the line yes
Wiring ability 10mm²
Overall dimension 18mm Wide
From the supplier
Standard : IEC60898、GB10963
Tripping characteristic: B.C.D
Current-limiting level: 3
Poles: 1P、2P、3P、4P
Breaking capacity: 3KA 4.5KA
Fiducial temperature: 30°
Operating temperature -15-﹢70°
Rated current of frame class: 1.3.6.10.13.16.20.25.32.40.50.63 70(A)
（AC）Rated voltage : 230/400V
Rated insulating voltage: pollution degree 2 500V
Pollution degree 3 440V
Isolating function yes
Mechanical life 8000Times
Electrical life 4000Times
Up Down into the line yes
Wiring ability 10mm²
Overall dimension 18mm Wide
About the supplier
Main products: Small breaker ( low-voltage apparatus)
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Manufacturer
- ✓Founded 1999
- ✓Canton Fair Premium Supplier
- ✓National high-tech enterprise
- Exhibited at 10 of the last 10 Canton Fairs
- Manufacturer
- Founded 1999
- Canton Fair Premium Supplier
