About this product
- Materials: steel
- Size: Based on model/Equipment model
- Color: According to customer requirements
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shanghai, China
About this product
- Materials: steel
- Size: Based on model/Equipment model
- Color: According to customer requirements
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shanghai, China
Product details
| Materials | steel |
|---|---|
| Size | Based on model/Equipment model |
| Color | According to customer requirements |
From the supplier
Application:

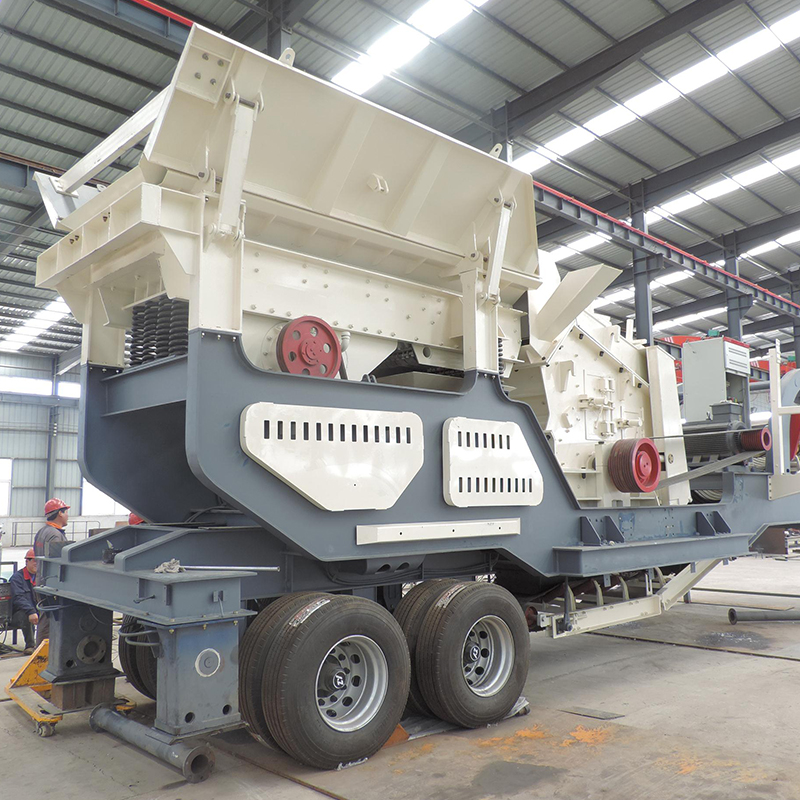

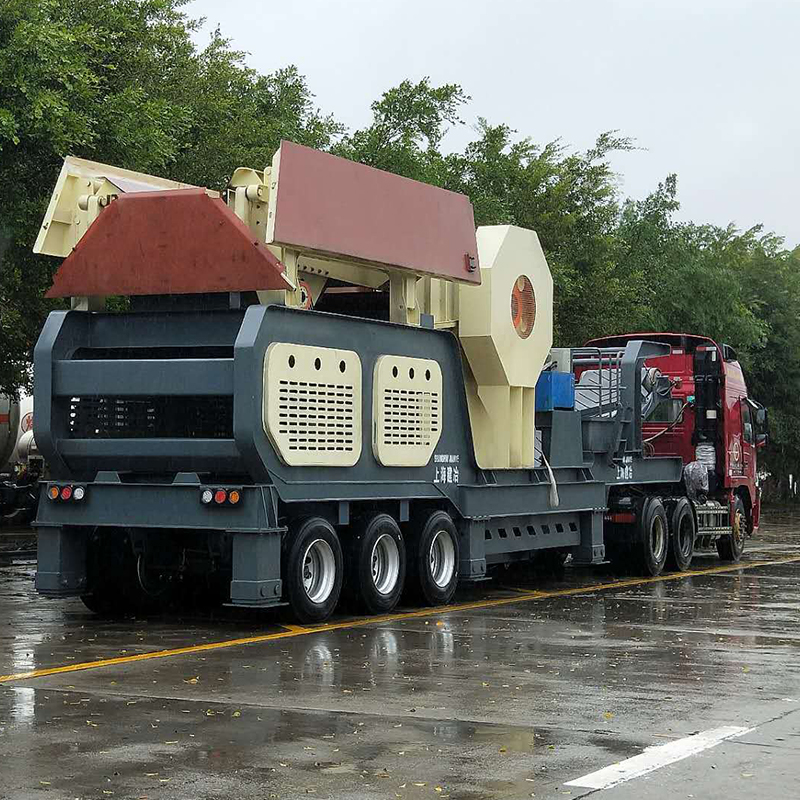

The Wheel-mounted crushing plant is a mobile rock crushing equipment introduced by Jianye Corporation, which is widely used in aggregate processing, mine crushing and construction waste disposal. The mobile crusher can eliminate many factors that hinder production, such as environment, site, commissioning period, transportation, etc., and achieves rapid commissioning. It is a new type of crushing model and has won the recognition of the majority of users.
Working principle:
The use of mobile crushing and screening plants for processing aggregates or processing construction waste is consistent with fixed stone crushing equipment. Basically follow the process of coarse crushing-fine crushing-screening. The coarse crushing mobile crushing station is generally equipped with a vibrating feeder and a jaw crusher. The medium and fine crushing mobile station is equipped with a counterattack breaker, sand making machine or cone crusher and vibrating screen. Of course, there are mobile stations with full screening type. The function is more perfect. The mobile crushing station can reach a fixed processing standard, and can be freely combined, and the position can be freely changed, which is a new crushing mode.
Features:
1. Integrated unit
The mobile crushing station is an integrated crushing truck, which avoids the trouble of foundation and support structure on site, and reduces the frame transportation and man-hour consumption. The equipment is loaded on a special car body with a compact layout and a small footprint, making more room for material stacking and transshipment.
2. Flexible maneuverability
Jianye's tire-type mobile crushing station has a high-vehicle chassis and a small turning radius. It can be driven on ordinary highways, and it is also convenient for moving in the rugged and harsh environment of the crushing area, saving a lot of time required to enter the site.
3. Reduce material transportation costs
The tire-type mobile crushing station is a mobile crushing equipment, which can always be kept in the first line of crushing. Compared with the fixed stone crushing equipment, the mobile crushing station can reduce the transportation cost of materials and avoid the extra cost caused by the transportation of the mine car.
4. Flexible configuration
As an integrated stone crusher, the mobile crushing station can be used independently or combined freely. Whether the user needs pretreatment or deep processing, it can meet the needs of users. The mobile crushing station can provide a more flexible process plan configuration to meet various requirements of users such as mobile crushing and mobile screening, so that the production organization and logistics transfer are more direct and effective, and the cost can be effectively reduced.
5. Strong adaptability
The tire-type series of mobile crushing stations provide customers with a simple and low-cost combination of unit configuration. For coarse and fine crushing screening systems, single unit can be used for independent operation, or the system can be flexibly composed of unit configuration. The hopper side out provides a variety of configuration flexibility for the screening material delivery method. In addition to the power supply of the diesel generator in the integrated unit configuration, it can also be targeted to the process system to configure unit power supply.
6. Reliable performance and easy maintenance
Tire-type series mobile crushing station, equipped with PE series, PF series, HP series crushers, high crushing efficiency, versatility, excellent crushing product quality, light and reasonable structure design, stable and efficient crushing performance. It meets the requirements for crushing and screening of coarse, medium and fine materials, and can be returned to the factory for maintenance after a period of use, which can enhance the durability and working efficiency of the equipment.
Specification:

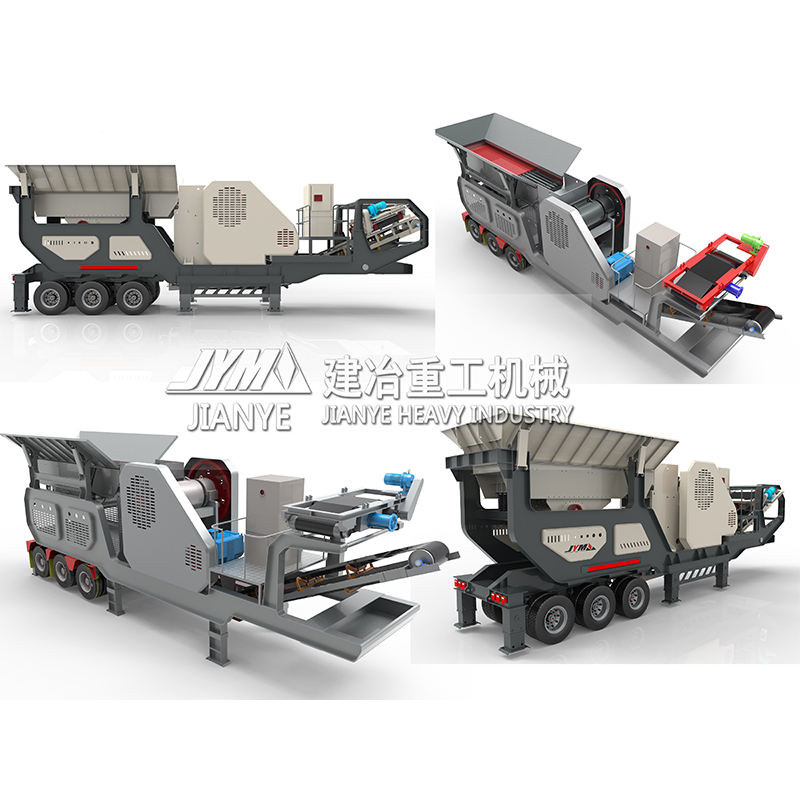

Mobile jaw crushing plants series models:
Mobile crushing plant
Vibrating feeder
Jaw crusher
Belt conveyor
Extended belt conveyor generator(t/h)capacity (kw)powerYG938E69ZSW-960X380PE600X900B650X7Moptionoption70-15091.5KWYG1142E710ZSW1100X4200PE750X1060B800X9Moptionoption80-200134YG1349E912ZSW-1300X4900PE900X1200B1000X11Moptionoption150-300146KW

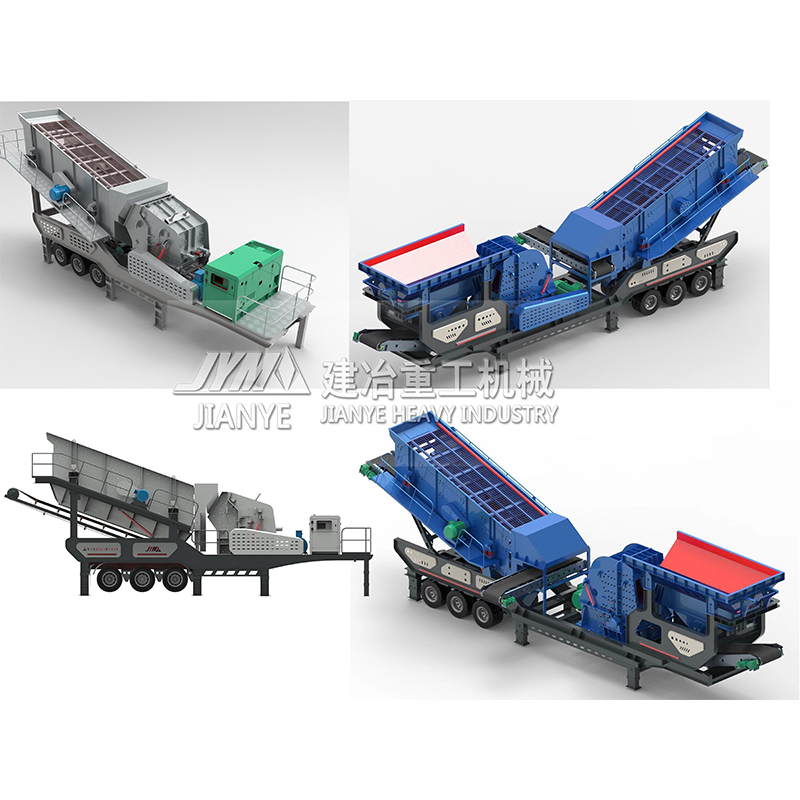

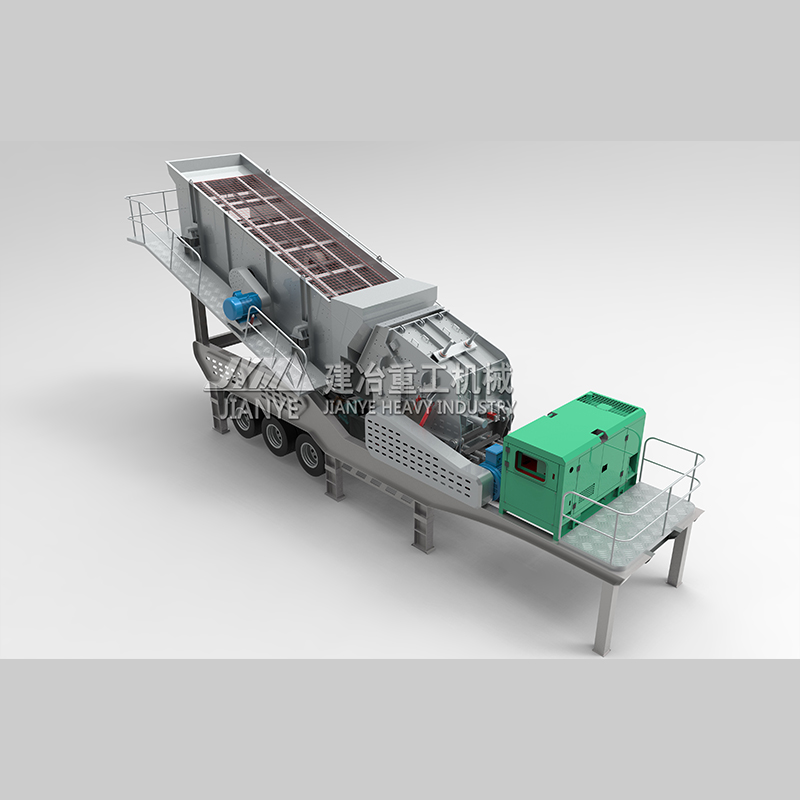

Mobile Impact crushing plants series models:
Mobile crushing plant
Vibrating screen
Impact crusher
belt conveyor for screen
(t/h) capacity(kw)powerY3S1548F10103YZS1548PBF1010B500X7M30-27570-90Y3S1848F12103YZS1848PBF1210B650X7M56-330128.5-150.5Y3S1860F12143YZS1860PBF1214B650X8M65-586154-190Y3S2160F13153YZS2160PBF1315B800X8M81-720210-297

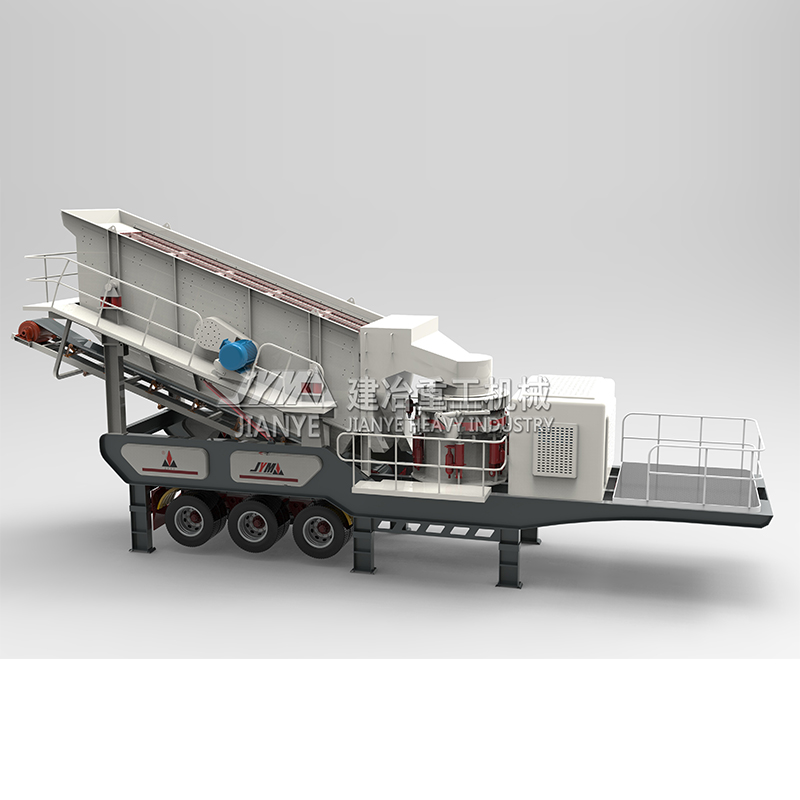

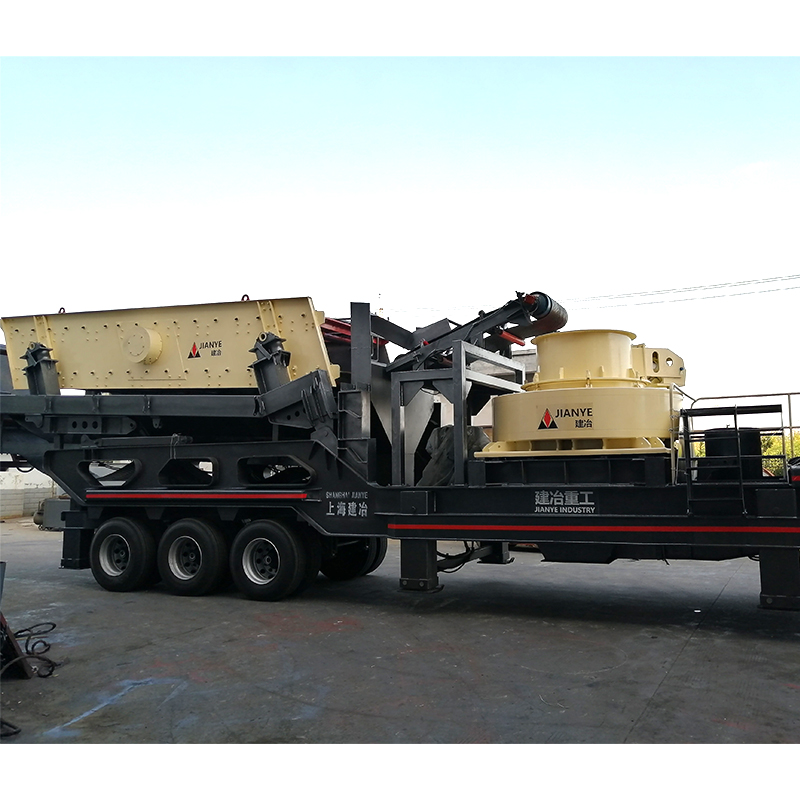

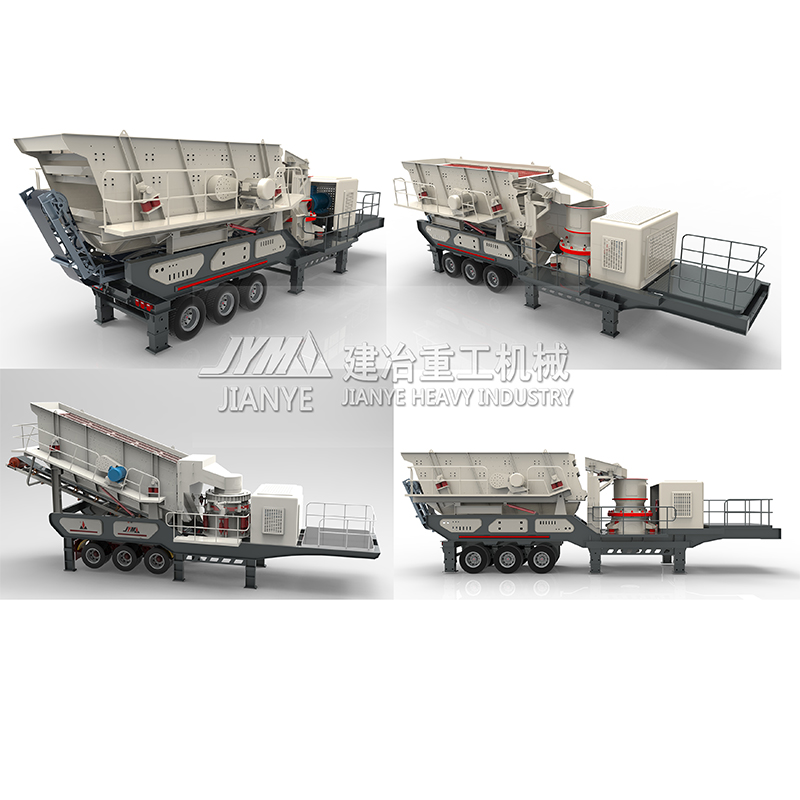

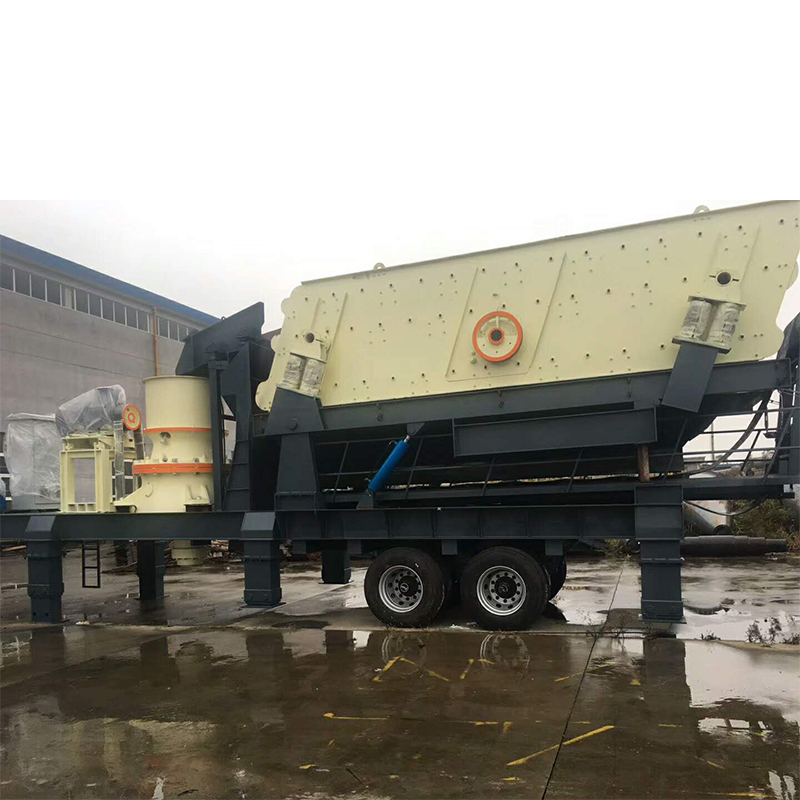

Mobile cone crushing plants series models:
Mobile crushing plantVibrating screenCone crusherbelt conveyor for screen(t/h) capacity(kw)powerY3S1548Y55YZS1548PYB900B500X7M50-9075Y3S1848Y90YZS1848917B650X7M65-13099-134Y3S1860Y1300YZS18601300B650*8110-455212.5-220.5Y3S2160Y1380YZS21601380B800X8M140-330257.5-264.5Related products
