Multifunction filter ball valve/M

1. Product attribute

Material: DZR Brass(Dezincification resistant brass) CuZn36Pb2As

Nominal pressure：PN10

Medium Temp：0-95℃

Surface Treatment: Nature Brass/ Nickel Plating/ Chrome Plating

Application: Heating, Drinking Water

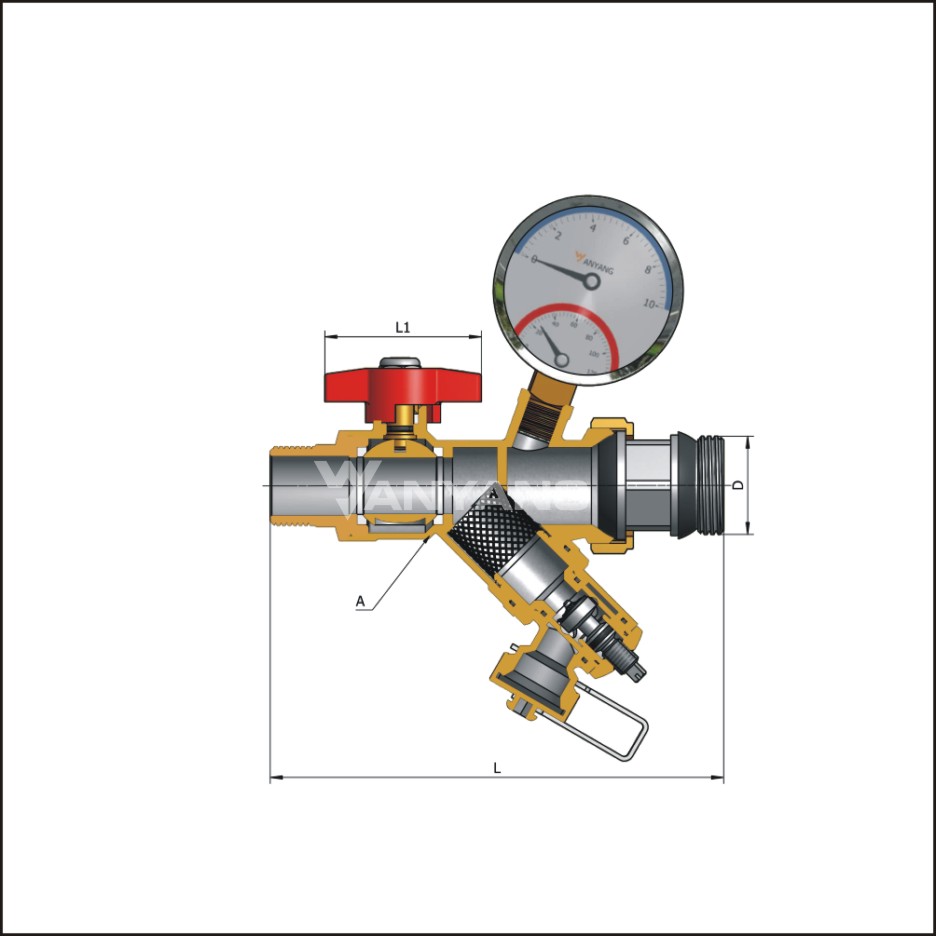

Spec：

•  2. Product Advantage

2.1 It can be cut off quickly in the pipeline system. It is the same as the ball valve according to the function of medium flow.

2.2 The temperature and pressure measurement is completed by the integrated temperature and pressure measurement meter. The integrated meter is connected to the detection port on the valve body in a rotary way, and must be sealed with polytetrafluoroethylene raw material belt or thread sealing glue. The surface of the table is facing outward for observation. Temperature detection range: 0-120 ℃. Pressure detection range: 0-10bar.

2.3 The valve body is equipped with a filter screen, which can effectively filter impurities in the water. Add a drain valve at the place where impurities accumulate. The cap at the water outlet is the hand wheel for the water release valve to open the valve stem. When the valve body rotates anticlockwise, the medium in the pipeline flows out of the drain outlet, and the impurities accumulated on the filter screen flow out of the drain outlet with the medium. This process is the backwashing and blowdown process. After the impurities are discharged, turn the valve rod clockwise and close the drain valve. Cover the drain.
