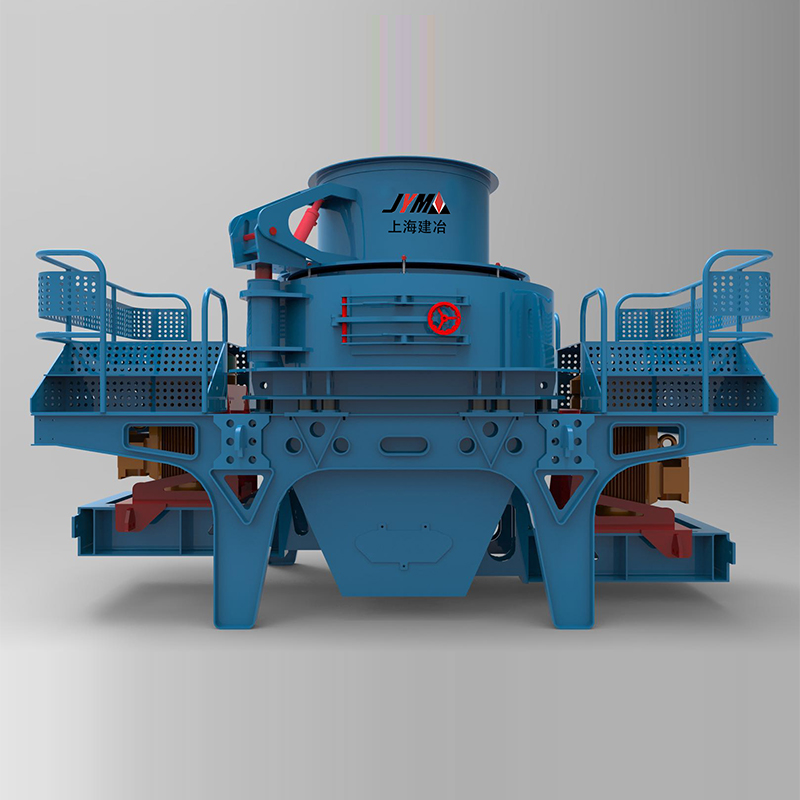

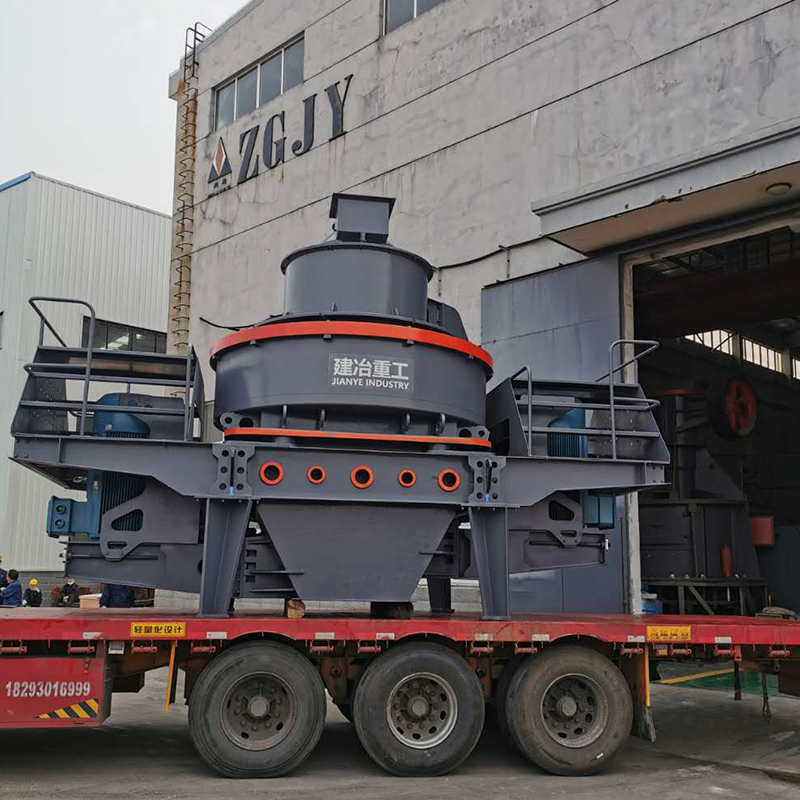

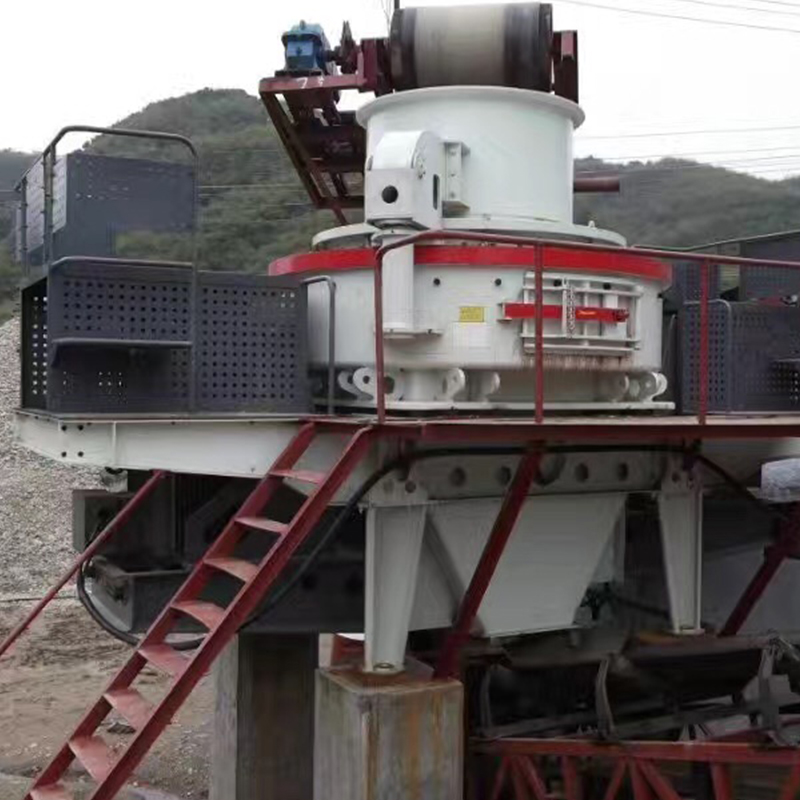

New JY6X impact crusher



【Patent name】: Combined shaping and sand making machine

【Patent number】: ZL201020651561.5

【Feeding size】:

【Application】: It is suitable for fine crushing or sand making of river pebbles, mountain stones, construction waste, tailings, bauxite, quartz and other materials, and can also be used for aggregate shaping

[Applicable materials]: river pebbles, mountain stones (diabase, granite, limestone, basalt, gneiss, etc.), construction waste, gangue, mine tailings, etc.



The new JY6X impact crusher produced by Shanghai Jianye Heavy Industry Co., Ltd. is based on the PCL and JYS sand making machines. Shanghai Jianye Heavy Industry Co., Ltd. absorbs advanced foreign fine sand making technology and combines more than ten years of impact crushing design and manufacturing experience.

Improved new type of impact breaking. Compared with the old impact crushing equipment, its production capacity and finished product rate have been greatly improved. There are two feeding methods: center feeding and waterfall falling feeding, which can be widely used in sand making processing and stone shaping.



Product advantages:

1. Large processing capacity and high output ---- Compared with similar domestic sand making equipment, the output of 6X series impact crusher is increased by 30%.



2. Stable performance ---- Compared with similar domestic sand making equipment, 6X series impact crusher has low maintenance frequency and short time.



3. Low energy consumption ---- Compared with similar domestic sand making equipment, the energy consumption of 6X series impact crusher is reduced by 25%.



4. Low consumption of wearing parts --- ideal impact crushing impact angle, reasonable material impact speed design and less friction of wear parts, running cost is 30% lower than similar domestic products, directly reducing 6X series impact The use cost of the crusher has greatly improved the profit margin of the 6X series impact crusher.



5. The finished product has good grain shape ----- six-sided polyhedron, and reasonable distribution, especially suitable for shaping sand and stone. After many customers use it, it proves that the comprehensive effect of sand making and shaping is increased by 30% compared with other domestic equivalent power equipment.



Working principle:

Center feed: The material falls into the waterfall feed device, enters the rotor of high-speed rotation through the center feed hole of the 6X impact crusher, and is fully accelerated and thrown through the launch port.First, it collides with a part of the material that falls freely after rebound , And then impacted on the vortex material lining in the surrounding vortex cavity together, first rebounded to the top of the crushing cavity, the deflection downward movement and the material emitted from the impeller flow channel impacted to form a continuous material curtain, and finally through the lower row The material outlet is discharged.



Central feeding is accompanied by annular waterfall feeding: the material falls into the waterfall feed device, and then falls through the annular hole, and is divided into two strands by the bulk material tray. One strand enters the impeller rotating at high speed through the central feeding hole, the other It falls from the powder tray; the material that enters the impeller is quickly accelerated in the impeller and is thrown out at high speed. First, it is crushed with another part of the material that falls freely around the bulk tray, and then hits the vortex in the surrounding vortex cavity together. The material lining is first rebounded to the top of the crushing chamber, and then deflects and moves downwards, colliding with the material emitted from the impeller flow channel to form a continuous material curtain, and then discharged through the lower discharge port.

Technical Parameters:

Model
Impeller speed (r/min)Feeding size (mm)Power (kw)Capacity (t/h)Overall dimensions（mm）JY6X90261200-1500≤40132*2100-2104510x2400x2860JY6X10401100-1420≤40200*2120-3005570x2520x3120JY6X11451070-1190≤50250*2180-4605570x2520x3120JY6X1263900-1100≤50315*2260-7005700x2950x3490
