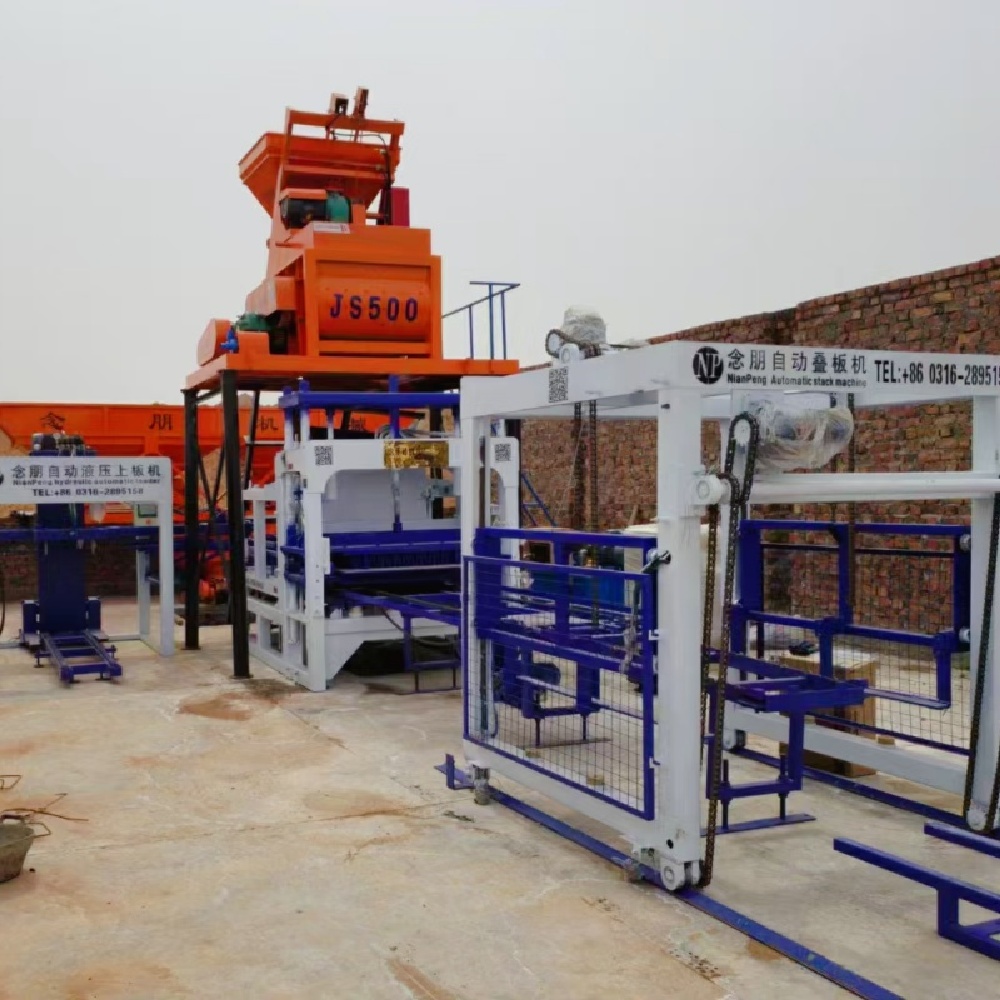

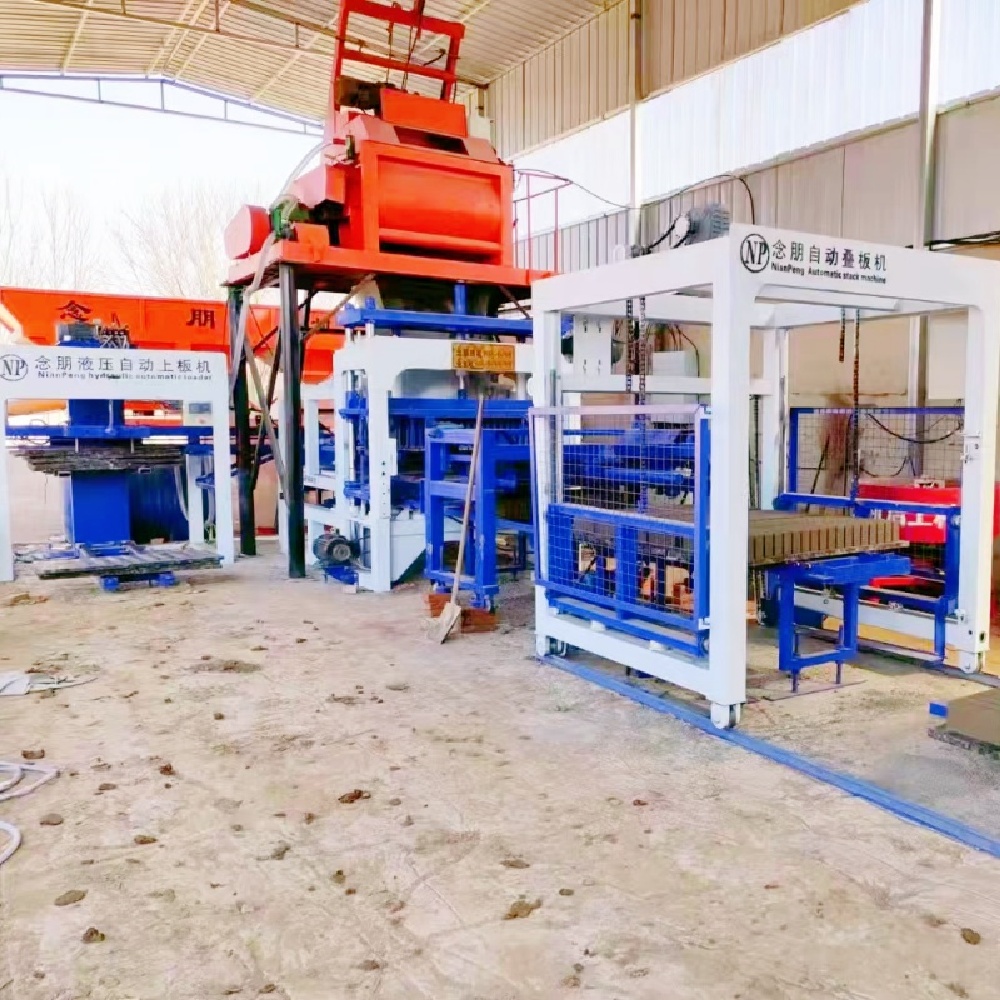

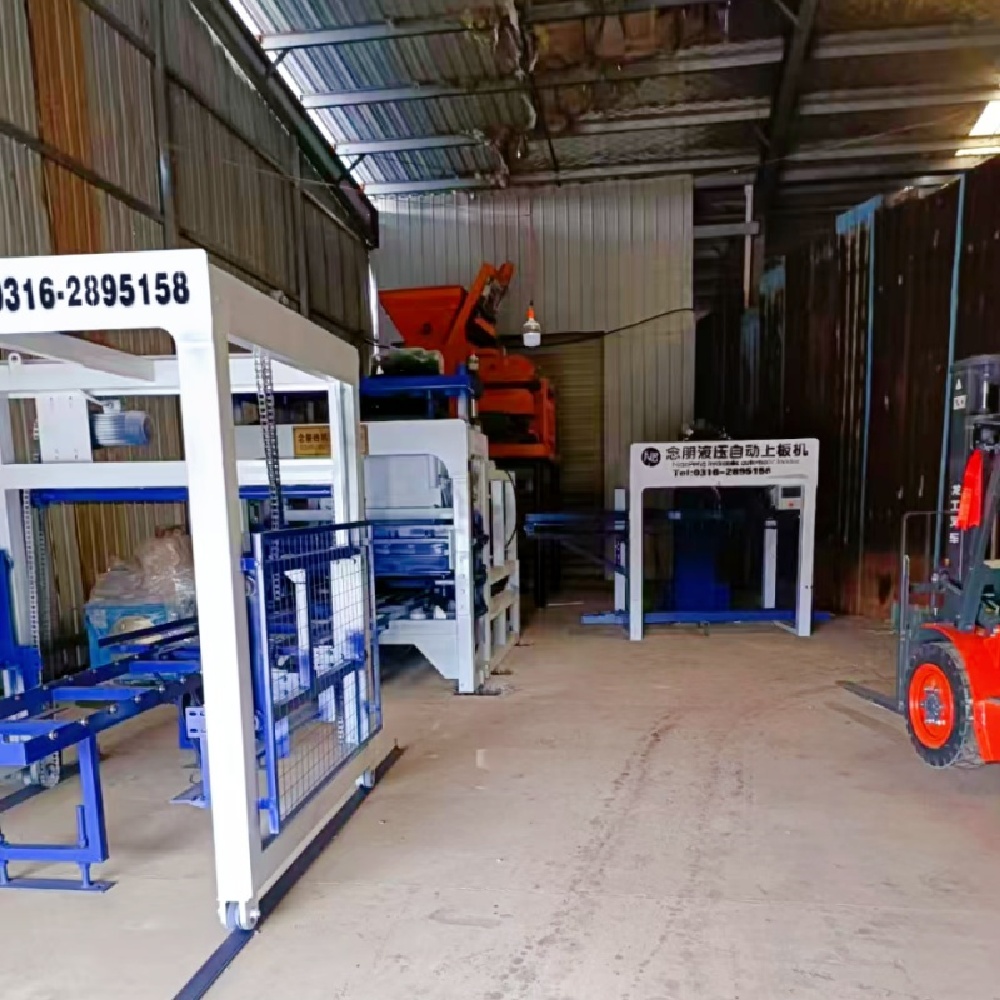

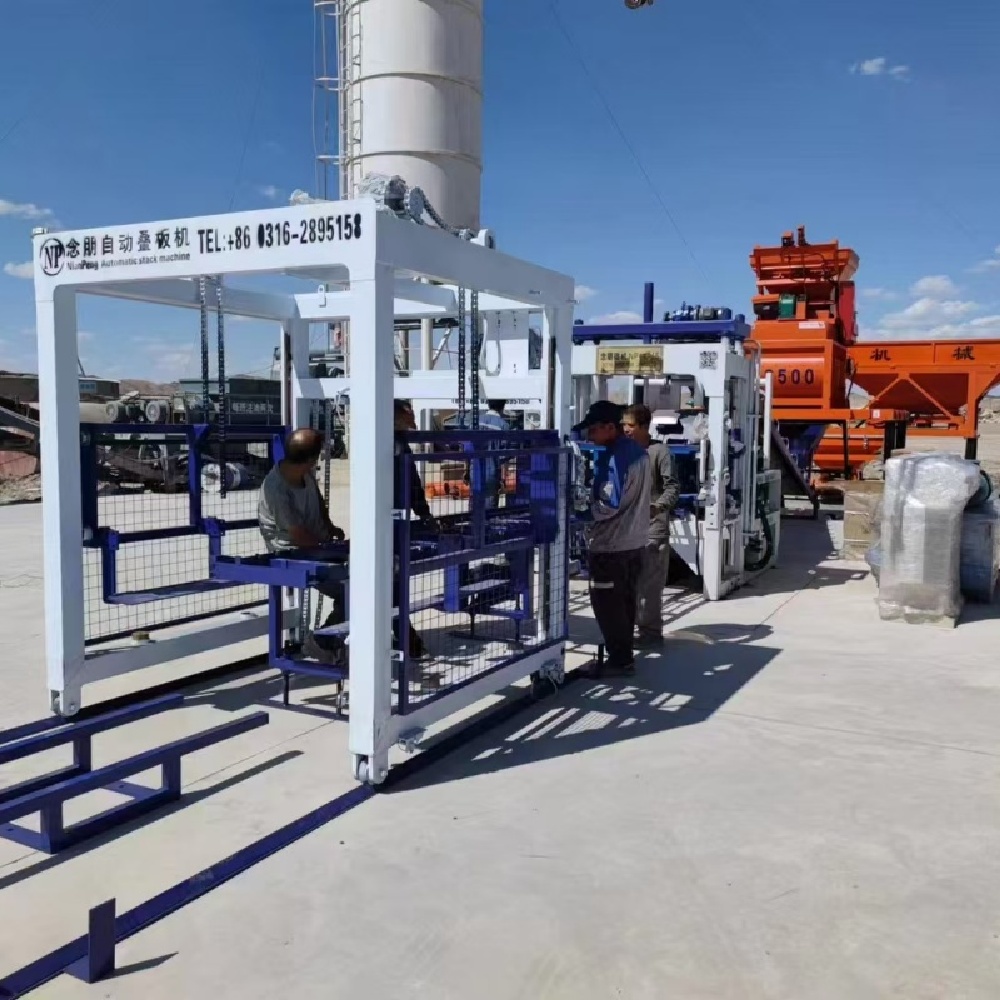

NP QT12-15A Multi-functional fully-automatic block making machine

Details dispaly

EQUIPMENT FEATURES：

Excitation system is the core part, according to the principle of mechanicalresonance centrifugal force, the introduction of German technology to achieve fullsynchronization, full isolation, directional vibration pressure, with large vibrationforce, rapid start, smooth operation and other characteristics, in the leading level inChina; The hydraulic control system adopts imported high-frequency proportionalvalve, which can automatically adjust the flow rate in the production process, protectthe cylinder, so that the cylinder forward and backward ends have a buffering effect,thus improving the stability, extending the service life of the cylinder, and improvingthe speed and flexibility of the action of various parts; Through the security logiccontrol, the fault diagnosis, text alarm and other prompt functions are added to theprogram control, when there is miss-operation, the fault can be accurately diagnosed;The machine is simple to operate, with high efficiency, energy saving, economic,practical and other characteristics.

Equipment parameters Host Machine Powel 44kW Host Machine Weight 10t Dimension 5400*2250x2740mm Pallet Size 1280x900*(25-40)mm Molding Cyclel 15-20 seconds/time Excitating Force 118kN Production Capacity 41.04 million blocks/year Operation Standard JC/T2094-2021 Product parameters 砖型 块/模 班产量(10小时) Paving block 200x100x (60/80) mm 35 63000 Blocks Solid block 240x115x53 mm 57 136800 Blocks Porous block 600x300x（60/80)mm 27 64800 Blocks Hollow block 390x 190x 190 mm 12 24000 Blocks

Professional production of unburned brick machine

Pavement bricks Hollow bricks Bread brick

Dement brick is a kind of new wall matera, made of fy ash. coal slaggangue.talings slag. chemicalslag or natural sand. seashoremud.etc.(oneor several ofthe above raw materials) as main raw materials, cement as solidiying agent, without calcinationat high temperature.

About US

Nianpeng Machinery specializes in manufacturing concrete product equipment for 28 years. The company has three production bases: Hebei CangzhouNianpeng Machinery Equipment Manufacturing Co., Ltd, Hebei Langtang Nanpeng Machinery Equipment Processing Co., Ltd, and Hunan XiangtanNianpeng ntelligent Technology Co, Ld. It also owns two affiliated companies: Langtang Nianpeng Intemational Trade Co, Ltd. and Bejing NianpengInteligent Technology Co., Ltd. It covers an area of more than 60,000 square meters,has more than 300 employees, at the same time obtained numbersof product patents. Our company mainly produces concrete mixing station, stabiized soil station, precast blocks production line, block closed-loopproduction line, multifunction non-burned block machine, walland floor integrated machine, cement pipe making machine, concrete conveying pump.sand washing equipment, crushing equipment, dry mortar equipment, etc, allkinds of concrete products equipment and fiber pallet. Our company hasdeveloped" one drive two ", "one drive three" , "one drive four" "one drive five" combination production line, can produce a variety of dry andwet concrete product, is the only domestic manufacturer with this kind of combination production line, and realize a set of equipment can producea variety of products, equipment investment is less,fast return, greatly reduce the industry investment riskl It is also suitable for the forming of variousblocks in blast furnace smelting, as wellas the block forming and processing of solid waste and hazardous waste. Our company adheres to the businessphilosophy of "integrity, professionalism, innovation and win-win', and provides customers with professional, dedicated and wholehearted service.whichis the eternal commitment of NianPeng Machinery. In the process of serving customers, constantly improve ourselves, and finally achieved a winwin situation with customers In orderto serve domestic customers better and faster, ourcompany has set up more than 20 offices in domestic provincial
capitals.

With the great opportunity of the national "Belt and Road" construction, our products are exported to Russia, Mongolia,Kazakhstan, Pakistan, kyrgyzstan,Iran, Kuwait, Angola, Guinea, Ghana, Uganda, Kenya, Nigeria, Tanzania, Zambia, Gabon, Lesotho, South Arica, Vietnam, India, Bangladesh, Myanmar,Indonesia, Cambode,Ethiopia, Liberia, Congo, and FjiJi, Panama, Turkey, Zimbabwe, Georgla and other more than 130 countries, at the same time inthe Belt and Road countries to establish a number of branch offices. Our high-quality products and comprehensive after sales service have been highlypraised by domestic and overseas customers.
