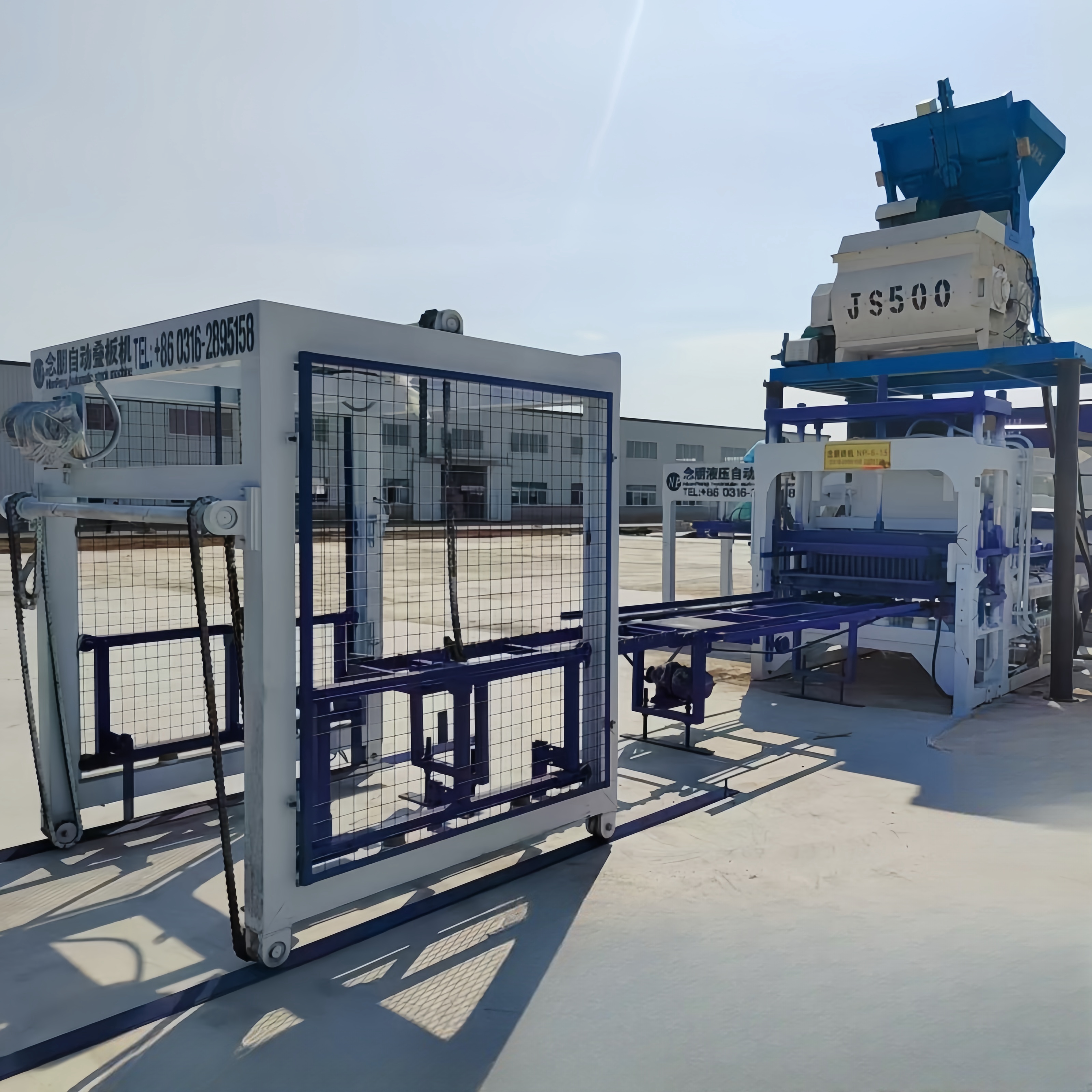

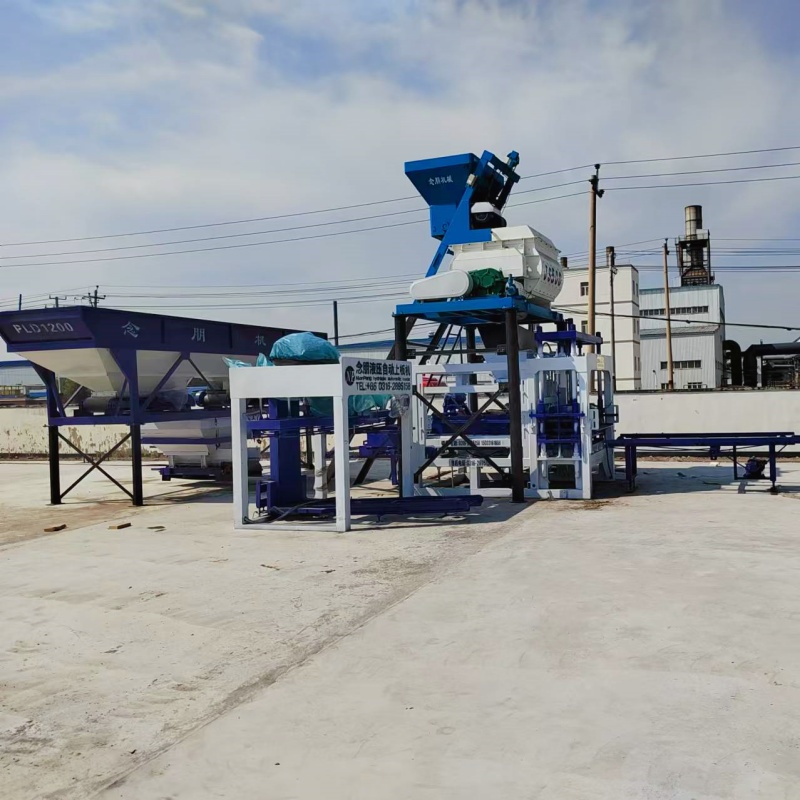

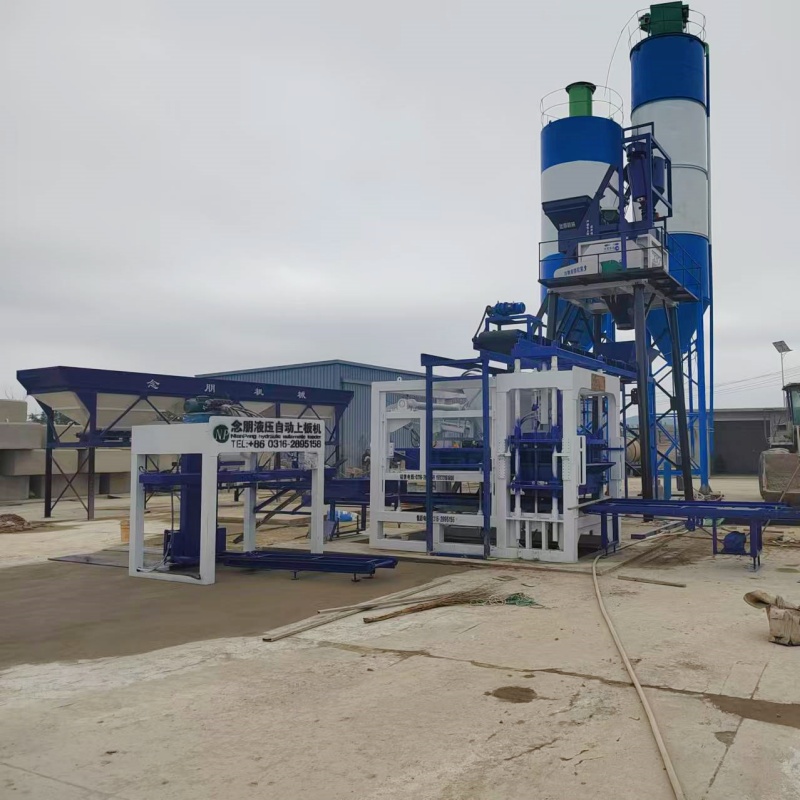

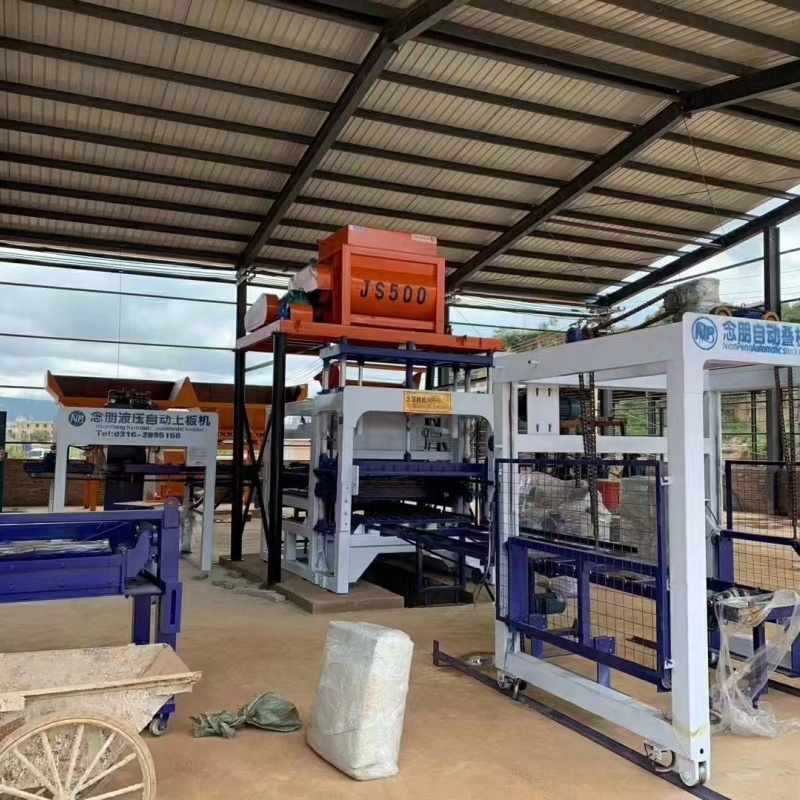

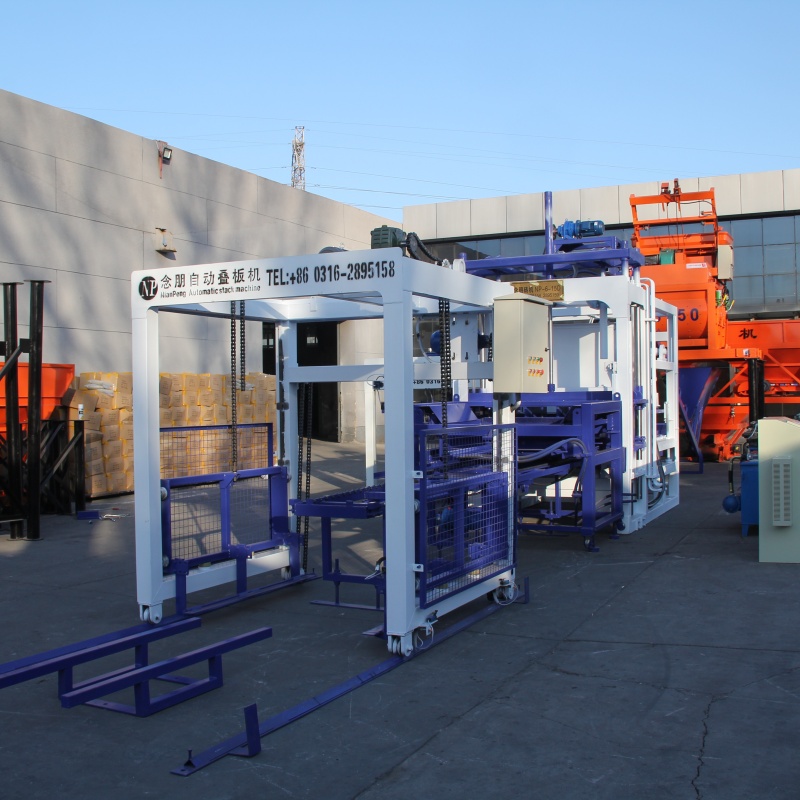

NP QT9-15D Multi-functional fully-automatic block making machine

Details dispaly

EQUIPMENT FEATURES：

The machine can produce a variety of curb stones, illusory floor tile, reclamation stones,PC sand-based permeable brick, hazardous waste, solid waste, large retaining blocks,U-shaped water trench, water protection slope brick, concrete blocks, standard brick,porous brick, road brick and other special brick type;The fabric trolley adopts double-cylinder crank arm propulsion, the aggregate truck is controlled by double motorsand the material distributing method adopts double-cylinder bending arm propulsion+360 o rotating distributing the form, which has high speed and strong compact;Addsecondary processing devices for aggregate and fabric material, and clean the surface ofthe mold three times to ensure that the products are beautiful and consistent; Hydraulicoperation's speed, pressure, and stroke can be adjusted according to different products,which are stable, efficient, and energy-saving.

Equipment parameters Host Machine Powel 51.5kW Host Machine Weight 10t Dimension 5070*2350x3100mm Pallet Size 1380x780*(25-45)mm Molding Cyclel 15-20 seconds/time Excitating Force 108kN Production Capacity 39.6 million blocks/year Operation Standard JC/T2094-2021 Product parameters Brick Type Block/Mold Production Output Per Shift (10 hours)




Brick Type
Block/Mold Production Output Per Shift (10 hours) Paving block 200x100x (60/80) mm 36 72000 Blocks
Retaining brick 1220x600x400mm 1 1800 Blocks Solid block 240x115x53 mm 55 132000 Blocks

Retaining block

700x400x400mm

3 5400 Blocks floor tile brick 600x300x（60/80)mm 4 8800 Blocks

Retaining block

400x350x400mm

6 10800 Blocks Hollow block 390x 190x 190 mm 9 20000 Blocks

Retaining block

350x350x400mm

8 14400 Blocks

Professional production of unburned brick machine

Pavement bricks Hollow bricks Bread brick

Dement brick is a kind of new wall matera, made of fy ash. coal slaggangue.talings slag. chemicalslag or natural sand. seashoremud.etc.(oneor several ofthe above raw materials) as main raw materials, cement as solidiying agent, without calcinationat high temperature.

About US

Nianpeng Machinery specializes in manufacturing concrete product equipment for 28 years. The company has three production bases: Hebei CangzhouNianpeng Machinery Equipment Manufacturing Co., Ltd, Hebei Langtang Nanpeng Machinery Equipment Processing Co., Ltd, and Hunan XiangtanNianpeng ntelligent Technology Co, Ld. It also owns two affiliated companies: Langtang Nianpeng Intemational Trade Co, Ltd. and Bejing NianpengInteligent Technology Co., Ltd. It covers an area of more than 60,000 square meters,has more than 300 employees, at the same time obtained numbersof product patents. Our company mainly produces concrete mixing station, stabiized soil station, precast blocks production line, block closed-loopproduction line, multifunction non-burned block machine, walland floor integrated machine, cement pipe making machine, concrete conveying pump.sand washing equipment, crushing equipment, dry mortar equipment, etc, allkinds of concrete products equipment and fiber pallet. Our company hasdeveloped" one drive two ", "one drive three" , "one drive four" "one drive five" combination production line, can produce a variety of dry andwet concrete product, is the only domestic manufacturer with this kind of combination production line, and realize a set of equipment can producea variety of products, equipment investment is less,fast return, greatly reduce the industry investment riskl It is also suitable for the forming of variousblocks in blast furnace smelting, as wellas the block forming and processing of solid waste and hazardous waste. Our company adheres to the businessphilosophy of "integrity, professionalism, innovation and win-win', and provides customers with professional, dedicated and wholehearted service.whichis the eternal commitment of NianPeng Machinery. In the process of serving customers, constantly improve ourselves, and finally achieved a winwin situation with customers In orderto serve domestic customers better and faster, ourcompany has set up more than 20 offices in domestic provincial
capitals.

With the great opportunity of the national "Belt and Road" construction, our products are exported to Russia, Mongolia,Kazakhstan, Pakistan, kyrgyzstan,Iran, Kuwait, Angola, Guinea, Ghana, Uganda, Kenya, Nigeria, Tanzania, Zambia, Gabon, Lesotho, South Arica, Vietnam, India, Bangladesh, Myanmar,Indonesia, Cambode,Ethiopia, Liberia, Congo, and FjiJi, Panama, Turkey, Zimbabwe, Georgla and other more than 130 countries, at the same time inthe Belt and Road countries to establish a number of branch offices. Our high-quality products and comprehensive after sales service have been highlypraised by domestic and overseas customers.
