OEM/ODM 15” Professional Audio Speaker Stage Use Subwoofer
Meirui (Guangdong) Audio Equipment Co.,Ltd8/10 fairsManufacturerModel EL15900
New for the 140th Fair
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable

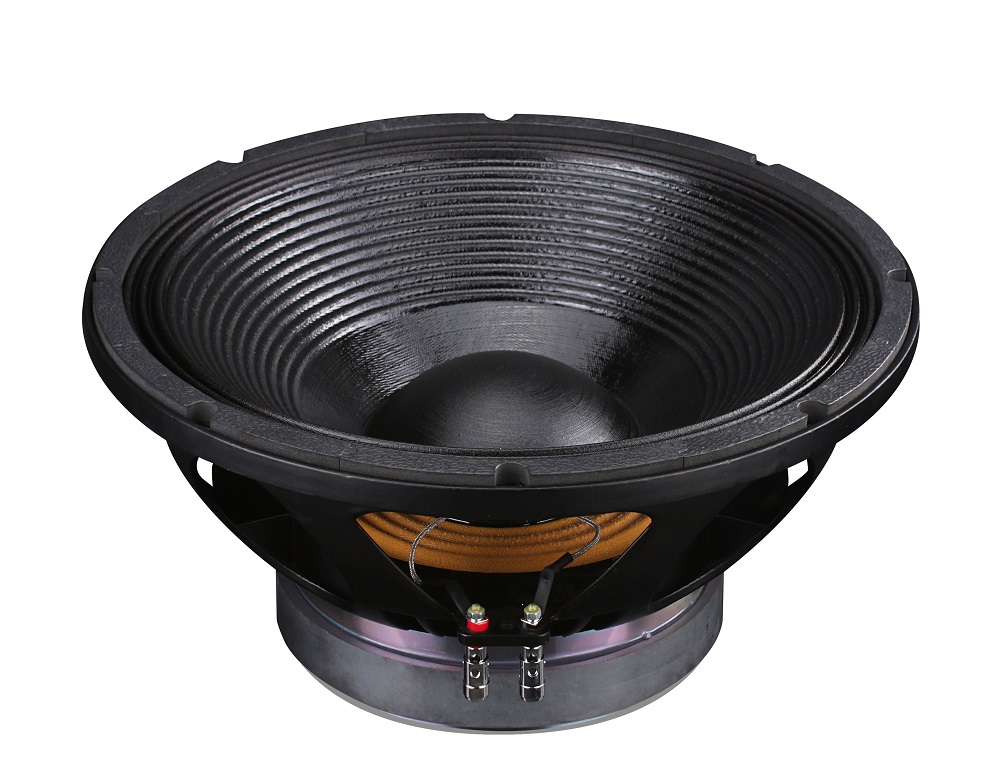

OEM/ODM 15” Professional Audio Speaker Stage Use Subwoofer
Meirui (Guangdong) Audio Equipment Co.,Ltd8/10 fairsManufacturerModel EL15900
New for the 140th Fair
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: aluminium
- Size: 15"
- Color: black
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Guangdong, China
About this product
- Materials: aluminium
- Size: 15"
- Color: black
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Guangdong, China
Product details
| Materials | aluminium |
|---|---|
| Size | 15" |
| Color | black |
Product details
| Materials | aluminium |
|---|---|
| Size | 15" |
| Color | black |
From the supplier
Specificatiom
Model: EL15900 15 Inch Aluminum Frame 220 Magnet 100 Core
General Specifications
Nominal Diameter
Standard Diameter
380mm/15 inch
Nominal Impedance
Rated Impedance
8Ω
AES Power Handing
AES Power
500W (AES)
Maximum Power
Maximum Power
800W
Sensitivity 1W/1M
Sensitivity
96dB
Frequency Range
Frequency Response Range
51-2.6kHz
Voice Coil Diameter
Voice Coil Diameter
99.5mm/4 inch
Windinig Material
Wire
Capper
Former Material
Tube
Giass Fibre
Winding Depth
Roll Width
23.3mm
surround material
Surround Material
Polycotton
surround Design
Surround Design
Triple-roll
Magnet
Magnet
Φ220
Ferrite Ring
Thiele & Small Parameters Parameters
Resonance Frequency
Resonance Frequency
Fs
51Hz
DC Resistance
DC Resistance
Re
5.2Ω
Mechanical Factor
Mechanical Quality Factor Value
Qms
24.73
Electrical Factor
Electrical Quality Factor
Qes
0.49
Total Factor
Total Quality Factor
Qts
0.48
BL Factor
Magnetic Force
BL
26T.m
Effective Moving Mass
Effective Moving Mass
Mms
202g
Compliance
Lishun
Cms
49μ M/N
Equivalent Cas Air Load
Effective Volume
Vas
57L
Effettive Piston Area
Vibrating Area (Effective Piston Area)
Sd
908cm²
η(Eta Zero)
Speaker Efficiency
η0
1.4%
From the supplier
Specificatiom
Model: EL15900 15 Inch Aluminum Frame 220 Magnet 100 Core
General Specifications
Nominal Diameter
Standard Diameter
380mm/15 inch
Nominal Impedance
Rated Impedance
8Ω
AES Power Handing
AES Power
500W (AES)
Maximum Power
Maximum Power
800W
Sensitivity 1W/1M
Sensitivity
96dB
Frequency Range
Frequency Response Range
51-2.6kHz
Voice Coil Diameter
Voice Coil Diameter
99.5mm/4 inch
Windinig Material
Wire
Capper
Former Material
Tube
Giass Fibre
Winding Depth
Roll Width
23.3mm
surround material
Surround Material
Polycotton
surround Design
Surround Design
Triple-roll
Magnet
Magnet
Φ220
Ferrite Ring
Thiele & Small Parameters Parameters
Resonance Frequency
Resonance Frequency
Fs
51Hz
DC Resistance
DC Resistance
Re
5.2Ω
Mechanical Factor
Mechanical Quality Factor Value
Qms
24.73
Electrical Factor
Electrical Quality Factor
Qes
0.49
Total Factor
Total Quality Factor
Qts
0.48
BL Factor
Magnetic Force
BL
26T.m
Effective Moving Mass
Effective Moving Mass
Mms
202g
Compliance
Lishun
Cms
49μ M/N
Equivalent Cas Air Load
Effective Volume
Vas
57L
Effettive Piston Area
Vibrating Area (Effective Piston Area)
Sd
908cm²
η(Eta Zero)
Speaker Efficiency
η0
1.4%
