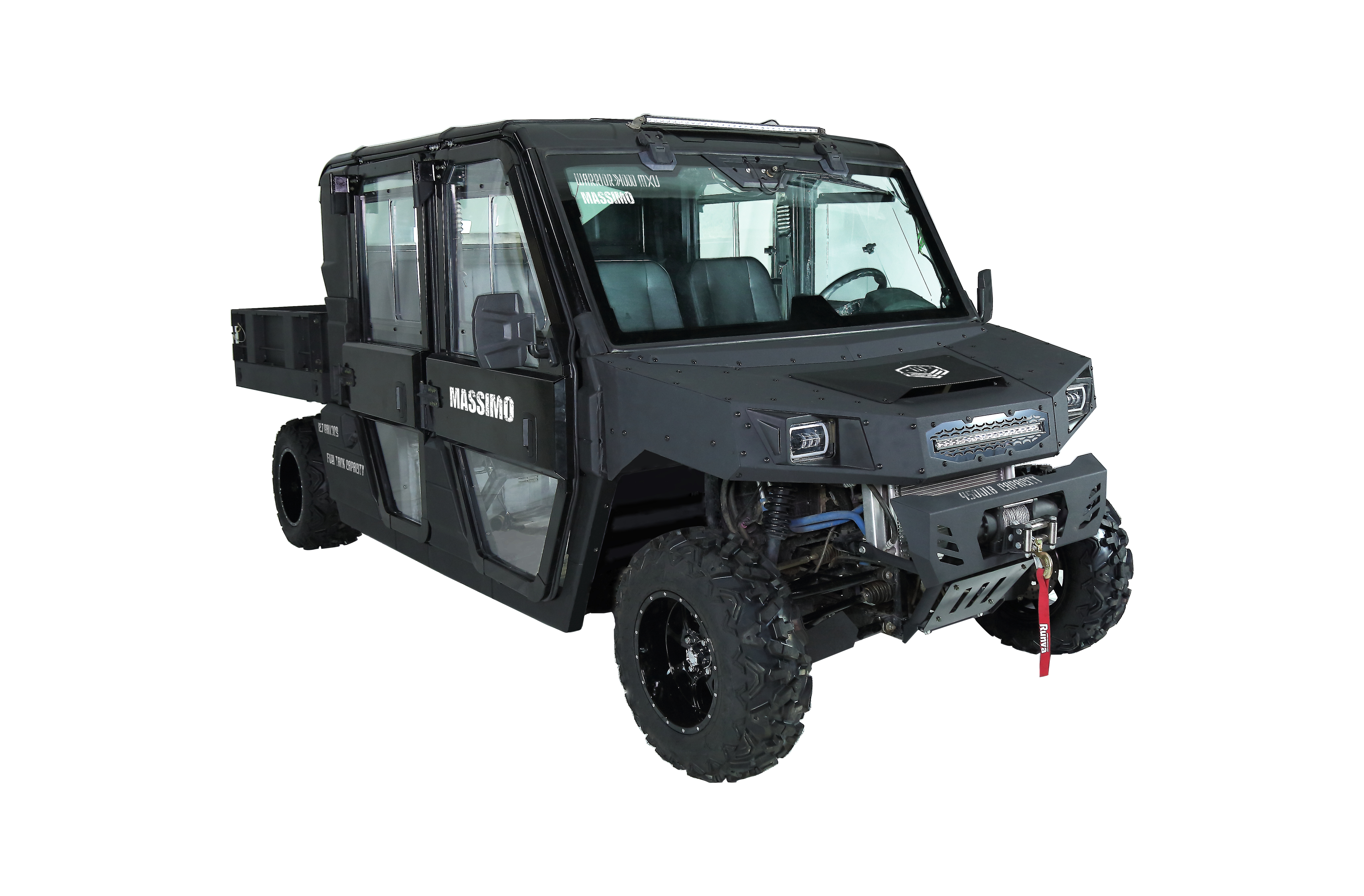

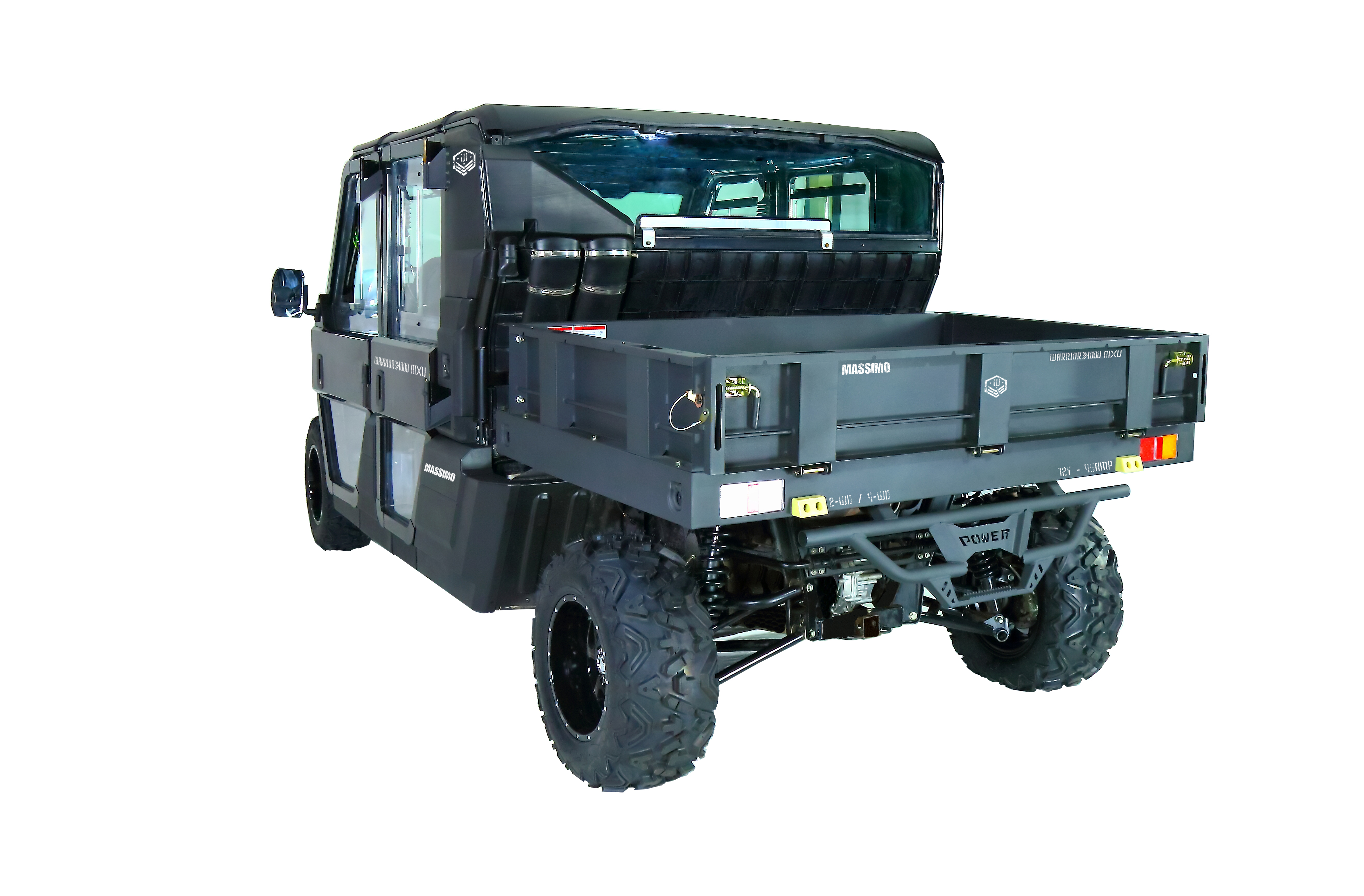

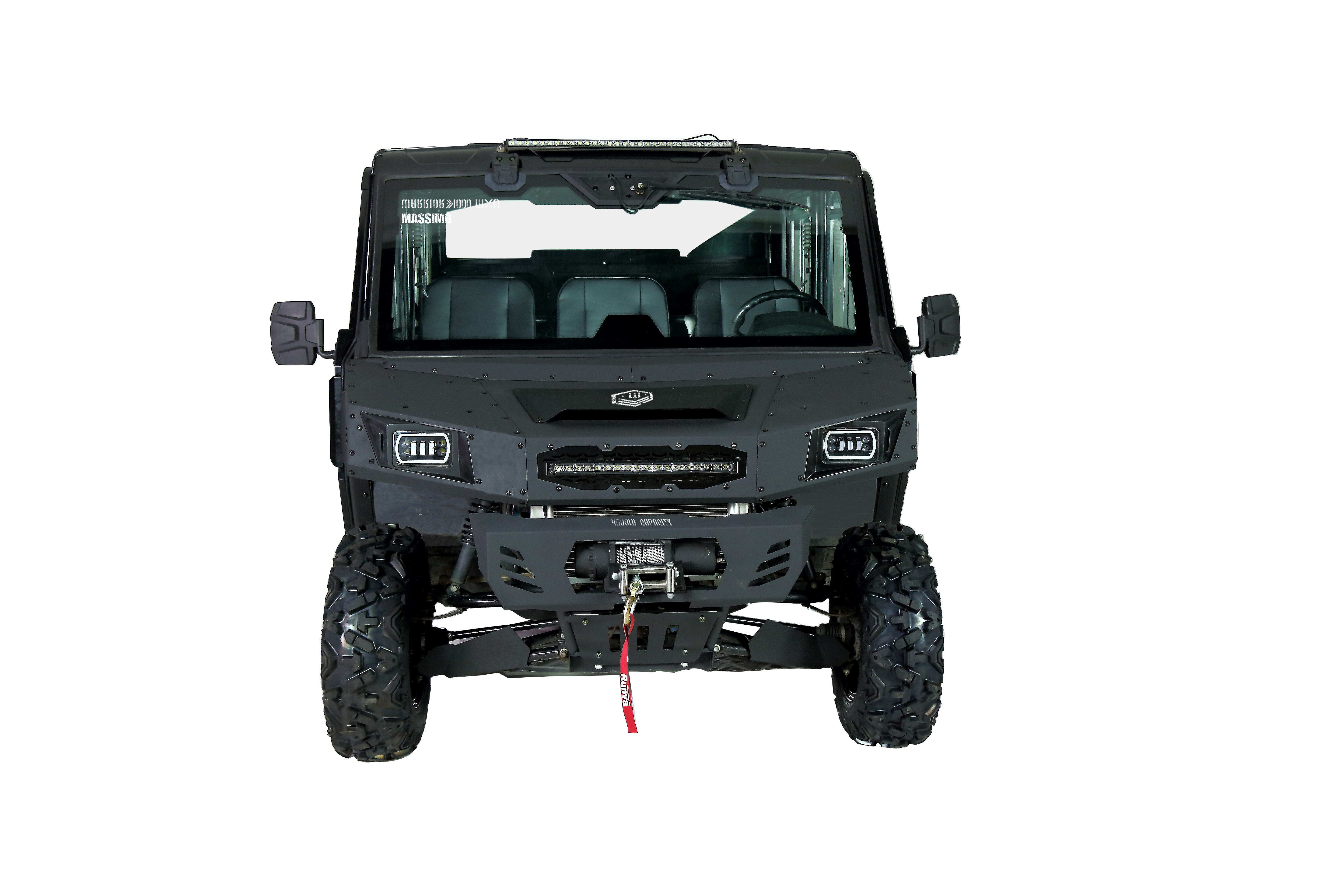

Off-road Utility Vehicle with HVAC assy
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Off-road Utility Vehicle with HVAC assy
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Size: 4158X1913X1947
- Color: Black sand texture
- Exports to: Mainland China, Middle East, USA and Canada, Latin America, Russia, EU, Other European Countries, Others
- Made in: Shandong, China
About this product
- Size: 4158X1913X1947
- Color: Black sand texture
- Exports to: Mainland China, Middle East, USA and Canada, Latin America, Russia, EU, Other European Countries, Others
- Made in: Shandong, China
Product details
| Size | 4158X1913X1947 |
|---|---|
| Color | Black sand texture |
From the supplier
EngineTypeEngine type
V-type Twin Cylinder4-Stroke, Overhead Camshaft, Water-CooledV-Two-cylinder, 4-stroke,SOHC, water cooling
Valve CountNumber of valves
8(mechanical adjustment)
Cylinder Diameter
91 mm
Piston Stroke
75mm
Displacement
976cm3
Compression Ratio
10.3:1
Max HorsepowerMaximum power
53KW/6500rpm
Transmission TypeTransmission type
CVT
Gearbox TypeGearbox type
pairForward Gear (High Speed–Low Speed), ParkVehicleForward, Neutral, and Reverse GearDual range(H/L) with park, neutral and reverse
LengthOverall length
4158mm
WidthOverall width
1913mm
HeightOverall height
1947mm
GoodsBoxSizeCargo box
1076×1561×260(mm)
Front Gauge
1395
Rear Gauge
1358
Wheelbase
3122
Brake TypeBrake type
pairDual Disc Brake
Tire SpecificationTire size(FrontFront/RearRear）
27×10-14/27×10-14
Transmission TypeDrive train
Shaft driveShaft driven/single auto-lock differential
Suspension type
Front and rear independent suspension Double wishbone independent suspension
Climbing AbilityClimbing ability
≥40°
Approach angleApproach angle
69°
Departure angleDeparture angle
75°
Ground clearance
327mm
