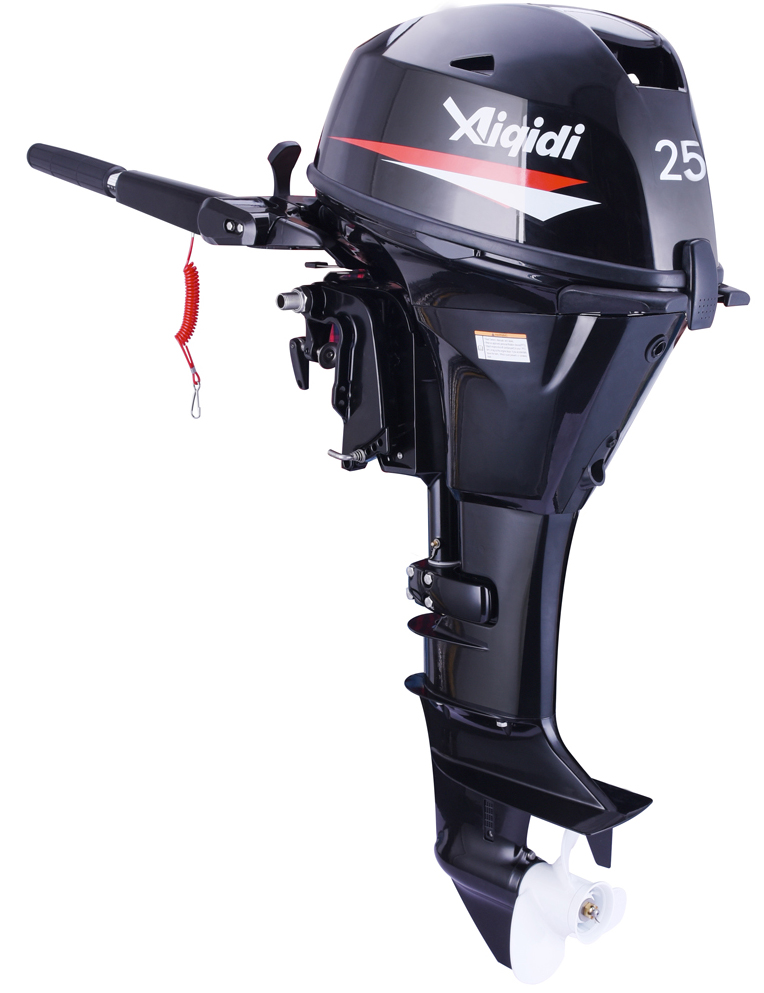

Outboard motor F25
See what’s includedHide breakdown
- FOB goods (100)
- $115,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $4,025
- Section 301 tariff (25.0%)
- $28,750
- Customs fees (MPF/HMF)
- $542
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $115,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $4,025
- Section 301 tariff (25.0%)
- $28,750
- Customs fees (MPF/HMF)
- $542
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Outboard motor F25
See what’s includedHide breakdown
- FOB goods (100)
- $115,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $4,025
- Section 301 tariff (25.0%)
- $28,750
- Customs fees (MPF/HMF)
- $542
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $115,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $4,025
- Section 301 tariff (25.0%)
- $28,750
- Customs fees (MPF/HMF)
- $542
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: Aluminum products
- Size: 1260*765*525
- Color: black color
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: Aluminum products
- Size: 1260*765*525
- Color: black color
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | Aluminum products |
|---|---|
| Size | 1260*765*525 |
| Color | black color |
Product details
| Materials | Aluminum products |
|---|---|
| Size | 1260*765*525 |
| Color | black color |
From the supplier

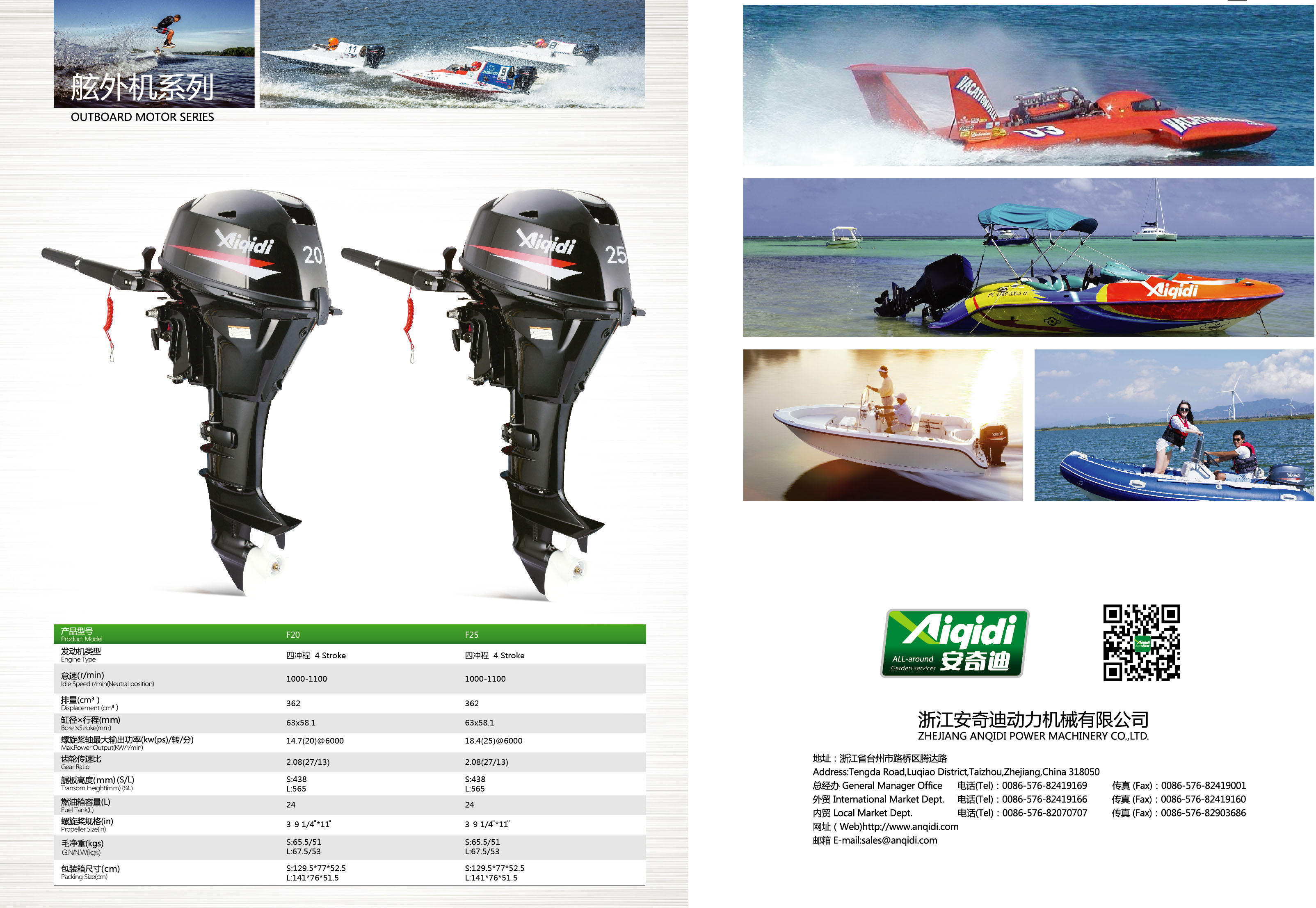

Product modelF25Engine Model4 STROKE ,2 CylinderFull Throttle Operating Range 5000-6000 r/m Idling Speed 1050±50r/m Engine Displacement(cc)362Bore×Stroke(mm)63×58.1Ignition System CDI Spark Plug NGK DPR6ED-9Spark Plug Gap 0.8-0.9mmControl System Tiller Handle Starting System Manual Starting Carburation System Choke Valve Max. Power Output[kw(ps)/r/min]18.4(25)@6000Gear Position Forward-Neutral-Reverse Gear Ratio2.08(27/13)Recommended Fuel Unleaded Gasoline Gear Oil 0.250LTransom Height(mm)438/565Fuel Capacity24L(extraposition)G.W/N.Weight(kgs)L:67.5/53 S:65.5/51Propeller Options(in)3-9 1/4×11 Packing Size(mm)L：1420×770×525 S：1293×770×525
Specifications and requirements
Specifications
TIP:
“AL” stated in the specification data below represents the numerical value for the aluminum propeller installed.
Dimension and weight:
Overall length:
FE 663 mm (26.1 in)
BM 1048 mm (41.3 in)
Overall width:
FE 373 mm (14.7 in)
BM 386 mm (15.2 in)
Overall height S:
BM 1078mm (42.4in)
Overall height L:
1205mm (47.4 in)
Motor transom height S:
BM 438mm (17.2 in)
Motor transom height L:
565 mm (22.2 in)
Dry weight (AL) S:
BM 51 KG (112 lb)
Dry weight (AL) L:
FE54KG (119lb)
BM 53KG (117 lb)
Performance:
Full throttle operating range:
5000-6000 r/min
Rate power:
14.7 KW
Idle speed (in neutral):
1000-1100 r/min
Power unit:
Type:
4-stroke SOHC 2L 4 valves
Total displacement:
362 cm3 (22.1 c.i. )
Bore×stroke:
63.0×58.1 mm (2.48×2.29 in)
Ignition system:
CDI
Spark plug (NGJ):
DPR6EB-9
Spark plug gap:
0.8-0.9 mm (0.031-0.035 in)
Steering system:
Remote steering
Tiller handle
Starting system:
Electric starter
Manual starter
Starting carburetion system:
Prime start
Valve clearance IN (cold engine):
0.15-0.25 mm (0.0059-0.0098 in)
Valve clearance EX (cold engine):
0.25-0.35 mm (0.0098-0.0138 in)
Battery rating (CCA/EN):
347-411 A
Battery rating (20HR/1EC):
40 Ah
Maximum generator output:
10 A
Lower unit
Gear shift positions:
Forward-neutral-reverse
Gear ratio:
2.08 (27/13)
Trim and tilt system:
Manual tilt
Fuel and oil:
Recommended fuel:
Regular unleaded gasoline
Min. research octane number (RON):
90
Fuel tank capacity:
24 L (6.34 US gal. 5.28 Imp. gal)
Recommended engine oil:
4-stroke outboard motor oil
Recommended engine oil grade 1:
SAE 10W-30/10W-40/5W-30
API SE/SF/SG/SH/SJ/SL
Engine oil quantity (without oil filter replacement):
1.6 L (1.69 US qt, 1.41 lmp. qt)
Engine oil quantity (with oil filter replacement):
1.8 L (1.90 US qt, 1.58 Imp. qt)
Lubrication system:
Wet sump
Recommended gear oil:
Hypoid gear oil
Recommended gear oil grade:
SAE 90 API GL-4
Gear oil quantity:
0.250 L (0.264 US qt, 0.220 Imp. qt)
Tightening torque:
Spark plug:
17 Nm (1.73 kgf-m, 12.5 ft-lb)
Propeller nut:
17 Nm (1.73 kgf-m, 12.5 ft-lb)
Engine oil drain bolt:
27 Nm (2.75 kgf-m, 19.9 ft-lb)
Engine oil filter:
18 Nm (1.84 kgf-m, 13.3 ft-lb)
From the supplier
Product modelF25Engine Model4 STROKE ,2 CylinderFull Throttle Operating Range 5000-6000 r/m Idling Speed 1050±50r/m Engine Displacement(cc)362Bore×Stroke(mm)63×58.1Ignition System CDI Spark Plug NGK DPR6ED-9Spark Plug Gap 0.8-0.9mmControl System Tiller Handle Starting System Manual Starting Carburation System Choke Valve Max. Power Output[kw(ps)/r/min]18.4(25)@6000Gear Position Forward-Neutral-Reverse Gear Ratio2.08(27/13)Recommended Fuel Unleaded Gasoline Gear Oil 0.250LTransom Height(mm)438/565Fuel Capacity24L(extraposition)G.W/N.Weight(kgs)L:67.5/53 S:65.5/51Propeller Options(in)3-9 1/4×11 Packing Size(mm)L：1420×770×525 S：1293×770×525
Specifications and requirements
Specifications
TIP:
“AL” stated in the specification data below represents the numerical value for the aluminum propeller installed.
Dimension and weight:
Overall length:
FE 663 mm (26.1 in)
BM 1048 mm (41.3 in)
Overall width:
FE 373 mm (14.7 in)
BM 386 mm (15.2 in)
Overall height S:
BM 1078mm (42.4in)
Overall height L:
1205mm (47.4 in)
Motor transom height S:
BM 438mm (17.2 in)
Motor transom height L:
565 mm (22.2 in)
Dry weight (AL) S:
BM 51 KG (112 lb)
Dry weight (AL) L:
FE54KG (119lb)
BM 53KG (117 lb)
Performance:
Full throttle operating range:
5000-6000 r/min
Rate power:
14.7 KW
Idle speed (in neutral):
1000-1100 r/min
Power unit:
Type:
4-stroke SOHC 2L 4 valves
Total displacement:
362 cm3 (22.1 c.i. )
Bore×stroke:
63.0×58.1 mm (2.48×2.29 in)
Ignition system:
CDI
Spark plug (NGJ):
DPR6EB-9
Spark plug gap:
0.8-0.9 mm (0.031-0.035 in)
Steering system:
Remote steering
Tiller handle
Starting system:
Electric starter
Manual starter
Starting carburetion system:
Prime start
Valve clearance IN (cold engine):
0.15-0.25 mm (0.0059-0.0098 in)
Valve clearance EX (cold engine):
0.25-0.35 mm (0.0098-0.0138 in)
Battery rating (CCA/EN):
347-411 A
Battery rating (20HR/1EC):
40 Ah
Maximum generator output:
10 A
Lower unit
Gear shift positions:
Forward-neutral-reverse
Gear ratio:
2.08 (27/13)
Trim and tilt system:
Manual tilt
Fuel and oil:
Recommended fuel:
Regular unleaded gasoline
Min. research octane number (RON):
90
Fuel tank capacity:
24 L (6.34 US gal. 5.28 Imp. gal)
Recommended engine oil:
4-stroke outboard motor oil
Recommended engine oil grade 1:
SAE 10W-30/10W-40/5W-30
API SE/SF/SG/SH/SJ/SL
Engine oil quantity (without oil filter replacement):
1.6 L (1.69 US qt, 1.41 lmp. qt)
Engine oil quantity (with oil filter replacement):
1.8 L (1.90 US qt, 1.58 Imp. qt)
Lubrication system:
Wet sump
Recommended gear oil:
Hypoid gear oil
Recommended gear oil grade:
SAE 90 API GL-4
Gear oil quantity:
0.250 L (0.264 US qt, 0.220 Imp. qt)
Tightening torque:
Spark plug:
17 Nm (1.73 kgf-m, 12.5 ft-lb)
Propeller nut:
17 Nm (1.73 kgf-m, 12.5 ft-lb)
Engine oil drain bolt:
27 Nm (2.75 kgf-m, 19.9 ft-lb)
Engine oil filter:
18 Nm (1.84 kgf-m, 13.3 ft-lb)
