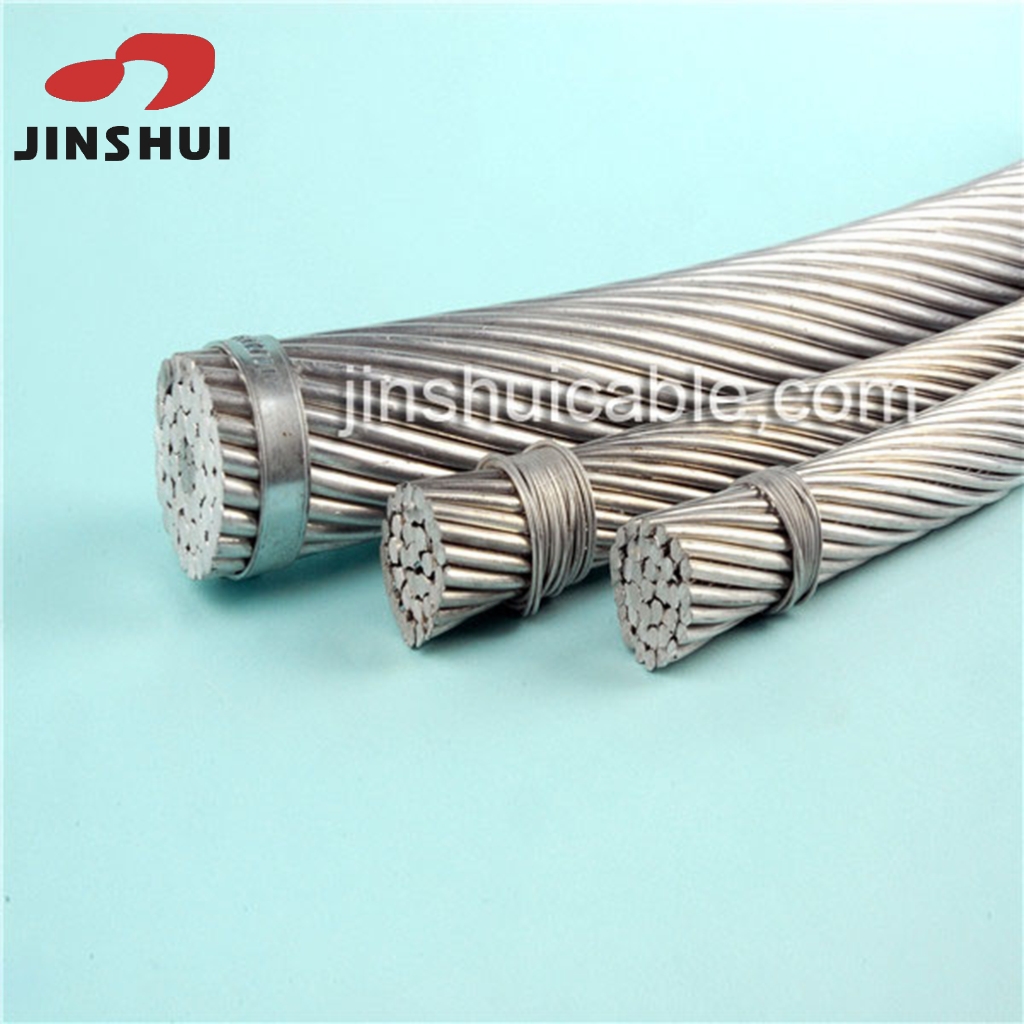

Applications

Conductor(AAC, AAAC and ACSR) have been widely used in power transmission lines with various voltage levels,because they have such good characteristics as simple structure,convenient installation and maintenance,low cost large transmission capacity.And they are also suitable for laying across rivers valleys and the places where special geographical features exist.

Service Performance

(1)The permissible long-time operating temperature for aerial conductor is 70oC.

(2)Under the circumstance that rare climate is occuring and ice coverage rate low in heavy ice area,the biggest stress of cable at the lowest point of the sag should not exceed 60% of the short-time destructive power.

(3)When connecting conductors,the conductor beside the connecting tube cant be prominent.Otherwise,the force on the operating conductors will be unbalanced.After connectors are install,the connecting tube should be painted by moisture-proof varnish in order to protect it from corrosion.

(4)Under installaion,the arc downing stress of all the conductors should be the same.With in the permissible distance of crossing buildings or dropping to the ground,the stress can be 10-15% higher than regular stress.

Product Performance

(1).The electrical performance of AAC and ACSR is indicated in DCΩ/km(20oC).The resistivity of the hard aluminum wire for stranded wires is not greater than 28.264 nΩ. m of international standard value.

(2).The rated tensile strength of AAC is denoted with the result of total cross-section of all aluminum conductors multiplied by min.tensile of corresponding size specified in the standard for aluminum wire.

(3).The rated tensile strengh of ACSR is denoted with sum of all aluminum conductorstensile strength and steels tensile strength.

a.The tensile strength of all aluminum conductors is denoted with the result of all cross-sections of aluminum conductors multiplied by min.tensile strength of corresponding size specified in the standard for aluminum wire.

b.The tensile strength of all steel wire is denoted with the result of all cross-sections of steel wires multiplied by the stress at 1% elongation of corresponding size specified in the standard for steel wire.

Material Standard

(1)The hard aluminum conductor used for AAC and ACSR conforms to the standard GB/T 17048-1997(equivalent to IEC 60889:1987).

(2)The zinc coated steel wire used for ACSR conforms to IEC 60888:1987.

(3)Production can be arranged according to customers requirements for material standard,etc.

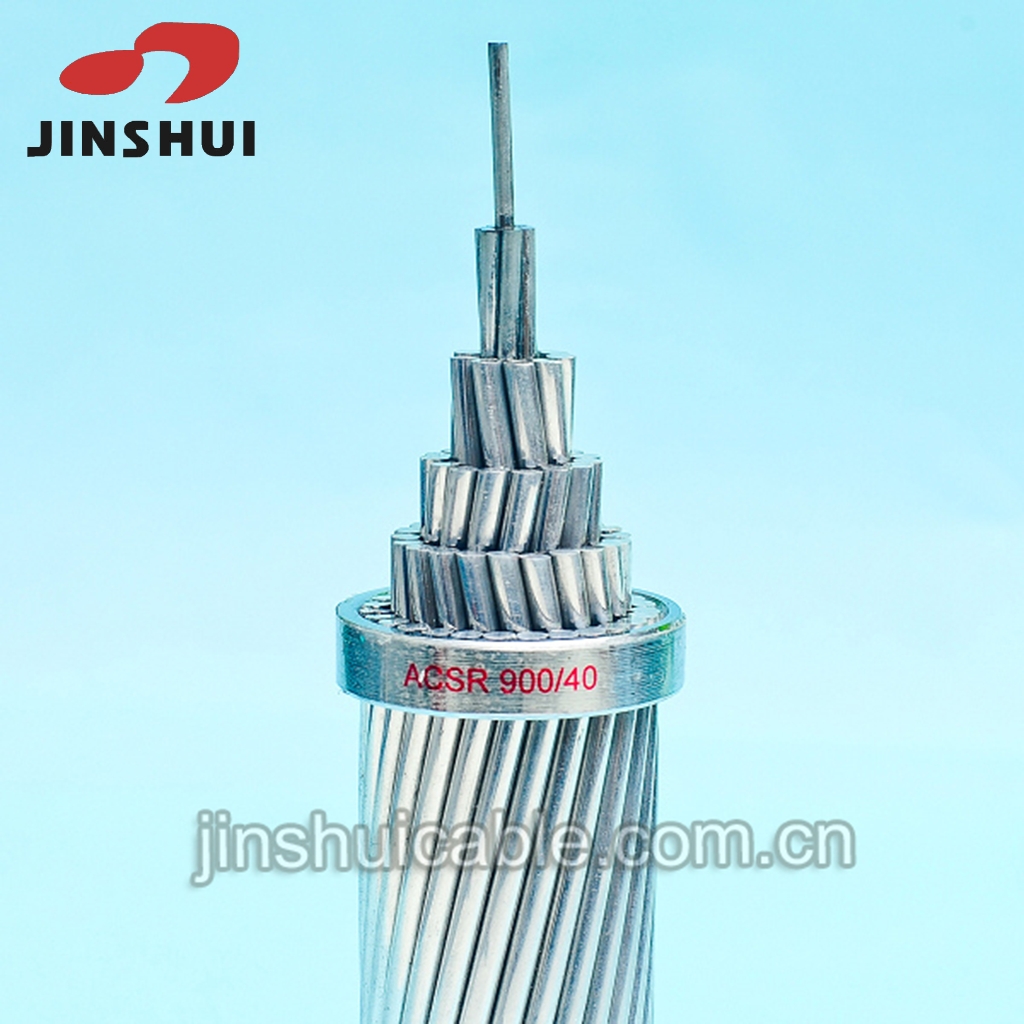

Aluminum Conductor Steel Reinforced is in Accordance with ASTM B232-81.

Aluminum Sectional Area

Stranding No. and Dia.

(No./mm)

Approx. Overall Dia

Approx. Weight

Calculated Breaking Load

Calculated D C Resistance at 20oC

Code Name

Cir.mils or AWG

(mm2)

Al.

St.

(mm)

(kg/km)

(KN)

(Ω/km)

6

13.30

6/1.68

1/1.68

5.04

53.75

5,303

2.157

Turkey

4

21.18

6/2.12

1/2.12

6.36

85.57

8,302

1.335

Swan

4

21.12

7/1.96

1/2.61

6.53

99.56

10,642

1.352

Swanate

2

33.59

6/2.67

1/2.67

8.01

135.70

12,653

0.854

Sparrow

2

33.54

7/2.47

1/3.30

8.24

158.60

16,171

0.852

Sparate

1

42.41

6/3.00

1/3.00

9.00

171.40

15,852

0.676

Robbin

1/0

53.52

6/3.37

1/3.37

10.10

216.20

19,455

0.536

Raven

2/0

67.32

6/3.78

1/3.78

11.30

272.00

23,529

0.426

Quail

3/0

85.14

6/4.25

1/4.25

12.80

344.00

29,417

0.337

Pigeon

4/0

107.20

6/4.77

1/4.77

14.30

433.40

37,055

0.268

Penguin

266800

135.00

18/3.09

1/3.09

15.50

430.50

30,519

0.213

Wax wing

266800

134.90

26/2.57

7/2.00

16.30

545.40

26,403

0.214

Partridge

300000

152.20

26/2.73

7/2.12

17.30

614.60

56,410

0.190

Ostrich

336400

170.20

18/3.47

1/3.47

17.40

542.90

38,487

0.169

Merlin

336400

170.60

26/2.89

7/2.25

18.30

689.90

62,918

0.169

Linnet

336400

170.50

30/2.69

7/2.69

18.80

784.50

77,267

0.170

Oriole

397500

201.60

24/3.27

7/2.18

19.60

762.50

65,099

0.143

Brant

397500

201.30

26/3.14

7/2.44

19.90

813.50

72,426

0.143

Ibis

397500

200.90

30/2.92

7/2.92

20.40

924.40

90,485

0.144

Lark

477000

242.3

18/4.14

1/4.14

20.70

772.60

52,302

0.119

Pelican

477000

241.7

24/3.58

7/2.39

21.50

914.90

73,243

0.120

Flicker

477000

241.6

26/3.44

7/2.67

21.80

975.50

86,011

0.120

Hawk

477000

241.3

30/3.20

7/3.20

22.40

1,110.00

105,611

0.120

Hen

556500

282.4

18/4.47

1/4.47

22.40

900.70

60,972

0.120

Osprey

556500

282.2

24/3.87

7/2.58

23.2

1,068.00

84,424

0.1030

Parakeet

556500

282.6

26/3.72

7/2.89

23.6

1,142.00

100,838

0.1030

Dove

556500

282.1

30/3.46

7/3.46

24.2

1,298.00

123,470

0.1030

Eagle

605000

306.2

24/4.03

7/2.69

24.2

1,159.00

95,861

0.0948

Peacock

605000

307.2

26/3.87

7/3.01

24.5

1,236.00

108,317

0.0944

Squab

605000

307.2

30/3.61

7/3.61

25.3

1,414.00

128,736

0.0945

Duck

605000

307.2

30/3.61

19/2.16

25.2

1,398.00

133,082

0.0945

Teal

636000

323.1

18/4.78

1/4.78

23.9

1,031.00

69,722

0.0890

Kingbirad

636000

323.0

24/4.14

7/2.76

24.8

1,222.00

101,038

0.0894

Rook

636000

322.5

30/3.70

19/2.22

25.9

1,472.00

14,029

0.0897

Egret

666600

337.2

24/4.23

7/2.82

25.4

1,276.00

105,478

0.0856

Flamingo

666600

338.3

26/4.07

7/3.16

25.8

1,366.00

117,258

0.0854

Gannet
