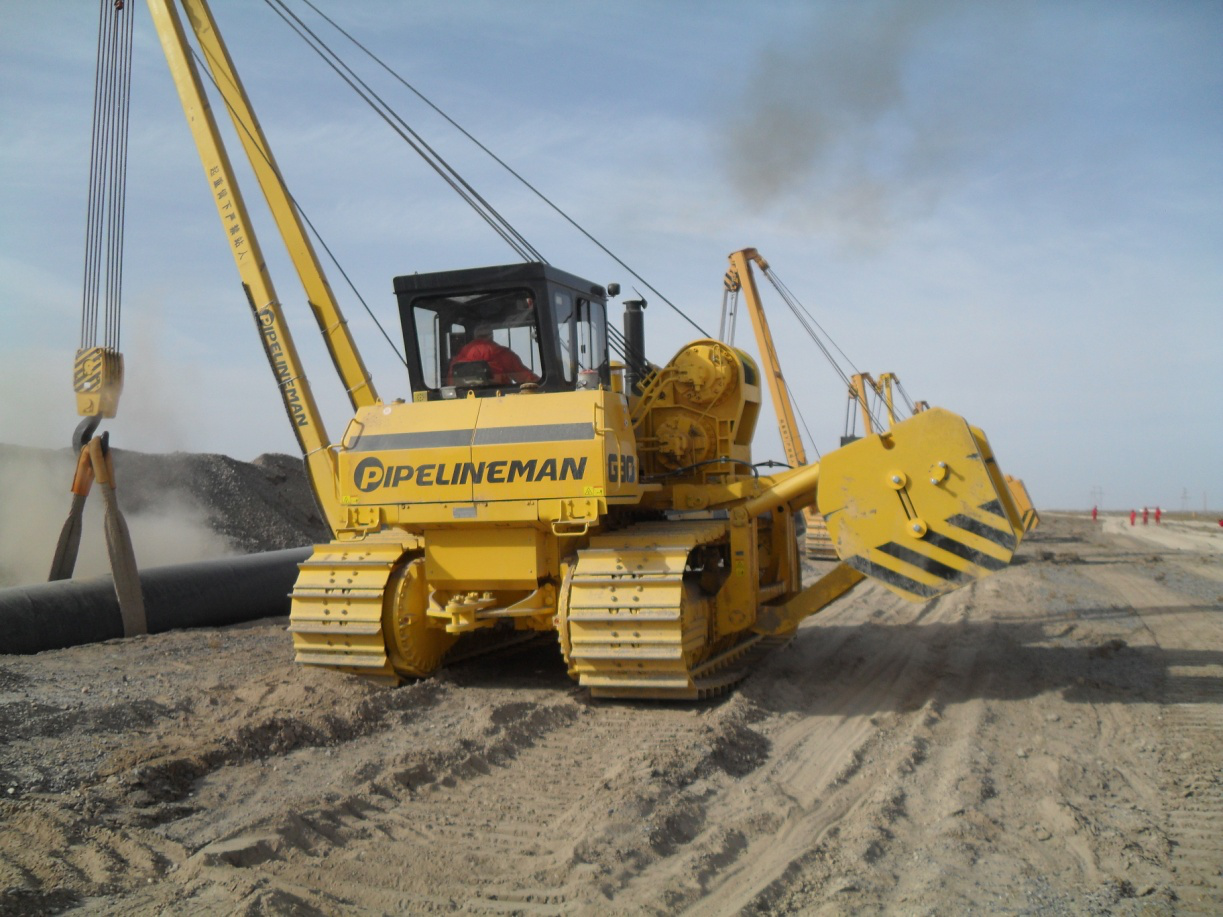

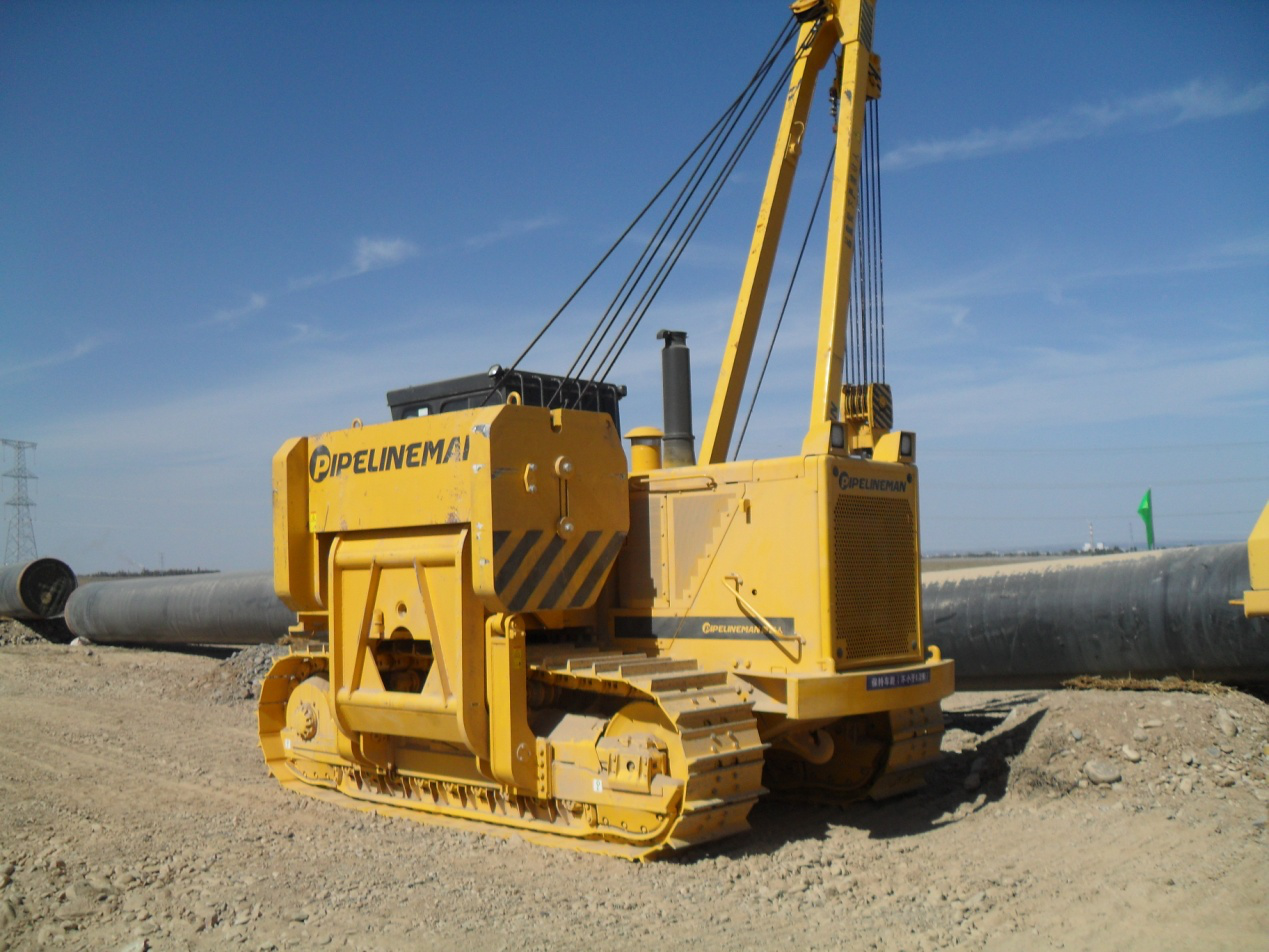

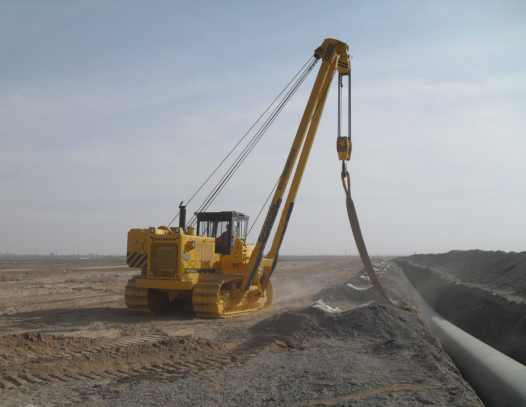

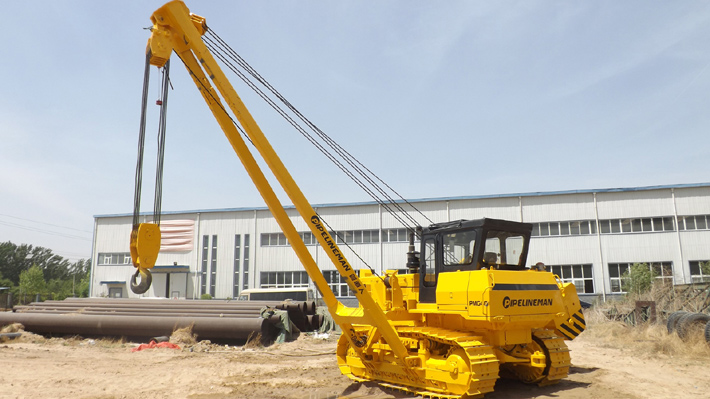

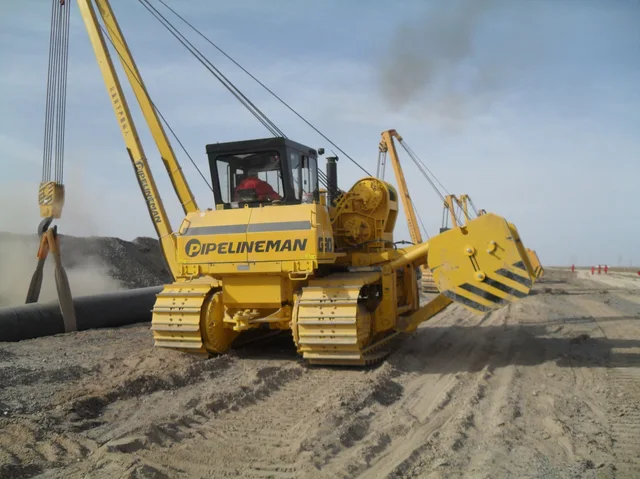

Pipelayer
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Pipelayer
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: other
- Size: 5630*3075*10845
- Color: yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Others
- Made in: Tianjin, China
About this product
- Materials: other
- Size: 5630*3075*10845
- Color: yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Others
- Made in: Tianjin, China
Product details
| Materials | other |
|---|---|
| Size | 5630*3075*10845 |
| Color | yellow |
From the supplier
Engine
Model CUMMINS QSNT-C345
Rated Power 257kW
Rated Speed 2000 rpm
Bore 139.7 mm
Stroke 152.4 mm
Displacement 14.1L
Emission Standard EU Stage IIIA
Electric System 24V
Starter 11 kW / 15hp
Batteries 2 x 155 Ah / 12 V
6-cylinder in-line,
Water cooled (intercooler), Turbo-charged,
Electronic controlled pump injection
Service Capacities
Fuel Tank 640 L
Crankcase And Filter 47 L
Final Drive (Each Side) 55 L
Cooling System 121L
Hydraulic Tank 560L
Power Train 185L
Roller Frames (Each) 0.45L
Weights
Shipping Weight (Tractor) 37t
Boom 2.5t
Pipelayer Attachment 3.5t
CWT Leaves 8.8t
CWT Frame & Rack 3.2t
Total Weight 55t
Undercarriage
Shoe Type Super Extreme
Width Of Standard 860mm
Shoes
Number Of Shoes 45
(Each Side)
Grouser Height 80mm
Pitch 228 mm
Ground Clearance 550 mm
Track Gauge 2490 mm
Length Of Track 3620mm
On Ground
Ground Contact Area 6.23 m2
With 860 mm Shoes
Number Of Track Rollers 9 (Each Side)
Number Of Carrier Rollers 2
(Per Side)
Ground pressure 86.6kPa
Transmission
1 Forward 3.6 km/h
2 Forward 6.6 km/h
3 Forward 11.5 km/h
1 Reverse 4.4 km/h
2 Reverse 7.8 km/h
3 Reverse 13.5 km/h
Hydraulic System
Pump Type Gear-Type, High Pressure Fixed Displacement
Temperature -40~+60℃
Pump Output – Max 440L/min
Relief Valve Setting 14000 kPa –Counterweight
Relief Valve Setting 21000 kPa
–Winches
Pump Output 80 L/min
–Counterweight
Pipelaying Equipment
Planetary Hydraulic Winches,
Winch Brakes Multiple-Disk,
Hydraulic Released.
Hook Boom
Drum Diameter 470 mm 470 mm
Flange Diameter 640 mm 640 mm
Drum Length 510 mm 510 mm
Capacity 85 m 85 m
– 22 mm
Wire Rope Installed 85 m 75m
– 22 mm
Wire Rope Min Breaking Strength 322kN
Hook Speed With 8 Part Line 7.0 m/min
Luffing Time 40 s (0-86)
Boom – Square Section Standard 9.6m
Removable CWT 4 Segments
OTHER FEATURES
Enlarged Fan For The Tropical Area
Engine Oil Cooler
Engine Doors Hinged And Lockable
Closed Cabin With Complete Mirrors
Complete Instruments Indicators For Machine
Front & Rear Towing
Lever Speed Control & Joy Stick Attachment
Full Closed And Anti Dirt Track Frame
Oil Lubricated Tracks And Separate Pivot Shaft
Load Emergency Free Fall
Heavy Duty Squared Boom
Segmented Counterweight
Track Tensioning Greasing Cylinder
Oil Filter With Strainer In Hydraulic Tank
Anti Tipping System
Air Conditioning On The Roof
W1
TRACK GAUGE
2490mm
98 in
W2
WIDTH OF OUTSIDE OF TRACK
3350mm
131.9 in
W3
OVERALL WIDTH
3775mm
148.6 in
W4
OVERALL WIDTH(COUNTERWEIGHT RETRACTED)
4886mm
192.4 in
W5
OVERALL WIDTH(COUNTERWEIGHT EXTENDED)
7025mm
276.6 in
W6
DISTANCE(OUTER EDGE OF CHAIN LINK TO HOOK)
1220mm
48 in
D
GROUSER HEIGHT
80mm
3.1 in
L1
LENGTH OF TRACKS ON GROUND
(DISTANCE IDLER/SPROCKET CENTER)
3620mm
142.5 in
L2
OPERATING LENGTH
5630mm
221.7 in
H1
HEIGHT OVER CAB
3540mm
139.4 in
H2
HEIGHT (TOP OF STACK)
3710mm
146.1 in
H3
HEIGHT (TOP OF WINCH)
3028mm
119.2 in
H4
HEIGHT TO BOTTOM OF COUNTERWEIGHT EXTENDED
814mm
32 in
H5
GROUND CLEARANCE OF CONSOLE
428mm
16.9 in
H6
GROUND CLEARANCE
550mm
21.7 in
H7
GROUND CLEARANCE OF BOOM
565mm
22.2 in
H8
TOTAL HEIGHT
10479mm
412.6 in
H9
DRAW BAR HEIGHT
660mm
26 in
