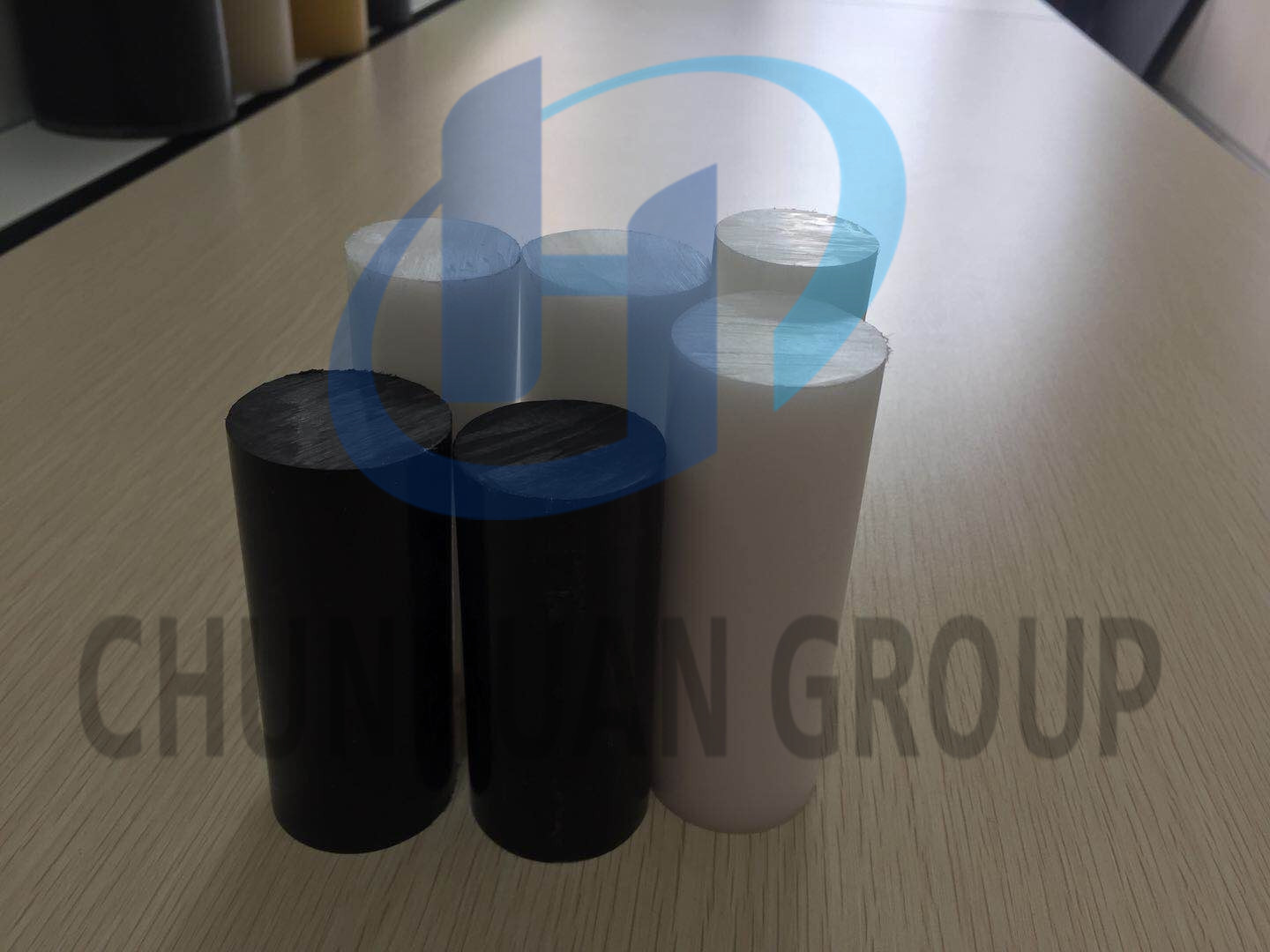

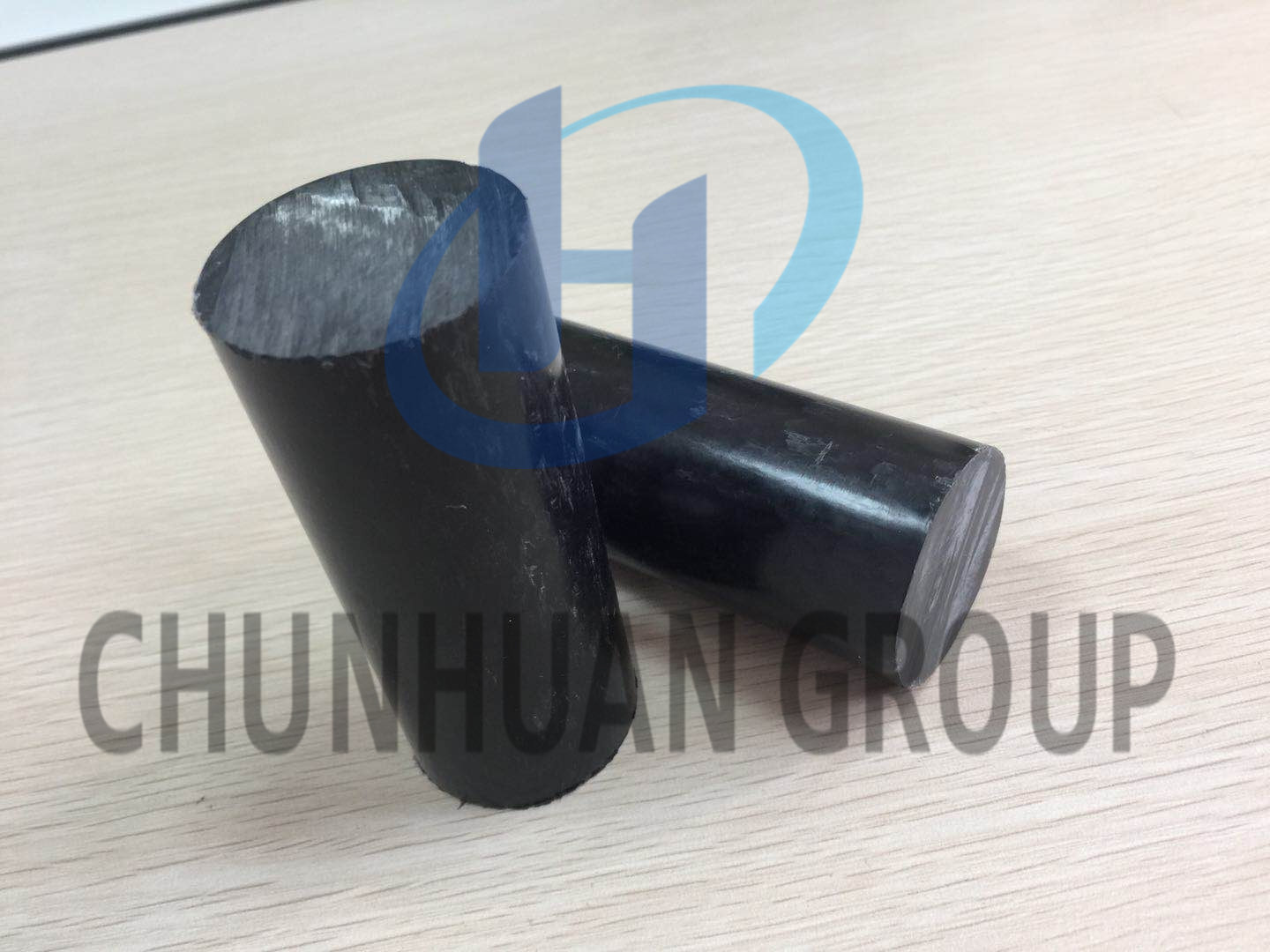

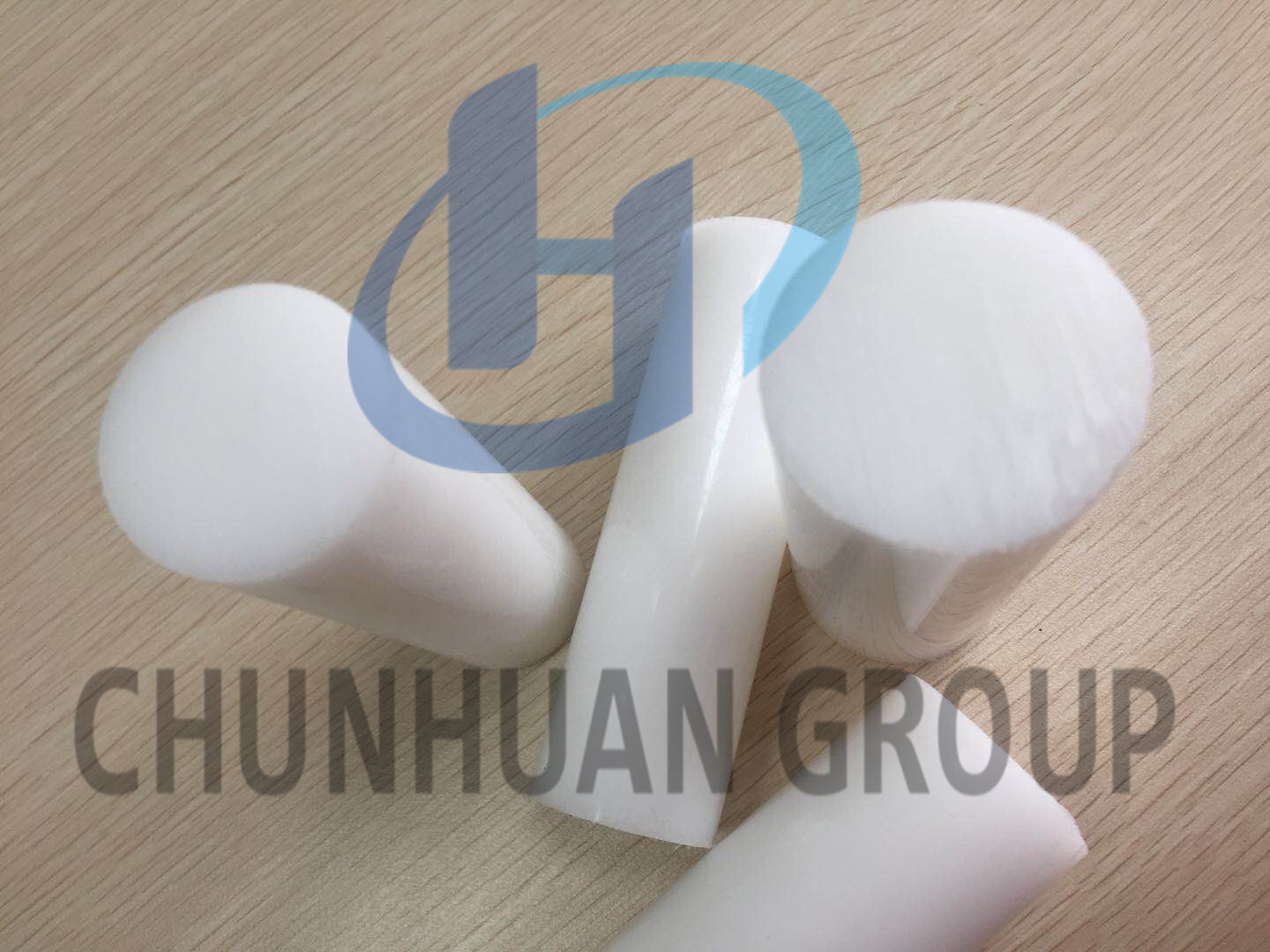

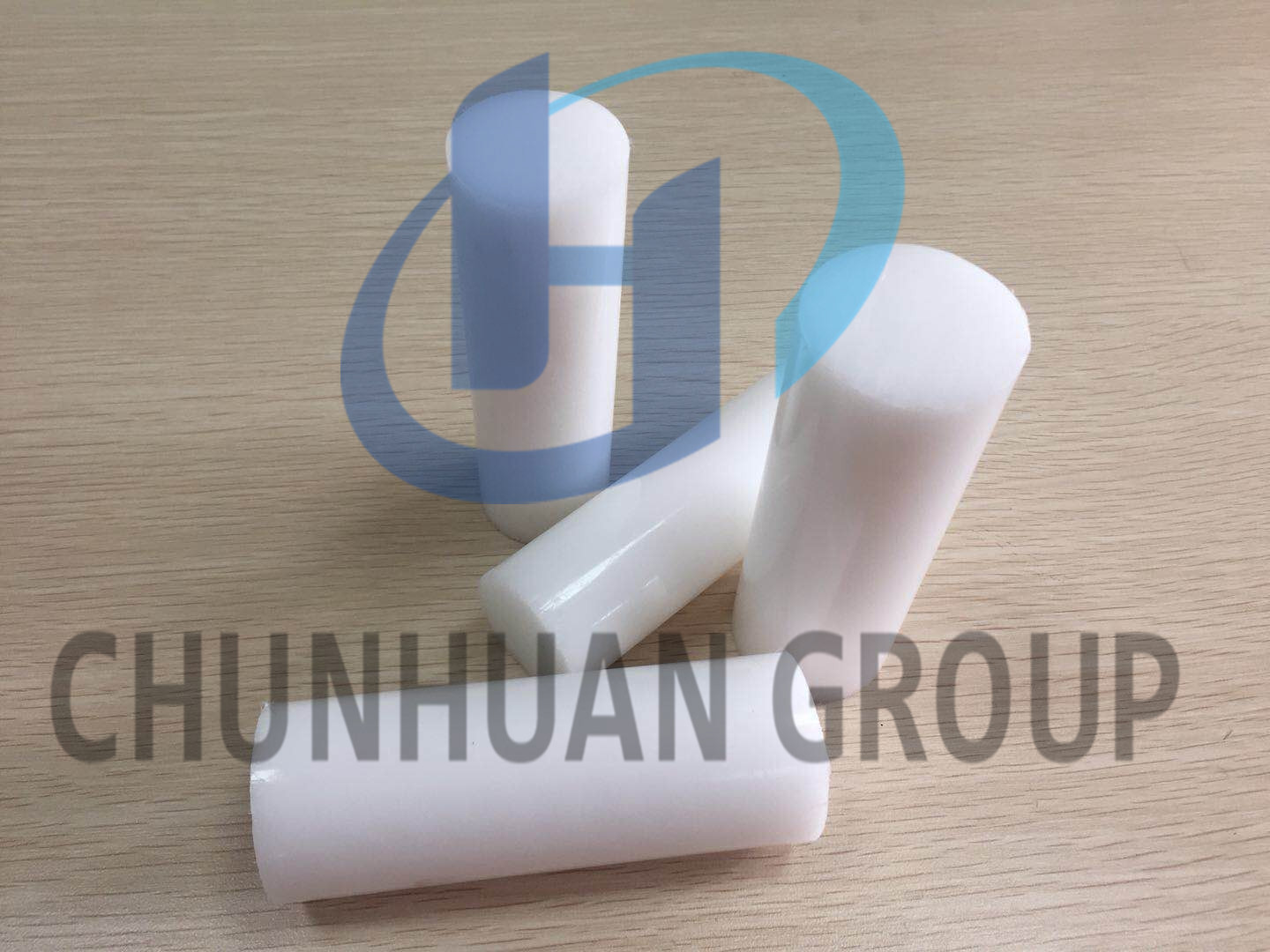

POM Rod/Delrin Rod/Polyacetal Rod for Plastic Gears


POM is a kind of engineering plastic with good mechanical properties. POM together with UHMW PE, Nylon, PTFE are known as four most abrasion resistant plastics. It has almost the same rigidity as metal, so it's an ideal replacement material of copper, cast zinc, steel, aluminum and other metal materials. We are able to produce POM products without bubbles or cracks.

POM rod is an ideal replacement material of copper, cast zinc, steel, aluminum and other metal materials for its good mechanical properties and rigidity, and closeness to the metal material. It has properties like fatigue resistance and creep resistance. Good abrasion resistance, self-lubricated and friction, high thermal stability, good chemical stability and excellent electrical insulation. And it can be used in temperatures ranging from -50° C to +110° C.


Characteristics

-High surface hardness
-Good wear resistance
-Excellent machinability
-Nice self-lubricating properties
-Good dimensional stability
-Low water absorption
-Oil resistant
-Work under the temperature of -40-100 centidegrees

Applocation

Bearings
POM bearings own excellent stability and good wear resistance in various kinds of moist environments.

Gears
POM has high stiffness and rigidity, good self-lubricating properties. So it has taken the place of metal gears in many applications. (Prior materials: Bronze, Stainless Steel)

Rollers
Guide rollers machined from POM rod operate smoothly and reliably in lift gate systems used to load cargo onto truck beds. (Prior materials: Cast Iron, Cast Aluminium)

Structural Keels
With excellent fatigue and impact resistance, POM is a suitable material of continuously loaded structural keel for prosthetic device. (Prior materials: Nylon, PU)

Slide Blocks
Low coefficient friction, wear resistant, self-lubricating, no need for lubricating oil.

Main Properties

PROPERTIES

Test Method

Unit

Value

I.Physical Properties

Density

ISO 1183

g/cm3

1.45

Water absorption 24hrs

ISO 62

%

II.Thermal Properties

Heat deflection temperature - HDT/A

ISO 75A

ºC

110

Min. service temperature

ºC

-40

Max. service temperature

ºC

100

Thermal conductivity at 23 ºC

DIN 11359

W/(K*m)

0.31

Coefficient of linear thermal expansion

ISO 11359

10-4*K-1

1.2

Flammability Rating(6mm thickness)

UL 94

-

HB

III.Mechanical Properties at 23ºC

Tensile strength at yield

ISO 527-2

MPa

63

Tensile strength at break

ISO 527-2

Mpa

-

Elongation at break

ISO 527-2

%

31

Modulus of elasticity after tensile test

ISO 527-2

MPa

2,700

Modulus of elasticity after flexural test

ISO 178

MPa

-

Hardness - Shore D

DIN 53505

83

Charpy impact strength

ISO 179

kJ/m2

N. B.

Friction coefficient

DIN 53375

0.35

IV.Electrical Properties  at 23ºC

Dielectric constant at 1 MHz

IEC 60250

106Hz

3.8

Dielectric loss factor at 1 MHz

IEC 60250

106Hz

0.005

Volume resistively

IEC 60093

Ohm (Ω) * cm

>1013

Surface resisively

IEC 60093

Ohm (Ω)

>1013

Dielectric strength

IEC 60243-1

kV/mm

40

NOTE: 1 g/cm3 = 1,000 kg/m3, 1 Mpa = 1 N/mm2, 1kV/mm = 1 MV/m
