Lida Poultry Farm (Chicken Farm)

Description of Steel Structure Poultry Farm:

Poultry farm includes Egg chicken house and Broiler chicken house; both of them are steel structure building. Egg chicken usually feed in the cages, broiler chicken usually feed on the ground. We could supply you the building materials, for the equipments, recommend you purchase from the specialized manufacturer.

Light steel structure building is a new type of building structure system, which is formed by the main steel framework linking up H section, Z section and U section steel components, roof and walls using a variety of panels and other components such as windows, doors, cranes, etc.

Light steel structure building is widely used in warehouses, workshops, large factories, etc.

Characteristics of steel structure poultry farm:

1.    Wide span: single span or multiple spans, the max span clear distance is 36m, without middle columns.

2.    Low cost: unit price range from USD35 to USD70/square meter FOB according to customer’s request.

3.    Fast construction and easy in installation

4.    Long term service life: more than 50 years.

5.    Other characteristics: environmental protection, stable structure, earthquake resistance, water proofing, and energy saving.

Main parts of the steel structure poultry farm:

\n \n Normal\n 0\n \n \n \n 7.8 磅\n 0\n 2\n \n false\n false\n false\n \n EN-US\n ZH-CN\n X-NONE\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n\n\n\n\n

Main Steel Frame

H section steel

Q345 steel 8mm/10mm

Welding

Automatic Submerged Arc Welding

Rust removing

Sand blasting

Surface processing

Alkyd Paint or galvanized

Intensive bolt

Grade 10.9

Bracing System

Angle Brace

L50x4,Steel Q235, Process and Painting

Cross bracing

Φ20, Steel Q235, Process and Painting

Tie Bar

Φ89*3, Steel Q235 Process and Painting

Better Brace

Φ12,Steel Q235 Process and Painting

Ordinary Bolt

Galvanized Bolt

Roof

Purlin

C160*60*2.5,Steel Q235, Galvanized

Out-roof Panel

Sandwich Panel or corrugated steel plate

Transparent lighting panel

FRP

Accessories

Glass glue, self-tapping screw etc.

Edge Cover

Made of color steel sheet thickness 0.5mm

Gutter

Color steel plate, or PVC, or GI plate with asphalt pint

Rainspout

Φ110 PVC

Wall

Purlin

C160*60*2.5,Steel Q235, galvanized

Wall

sandwich panel or corrugated steel plate

Accessories

Glass Cement, Self-tapping Screw etc.

Edge Cover

Made of color steel sheet thickness 0.5mm

Axial fan

Axial Fan



Door & window

Rolling door/sliding door

PVC/alu/steel window

Crane beam

Crane

With or without crane in 5 tons to 20 tons

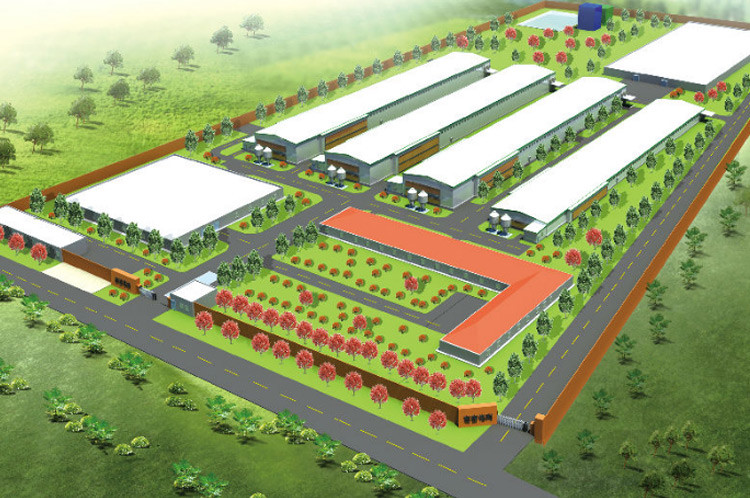

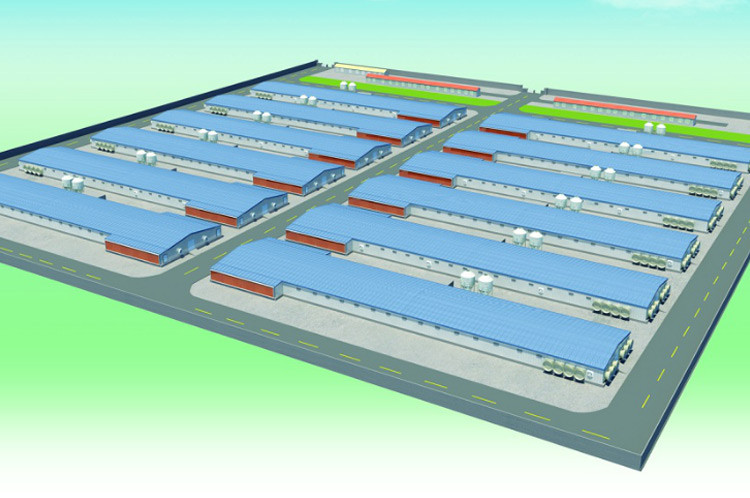

Lida Group can provide you optimal design scheme of large scale of poultry farm, associated with all equipments you need in each house.

Chicken house width is generally 6 to 15 meters and length is generally 30 to 100 meters. Flat chicken house height is generally 2.2 to 2.4 meters, the height of the cage house about 5 meters. There are open-house, window-type, closed-type, depending on weather conditions.

105M*14M*3M  Broiler Farm





    Layer Farm 118M*8.5M*3.5M







"}
