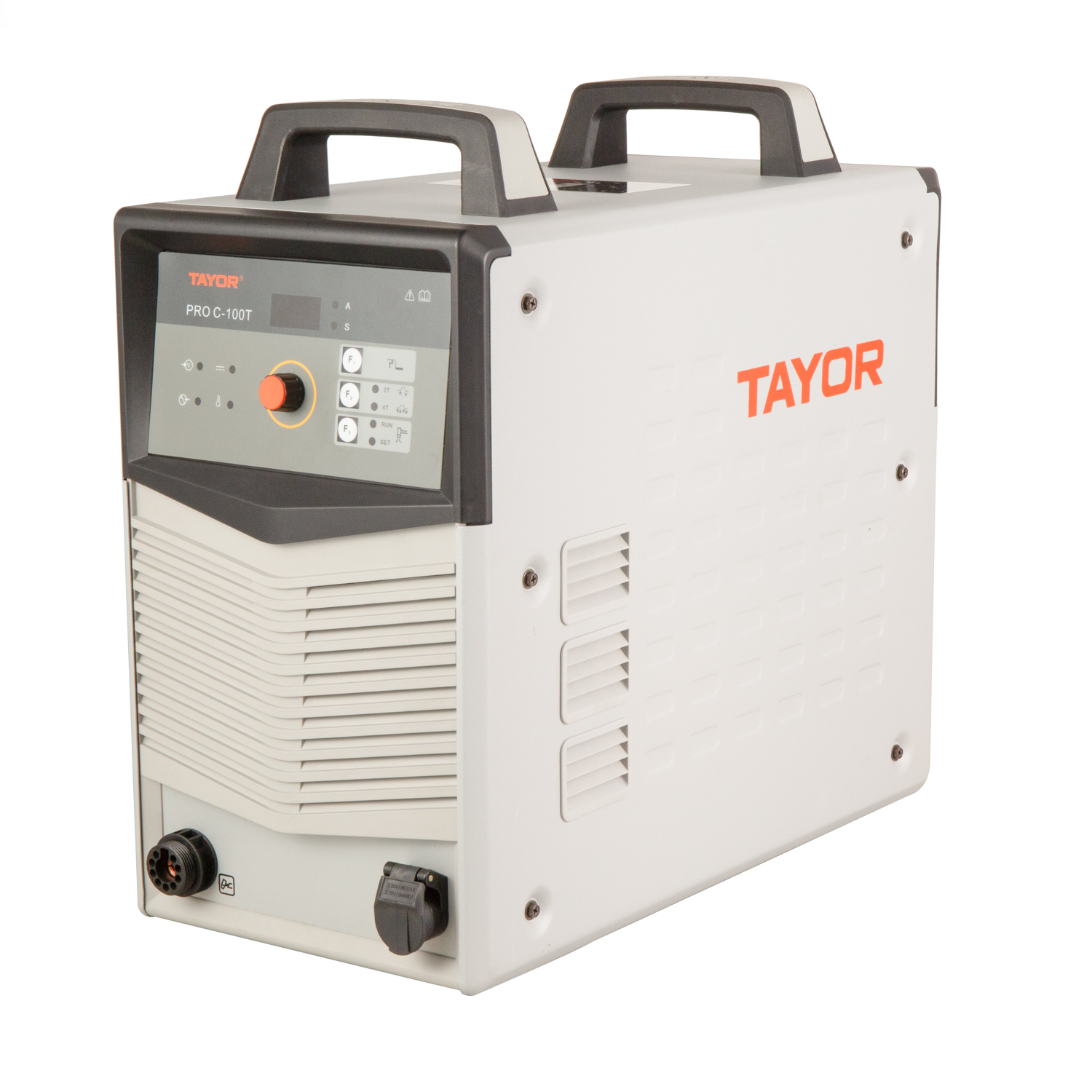

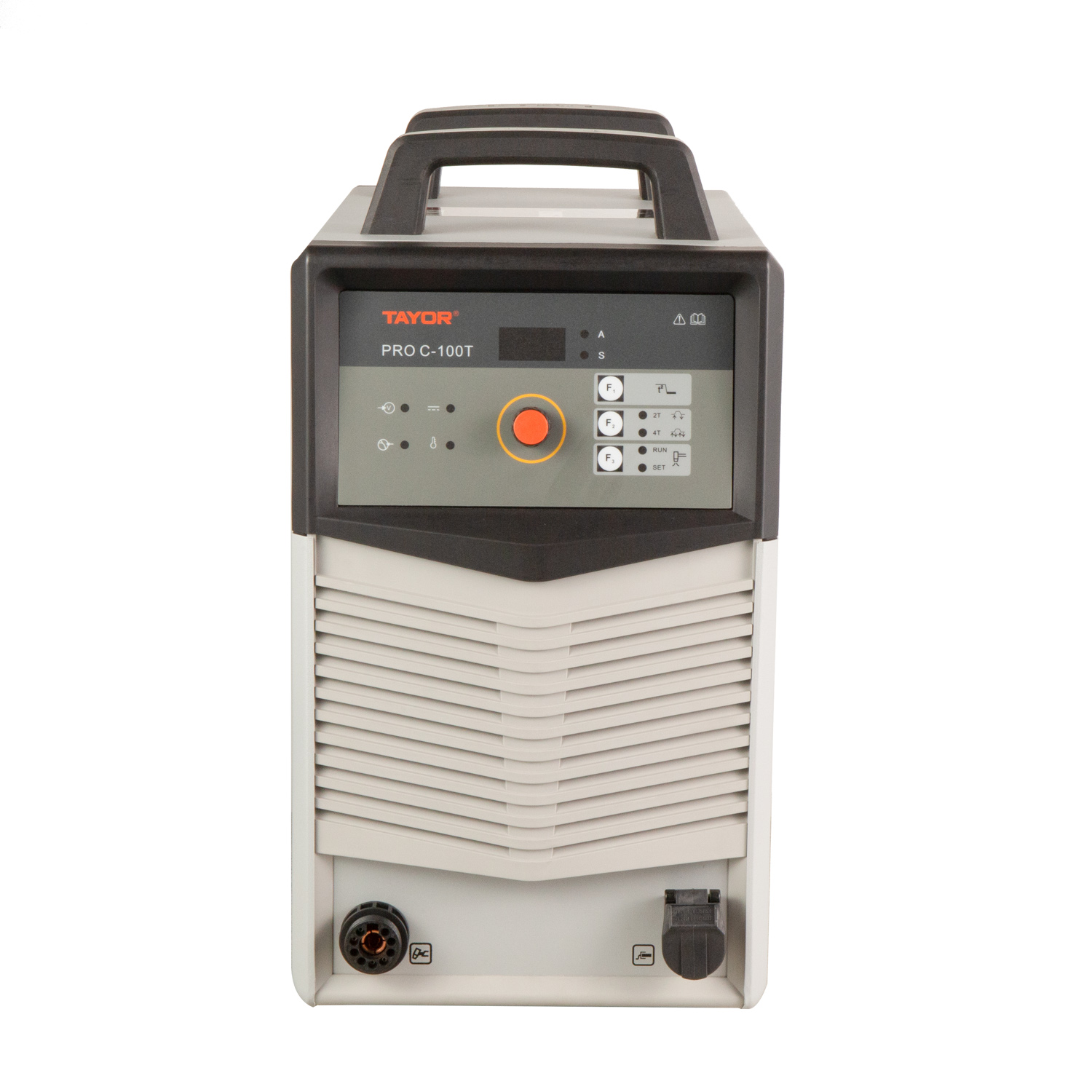

PRO C-100T hand plasma cutting machine
SHANGHAI WELDING EQUIPMENTS & CONSUMABLES CO., LTD.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
PRO C-100T hand plasma cutting machine
SHANGHAI WELDING EQUIPMENTS & CONSUMABLES CO., LTD.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Size: 471*252*468
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Size: 471*252*468
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Size | 471*252*468 |
|---|
Product details
| Size | 471*252*468 |
|---|
From the supplier
The TAYOR PRO C-100T is an air plasma cutting power supply with Constant Current (CC) output characteristics offering the highest value. High frequency and post-flow function are all built in.
A good cutting performance is available when cutting stainless, mild steel, aluminium and easy start.
Machine Specifications
Input Voltage
380V 3ph 50/60Hz
Input Current
26A
Open Circuit Voltage
324V
Output Current Range
30~100A
Duty Cycle (40ºC)
100%@100A
Efficiency
≥88.5(%)
Power Factor
0.88 cosφ
Insulation Class
H
Protection Class
IP21S
Dimensions（L*W*H）
547*262*501mm
Weight
30 KG
From the supplier
The TAYOR PRO C-100T is an air plasma cutting power supply with Constant Current (CC) output characteristics offering the highest value. High frequency and post-flow function are all built in.
A good cutting performance is available when cutting stainless, mild steel, aluminium and easy start.
Machine Specifications
Input Voltage
380V 3ph 50/60Hz
Input Current
26A
Open Circuit Voltage
324V
Output Current Range
30~100A
Duty Cycle (40ºC)
100%@100A
Efficiency
≥88.5(%)
Power Factor
0.88 cosφ
Insulation Class
H
Protection Class
IP21S
Dimensions（L*W*H）
547*262*501mm
Weight
30 KG
About the supplier
Main products: Flux, Welding electrodes, Electric welding machines, Welding wires
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Manufacturer
- ✓Founded 1993
- ✓Canton Fair Premium Supplier
- ✓National high-tech enterprise
- ✓1 certificate on file
- Exhibited at 10 of the last 10 Canton Fairs
- Manufacturer
- Founded 1993
- Canton Fair Premium Supplier
