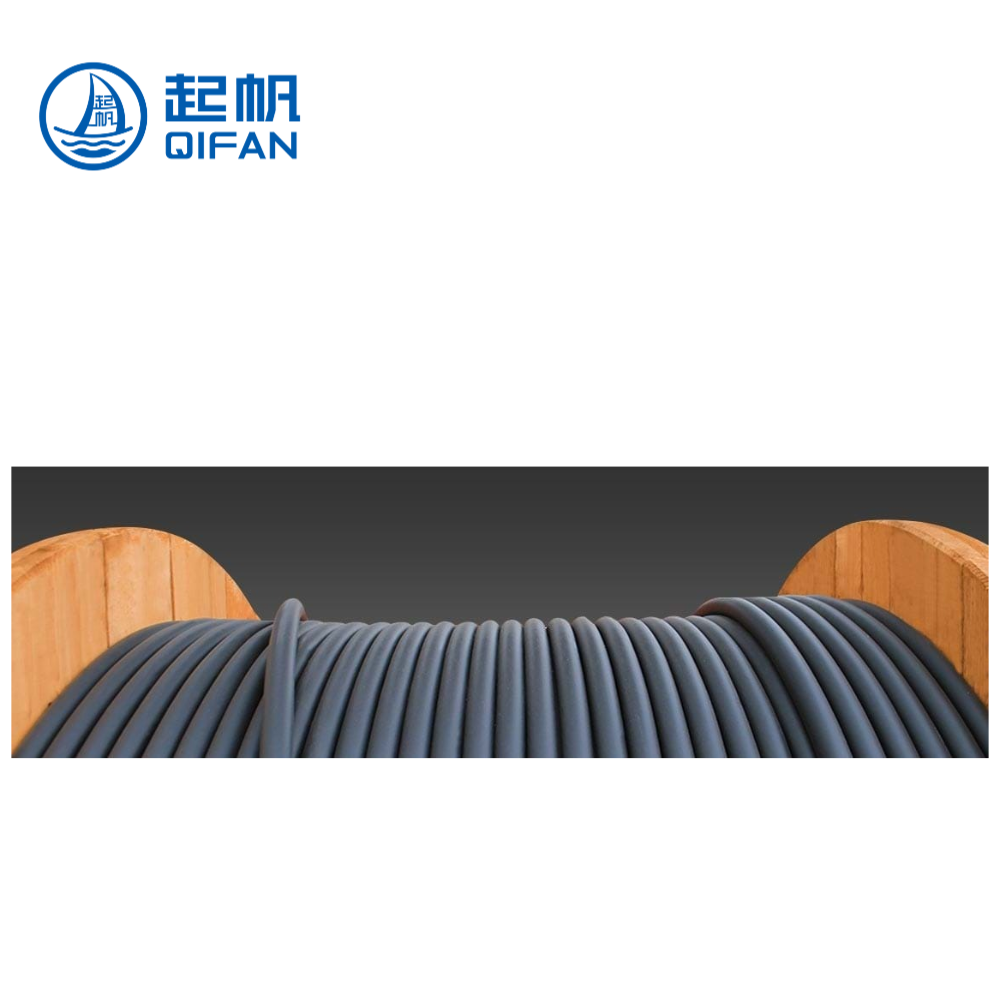

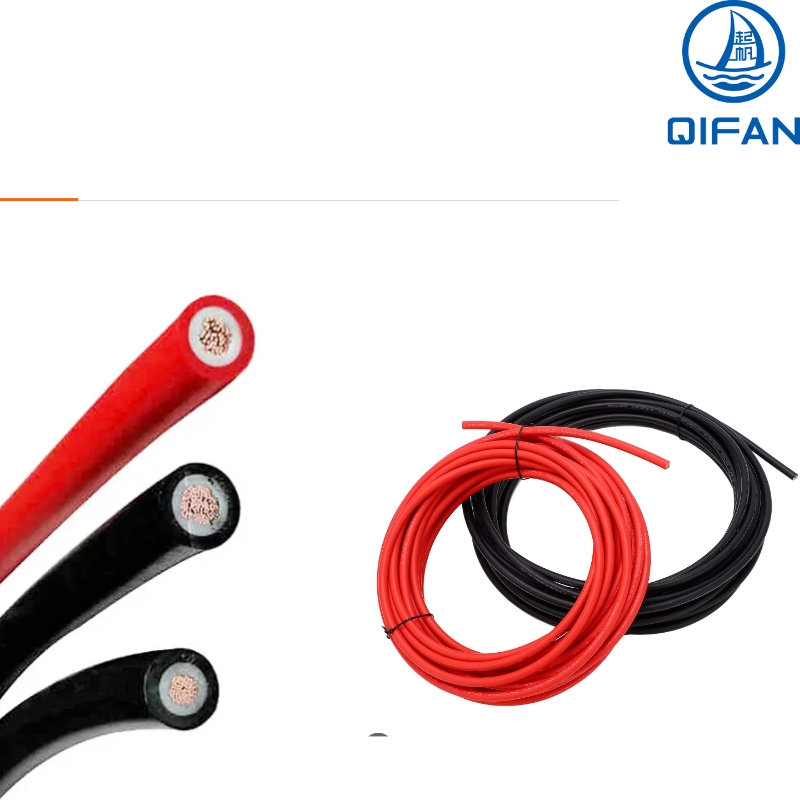

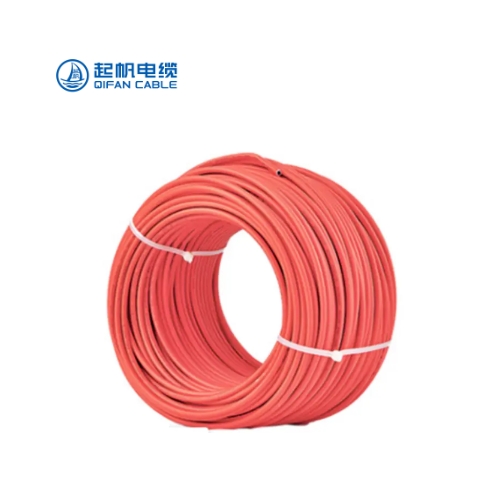

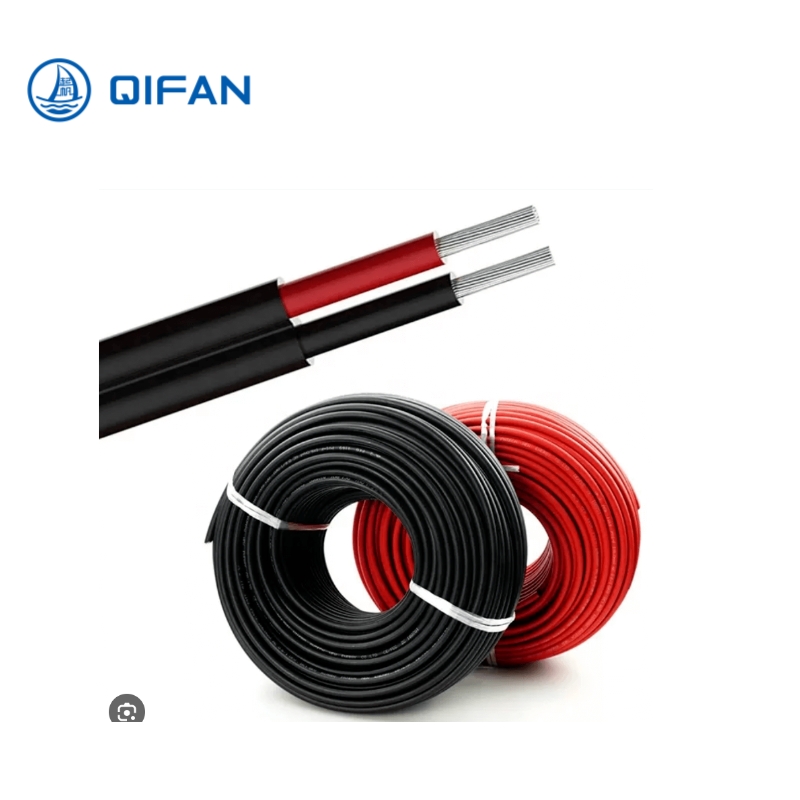

PV1-F DC1500V solar cable
shanghai qifan cable co.,ltd.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
PV1-F DC1500V solar cable
shanghai qifan cable co.,ltd.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: cu/xlpp/xlpo
- Conductor type: Solid
- Rangeof application: Cold-ResistantRefractory
- Insulation material: Other
- Application: Heating
- Certification: CCCCERoHSISO9001
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
About this product
- Materials: cu/xlpp/xlpo
- Conductor type: Solid
- Rangeof application: Cold-ResistantRefractory
- Insulation material: Other
- Application: Heating
- Certification: CCCCERoHSISO9001
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
Product details
| Materials | cu/xlpp/xlpo |
|---|---|
| Conductor type | Solid |
| Rangeof application | Cold-ResistantRefractory |
| Insulation material | Other |
| Application | Heating |
| Certification | CCCCERoHSISO9001 |
| Material shape | RoundWire |
| Sheath material | Crosslinking |
| Brand | Other |
| Conductor material | Other |
Product details
| Materials | cu/xlpp/xlpo |
|---|---|
| Conductor type | Solid |
| Rangeof application | Cold-ResistantRefractory |
| Insulation material | Other |
| Application | Heating |
| Certification | CCCCERoHSISO9001 |
| Material shape | RoundWire |
| Sheath material | Crosslinking |
| Brand | Other |
| Conductor material | Other |
From the supplier
Application:
Solar cables applies to flexible single-core cables (cords) for use at the DC-side of photovoltaic systems with a maximum permissible voltage of DC 1.8 kV (conductor/conductor, non-earthed system).The cables are suitable for use in safety class II. It is permitted to connect these cables as multiple-construction. The cables are intended to operate at ambient temperature until 90°C

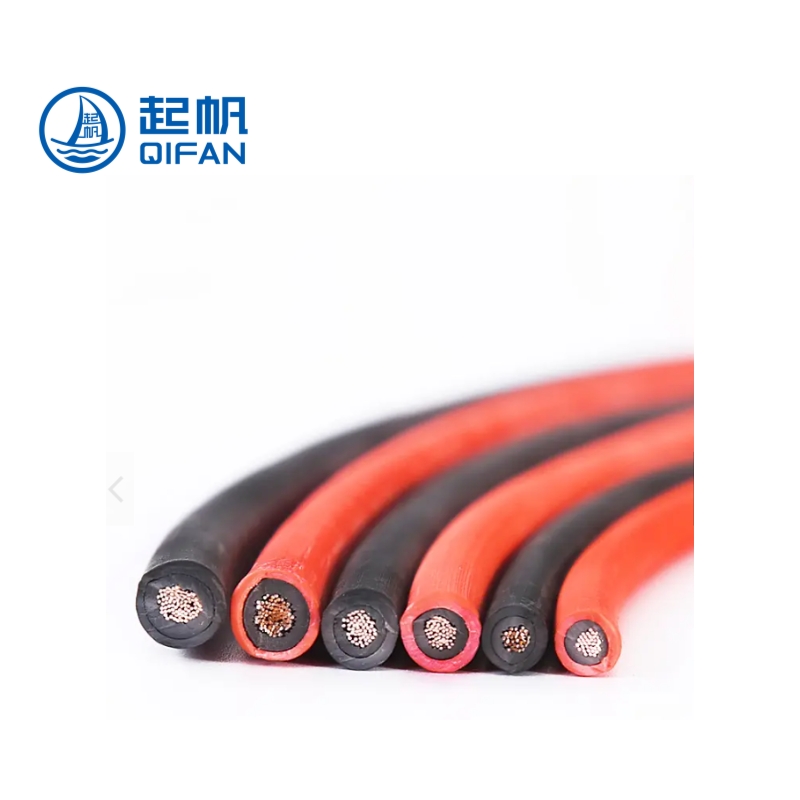

Construction:
1. Conductor - Class 5 tinned annealed stranded copper conductor
2. Insulation - Low smoke halogen-free electron-beam cross-linked compounds (XLPO)
3. Outer sheath - Low smoke halogen-free electron-beam cross-linked compounds(XLPO)
Cross Section：
1 core: 1.5~35mm2
Temperature characteristics:
Working temperature: -40℃~90℃
Max. temperature at conductor: 120℃
Short Circuit temperature: 200℃ (at max.5sec)
Electrical Characteristics:
Rated Voltage：
AC U0/U：0.6/1kV
DC Max. : 1800V (conductor/conductor, non-earthed system)
Spark Test Voltage: 6000 V AC
5min Test Voltage: 6500V
Chemical Features:
Weather / UV Resistance
Resistance mineral oil
Color:
Insulation: Black or White or as customer’s requirement
Outer sheath: Red or Black or as customer’s requirement
Standard:
TUV 2PfG 1169
IEC60228, IEC60332
EN50305, EN50395, EN50396
From the supplier
Application:
Solar cables applies to flexible single-core cables (cords) for use at the DC-side of photovoltaic systems with a maximum permissible voltage of DC 1.8 kV (conductor/conductor, non-earthed system).The cables are suitable for use in safety class II. It is permitted to connect these cables as multiple-construction. The cables are intended to operate at ambient temperature until 90°C
Construction:
1. Conductor - Class 5 tinned annealed stranded copper conductor
2. Insulation - Low smoke halogen-free electron-beam cross-linked compounds (XLPO)
3. Outer sheath - Low smoke halogen-free electron-beam cross-linked compounds(XLPO)
Cross Section：
1 core: 1.5~35mm2
Temperature characteristics:
Working temperature: -40℃~90℃
Max. temperature at conductor: 120℃
Short Circuit temperature: 200℃ (at max.5sec)
Electrical Characteristics:
Rated Voltage：
AC U0/U：0.6/1kV
DC Max. : 1800V (conductor/conductor, non-earthed system)
Spark Test Voltage: 6000 V AC
5min Test Voltage: 6500V
Chemical Features:
Weather / UV Resistance
Resistance mineral oil
Color:
Insulation: Black or White or as customer’s requirement
Outer sheath: Red or Black or as customer’s requirement
Standard:
TUV 2PfG 1169
IEC60228, IEC60332
EN50305, EN50395, EN50396
