Application & Specification :

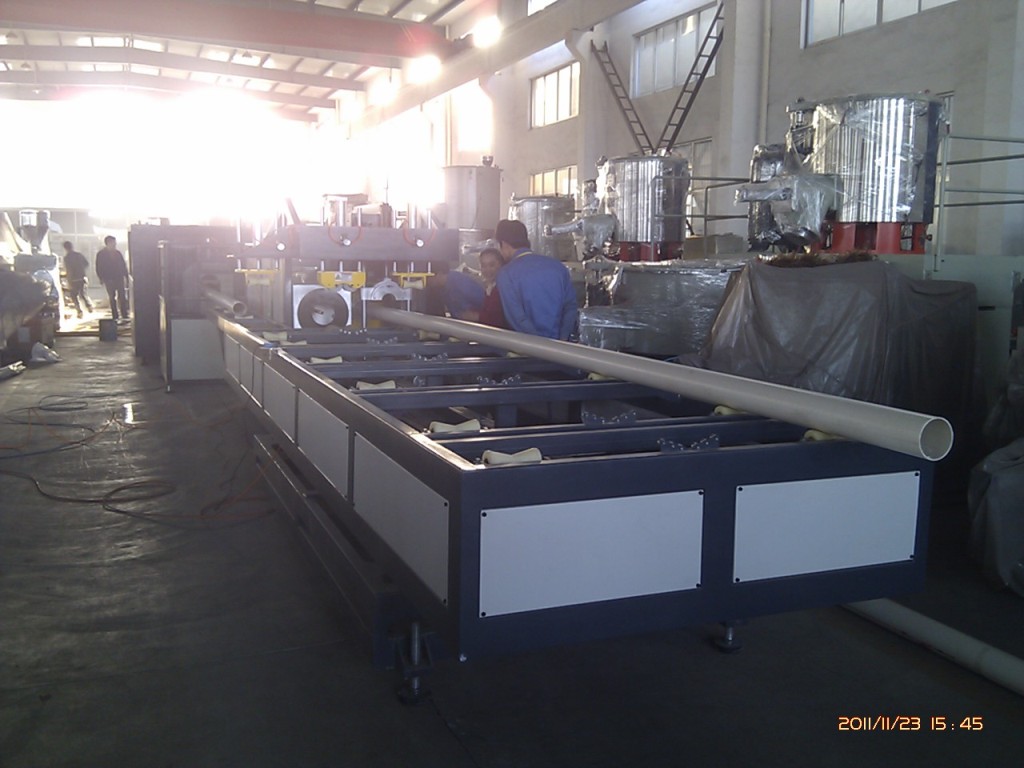

GF series plastic pipe production line is mainly used in the production of agricultural water supply and drainage, building water supply and drainage, power cables and cable laying, and a variety of pipe diameter, wall thickness of plastic PVC pipe.

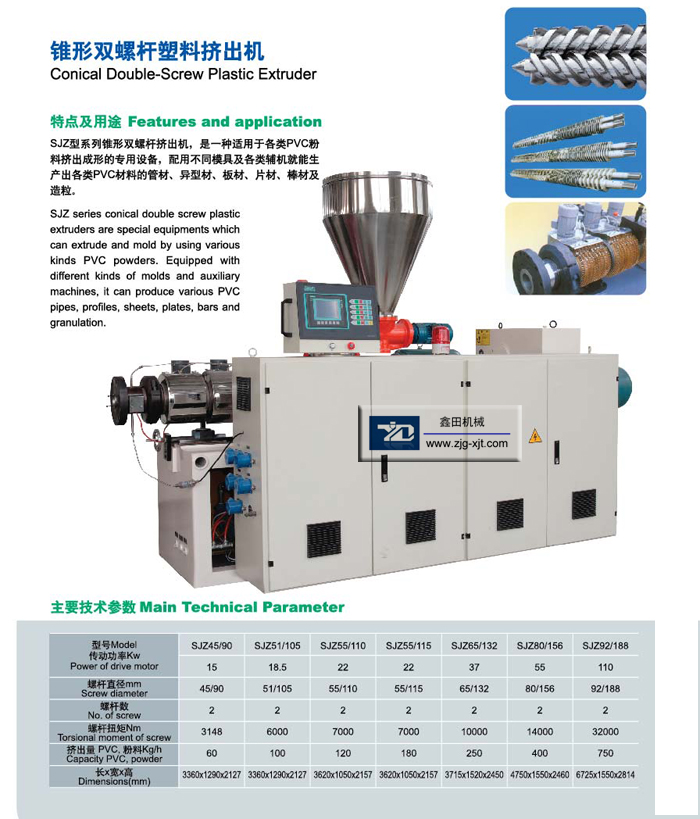

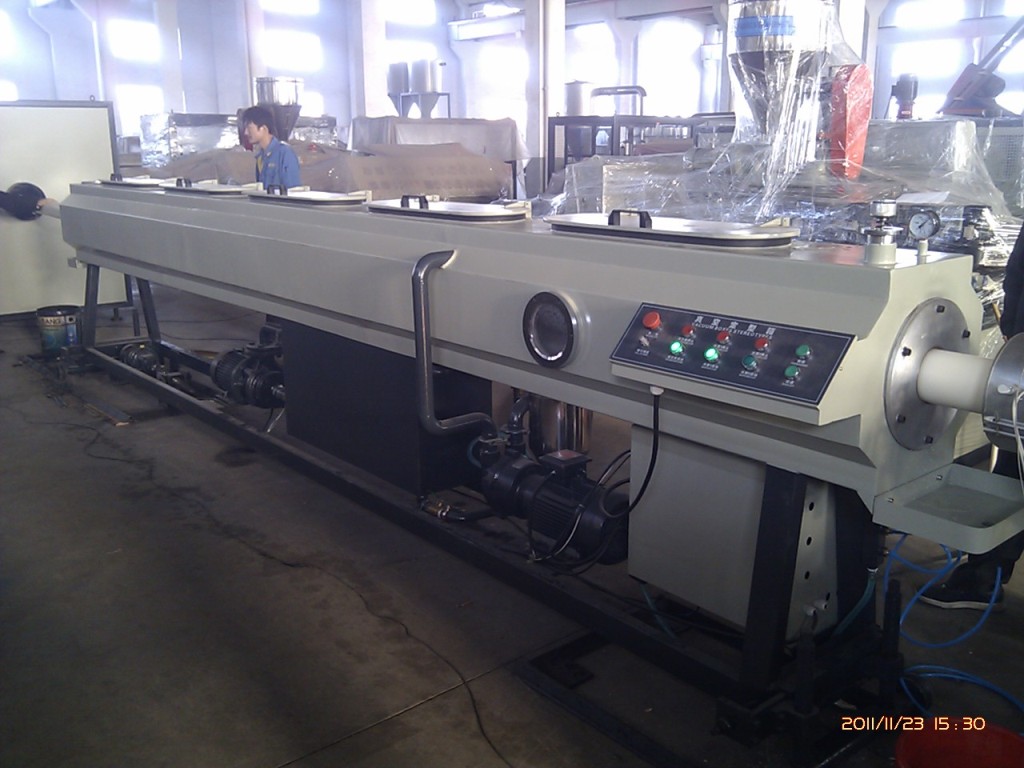

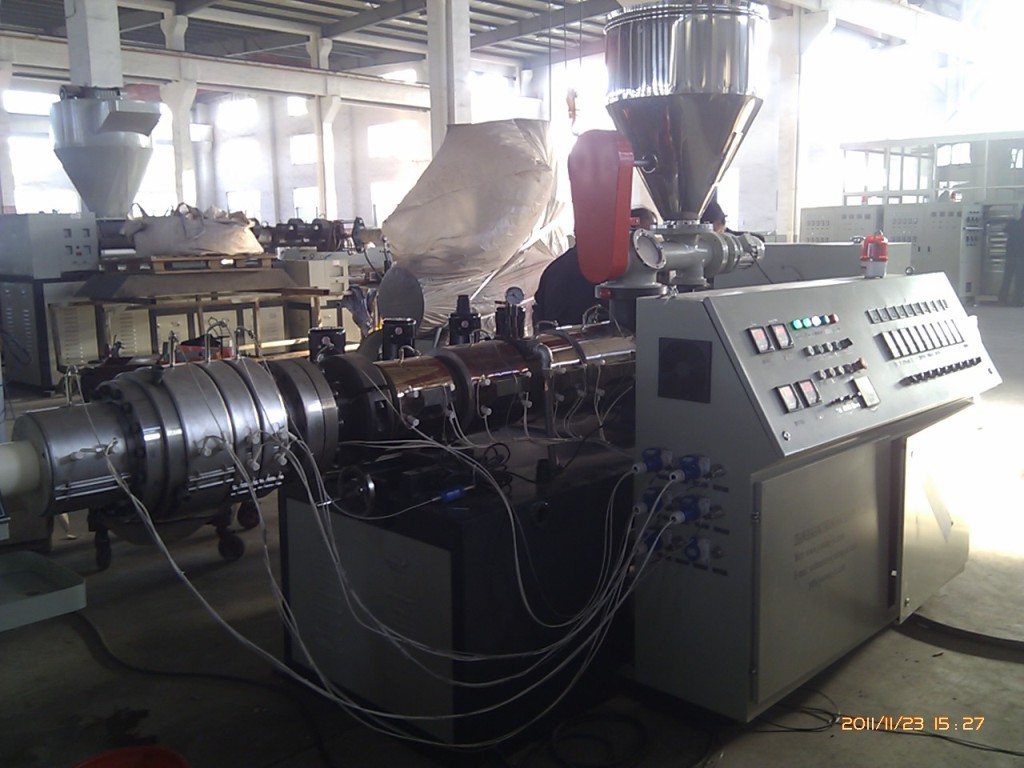

The unit is composed of conical (parallel) twin screw extruder, vacuum shaping table, traction machine, cutting machine, turning frame and so on. The screw extruder and the tractor adopt imported AC frequency conversion speed regulating device.

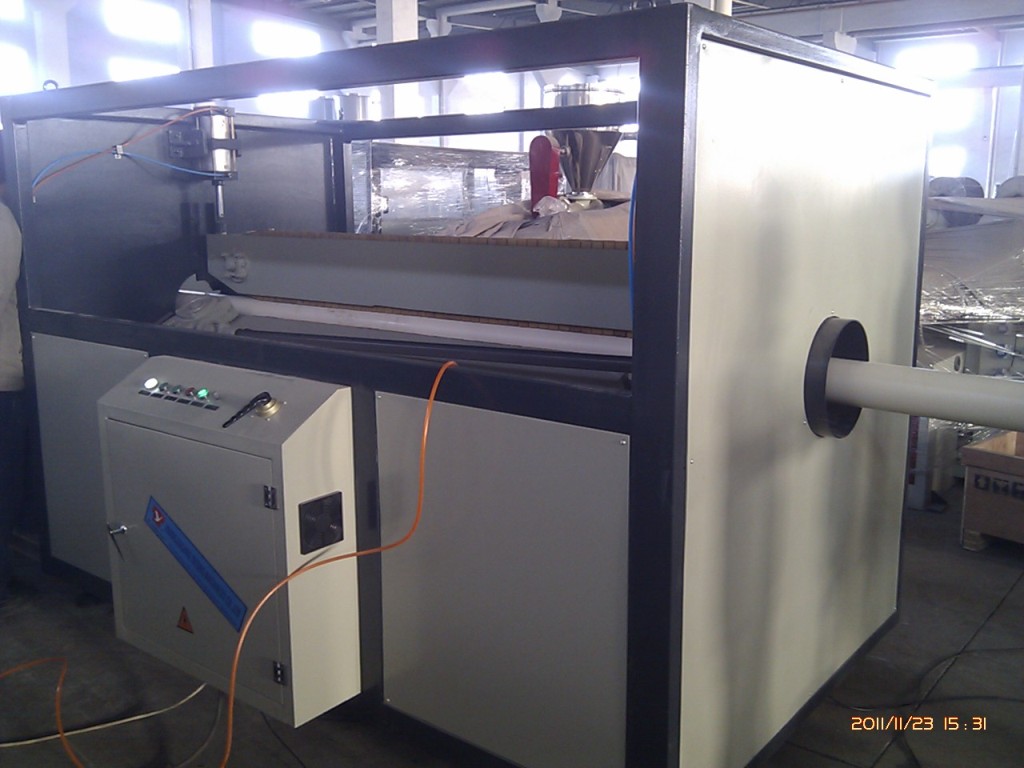

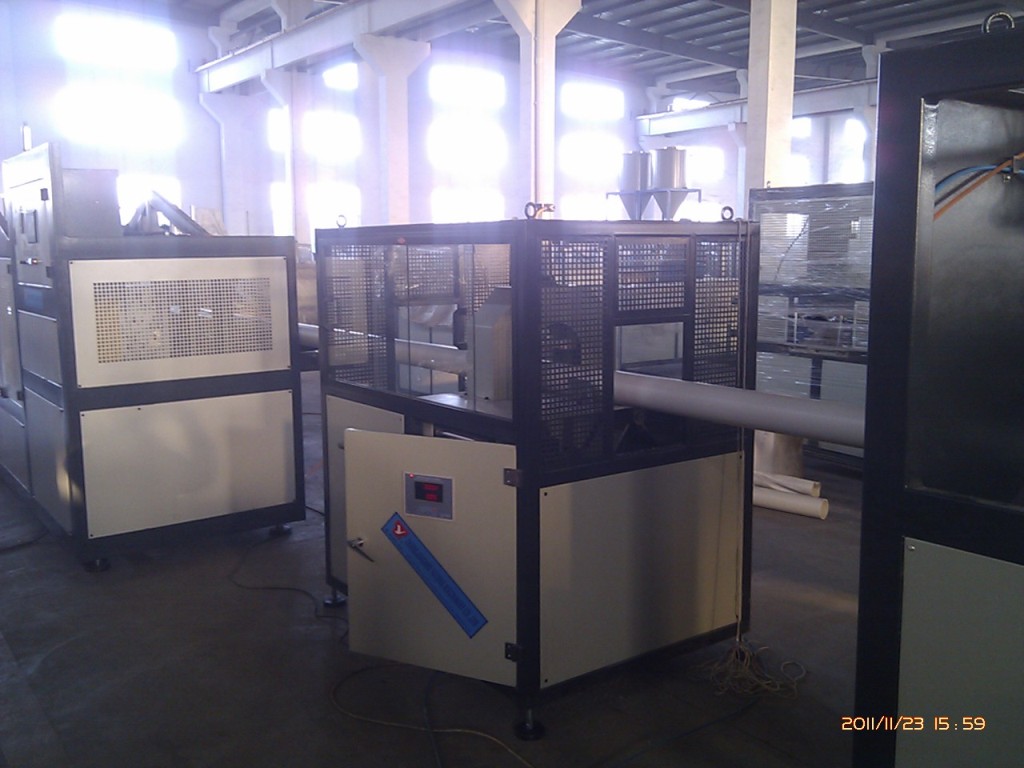

The traction machine has two claw, three claw, four claw, six claw, claw traction etc. Can choose the cutting type or planetary cutting type, with length meter and thickening device, the unit reliable performance, high production efficiency.

Our company can according to user requirements, with special device inner helix pipe production, the inner wall of the hollow tube and core layer foamed pipe unit replacement extruder, can produce PP, PE, ABS and PPR, PEX, silicon core pipe and other pipe materials. Planetary cutting machine adopts fully automatic computer numerical control, has the advantages of convenient operation, reliable performance and so on.
