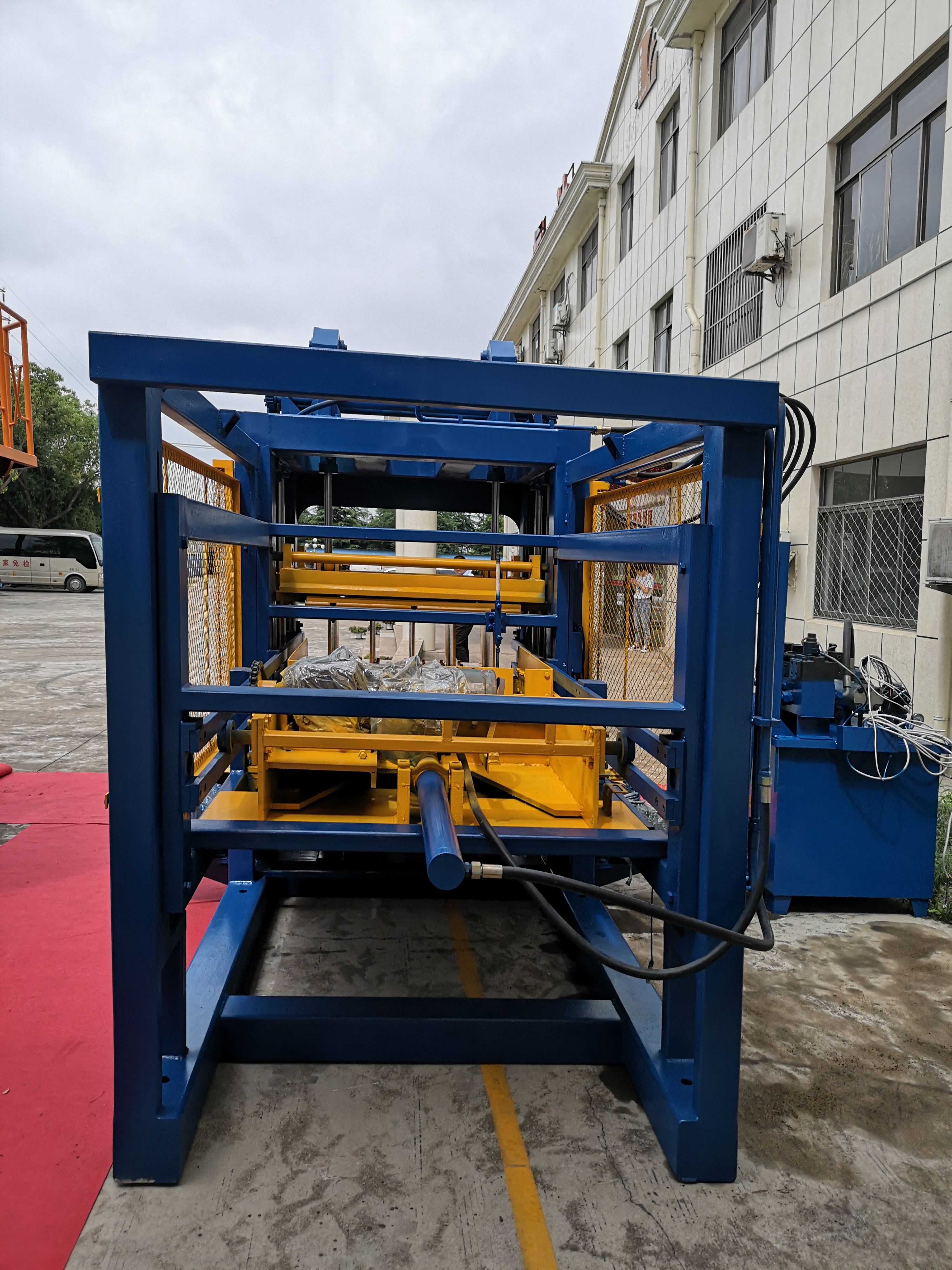

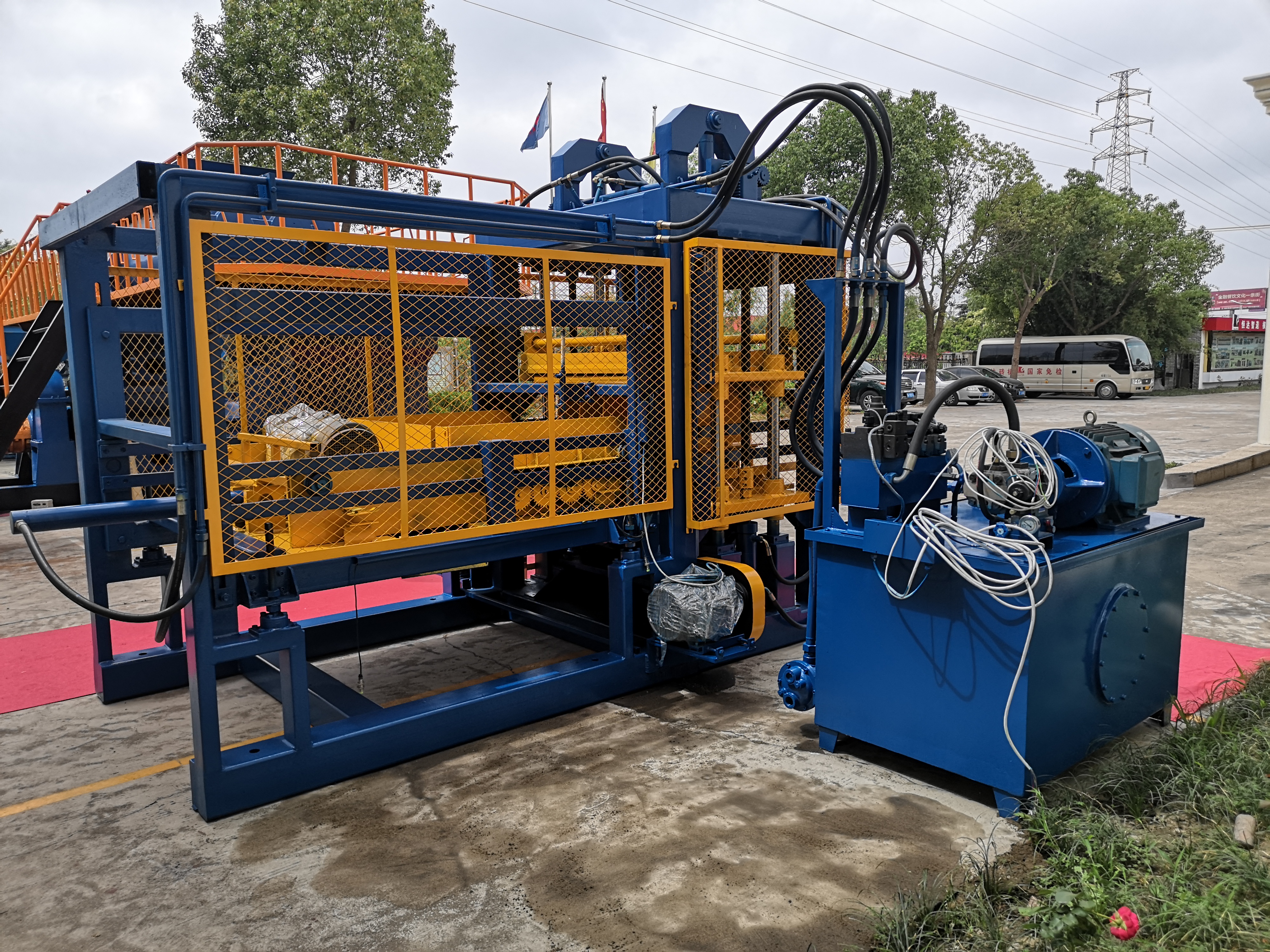

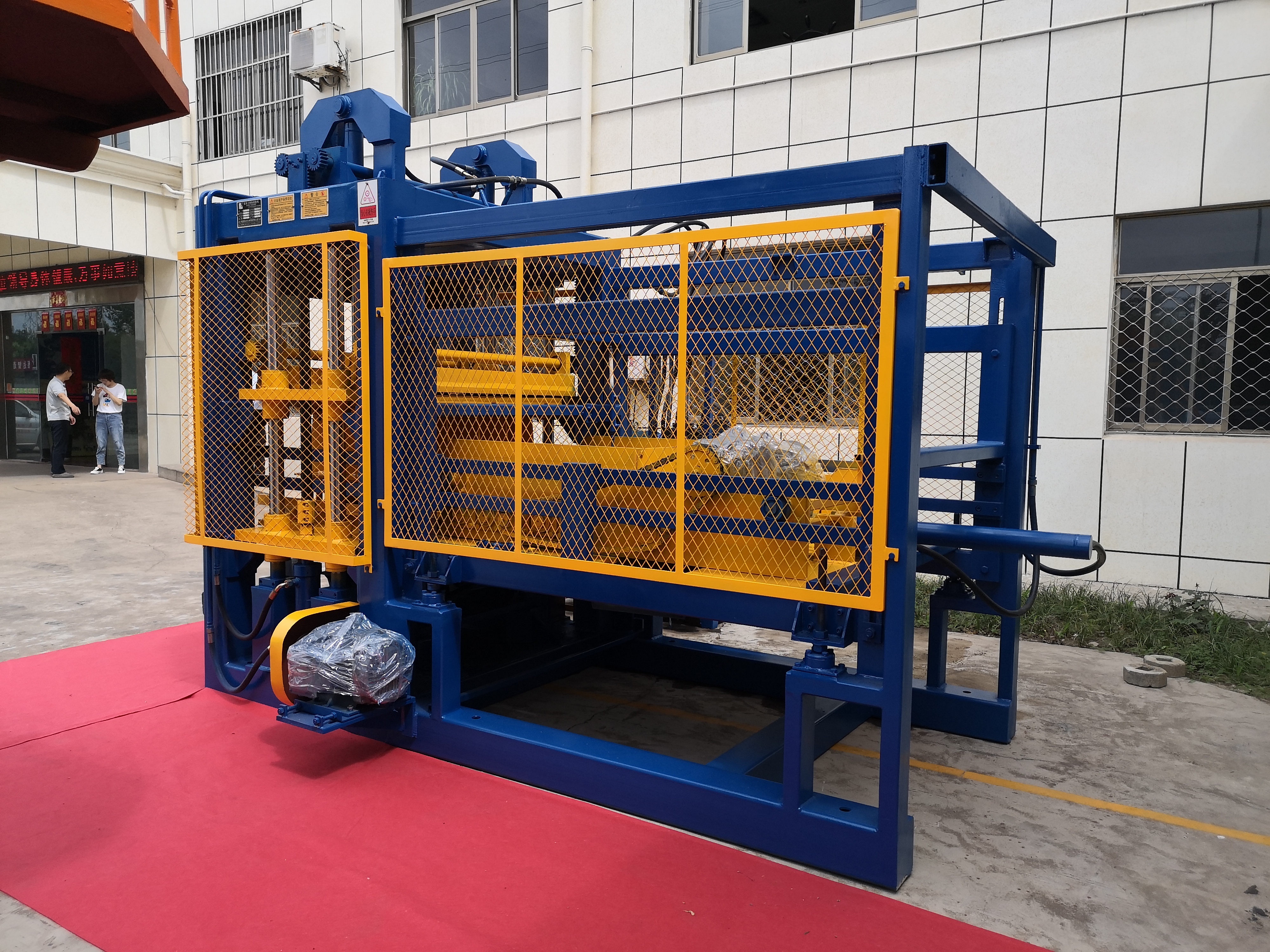

Advantages of QT4-15 concrete block making machine

HENGDA Automatic Block Making Machines:

Our machines, with harmonic cooperation between mechanical, electrical and hydraulic machines functions, guarantee a reliable and high output production of concrete products

1. Use LG PLC control system and Touch Screen, use TOP BRAND relays and contactors:

    A. LG PLC, with great adaptability, guarantees the stability and reliability of the machine.

    B. Visualization touch screen, with easy operation;

    C. High-quality electrical components;

2. Use Frequency Conversional Control Technology, which controls the block making:

    A. Frequency Conversion Control: guarantees the precise and parallel movement between tamper head and mould   protects the products from transfiguration; increases the production rate by improving the vibrating efficiency;

    B. Controls the instantaneous start and stop of the motors, to protect the motor from over-heating caused by constant working;

    C. Power saving: 30%;

3. Use double high-dynamic Proportional/Directional Valves to automatically adjust the oil flow and pressure

    A. Buffer the hydraulic cylinder, to protect the cylinder from damage caused by inertia;

    B. Guarantee production stability;

4. 360° Multi-Shaft Rotating and Compulsory Feeding:

    A. Speedy and rotating feeding, with uniform mixing, to make sure that the density and intensity of the products are guaranteed

    B. This uniform feeding is applicable for different kinds of raw materials and moulds;

5. Use heat treatment on moulds and main parts of the machines:

    A. Heavy duty machine structure and wear resistant moulds;

    B. The hardness reaches up to HRC 52-58;

C. Greatly improves the using lifetime of the machine by 50%.

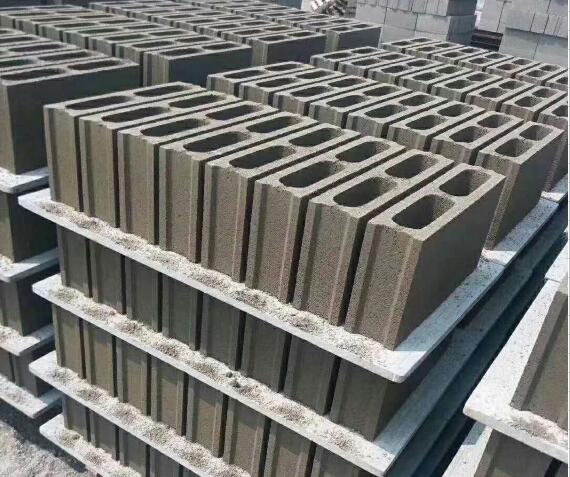

      (Hollow Block: 240x115x53mm)

                                          24 pcs/mould

                                         (Hollow Block: 240x115x53mm)

   Hollow Block: 240x115x90mm

                                         12 pcs/mould

                                         (Hollow Block: 240x115x90mm)

   Holland Brick: 200x100x60-80mm

                                    14 pcs/mould

                                       (Holland Brick: 200x100x60-80mm)

Cycle Time:

15 seconds
Production per Day (8 Working Hours):
Hollow Block (400x200x200mm): 5760-7680 pcs
Solid Block    (240x115x53mm): 34560-46080 pcs
Hollow Block (240x115x90mm): 17280-23040 pcs

Vibrating Frequency:
3300 rolls/minute

Vibrating Force:
50 KN

Motors Power:
25.5 KW

Machine Dimensions:
9500x2800x2750mm
Pallet Size:
850x560*18mmmm

Gross Weight:
about 8T

Raw Materials:
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.

Applied Products:

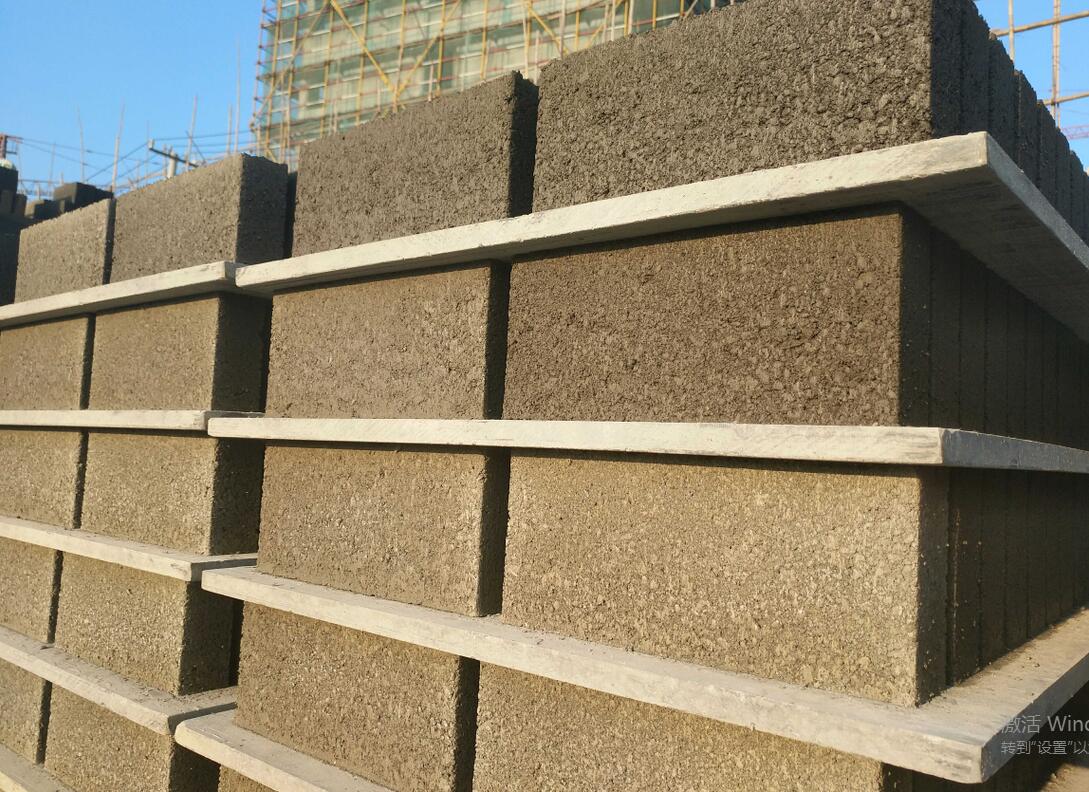

concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc

Applied Fields:
widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc
