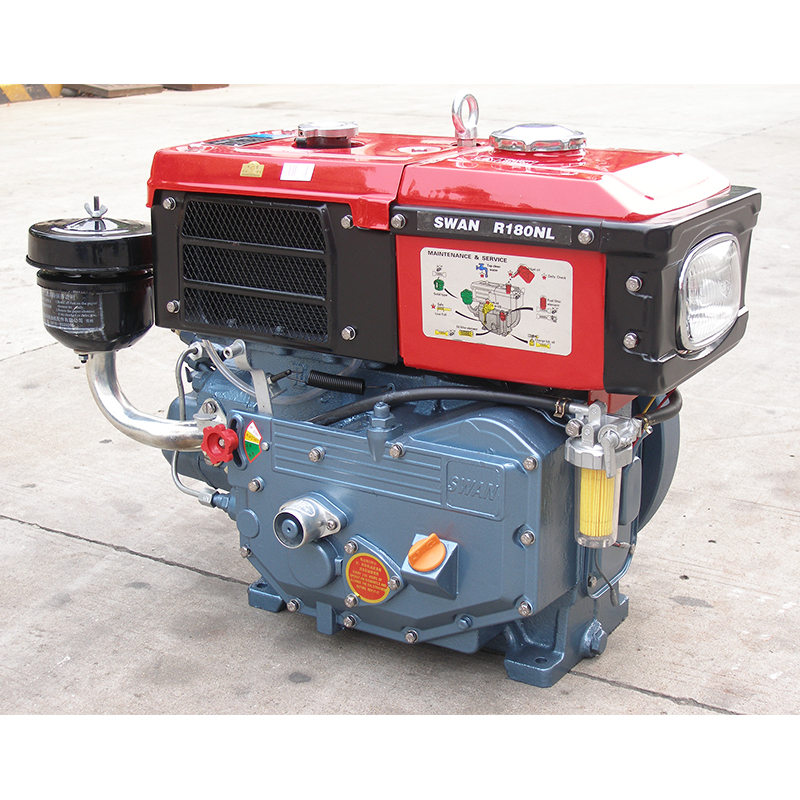

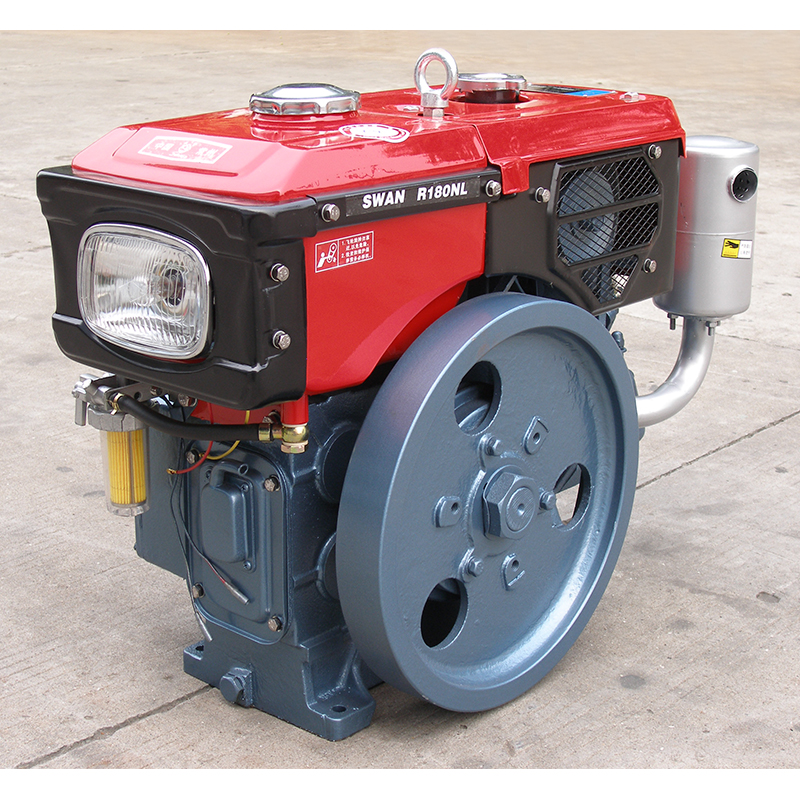

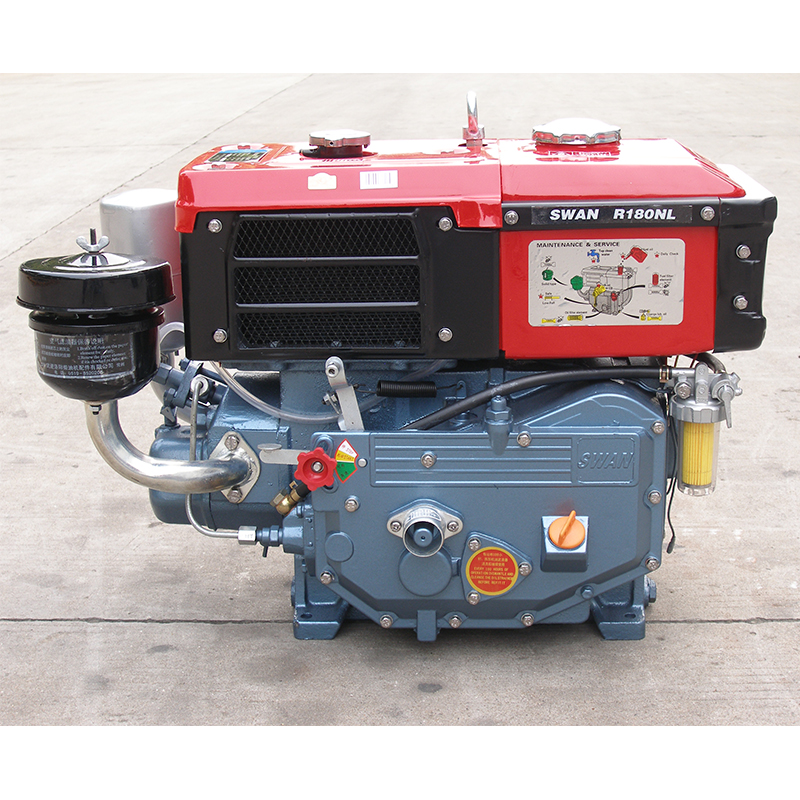

R180nl/R180nml Diesel Engine
JINTAN DIESEL ENGINE CHANGZHOU CO.,LTD.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
R180nl/R180nml Diesel Engine
JINTAN DIESEL ENGINE CHANGZHOU CO.,LTD.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Size: 625x341x464
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America
About this product
- Size: 625x341x464
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America
Product details
| Size | 625x341x464 |
|---|
Product details
| Size | 625x341x464 |
|---|
From the supplier
Model
Model
R180NL
R180NML
Type
Type
Single Cylinder, Horizontal, Four-Stroke
Single-cylinder Horizontal Four-stroke
Combustion Method
Combustion system
Vortex Chamber Type
Swirlcombustion Chamber
Cylinder Diameter x Stroke (mm）
Borexstroke(mm)
80×80
80×80
Compression Ratio
Compression ratio
21±1
21±1
1Hourly Power kW/r/min
1-hour rated output(kw/r/min)
5.67/2600
5.67/2600
12Hourly PowerkW/r/min
12-hour rated output(kw/r/min)
5.15/2600
5.15/2600
Fuel Consumption Rate
Specific fuel consumption(g/kw h)
≤287
≤287
Oil Consumption Rate
Specific lube oil consumption(g/kw h)
≤4.08
≤4.08
Cooling Method
Cooling system
Condenser Cooling
Radiator
Lubrication Method
Lubrication system
Pressure & Splash Combined
Combined pressure and Splashing
Starting Method
Starting method
Hand Crank Speed Start
Hand crank
Electric Start
Electric start
Net Weight (kg)
Net weight(kg)
72
72
Power Output Type
Method of power output
Flywheel End Output
Output of flywheel end
External Dimensions（mm）
Overall dimensions(mm)
625×341×464
625×341×464
From the supplier
Model
Model
R180NL
R180NML
Type
Type
Single Cylinder, Horizontal, Four-Stroke
Single-cylinder Horizontal Four-stroke
Combustion Method
Combustion system
Vortex Chamber Type
Swirlcombustion Chamber
Cylinder Diameter x Stroke (mm）
Borexstroke(mm)
80×80
80×80
Compression Ratio
Compression ratio
21±1
21±1
1Hourly Power kW/r/min
1-hour rated output(kw/r/min)
5.67/2600
5.67/2600
12Hourly PowerkW/r/min
12-hour rated output(kw/r/min)
5.15/2600
5.15/2600
Fuel Consumption Rate
Specific fuel consumption(g/kw h)
≤287
≤287
Oil Consumption Rate
Specific lube oil consumption(g/kw h)
≤4.08
≤4.08
Cooling Method
Cooling system
Condenser Cooling
Radiator
Lubrication Method
Lubrication system
Pressure & Splash Combined
Combined pressure and Splashing
Starting Method
Starting method
Hand Crank Speed Start
Hand crank
Electric Start
Electric start
Net Weight (kg)
Net weight(kg)
72
72
Power Output Type
Method of power output
Flywheel End Output
Output of flywheel end
External Dimensions（mm）
Overall dimensions(mm)
625×341×464
625×341×464
