Refrigerator condenser

10/10 fairsForeign Trade CompanyModel BRCR
Refrigerator condenser
$200$1000/ unit FOB
MOQ 500 unit
Estimated landed cost
$10 / unit
range $5.24$16 · total ≈ $5,191
FOB goods (500)
$3,000
Ocean freight + handling (5.0 CBM)
$1,300
US duty (3.5%)
$105
Section 301 tariff (25.0%)
$750
Customs fees (MPF/HMF)
$36

Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.

Service
From $29 per supplier (Verify)
You get
Phone and video verification, a quote sheet and a written report
Turnaround
3 business days
Contact details
Sent to you once your request is confirmed

If we can't reach the supplier within 3 business days, we refund the fee.

About this product

  • Materials: steel bundy tube
  • Size: 50x30
  • Color: black
  • Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
  • Made in: Jiangsu, China

Product details

Materialssteel bundy tube
Size50x30
Colorblack

From the supplier

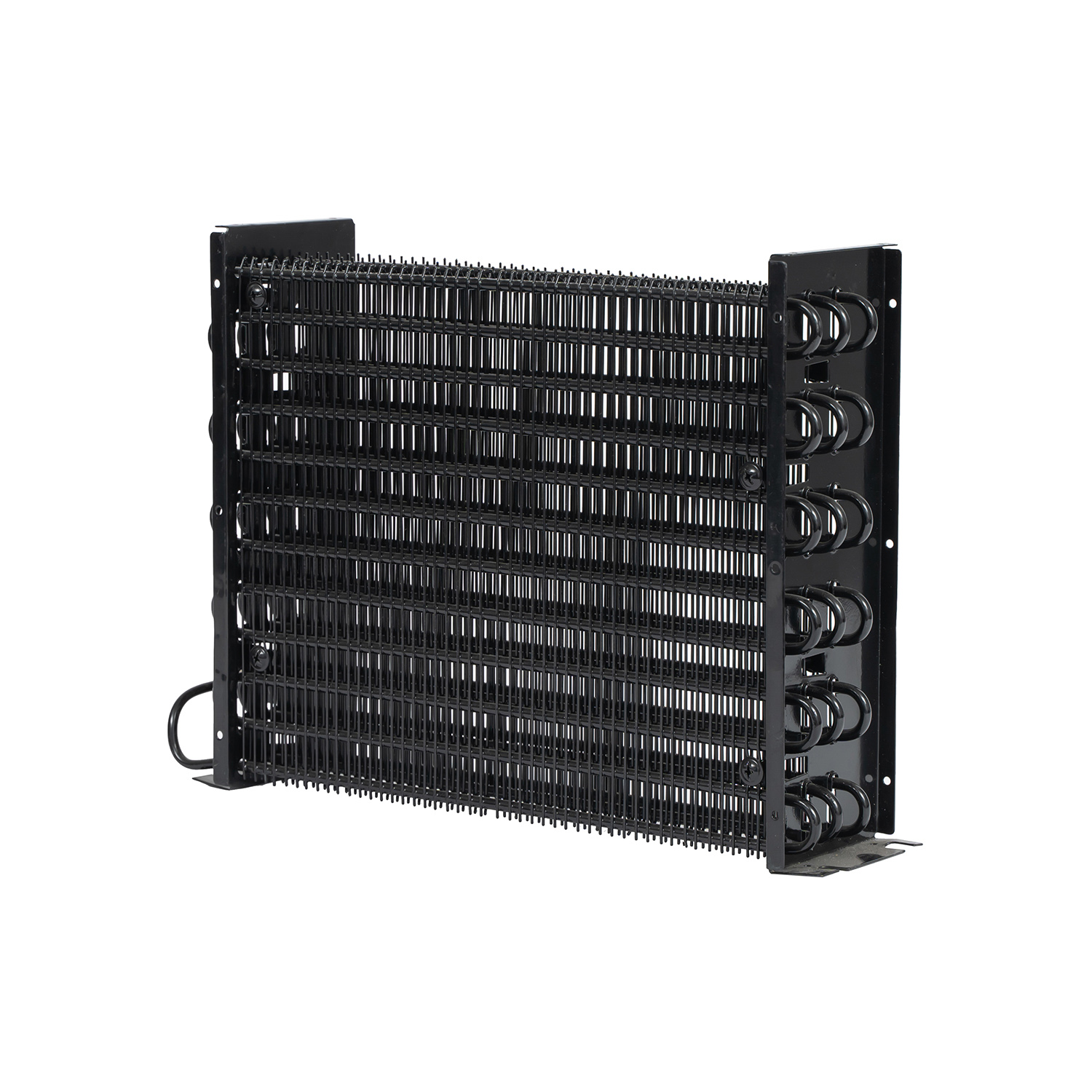

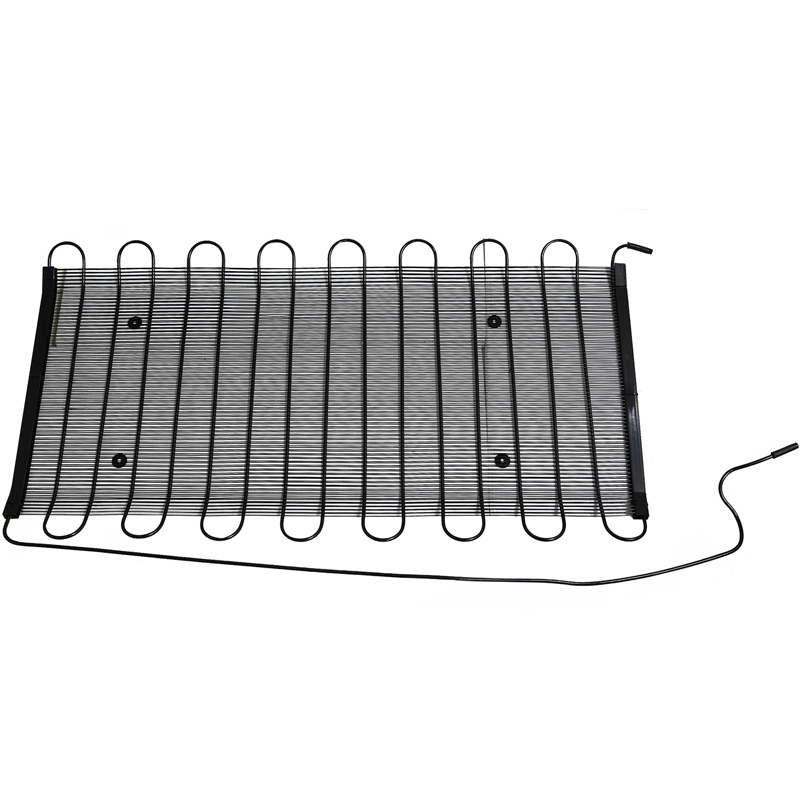

Wire tube condenser   Wire tube condenser widely used in high cooling performance required large refrigeration product   Features:   External installation, good air ventilation property,to ensuring better cooling efficiency in limited space.    Refrigerant flowing smoothly,helps to reduce the load of compressor,save energy extend operating life.   Technical Data:   Material   1 Tube of Condenser; Welded Coiled Steel Tubing 4.76-6.35 *0.71mm   2 Cooling wire:Low carbon steel wire 1.4-1.6mm   3 Mounting:Cold-rolled plate T=0.6-2.0mm   4 Structure:Wires welded with bundy tube   Product performance   1 Electrophoretic coating for corrosion resistance    2 Internal cleanliness up to CFC/R134a refrigeration system requirements.   3 Meet the performace requirements of designed refrigerator/freezer     R134a cooling system internal piping standards:   1 Residual Moisture ≤30 mg/㎡    2 Residual impurity ≤20 mg/㎡   3 Residual mineral oil ≤7 mg/㎡   4 Residual chlorine ion ≤3 mg/㎡    5 Residual paraffin   6 Maximum single impurity ≤0.5 mm   Coating quality performance standards:   1 Coating thickness  thickness of cathodic electrophoresis coating≥18um   2 Hardness of coating ≥2H    3 Impact of coating:50cm.kg/cm impact, no crack   4 Adhesion of coating ≥2 grade   5 Flexibility of coating:Flex R3D, Flex angle 180,no crack, no strip   6 Corrosion resistant(Salt spray test GB2423)Cathodic electrophoresis ≥150h    Products available according to customer’s design/sample.

About the supplier

JINAN RETEK INDUSTRIES INC.

Main products: Refrigerator Parts,Washing Machine Parts,Water filter, water purification machines, spare parts,Electric heater parts,Air Conditioner Parts,Electric Pressure Cooker Parts,Ice Cream Machine Parts,Wine Refrigerator Parts,Water Dispenser Parts,Refrigerators,Auto air conditioner,Other Automotive Body Parts,Car washer,Gasket packing of engine,Auto ac receiver drier,Other Vehicle Spare Parts,Clutch Discs,Bearing and tightener,Silicone rubber seals,Cooling System,Other General Parts,Oil filter spanner,Auto condens

  • Exhibited at 10 of the last 10 Canton Fairs
  • Foreign Trade Company
  • Founded 2010
See all products from this supplier →
Supplier
JINAN RETEK INDUSTRIES INC.
Jinan, Shandong, China
60
trust
  • Exhibited at 10 of the last 10 Canton Fairs
  • Foreign Trade Company
  • Founded 2010
Canton Fair booth: 4.2L40-41 · Household Electrical Appliances (140th session)

Similar products from other suppliers

Add a few to compare, then request quotes from all of them at once.

Refrigerator motor
Refrigerator motor
$0.14 / unit FOB (≈ from CNY)
~$1.75 landed · 2,000 pcs
SPLC-Y Oil Receiver
SPLC-Y Oil Receiver
$12.00–$22.00 / unit FOB
~$30.39 landed · 100 pcs
LED Lamp
New
LED Lamp
$0.80–$3.00 / blade FOB
~$4.01 landed · 2,000 pcs

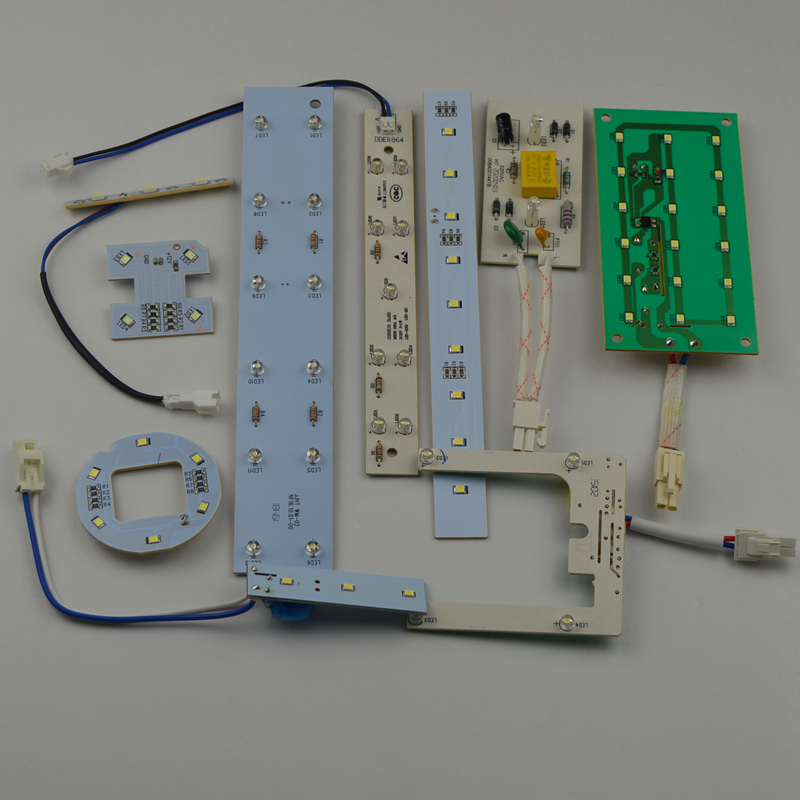

LED Light Bar
