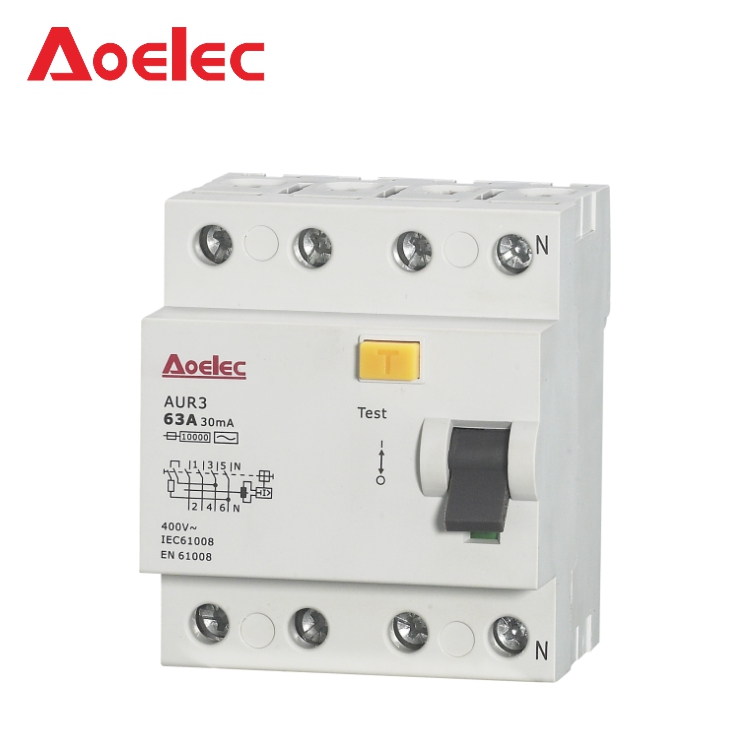

Residual Current Circuit Breaker
WENZHOU AOELEC ELECTRICAL CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Residual Current Circuit Breaker
WENZHOU AOELEC ELECTRICAL CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: PA66
- Size: 83*71*36
- Color: Grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: PA66
- Size: 83*71*36
- Color: Grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | PA66 |
|---|---|
| Size | 83*71*36 |
| Color | Grey |
Product details
| Materials | PA66 |
|---|---|
| Size | 83*71*36 |
| Color | Grey |
From the supplier
Colorful box will be designed according to your requirement.">1 PCS/inner box,60 inner boxer/carton.
The carton is strong enough for sea and air shipment,
Colorful box will be designed according to your requirement. Port NINGBO/SHANGHAI
Function and Feature:
Protection against earth/leakage current and residual current,fuction of isolation
Protection against fire hazard caused by insullation faults
Residual fault current indication
6kA high breaking capacity
Pin/fork type busbar terminal connection
Fire resistant plastic parts withstand abnormal heating and strong impact
Automatically disconnect the circuit when earth/leakage current occurs
or exceeds the rated sensitivity
Independent of power supply and line voltage,and free from external interference
Voltage fulctuation
35mm DIN rail mounting
Technical Data:
Rated current(In):16,20,25,32,40,63,80A
Rated voltage(Un):230/240VAC,400/415VAC
Rated residual current:10mA,30mA,100mA,300mA
Number of poles:1P+N(2P),3P+N(4P)
Electrical endurance:10000cycles
Mechnical endurance:20000cycles
Terminals:pillar type
Cable termination:35mm2
Torque of screw:2.5Nm
IP degree:IP20
Standards:IEC/EN 61008-1
Catalog No. CTN Size:47.5x25.6x17.5cm
In(A)30mA100mA300mAQTY/BoxQTY/CTN Model No.Model No.Model No.PCSPCS16AAUR3 3P+N 16AAUR3 3P+N 16AAUR3 3P+N 16A 13025AAUR3 3P+N 20AAUR3 3P+N 20AAUR3 3P+N 20A13032AAUR3 3P+N 32AAUR3 3P+N 32AAUR3 3P+N 32A13040AAUR3 3P+N 40AAUR3 3P+N 40AAUR3 3P+N 40A13063AAUR3 3P+N 63AAUR3 3P+N 63A AUR3 3P+N 63A13080AAUR3 3P+N 80AAUR3 3P+N 80AAUR3 3P+N 80A130
About us:
Aoelec Electrical was established in 2003,with 50 office guys and 240 workers now.Our products are present in more than 30 different countries from Middle Ease to South American,from Europen to Australia,from Southeast Asia to North Africa.And our product have KEMA,TUV,SEMKO,CB and CE certificates.
From the supplier
Colorful box will be designed according to your requirement.">1 PCS/inner box,60 inner boxer/carton.
The carton is strong enough for sea and air shipment,
Colorful box will be designed according to your requirement. Port NINGBO/SHANGHAI
Function and Feature:
Protection against earth/leakage current and residual current,fuction of isolation
Protection against fire hazard caused by insullation faults
Residual fault current indication
6kA high breaking capacity
Pin/fork type busbar terminal connection
Fire resistant plastic parts withstand abnormal heating and strong impact
Automatically disconnect the circuit when earth/leakage current occurs
or exceeds the rated sensitivity
Independent of power supply and line voltage,and free from external interference
Voltage fulctuation
35mm DIN rail mounting
Technical Data:
Rated current(In):16,20,25,32,40,63,80A
Rated voltage(Un):230/240VAC,400/415VAC
Rated residual current:10mA,30mA,100mA,300mA
Number of poles:1P+N(2P),3P+N(4P)
Electrical endurance:10000cycles
Mechnical endurance:20000cycles
Terminals:pillar type
Cable termination:35mm2
Torque of screw:2.5Nm
IP degree:IP20
Standards:IEC/EN 61008-1
Catalog No. CTN Size:47.5x25.6x17.5cm
In(A)30mA100mA300mAQTY/BoxQTY/CTN Model No.Model No.Model No.PCSPCS16AAUR3 3P+N 16AAUR3 3P+N 16AAUR3 3P+N 16A 13025AAUR3 3P+N 20AAUR3 3P+N 20AAUR3 3P+N 20A13032AAUR3 3P+N 32AAUR3 3P+N 32AAUR3 3P+N 32A13040AAUR3 3P+N 40AAUR3 3P+N 40AAUR3 3P+N 40A13063AAUR3 3P+N 63AAUR3 3P+N 63A AUR3 3P+N 63A13080AAUR3 3P+N 80AAUR3 3P+N 80AAUR3 3P+N 80A130
About us:
Aoelec Electrical was established in 2003,with 50 office guys and 240 workers now.Our products are present in more than 30 different countries from Middle Ease to South American,from Europen to Australia,from Southeast Asia to North Africa.And our product have KEMA,TUV,SEMKO,CB and CE certificates.
