RG6 Compression RF F Connectors for Coaxial Cable
PHAETON ELECTRONIC CO.,LTD
See what’s includedHide breakdown
- FOB goods (5,000)
- $500
- Ocean freight + handling (15.0 CBM)
- $2,500
- US duty (2.7%)
- $14
- Section 301 tariff (25.0%)
- $125
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (5,000)
- $500
- Ocean freight + handling (15.0 CBM)
- $2,500
- US duty (2.7%)
- $14
- Section 301 tariff (25.0%)
- $125
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
RG6 Compression RF F Connectors for Coaxial Cable
PHAETON ELECTRONIC CO.,LTDSee what’s includedHide breakdown
- FOB goods (5,000)
- $500
- Ocean freight + handling (15.0 CBM)
- $2,500
- US duty (2.7%)
- $14
- Section 301 tariff (25.0%)
- $125
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (5,000)
- $500
- Ocean freight + handling (15.0 CBM)
- $2,500
- US duty (2.7%)
- $14
- Section 301 tariff (25.0%)
- $125
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Application: RF
- Exports to: Africa, Southeast Asia, South Asia, USA and Canada, Latin America, EU, Other European Countries, Others
- Made in: Shanghai, China
About this product
- Application: RF
- Exports to: Africa, Southeast Asia, South Asia, USA and Canada, Latin America, EU, Other European Countries, Others
- Made in: Shanghai, China
Product details
| Application | RF |
|---|
Product details
| Application | RF |
|---|
From the supplier

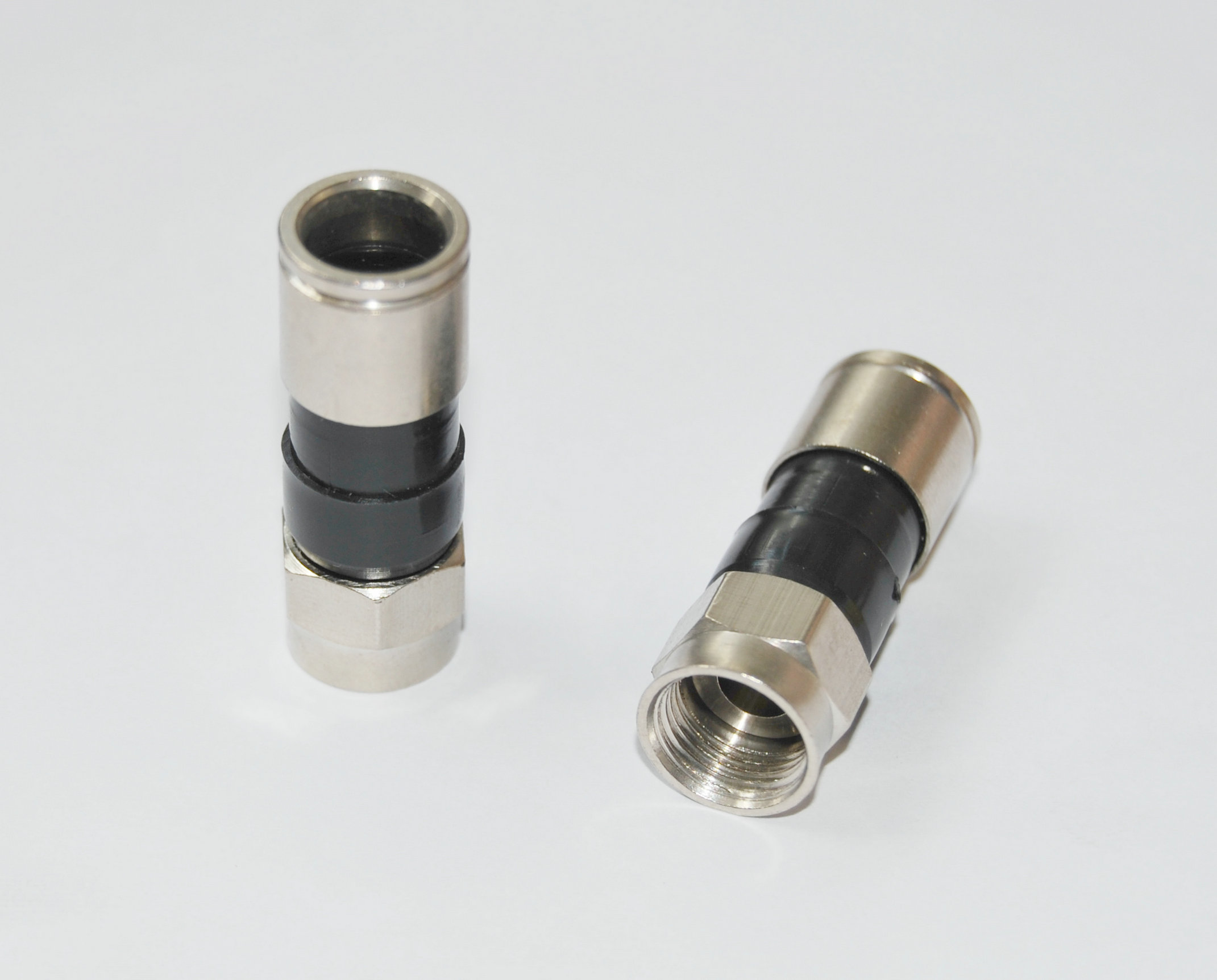

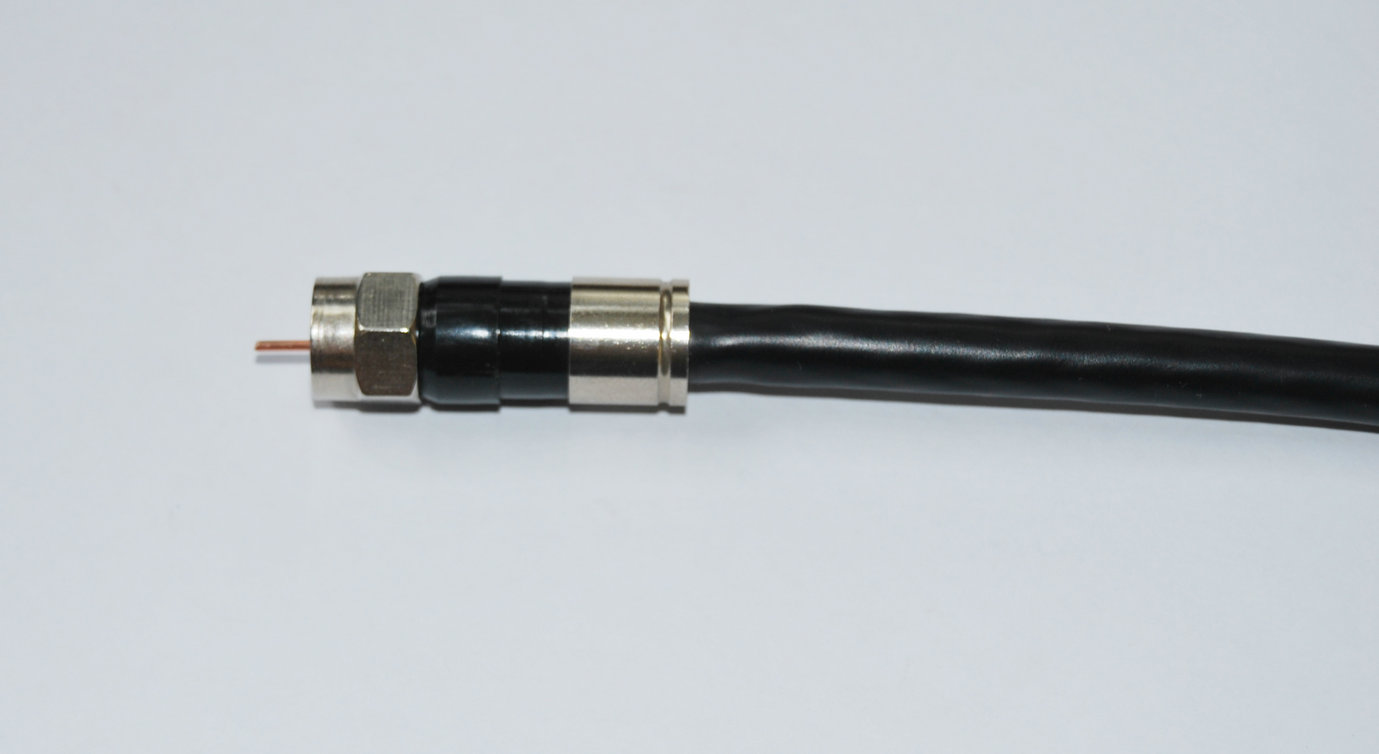

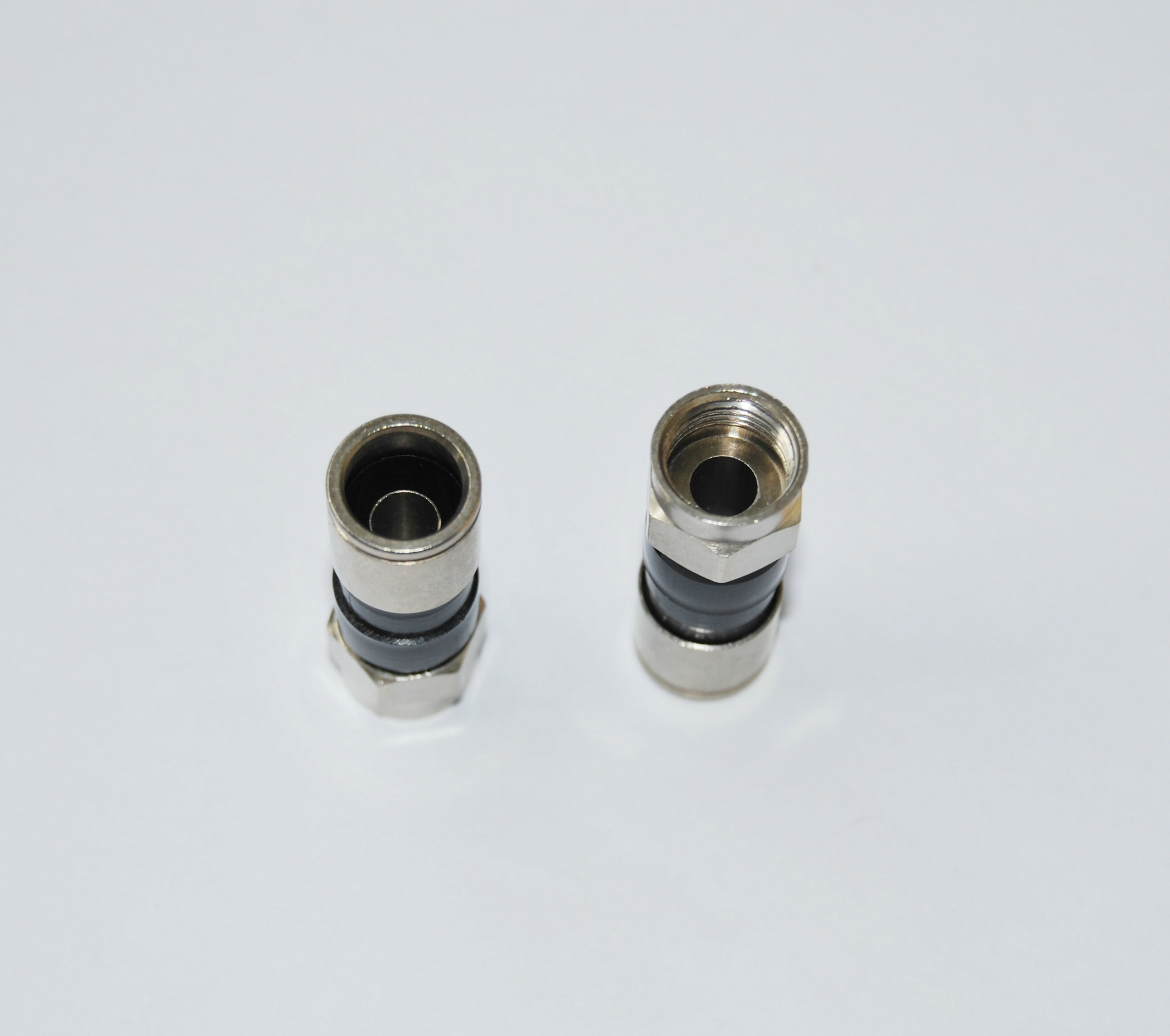

High performance Black Nickel connector f compressed for Cable RG6
- Universal so it works with all RG-6 Cable (60% thru Quad)

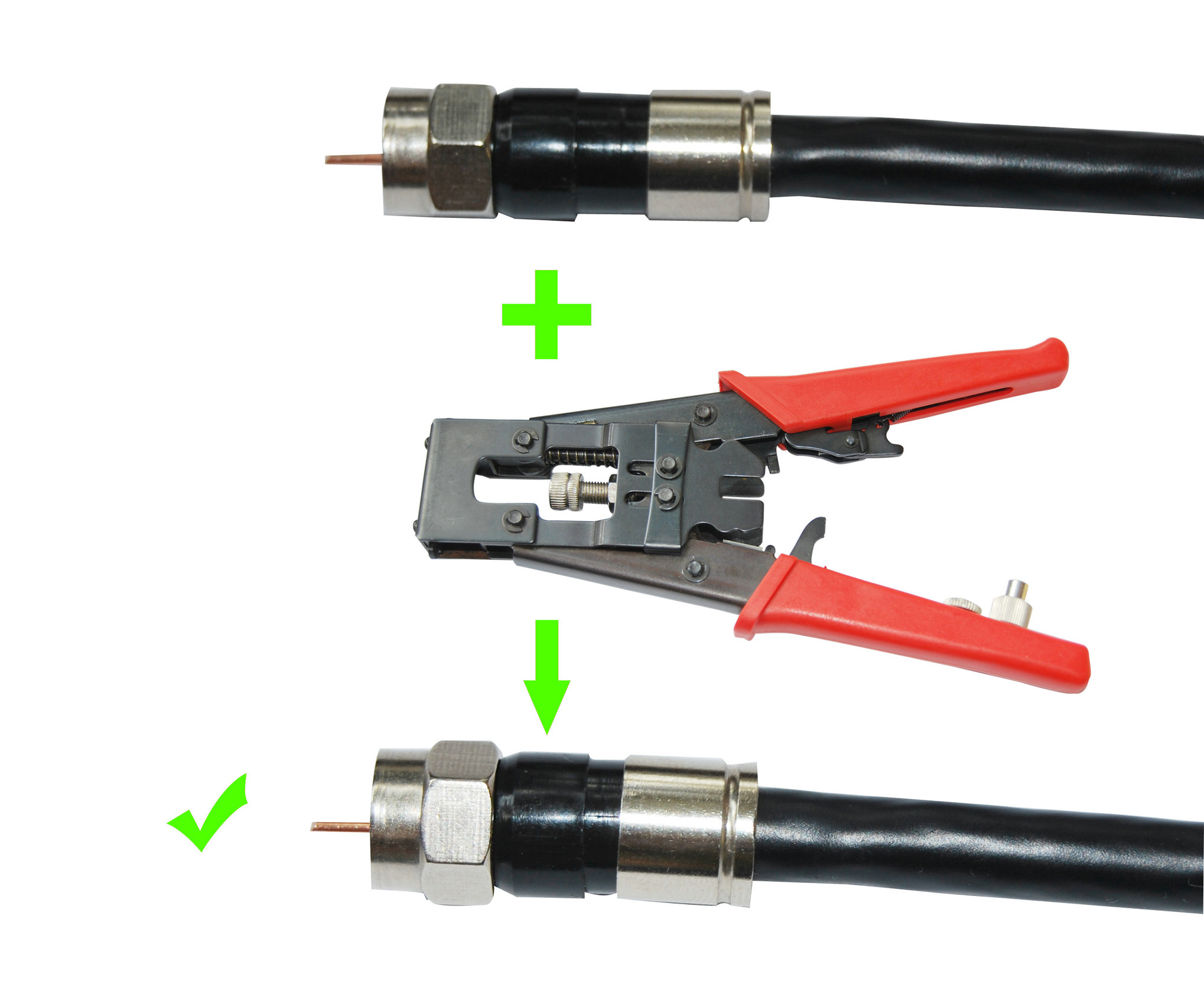

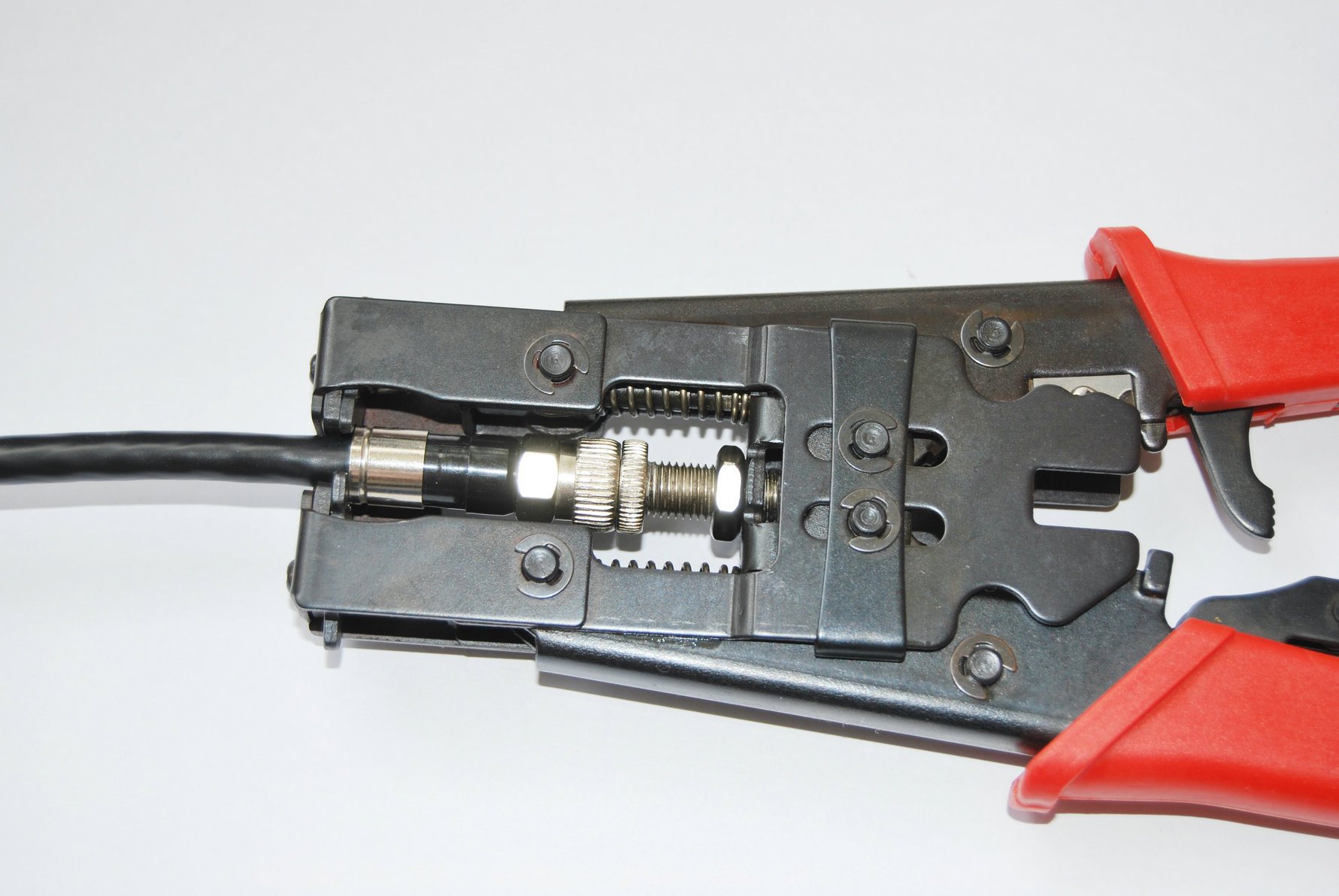

- Compression Connector with Dual O-Rings
- All Brass Construction
- Bag of 100
- Meets SCTE Specifications
Product Specifications
Bandwidth:0MHz to 3GHz
Impedance:75Ohms
Return Loss:Minimum -30 dB to 3GHz
Insertion Loss: LESS THAN 10db to 3GHz
Shielding Effectiveness:Ehanced by 25dB
Operating Temperature:-40° F to +140°F(-40°C to +60°C)
Cable Retention:45lbs minimum
Meets or exceeds all SCTE Specifications
Characteristic impedance
75Ω
Temperature range
-65~+165°C
Frequency range
DC~1GHz
Working Voltage
≤170V
Center conductor retention force
≥0.2 N
Vibration
100m/s2 (10~500Hz)
Conductor resistance
Center Conductor
≤ 10 mΩ
Outer Conductor
≤ 5 mΩ
Durability
Mating cycles
≥500
Withstanding voltage
≤500V rms
Voltage Standing Wave Ratio
Straight
≤1.20
Right angle
≤1.30
Parts Name
Material
Plating
Material And Plating
Body
Brass
Nickel plated
Pin contact
Brass
Gold or silver plated
Resilient contact
Tin bronze
Gold or silver plated
Insulators
PTFE
-
Gaskets
Silicon rubber
-
Crimp ferrules
Copper alloy
Nickel or gold plated
Applicable standard
IEC 60169-24
From the supplier
High performance Black Nickel connector f compressed for Cable RG6
- Universal so it works with all RG-6 Cable (60% thru Quad)
- Compression Connector with Dual O-Rings
- All Brass Construction
- Bag of 100
- Meets SCTE Specifications
Product Specifications
Bandwidth:0MHz to 3GHz
Impedance:75Ohms
Return Loss:Minimum -30 dB to 3GHz
Insertion Loss: LESS THAN 10db to 3GHz
Shielding Effectiveness:Ehanced by 25dB
Operating Temperature:-40° F to +140°F(-40°C to +60°C)
Cable Retention:45lbs minimum
Meets or exceeds all SCTE Specifications
Characteristic impedance
75Ω
Temperature range
-65~+165°C
Frequency range
DC~1GHz
Working Voltage
≤170V
Center conductor retention force
≥0.2 N
Vibration
100m/s2 (10~500Hz)
Conductor resistance
Center Conductor
≤ 10 mΩ
Outer Conductor
≤ 5 mΩ
Durability
Mating cycles
≥500
Withstanding voltage
≤500V rms
Voltage Standing Wave Ratio
Straight
≤1.20
Right angle
≤1.30
Parts Name
Material
Plating
Material And Plating
Body
Brass
Nickel plated
Pin contact
Brass
Gold or silver plated
Resilient contact
Tin bronze
Gold or silver plated
Insulators
PTFE
-
Gaskets
Silicon rubber
-
Crimp ferrules
Copper alloy
Nickel or gold plated
Applicable standard
IEC 60169-24
