About this product
- Materials: Steel with chrome treatment
- Size: 6000mm*1700mm*1500mm
- Color: Blue&Yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: Steel with chrome treatment
- Size: 6000mm*1700mm*1500mm
- Color: Blue&Yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | Steel with chrome treatment |
|---|---|
| Size | 6000mm*1700mm*1500mm |
| Color | Blue&Yellow |
Product details
| Materials | Steel with chrome treatment |
|---|---|
| Size | 6000mm*1700mm*1500mm |
| Color | Blue&Yellow |
From the supplier
Product Name:
Ridge Cap Machine
Introduction:

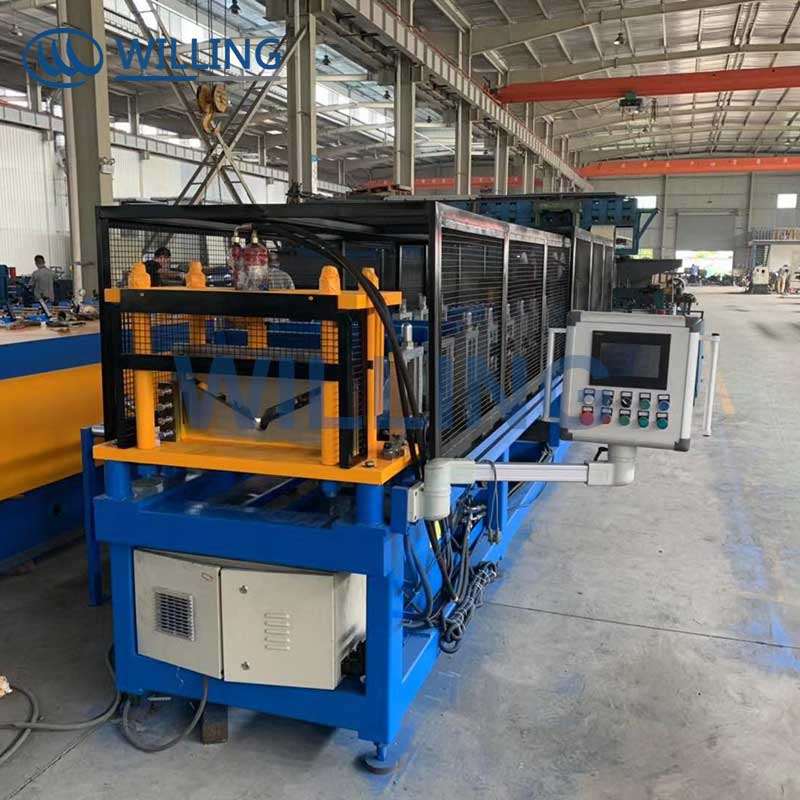

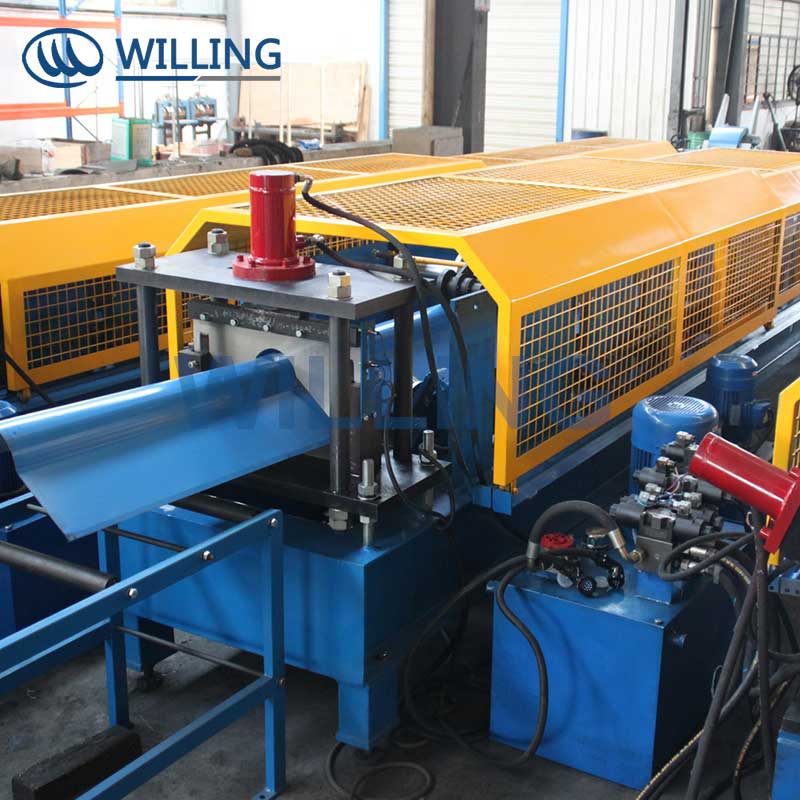

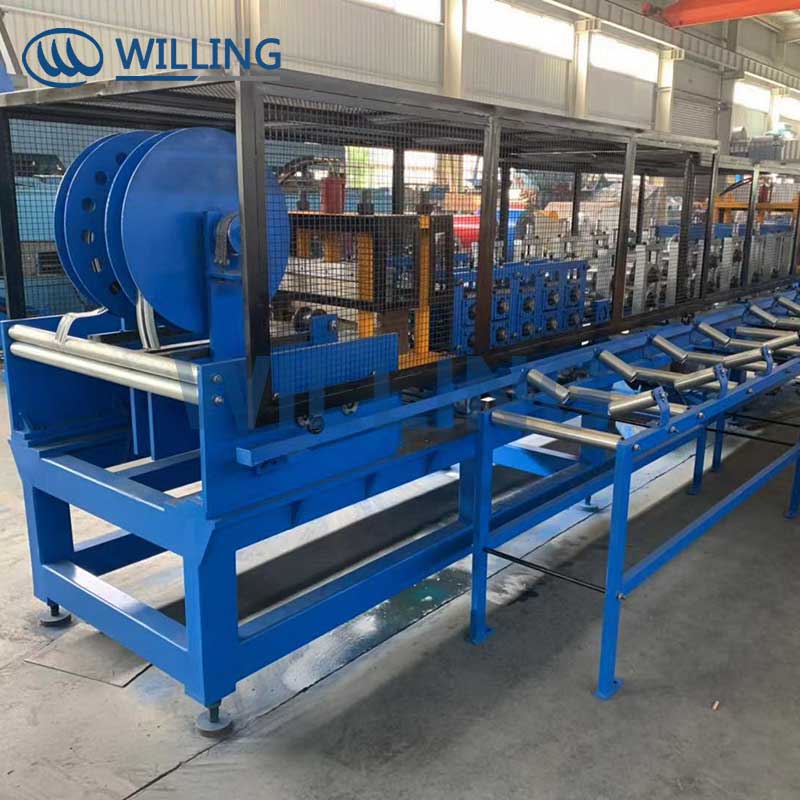

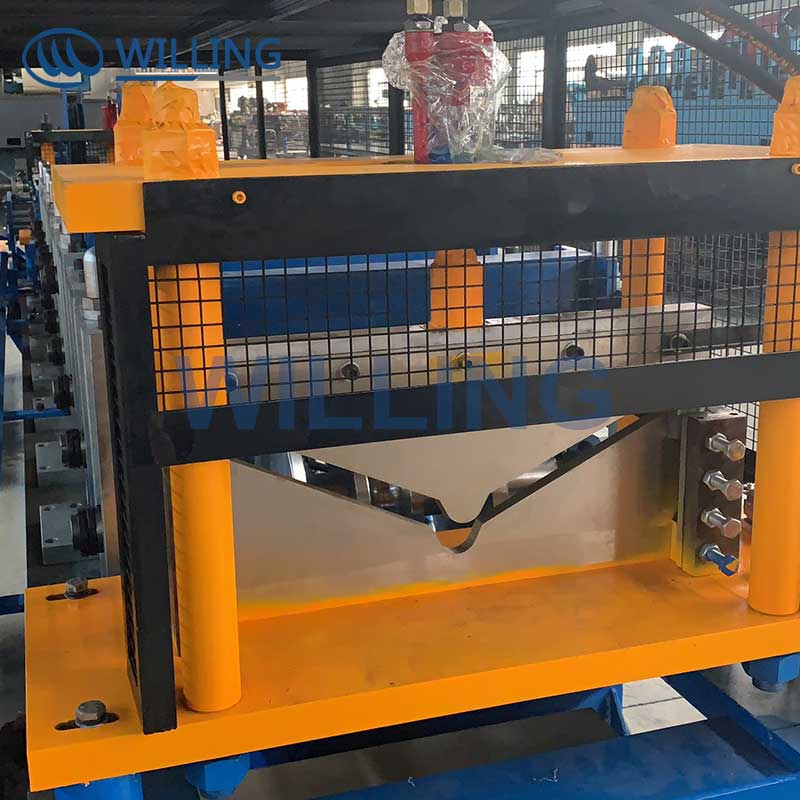

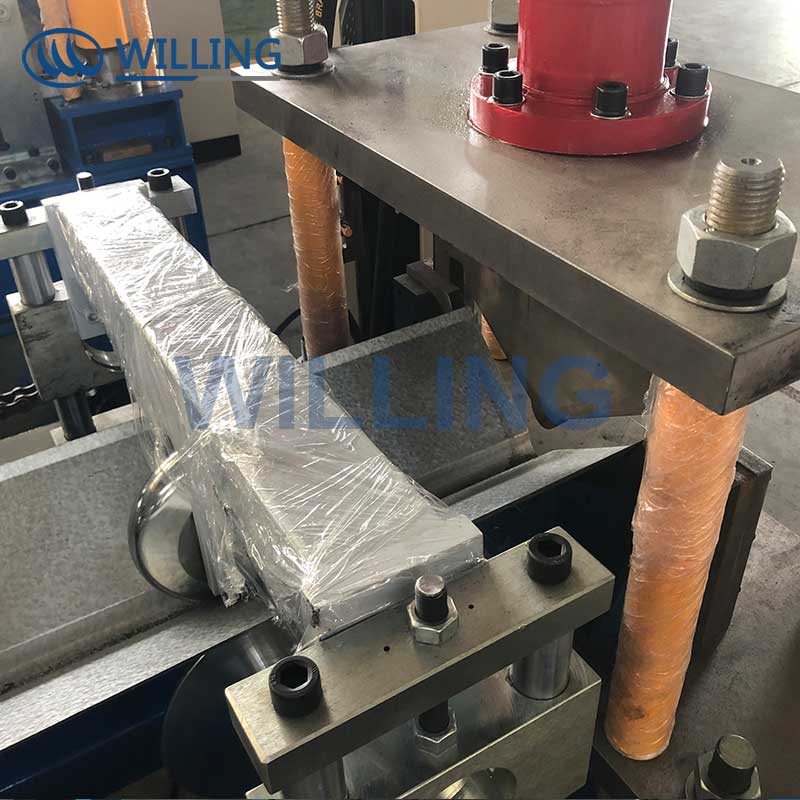

Ridge cap forming machine consists of uncoiler and its base, infeed guides, fixed position driven forming stations, shearing device, hydraulic station, PLC control console and so on. We can produce straight ridge cap and step tile ridge cap both types, such as WLFM117-354, WLFM220-220, WLFM115-284, and etc. We can design different kinds of profile and fittings for machine, as per customers' requirements.
Working Flow
Uncoiling→Sheet Guiding→Roll Forming→Measuring Length &Shearing→Sheet to Support Table.
Main Technical Parameters:
Model
Material
Typle
Color steel sheet
Thickness（mm）
0.3-0.7
Yield stress（Mpa）
230-300
Max. Forming speed （m/min）
0-15
Roller material
45# steel with chrome
Roller driven type
Chain transmission
Controller
PLC
Operation
Touch screen and button
Hydraulic system pressure（Mpa）
12
Hydraulic station motor power（KW）
3
Main motor power（KW）
4
Total power（KW）
7
Total weight（Kg）
About 3000
From the supplier
Product Name:
Ridge Cap Machine
Introduction:
Ridge cap forming machine consists of uncoiler and its base, infeed guides, fixed position driven forming stations, shearing device, hydraulic station, PLC control console and so on. We can produce straight ridge cap and step tile ridge cap both types, such as WLFM117-354, WLFM220-220, WLFM115-284, and etc. We can design different kinds of profile and fittings for machine, as per customers' requirements.
Working Flow
Uncoiling→Sheet Guiding→Roll Forming→Measuring Length &Shearing→Sheet to Support Table.
Main Technical Parameters:
Model
Material
Typle
Color steel sheet
Thickness（mm）
0.3-0.7
Yield stress（Mpa）
230-300
Max. Forming speed （m/min）
0-15
Roller material
45# steel with chrome
Roller driven type
Chain transmission
Controller
PLC
Operation
Touch screen and button
Hydraulic system pressure（Mpa）
12
Hydraulic station motor power（KW）
3
Main motor power（KW）
4
Total power（KW）
7
Total weight（Kg）
About 3000
