River Sand DredgerProduct Description

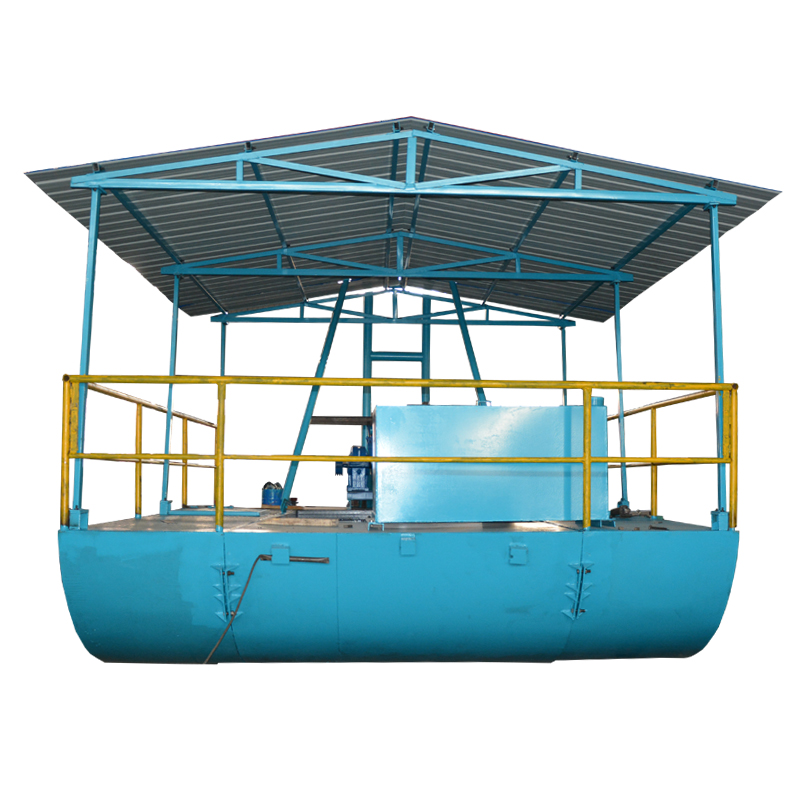

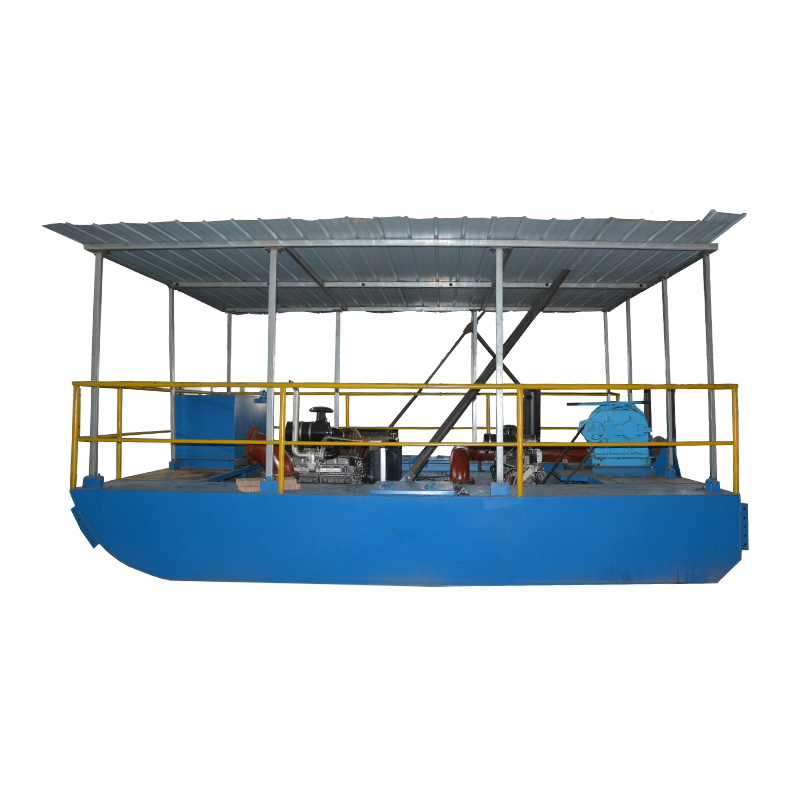

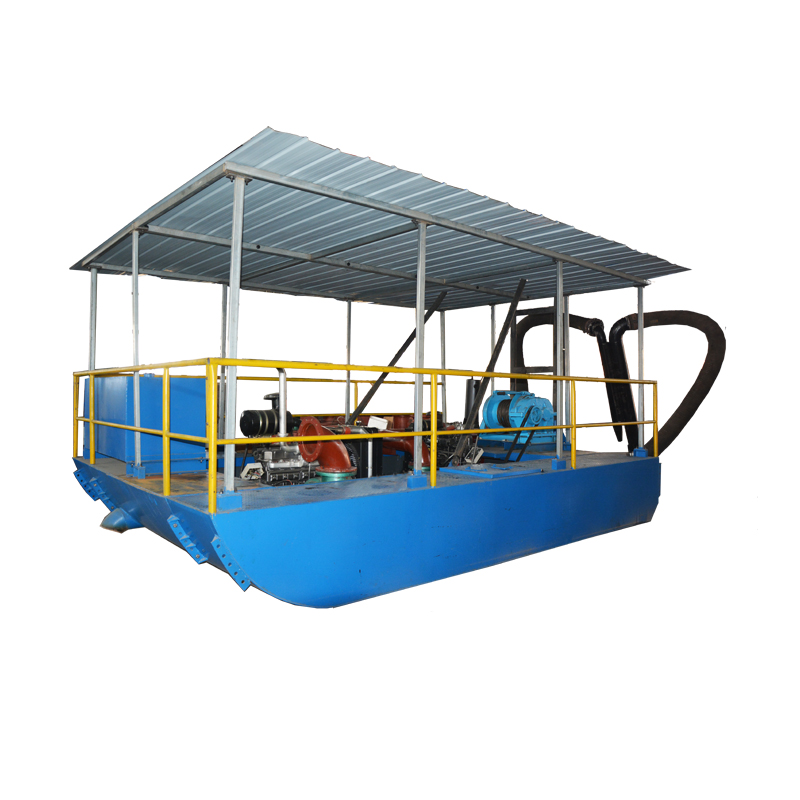

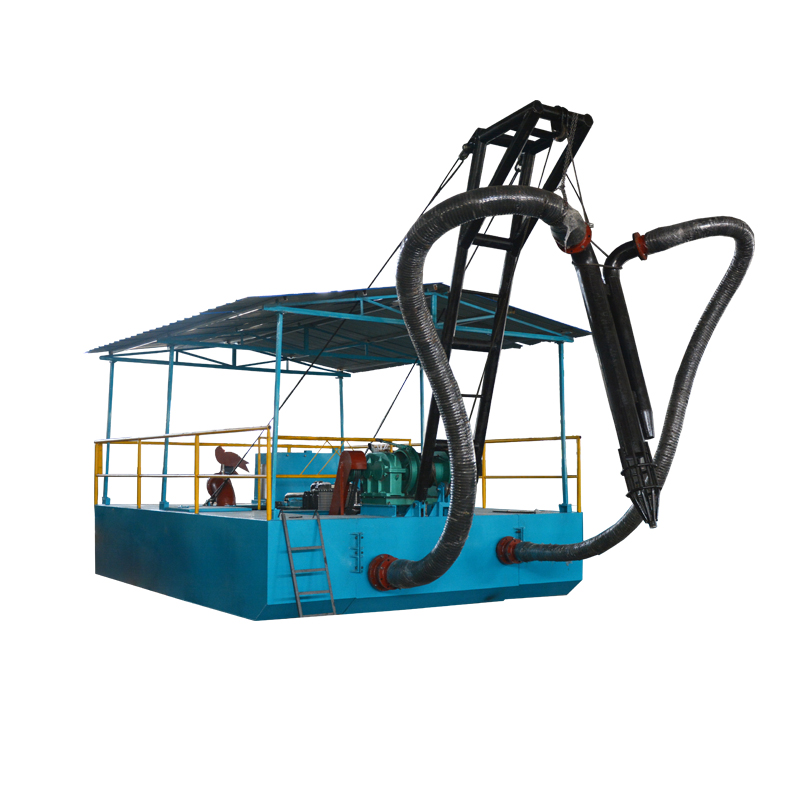

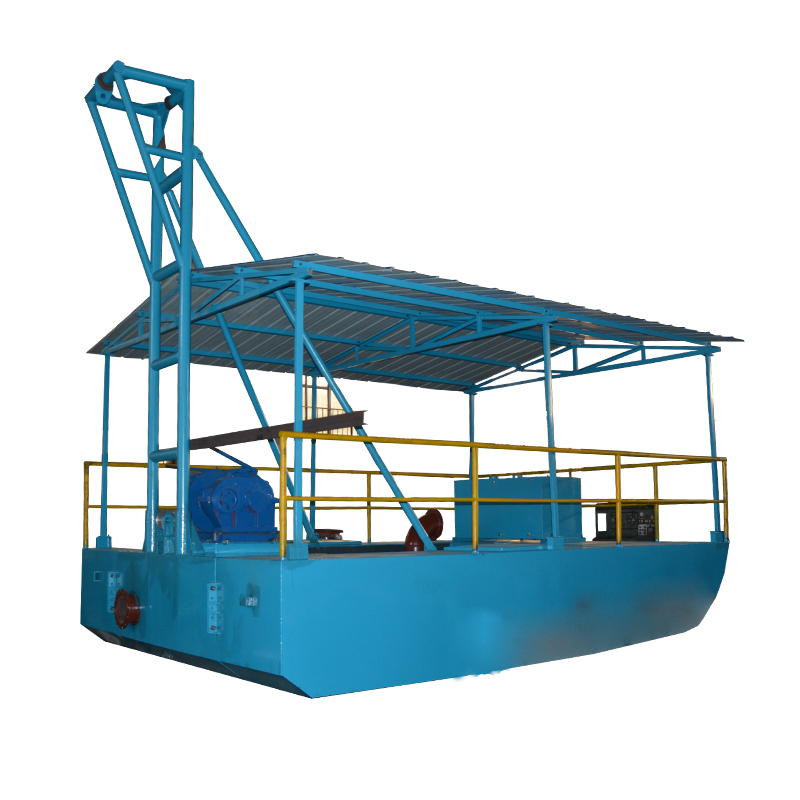

PCJY series river sand dredger is a kind of compact sand dredging machine, which is widely used for excavating and pumping sand or mud from the bottom of the water body. OCEAN river sand dredger is made by our high quality sand pump and industrial-strength floating platforms.

The river sand dredger feature high efficiency, cost saving and easy transportion and operation. It is designed into box-like structure that can be dismantled, so the river sand dredger can be assembled at working place easily and be transported by road, railway or inside container, the portable sand dredger is very convenient to move in the working place.

Specification



ModelDredger size
L*W*H(m)Sand capacity
(m3/h)Max.dig depth
(m)Max. discharge distance
(m)4 inch5.8*2.2*0.7525-305-650-806 inch 5.8*2.2*1.0045-606-880-1008 inch 5.8*4.2*1.0060-808-15100-12010inch5.8*4.2*1.0080-10015-20120-200Dredger hull is made of 6 mm thickness steel plate.
Other specific requirements can be adjusted or customized according to request.

The information in the table is not complete. Please click here to get more detailed data.

Features

• High efficiency, large output and long distance of pump.
• Very simple and fast assembly and dis-assembly, afloat or onshore, simple operation ,easy to control.
• Good economic performance. The digging and delivery of material can be completed one time.
• Highly efficient fuel consumption and minimum overall operational costs.
• Good access to all parts, especially the dredge pump wearing parts.
• The dredgers can be made according to the customers’ request.

Application

• The river sand dredger is used for cleaning river silt, sand production and mining projuct.
• Suitable for heavy duty opetations in tripical climates and in sheltered waters.
• Applied to dredging rivers, lakes and ponds, reclaiming land, cleaning ports and pumping sand.
• Mainly service for the master dredger and transporter for delivering sand to land.
